Success case
Surface Crack Detection and Localization with Seeed’s Raspberry Pi-powered reTerminal

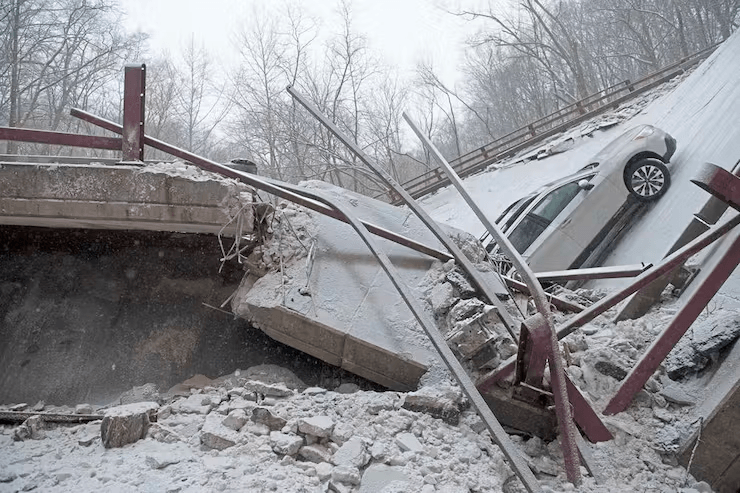

Concrete structures typically show signs of deterioration after 40 to 50 years, emphasizing the
- Industry
- Construction & Infrastructure
- Application
- Concrete surface cracks
Project background and needs
Japan-based engineer Naveen Kumar deployed Edge Impulse and a crack-detection model on reTerminal, using the portable device to support concrete structure inspection, crack localization, and data transfer.
Missed detections and consistency
- Manual visual inspection of large structures tends to miss small cracks.
- Cracks can be harder to observe when temperature changes cause material contraction.
Needs a crack-detection method that supports ongoing analysis.
On-site inspection workflow
- Traditional inspection relies on specialists observing and manually recording findings.
- This process is costly and time-consuming, with limited precision and consistency.
Needs a portable device that displays analysis results and supports copying and transferring data.
Solution and architecture
Model development
The developer selected a pre-trained image classification model in Edge Impulse Studio and fine-tuned it with transfer learning.
On-device application
The tuned model runs on reTerminal's Raspberry Pi CM4, detecting and localizing concrete surface cracks in real time.
Solution components
