7-in-1 Compact Weather Station (Station-Solar Radiation)
S700-B 7-in-1 Compact Weather Sensor with pyranometer measures air temperature, relative humidity, barometric pressure, total solar radiation, sunshine duration, rainfall (optical), wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.
-
Comprehensive 7-parameter MeasurementThe S700-B is equipped with multiple sensors measuring crucial parameters for gathering a wealth of environmental data, including air temperature, relative humidity, barometric pressure, total solar radiation, sunshine duration, precipitation intensity, wind speed and wind direction.
-
Industrial-level DesignWide operating temperature range from -40°C to +85°C and High Protection Rating of IP66
-
Versatile Output InterfaceThe S700-B offers 2 common and reliable output interfaces, namely RS485(supports MODBUS-RTU protocol) and SDI-12.
-
Thermostatically-controlled Heating SystemThis heating system is thermostatically controlled, ensuring that the device can maintain its normal working state and accurate measurement capabilities at extremely cold temperature.
-

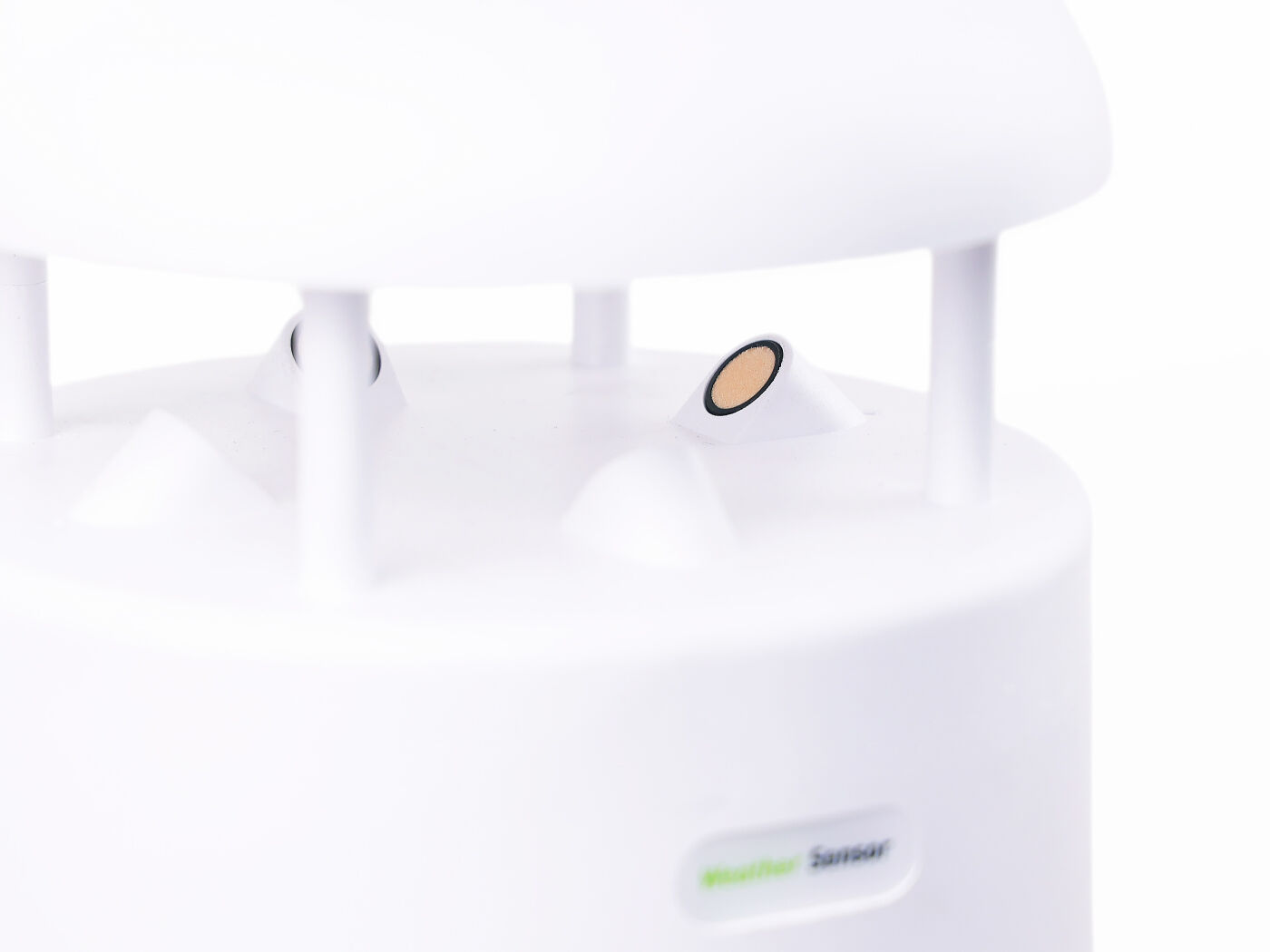

Powerful ComponentsLong cable for mounting, accuracy-enhancing shields, and advanced wind sensors with ultrasonic technology and bird-proof structure.
-
Reliable and High Standard Test PerformanceProven design quality, structure and material through extensive performance testing.

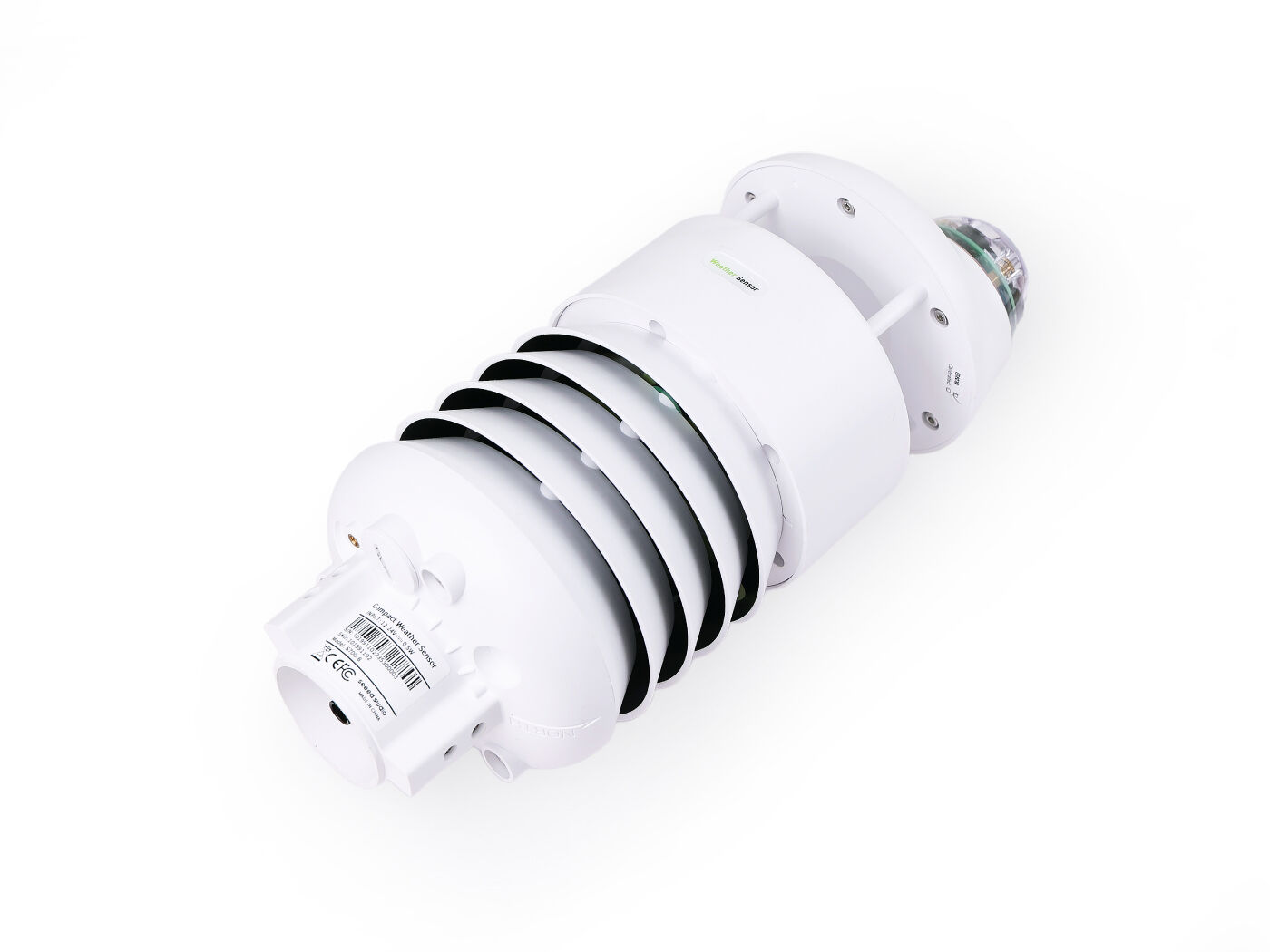

SenseCAP S700-B 7-in-1 Compact Weather Station with Station-Solar Radiation
S700-B 7-in-1 Compact Weather Sensor with pyranometer measures air temperature, relative humidity, barometric pressure, total solar radiation, sunshine duration, rainfall (optical), wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.
Use it with SenseCAP LoRaWAN Data Logger or SenseCAP 4G Data Logger.

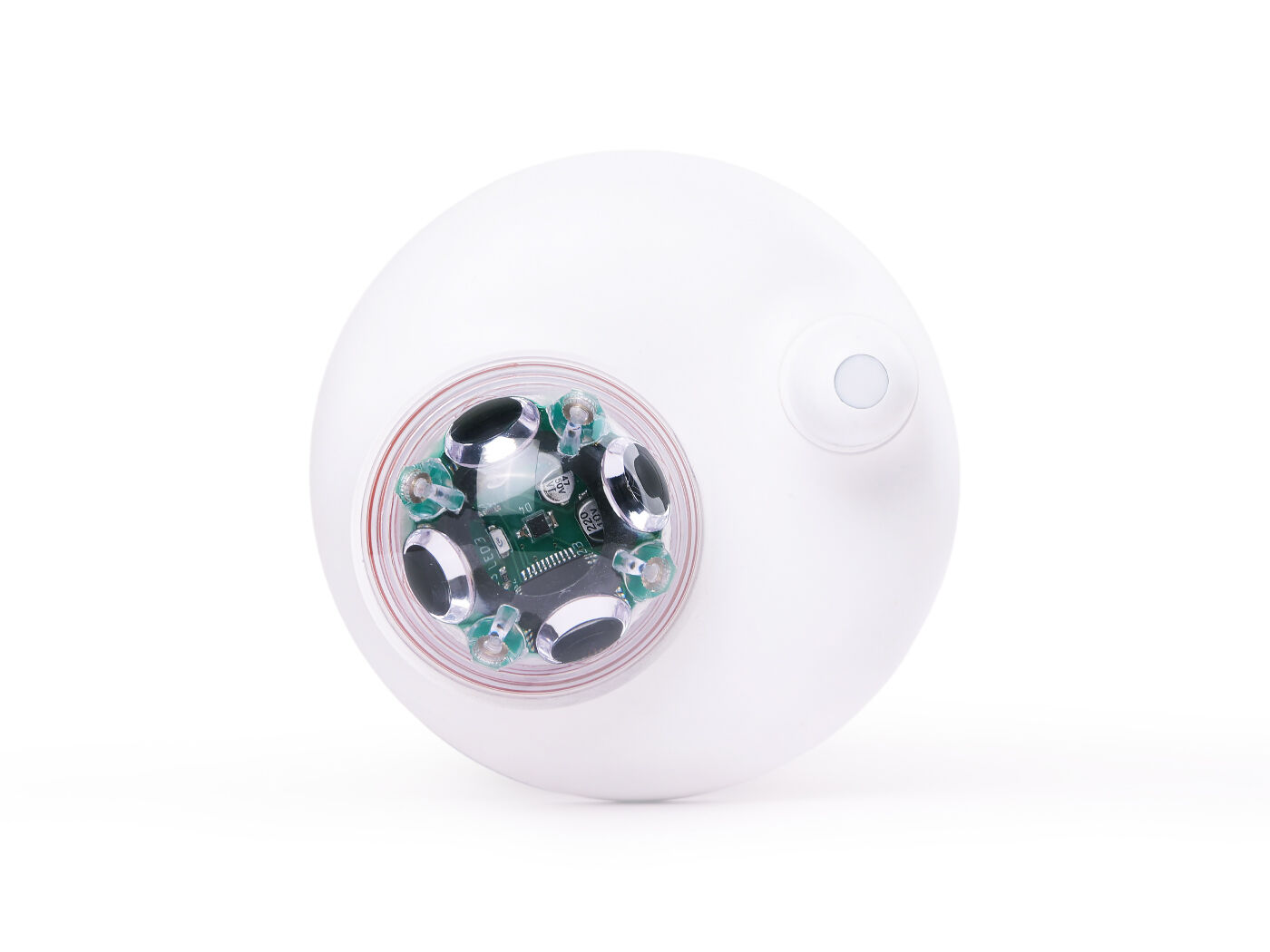

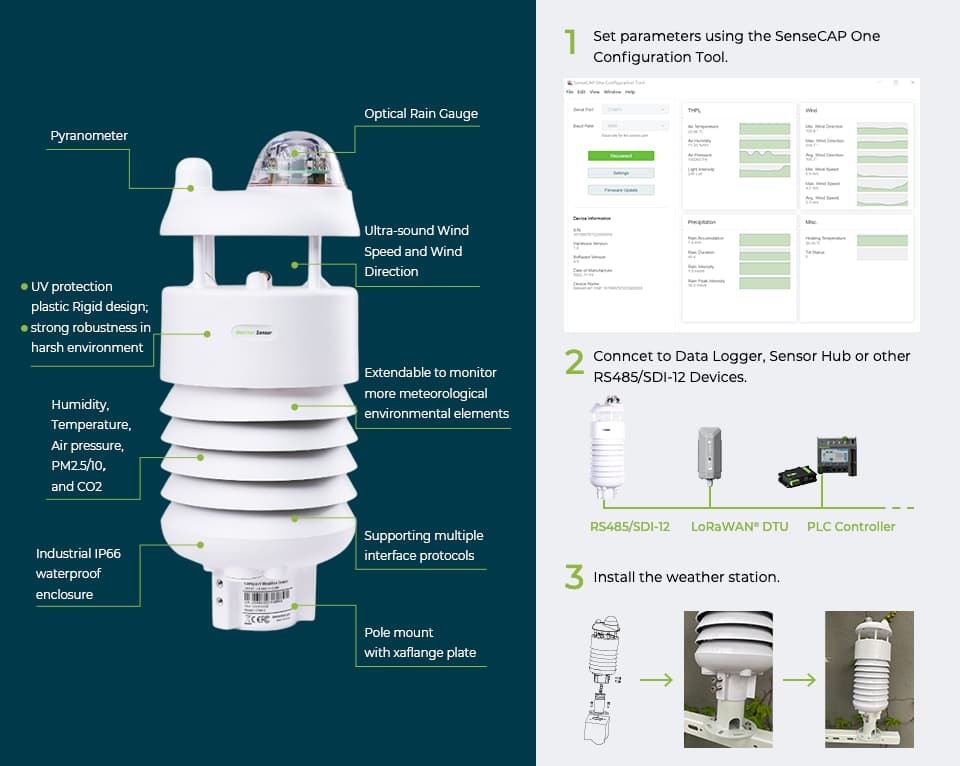

Hardware Overview

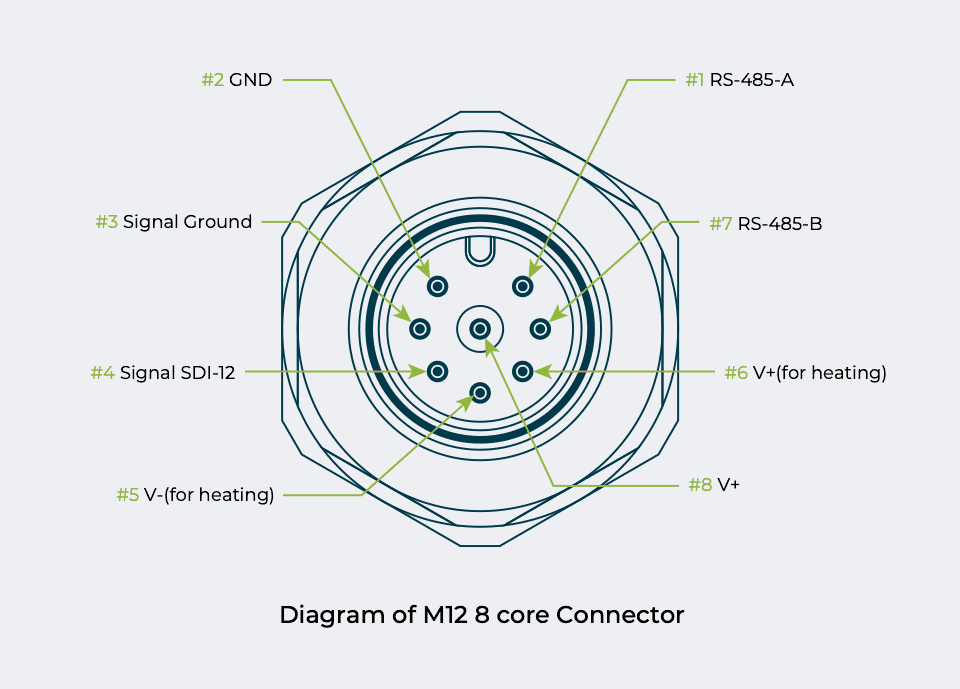

Wire Connection

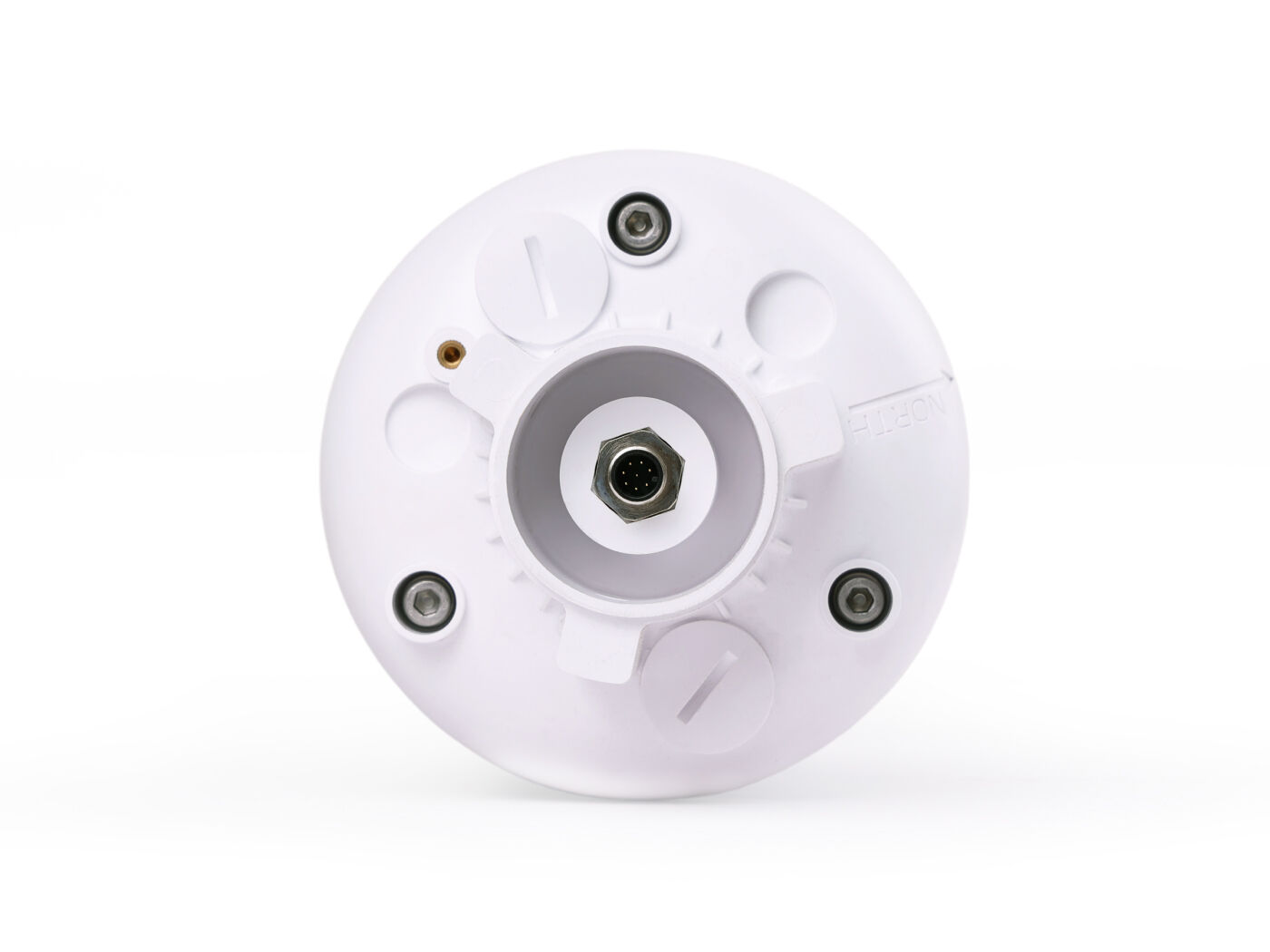

The equipment uses M12 connectors with an 8-core specification. Cables in 8 different colors are used to supply power to the equipment and for data communication.
The bottom wire outlet is 3m. There is a six-core wire cable, including wires in colors of white, brown, green, yellow, gray, pink, blue and red.
The SenseCAP ONE series supports connection to various data acquisition devices, Programmable Logic Controllers (PLCs) or Host Computers via RS485, ASCII and SDI-12 protocols.

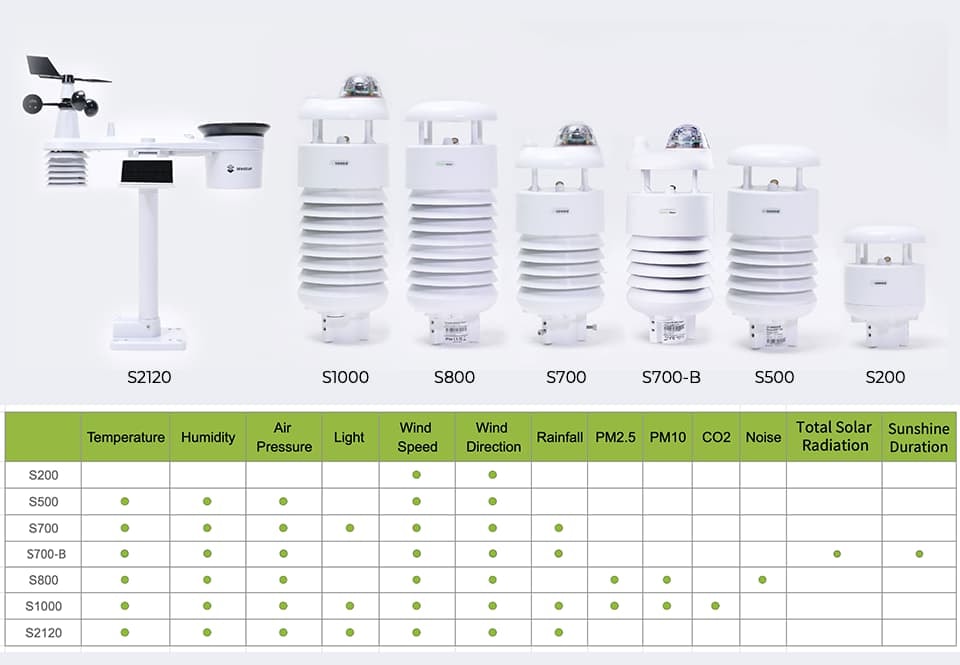

SenseCAP ONE Series Comparison

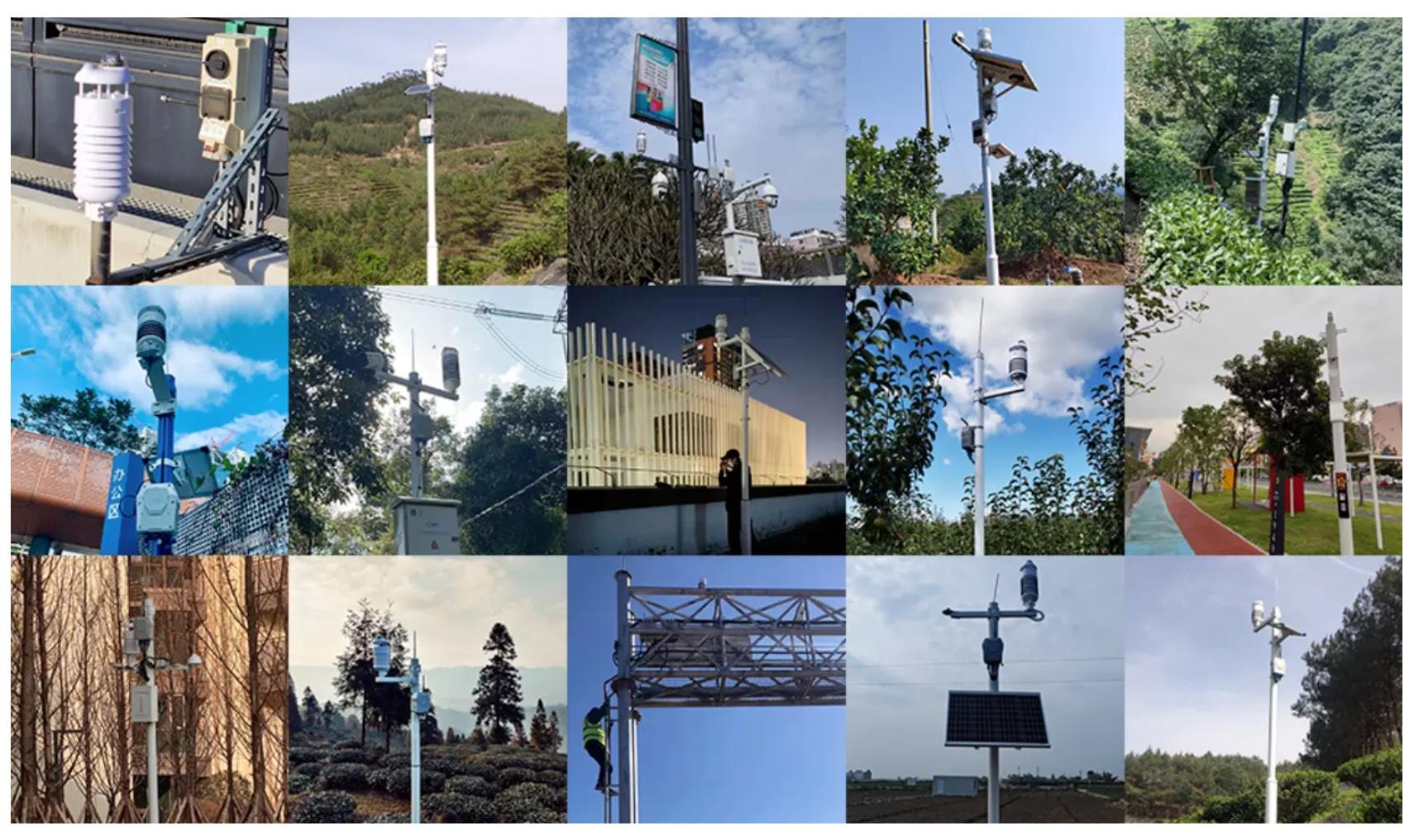

Application
Smart Agriculture
Smart City
Power Transmission
Renewable Energy
Transportation and Traffic

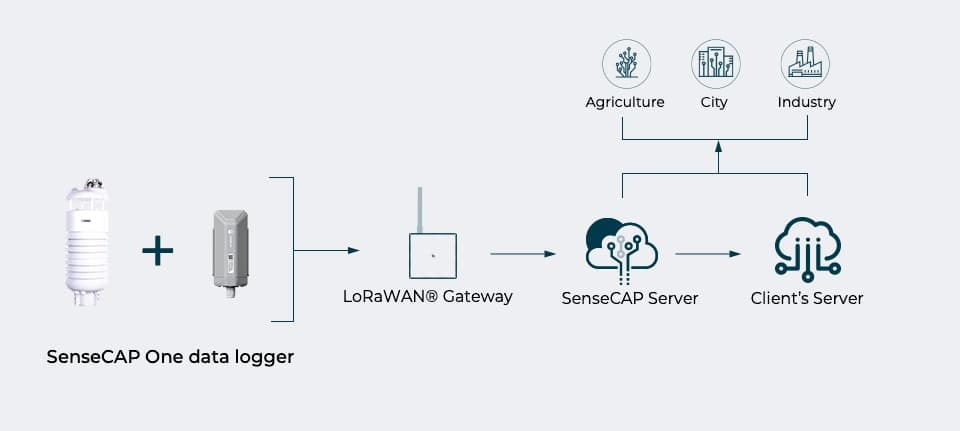

LoRaWAN Application
General Specification
| Specification | Parameter |
|---|---|
| Measurement parameters | Air temperature(℃) Relative humidity(%) Barometric pressure(Pa) Global solar radiation(W/m²) Sunshine duration(h) Precipitation intensity(mm/h) Wind speed(m/s) Wind direction(°) |
| Interface | M12 connector |
| Communication Protocol | RS485(Modbus-RTU)/SDI-12/ASCII |
| Power Supply | 12V~24V 24V(Heating power supply) |
| Power Consumption | 0.6W(heating 21W) |
| Cable Length | 3m |
Ambient Condition
| Specification | Parameter |
|---|---|
| IP Rating | IP66 |
| Operation Temperature | -40°C ~ +85°C |
| Humidity | 0 ~ 100%RH(no condensation) |
Mechanical
| Specification | Parameter |
|---|---|
| Dimension | 140x140x350mm |
| Weight | 1580g |
Technical Parameters
| Measurement parameter | Principle | Range | Respond Time | Resolution | Response spectrum | Accuracy | Annual Drift | Stability Time |
|---|---|---|---|---|---|---|---|---|
| Air temperature(℃) | - | -40°C ~ +85°C | - | 0.01℃ | - | ±0.1℃ | - | - |
| Relative humidity(%) | - | 0 ~ 100% RH | - | 0.01% RH | - | ±1.5% RH | - | - |
| Barometric pressure(Pa) | - | 300 ~ 1250 hPa | - | 10 Pa | - | ±50 Pa | - | - |
| Precipitation intensity(mm/h) | Optical | 0 ~ 200 mm/h | - | 0.2 mm/h | - | ±10% | - | - |
| Wind speed(m/s) | Ultrasonic | 0~60 m/s standard range 0~75m/s extended range Up to 80m/s withstand range | - | 0.1 m/s | - | ±0.3m/s(≤10m/s); ±3% (10m/s ~ 50m/s) ±5% (>50m/s) | - | - |
| Wind direction(°) | Ultrasonic | 0 ~ 360° | - | 0.1° | - | ±3.0° | - | - |
| Global solar radiation(W/m²) | photoelectric | 0~2000 W/m² | <=1S | 1 W/m² | 300~1100nm | ±3% | less than 3% | <=1S |
| Sunshine duration(h) | photoelectric | 0~6553.5 h | <=100ms | 0.1 h | 300~1100nm | ±3% | less than 3% | <=1S |
SenseCAP ONE Series Compact Weather Stations
SenseCAP ONE compact weather stations consist of several meteorological sensors that measure the following parameters: air temperature, relative humidity, barometric pressure, light intensity, rainfall, PM2.5, PM10, wind speed, wind direction, and CO2.
Getting Started with SenseCAP One Compact Weather Station
Here's a detailed description of the SenseCAP One Compact Weather Station.
SenseCAP ONE Series Meteorological Sensors
SenseCAP ONE compact weather stations consists of several meteorological sensors that measure the following parameters: air temperature & humidity, barometric pressure, light, precipitation, wind speed, wind direction, PM2.5, and PM10.

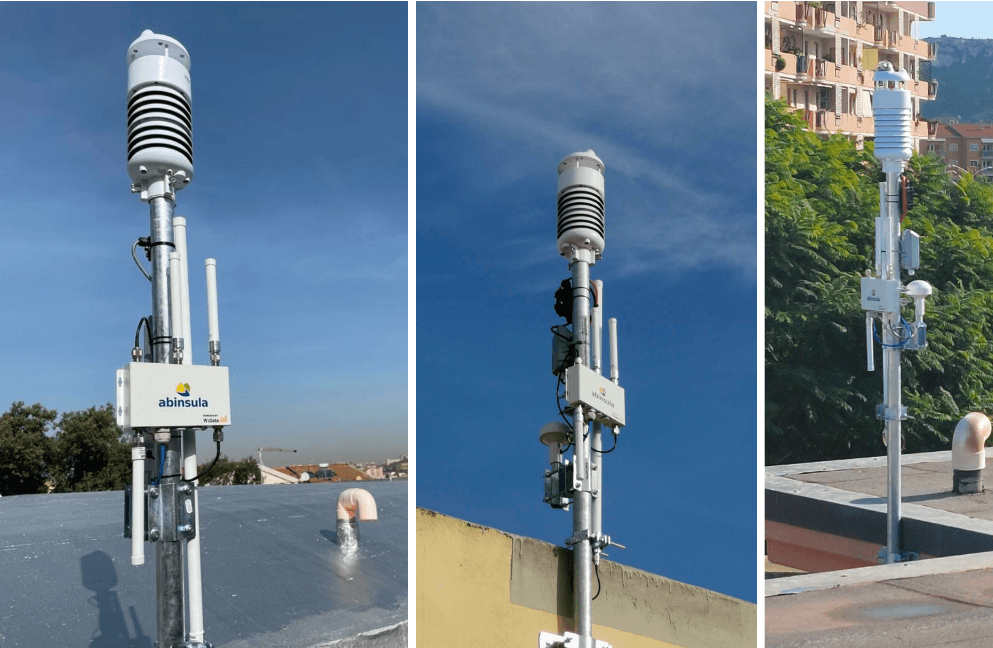

Smart City: 500+ SenseCAP LoRaWAN Devices Deployed to Mitigate Urban Heat Island in Cagliari Italy
To address the challenges of urban heat waves, WiData and Abinsula, our partners in Italy, deployed 500+ SenseCAP sensors including SenseCAP S1000 weather sensor along with SenseCAP S2100 LoRaWAN DTU as well as other SenseCAP LoRaWAN sensors at more than 300 sites in Cagliari for the Cagliari Smart City Project.
How We Tested the Performance of SenseCAP ONE Weather Station
The design quality, structure and material of SenseCAP ONE Weather Sensor are proven through extensive performance tests and will be introduced in this blog.

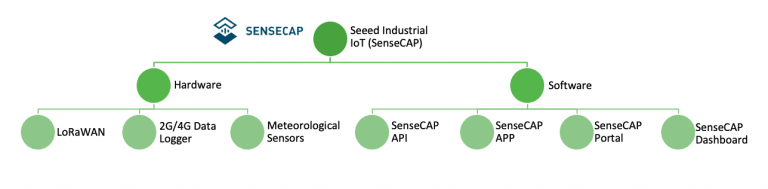

Brief Intro of Seeed IIoT Products | Choose the Ones to Meet Your Application Needs
