Multi-Bay Monitoring
No Central Server
Direct Barrier Relay
Parking Lot Management
Bay detection operates on-camera without central servers, while multi-stream entrances leverage edge hosts on existing cameras.
reCamera AI Camera

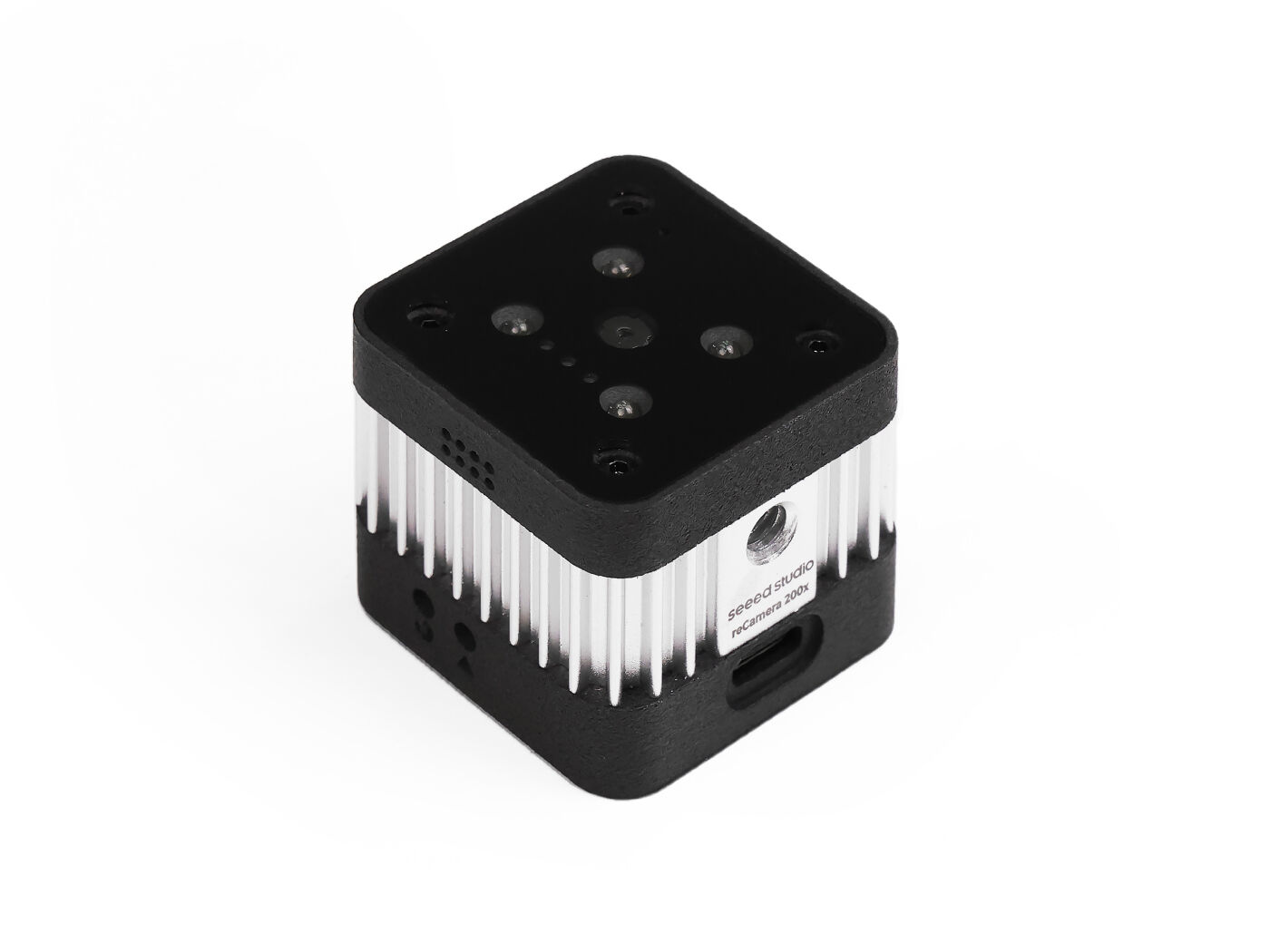

reCamera is a pocket-sized, modular AI camera powered by a RISC-V SoC running Linux. Featuring 1 TOPS @INT8, a 5MP camera, built-in YOLOv11, and support for custom AI models and Node-RED, it’s the fastest way for developers to deploy AI vision into any system.
-
From Demo to Production in DaysBuilt-in YOLO11 with commercial license, Roboflow and SenseCraft AI support for ready custom AI models
-
One-Line DeploymentQuick YOLO model deployment with a single command
-
Easy IntegrationPocket-size, PoE and CAN-bus for expansion, Magnetic and 1/4″ Thread Mount
-
Code or No-Code OptionsNode-RED for beginners, C++ SDK and OpenCV APIs for experts
-
Modular by DesignFully open source, mix and match sensor, base, and core boards
-
Reliable PerformanceOptimized heat dissipation for stability
From Demo to Production in Days, Not Months
Ready Custom AI Models: Built-in YOLO11 with commercial license, Roboflow & SenseCraft AI support.
One-Line Deployment: Quick YOLO model deployment with a single command.
Easy Integration: Pocket-size, PoE&CAN-bus for expansion, Magnetic and 1/4" Thread Mount.
Reliable Performance: Optimized heat dissipation for stability.
Code or No-Code: Vision AI for Every Developer's Workflow

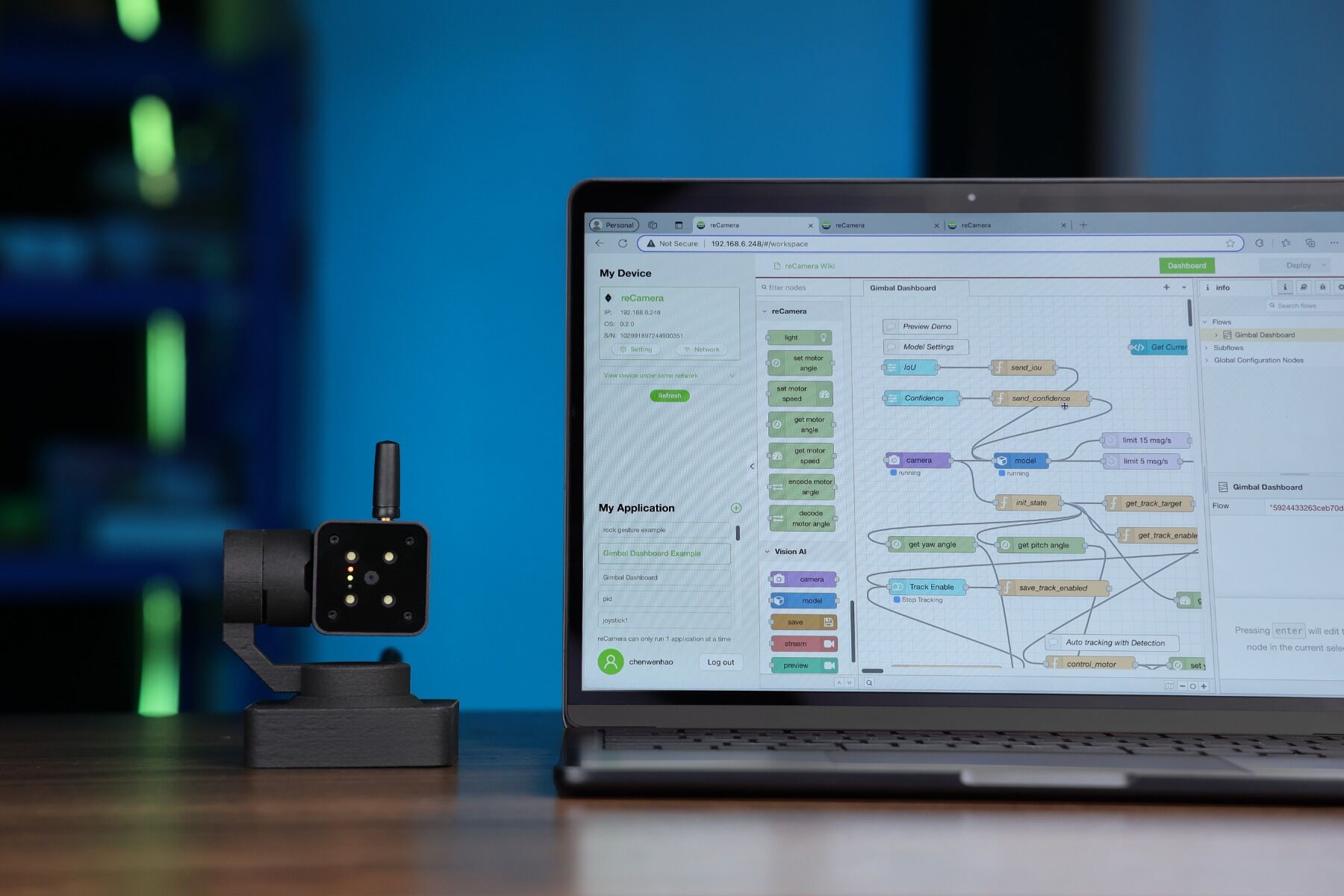

No-Code for Beginners: Node-RED for effortless custom workflows.
Pro-Code for Experts: C++ SDK and OpenCV C++ APIs for deeper diving.
Dedicated Accessories: Gimbals and more to enhance reCamera's functionality.
Seeed Vision AI Ecosystem: From MCUs to high-end robotics, Seeed full Vision AI matrix ensures the ideal pair with reCamera.
Modular by Design, Customizable by Demand
Fully Open Source: Tailor reCamera to your needs.
Modular Design: Combine/Mix and match sensor, base, and core boards for endless configurations.
Plug & Swap: Easily assemble the reCamera for your unique needs.
Walk through the whole pipeline to discover how reCamera, the tiny yet powerful AI camera, simplifies and speeds up your vision AI development.
Selection Guide
| Model | Processor | Storage | Wireless | Dimensions |
|---|---|---|---|---|
| reCamera 2002 8GB | SG2002 1TOPS@Int8 | 8GB eMMC | Ethernet 100Mbps | 40x40x36.5mm |
| reCamera 2002 64GB | SG2002 1TOPS@Int8 | 64GB eMMC | Ethernet 100Mbps | 40x40x36.5mm |
| reCamera 2002w 8GB | SG2002 1TOPS@Int8 | 8GB eMMC | Wi-Fi 2.4G/5G + BT4.2/5.0 | 40x40x36.5mm |
| reCamera 2002w 64GB | SG2002 1TOPS@Int8 | 64GB eMMC | Wi-Fi 2.4G/5G + BT4.2/5.0 | 40x40x36.5mm |
| Parameters | reCamera 2002 | reCamera 2002w |
|---|---|---|
| Processor System | ||
| AI Performance | 1TOPS@Int8 | |
| SOC | SG2002 | |
| CPU | C906@1GHz + C906@700MHz | |
| MCU | 8051@8KB SRAM | |
| Memory | 256MB | |
| Video Encode | 5MP @ 30Fps | |
| Camera | ||
| Sensor | OV5647 | |
| Resolution | 5M(2592*1944) Pixels | |
| Chip | 1/4" CMOS Sensor | |
| Pixel Size | 1.4um | |
| Output Format | RAW 10 | |
| Maximum Frame Rate | full size: 15fps | |
| Aperture | F2.8 | |
| Equivalent Focal Length | 3.46mm | |
| Field of View | 65° | |
| Distortion | <1% | |
| Lens structure | 5P | |
| Storage | ||
| eMMC | 8GB/64GB | |
| Expansion | removable TF card (up to 2TB, not included) | |
| I/O | ||
| Ethernet | 100Mbps | |
| Wireless | / | WIFI2.4G/5G BT4.2/5.0 |
| USB | USB Type-C(2.0) | |
| Button | 1x Reset Button, 1x Boot Button | |
| Fill Light | 0.3w White Light | |
| LED Indicator | 1x Power indicator, 1x eMMC status indicator, 1x CPU status(User LED) | |
| Audio | ||
| Mic | On-board Mic | |
| Speaker | External Speaker | |
| Physical | ||
| Dimension | 40x40x36.5mm | |
| Power | 5V/1A USB Type C | |
| Operation Temperature | -20～50°C | |
| Operation Humidity | 95% | |
reCamera Getting Started
reCamera is a combination of a processor and a camera sensor. This combination makes reCamera a standalone system that can handle basic detection and control tasks on its own.

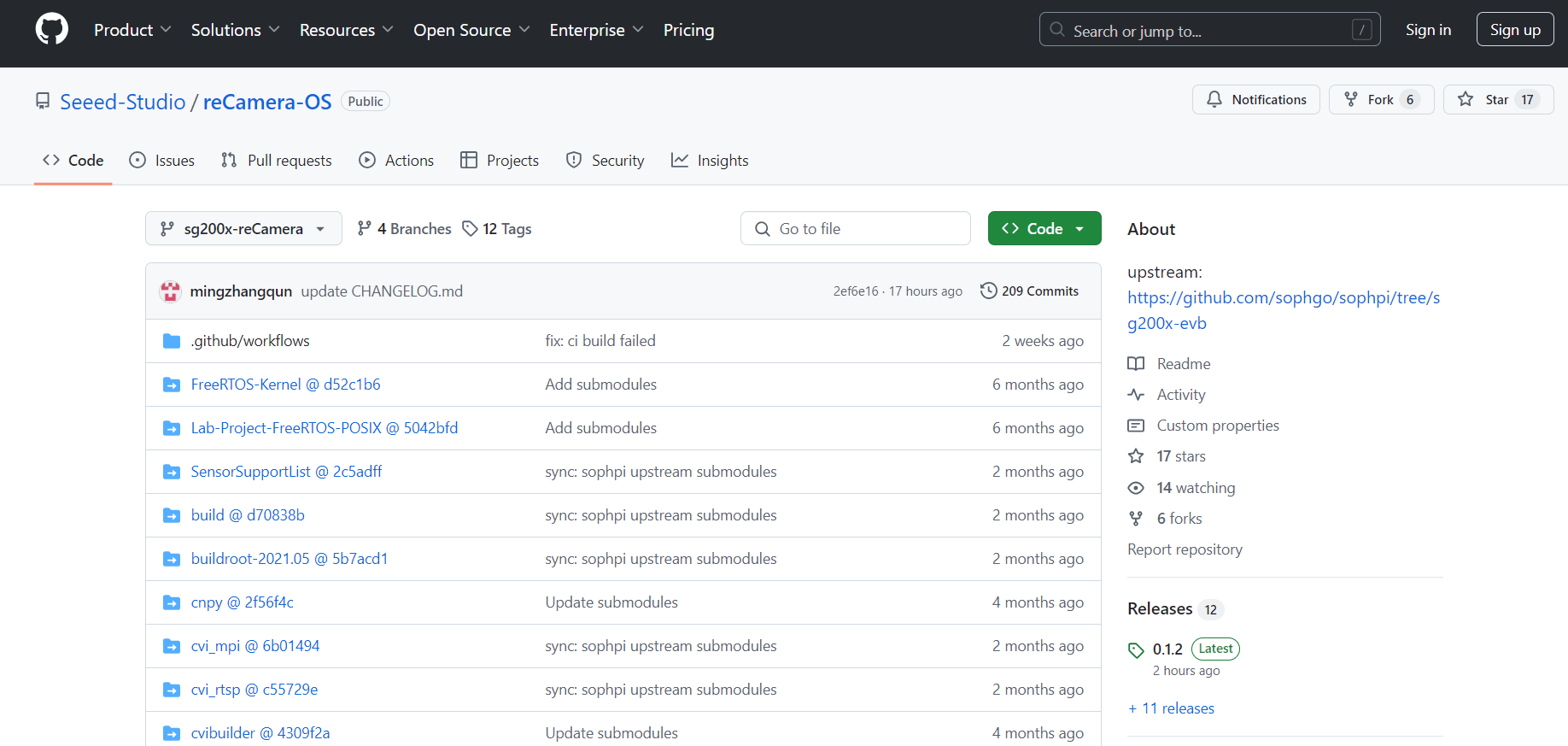

reCamera OS Github
The GitHub repository reCamera-OS is developed by Seeed Studio and serves as the software platform for the SG200x camera series. It includes essential resources for developers to build, deploy, and maintain operating systems on these devices.
reCamera Github
Today, as processors (both SOC and MCU) are becoming smaller and more powerful, it is now possible to combine the processor with camera sensors. In fact, many IPCs (IP cameras) are already using this design to accelerate AI detection on edge devices. So today, we introduce reCamera, an open-source camera platform for everyone to play with.
