reComputer AI R
Raspberry Pi 5-based Edge AI Computer with Hailo-8 AI acceleration up to 26 TOPS.

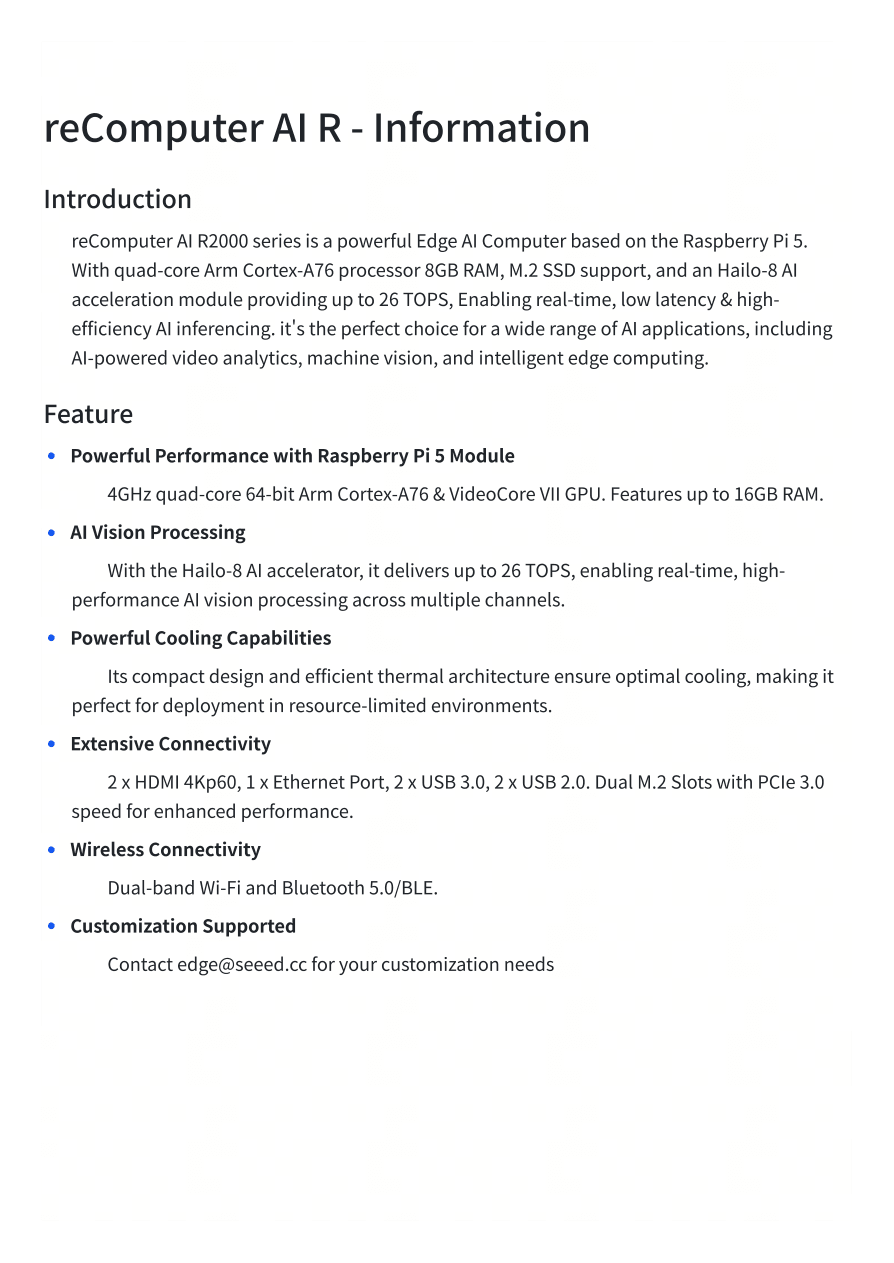

Introduction
reComputer AI R2000 series is a powerful Edge AI Computer based on the Raspberry Pi 5. With quad-core Arm Cortex-A76 processor, up to 16GB RAM, M.2 SSD support, and a Hailo-8 AI acceleration module providing up to 26 TOPS, it enables real-time, low-latency, high-efficiency AI inferencing for AI-powered video analytics, machine vision, and intelligent edge computing.
Key Features
Powerful Performance with Raspberry Pi 5 Module
2.4GHz quad-core 64-bit Arm Cortex-A76 and VideoCore VII GPU, with memory options up to 16GB RAM.
AI Vision Processing
Hailo-8 AI accelerator delivers up to 26 TOPS for real-time, high-performance AI vision processing across multiple channels.
Powerful Cooling Capabilities
Compact design and efficient thermal architecture support stable deployment in resource-limited environments.
Extensive Connectivity
2 x HDMI 4Kp60, 1 x Ethernet port, 2 x USB 3.0, 2 x USB 2.0, and dual M.2 slots with PCIe 3.0 speed.
Wireless Connectivity
Dual-band Wi-Fi and Bluetooth 5.0/BLE.
Customization Supported
Contact edge@seeed.cc for customization needs.

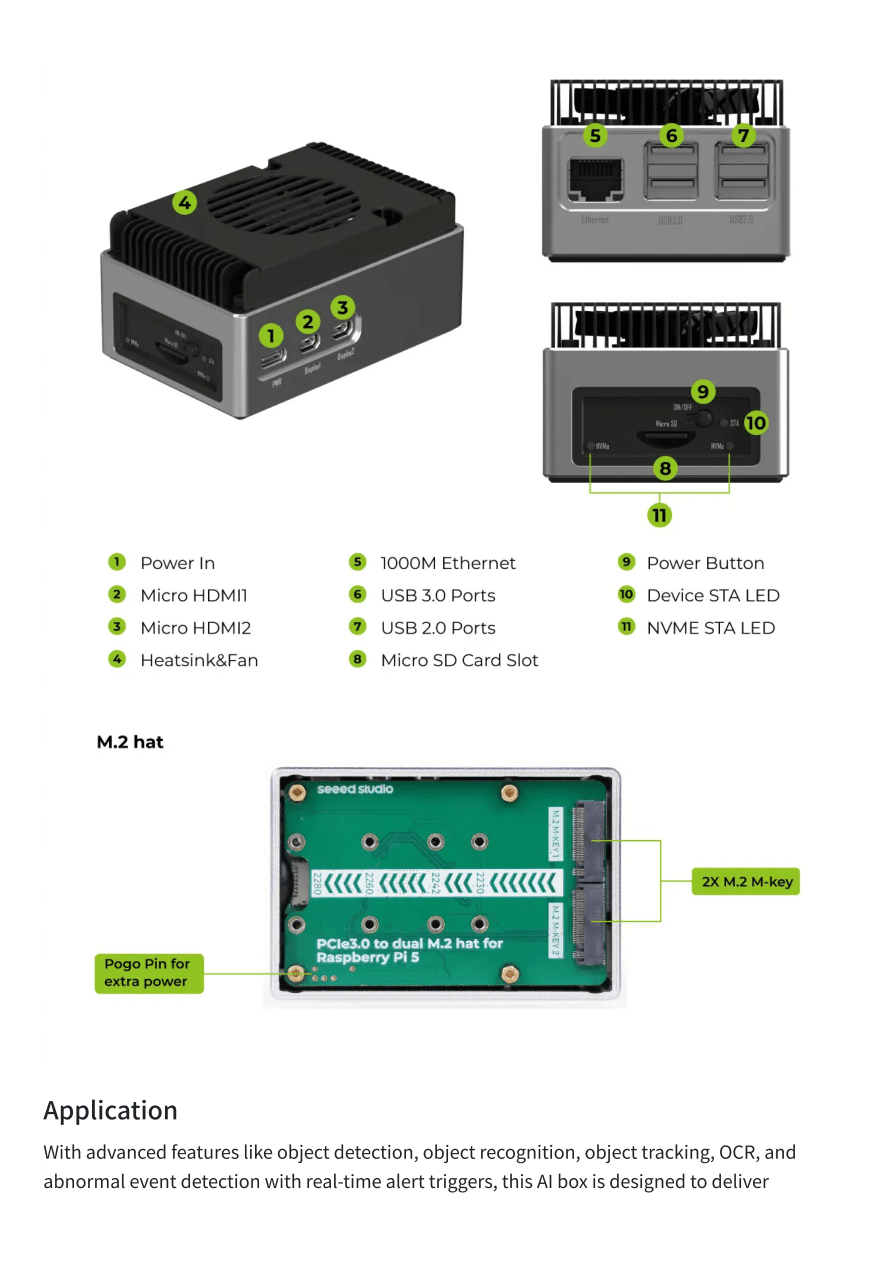

Hardware Overview

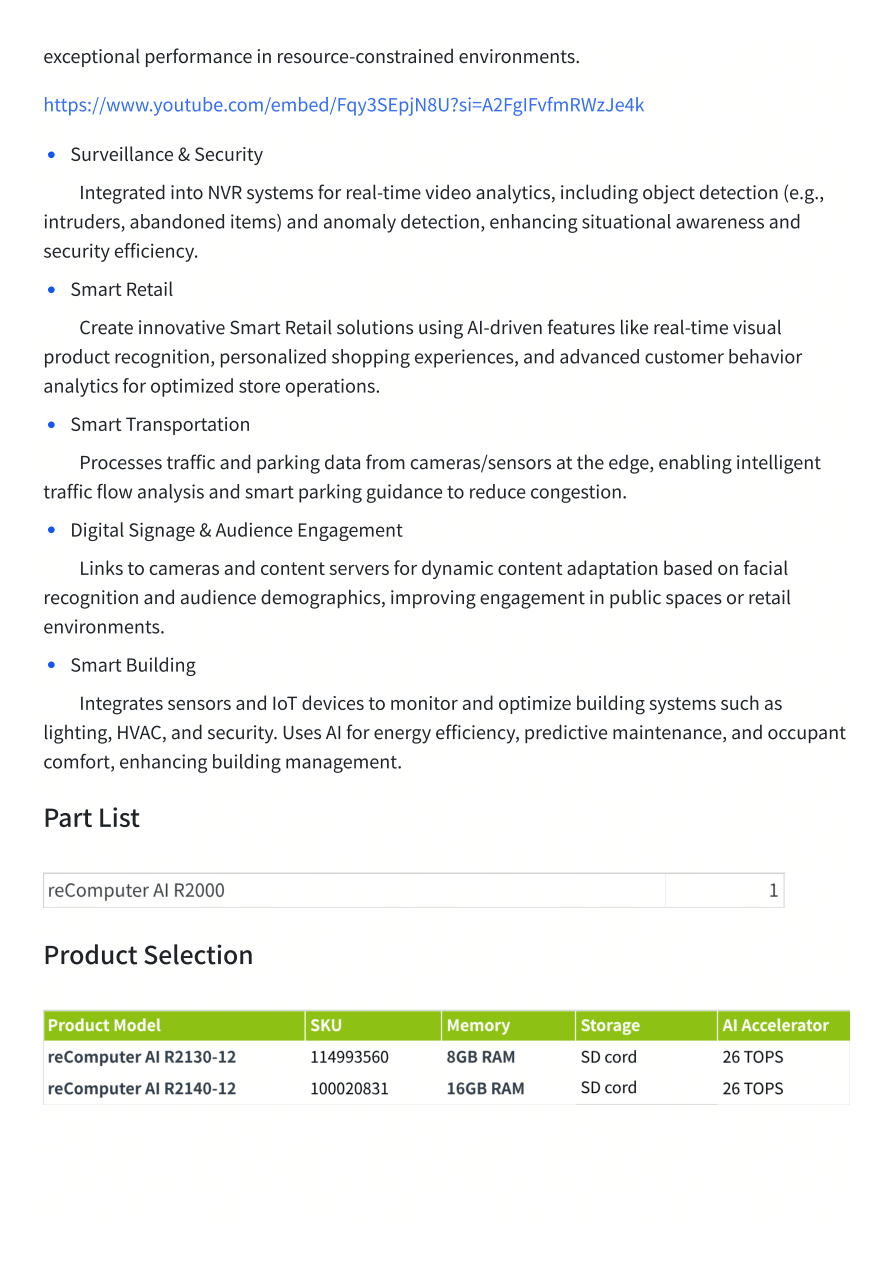

Applications
With object detection, object recognition, object tracking, OCR, and abnormal event detection with real-time alert triggers, this AI box is designed to deliver strong performance in resource-constrained environments.
Surveillance & Security
Integrated into NVR systems for real-time video analytics, including object detection such as intruders and abandoned items, plus anomaly detection to enhance situational awareness and security efficiency.
Smart Retail
Supports AI-driven real-time visual product recognition, personalized shopping experiences, and advanced customer behavior analytics for optimized store operations.
Smart Transportation
Processes traffic and parking data from cameras and sensors at the edge, enabling intelligent traffic flow analysis and smart parking guidance to reduce congestion.
Digital Signage & Audience Engagement
Connects cameras and content servers for dynamic content adaptation based on facial recognition and audience demographics, improving engagement in public spaces and retail environments.
Smart Building
Integrates sensors and IoT devices to monitor and optimize lighting, HVAC, and security systems, using AI for energy efficiency, predictive maintenance, and occupant comfort.
Part List
reComputer AI R2000
Product Selection
| Product Model | SKU | Memory | Storage | AI Accelerator |
|---|---|---|---|---|
| reComputer AI R2130-12 | 114993560 | 8GB RAM | SD card | 26 TOPS |
| reComputer AI R2140-12 | 100020831 | 16GB RAM | SD card | 26 TOPS |

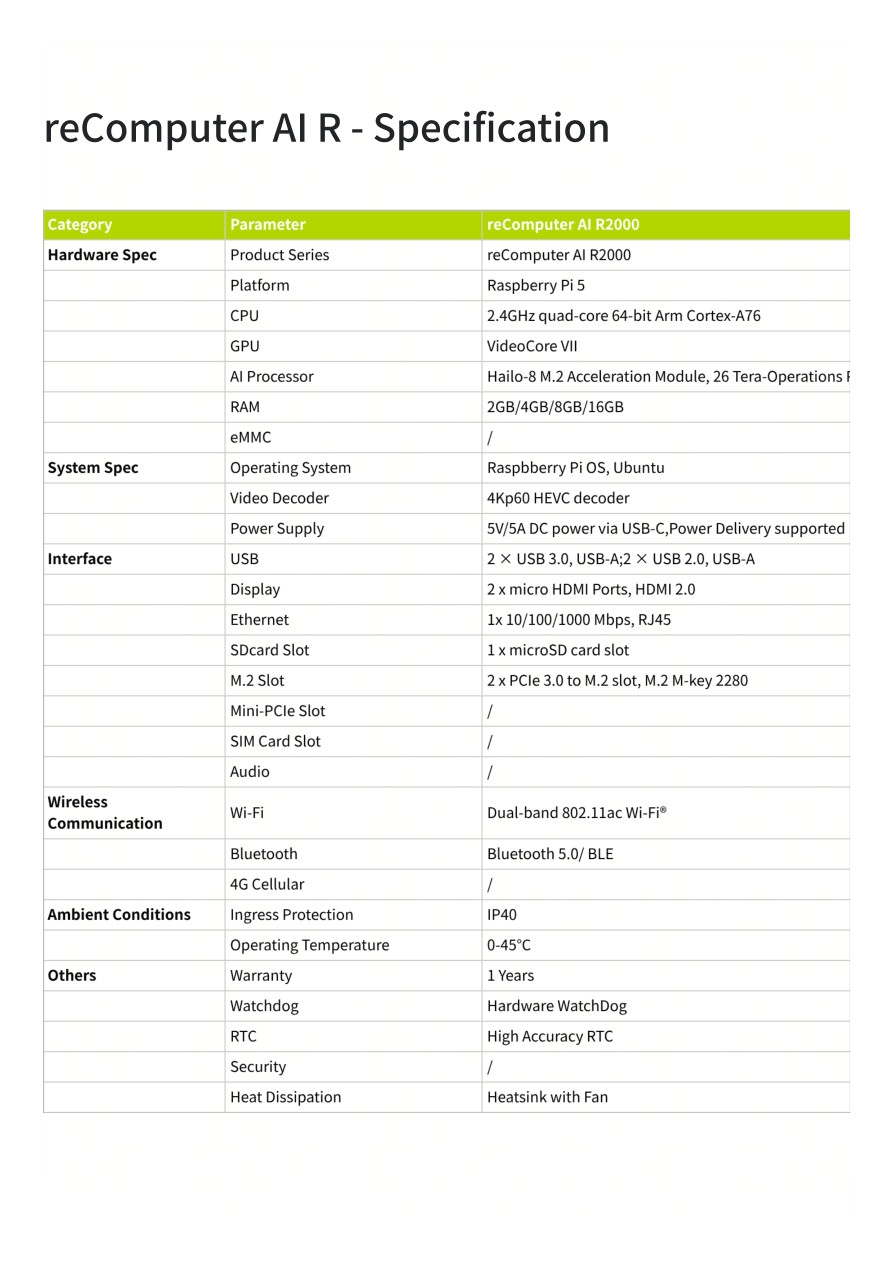

| Category | Parameter | reComputer AI R2000 |
|---|---|---|
| Hardware Spec | Product Series | reComputer AI R2000 |
| Hardware Spec | Platform | Raspberry Pi 5 |
| Hardware Spec | CPU | 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| Hardware Spec | GPU | VideoCore VII |
| Hardware Spec | AI Processor | Hailo-8 M.2 Acceleration Module, 26 TOPS |
| Hardware Spec | RAM | 2GB/4GB/8GB/16GB |
| Hardware Spec | eMMC | / |
| System Spec | Operating System | Raspberry Pi OS, Ubuntu |
| System Spec | Video Decoder | 4Kp60 HEVC decoder |
| System Spec | Power Supply | 5V/5A DC power via USB-C, Power Delivery supported |
| Interface | USB | 2 x USB 3.0 USB-A; 2 x USB 2.0 USB-A |
| Interface | Display | 2 x micro HDMI ports, HDMI 2.0 |
| Interface | Ethernet | 1 x 10/100/1000 Mbps, RJ45 |
| Interface | SD card Slot | 1 x microSD card slot |
| Interface | M.2 Slot | 2 x PCIe 3.0 to M.2 slot, M.2 M-key 2280 |
| Interface | Mini-PCIe Slot | / |
| Interface | SIM Card Slot | / |
| Interface | Audio | / |
| Wireless Communication | Wi-Fi | Dual-band 802.11ac Wi-Fi |
| Wireless Communication | Bluetooth | Bluetooth 5.0 / BLE |
| Wireless Communication | 4G Cellular | / |
| Ambient Conditions | Ingress Protection | IP40 |
| Ambient Conditions | Operating Temperature | 0-45°C |
| Others | Warranty | 1 Years |
| Others | Watchdog | Hardware WatchDog |
| Others | RTC | High Accuracy RTC |
| Others | Security | / |
| Others | Heat Dissipation | Heatsink with Fan |
Documentation
- Seeed reComputer AI R Series Flyer
- Seeed Rasperry Pi Flyer
- Seeed reComputer AI R Series Flyer-CN
- Seeed Raspberry Pi Flyer-CN
Product Design
None
Other
None

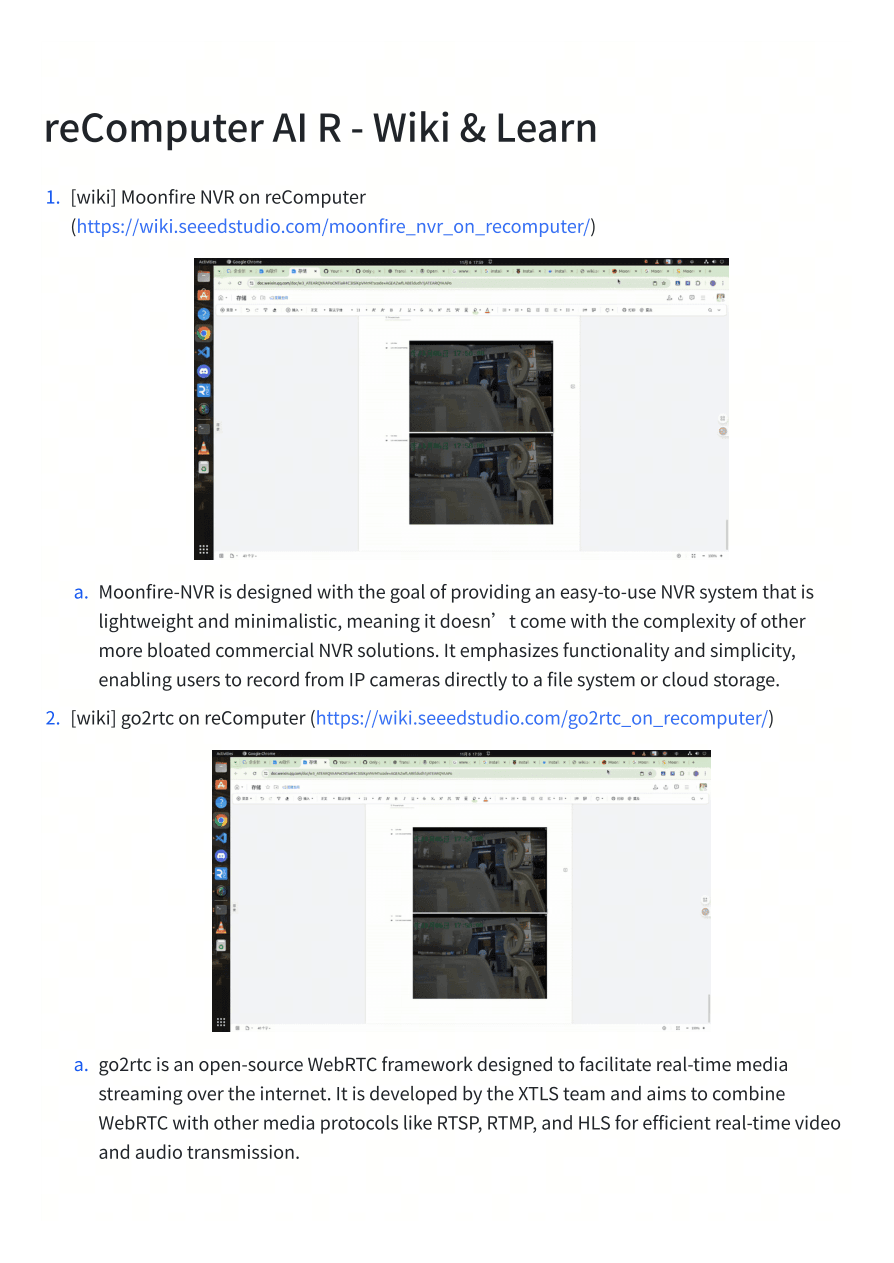

Moonfire NVR on reComputer
Moonfire-NVR is designed to provide an easy-to-use, lightweight NVR system that records from IP cameras directly to a file system or cloud storage.
go2rtc on reComputer
go2rtc is an open-source WebRTC framework that combines WebRTC with RTSP, RTMP, and HLS for efficient real-time video and audio transmission.

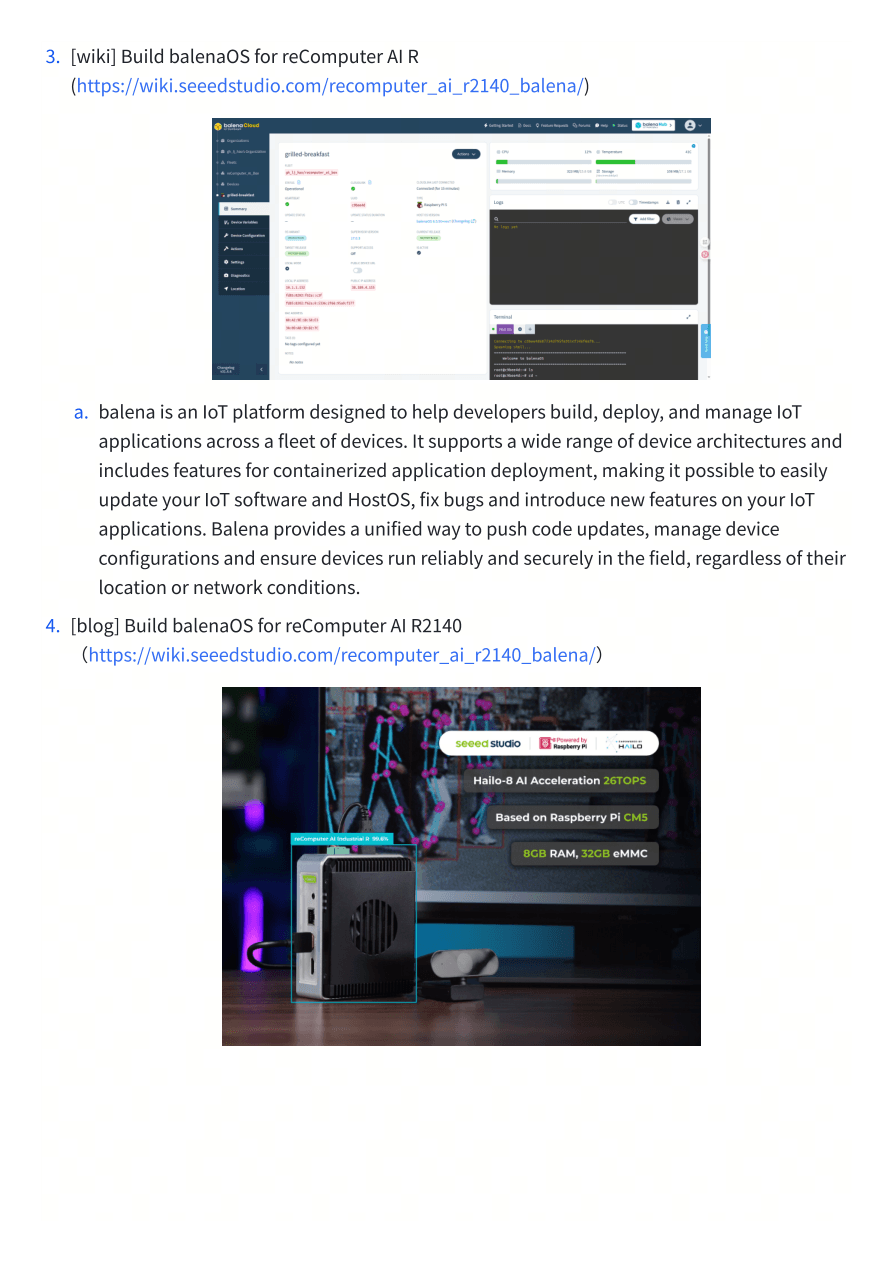

Build balenaOS for reComputer AI R
balena helps developers build, deploy, and manage IoT applications across fleets with containerized updates and device configuration management.
Build balenaOS for reComputer AI R2140
A guide for building balenaOS for reComputer AI R2140.

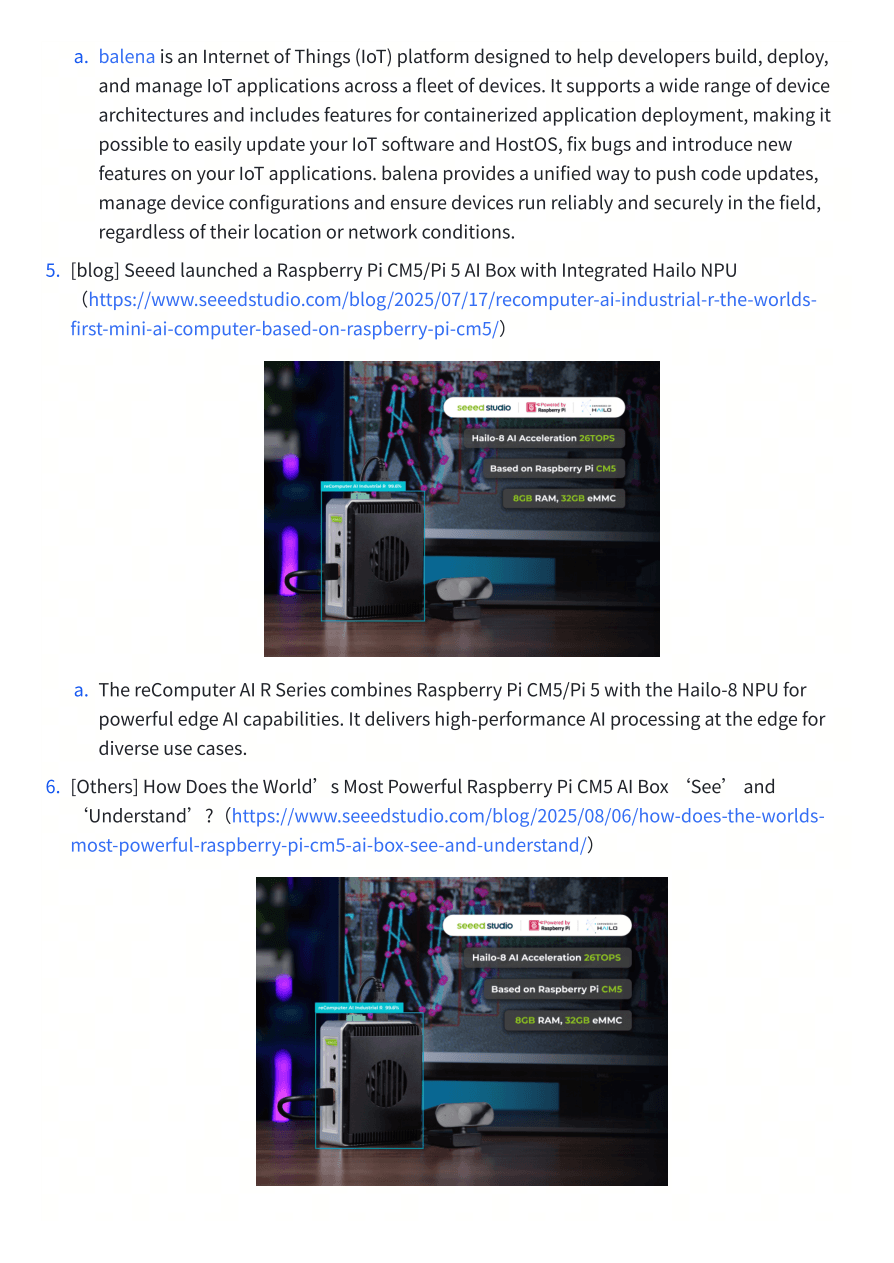

Seeed launched a Raspberry Pi CM5/Pi 5 AI Box with Integrated Hailo NPU
