On-device AI vision hardware for retail stores: process footfall heatmaps and shelf audits locally with privacy, keeping face access offline.
reComputer R2000 Series

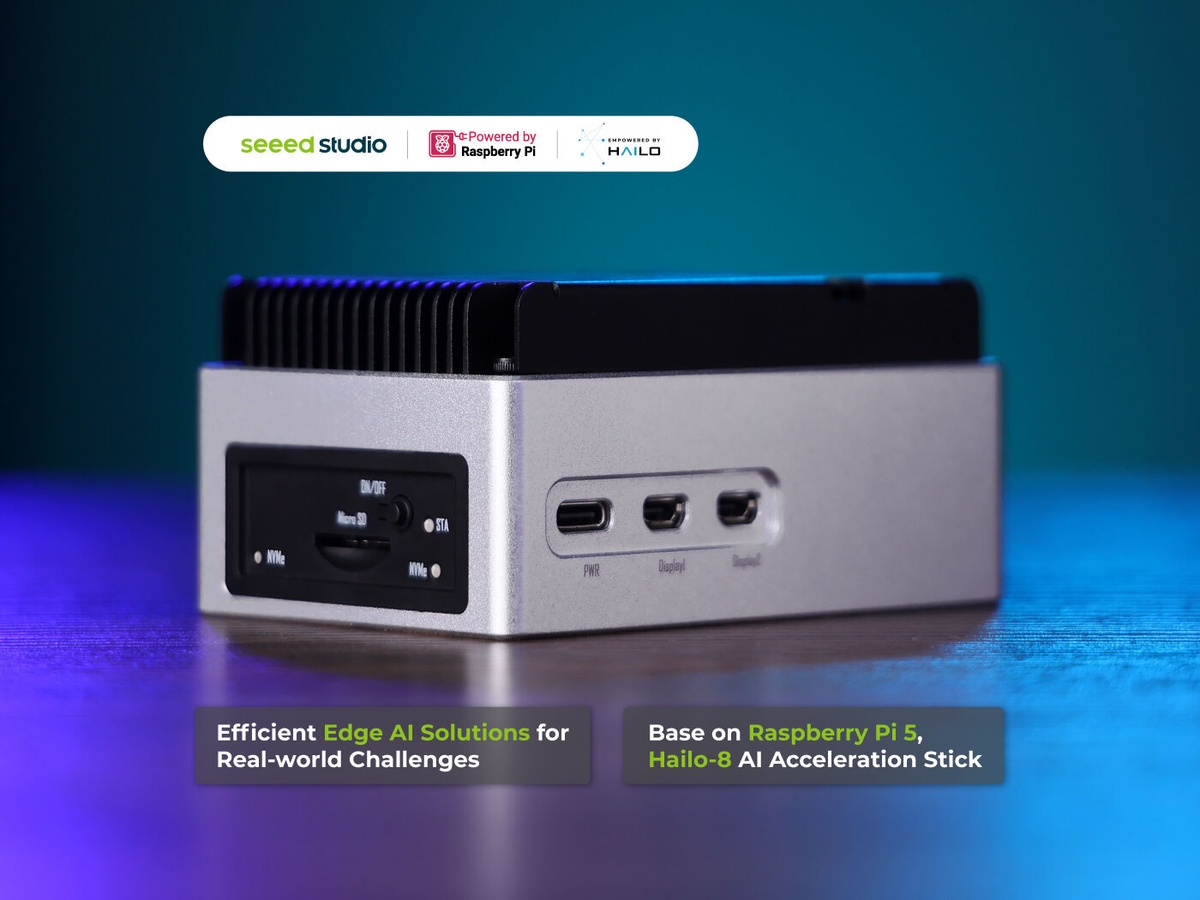

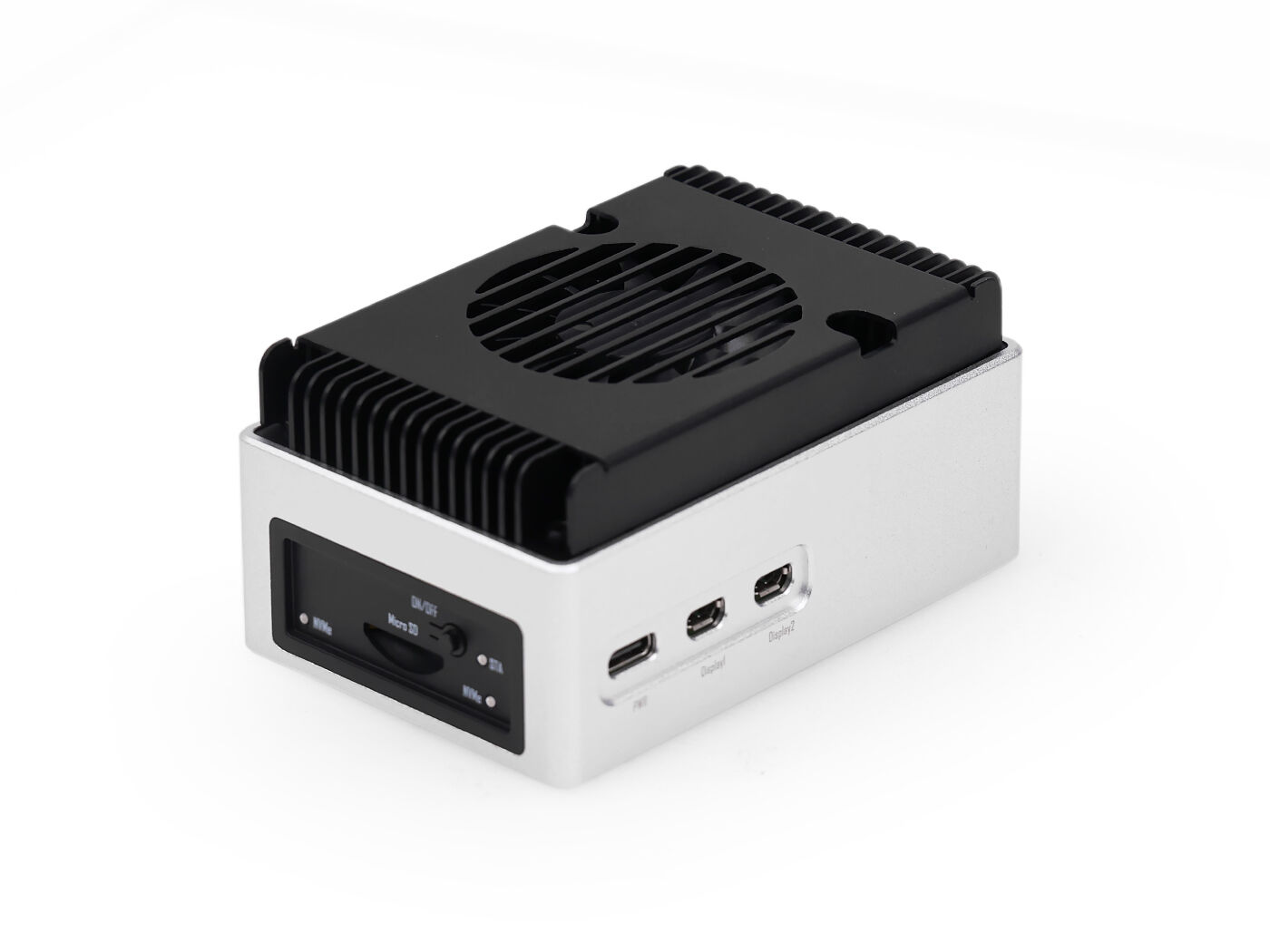

reComputer AI R2000 Series is a powerful Edge AI Computer based on the Raspberry Pi 5. With quad-core Arm Cortex-A76 processor, up to 16GB RAM, M.2 SSD support, and an Hailo-8 AI acceleration module providing up to 26 TOPS, Enabling real-time, low latency & high-efficiency AI inferencing. it’s the perfect choice for a wide range of AI applications, including AI-powered video analytics, machine vision, and intelligent edge computing.
-
Powerful Cooling CapabilitiesThe compact design and optimized thermal architecture make it highly suitable for deployment in resource-constrained environments, providing excellent cooling performance.
-
Powerful PerformancePowered by Raspberry Pi 5 with quad-core Cortex-A76 CPU, up to 16GB RAM.
-
26 Tera-Operations Per SecondPowered by Hailo AI Accelerator Offering Integrated Computing Power of Up to 26 Tops.
-
Extensive Interfaces2x HDMI 4Kp60,1x Ethernet Port, 2x USB 3.0, 2x USB 2.0.
-
Wireless ConnectivityDual-band Wi-Fi and Bluetooth 5.0/BLE.
-
Dual M.2 Slot with PCIe3.0 SpeedUtilizing the ASMedia ASM2806 PCIe 3.0 switch chip, ensures optimal performance, overcoming PCIe 2.0 limitations.
reComputer AI R2000 Series is a powerful Edge AI Computer based on the Raspberry Pi 5. With quad-core Arm Cortex-A76 processor, up to 16GB RAM, M.2 SSD support, and an Hailo-8 AI acceleration module providing up to 26 TOPS, Enabling real-time, low latency & high-efficiency AI inferencing. it's the perfect choice for a wide range of AI applications, including AI-powered video analytics, machine vision, and intelligent edge computing.
Feature
Powerful Cooling Capabilities: The compact design and optimized thermal architecture make it highly suitable for deployment in resource-constrained environments, providing excellent cooling performance.
Powerful Performance: Powered by Raspberry Pi 5 with quad-core Cortex-A76 CPU, up to 16GB RAM.
26 Tera-Operations Per Second: Powered by Hailo AI Accelerator Offering Integrated Computing Power of Up to 26 Tops.
Extensive Interfaces: 2x HDMI 4Kp60,1x Ethernet Port, 2x USB 3.0, 2x USB 2.0.
Wireless Connectivity: Dual-band Wi-Fi and Bluetooth 5.0/BLE.
Dual M.2 Slot with PCIe3.0 Speed: Utilizing the ASMedia ASM2806 PCIe 3.0 switch chip, ensures optimal performance, overcoming PCIe 2.0 limitations.

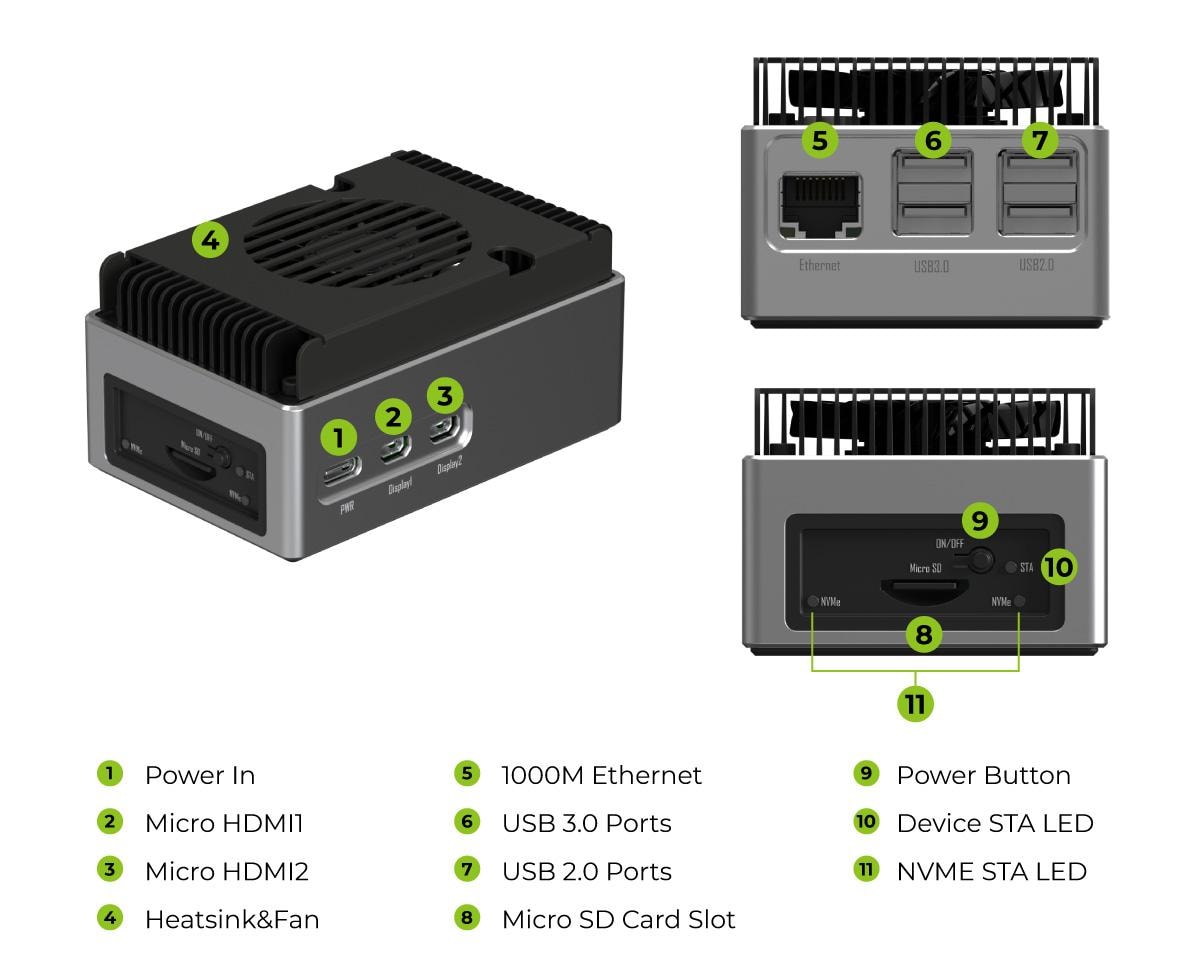

Hardware Overview
Application
Network Video Recording (NVR): Integrate the AI into NVR systems for real-time video analytics, object detection, and anomaly detection, enhancing security and efficiency.
Digital Signage: Upgrade existing digital signage solutions with AI capabilities such as audience analytics, facial recognition, and dynamic content adaptation based on viewer demographics and behaviors.
Smart Retail: Build next-gen Smart Retail solutions with AI-powered features such as visual product recognition and customer behavior tracking.
Smart Transportation: Intelligent traffic management and smart parking solutions.
Product Selection
| Product Model | Processor | AI Computing | RAM | Storage | Operating Temperature | Power Supply | Special Features |
|---|---|---|---|---|---|---|---|
| R2130-12 | Raspberry Pi 5 Quad-core 2.4GHz | 26TOPS | 8GB | - | 0-45°C | 5V/5A USB-C | Standard version |
| R2135-12 | Raspberry Pi CM5 Quad-core 2.4GHz | 26TOPS | 8GB | 32GB eMMC | -20-65°C | 9-36V DC | Industrial grade, DIN-rail mounting |
| R2140-12 | Raspberry Pi 5 Quad-core 2.4GHz | 26TOPS | 16GB | - | 0-45°C | 5V/5A USB-C | High memory version |
| Parameters | R2130-12 | R2135-12 (Industrial) | R2140-12 |
|---|---|---|---|
| Hardware Spec | |||
| CPU | Raspberry Pi 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 | Raspberry Pi CM5, 2.4GHz quad-core 64-bit Arm Cortex-A76 | Raspberry Pi 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| AI Processor | Hailo-8 M.2 Acceleration Module, 26 Tera-Operations Per Second | Hailo-8 M.2 Acceleration Stick, 26 Tera-Operations Per Second | Hailo-8 M.2 Acceleration Stick, 26 Tera-Operations Per Second |
| RAM | 8GB SDRAM | 8GB | 16GB SDRAM |
| Operating Temperature | 0-45°C | -20-65°C | 0-45°C |
| Warranty | 1 Years | 2 years | 1 Years |
Product Introduction
reComputer AI R2000 Getting Started
reComputer AI R2000 is a powerful Edge AI Computer based on the Raspberry Pi 5. With quad-core Arm Cortex-A76 processor up to 16 GB RAM, M.2 SSD support, and an Hailo-8 AI acceleration module providing up to 26 TOPS.
Getting Start with reComputer AI R2000 Series
reComputer AI R2000 series is a powerful Edge AI Computer based on the Raspberry Pi 5. With quad-core Arm Cortex-A76 processor 8GB RAM, M.2 SSD support, and an Hailo-8 AI acceleration module providing up to 26 TOPS, Enabling real-time, low latency & high-efficiency AI inferencing. it's the perfect choice for a wide range of AI applications, including AI-powered video analytics, machine vision, and intelligent edge computing.
