Products
›AI Computer
›reComputer Classic Jetson™

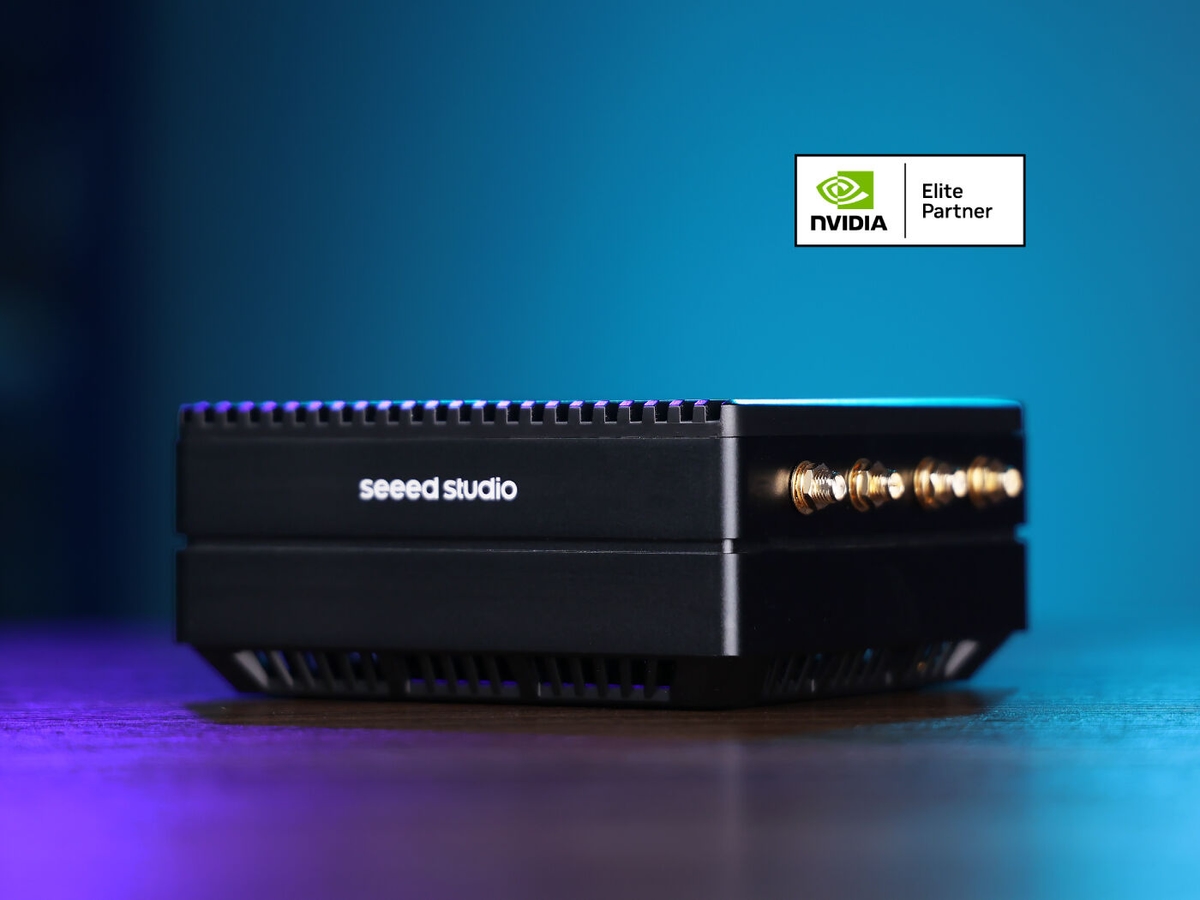

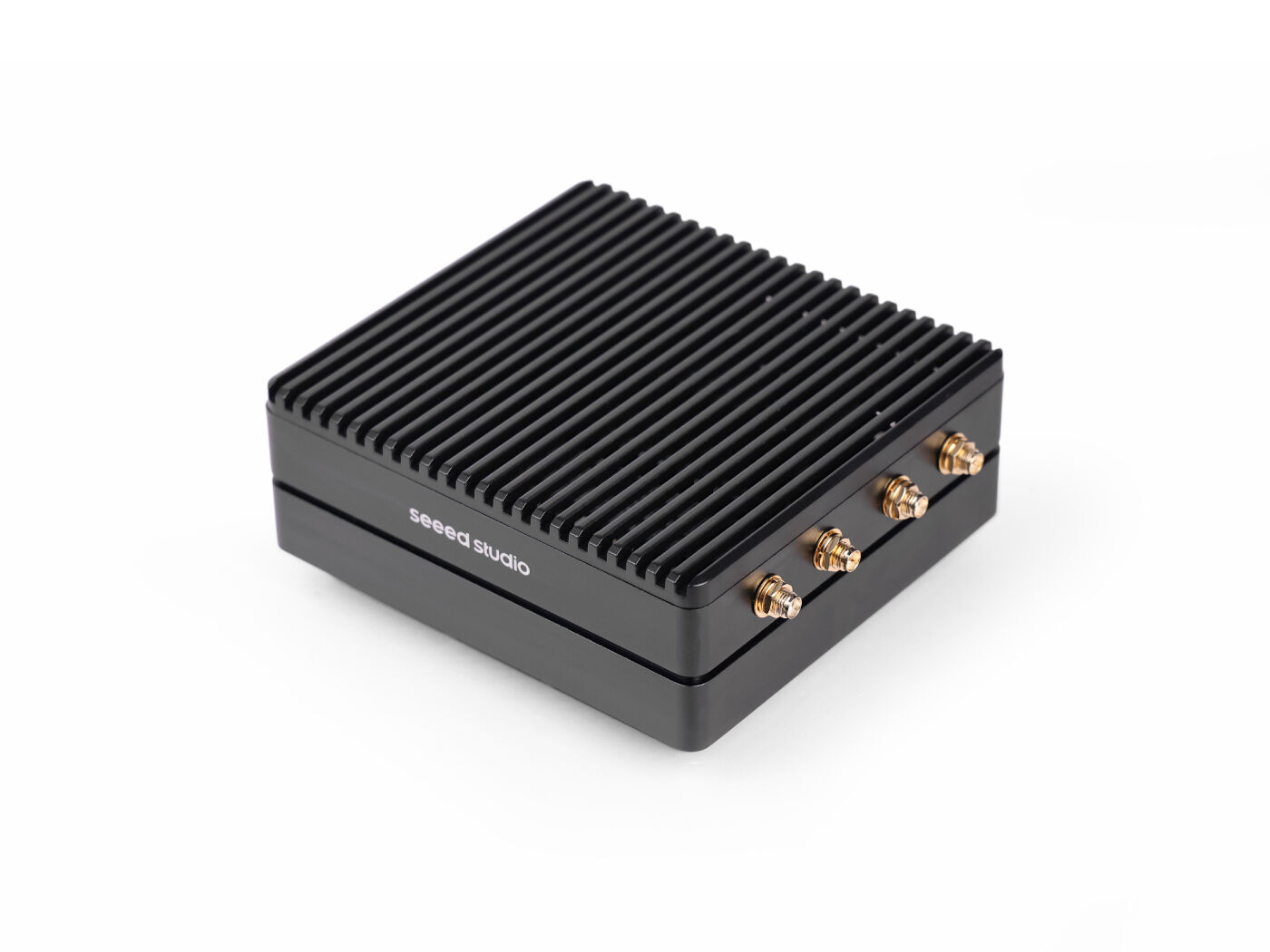

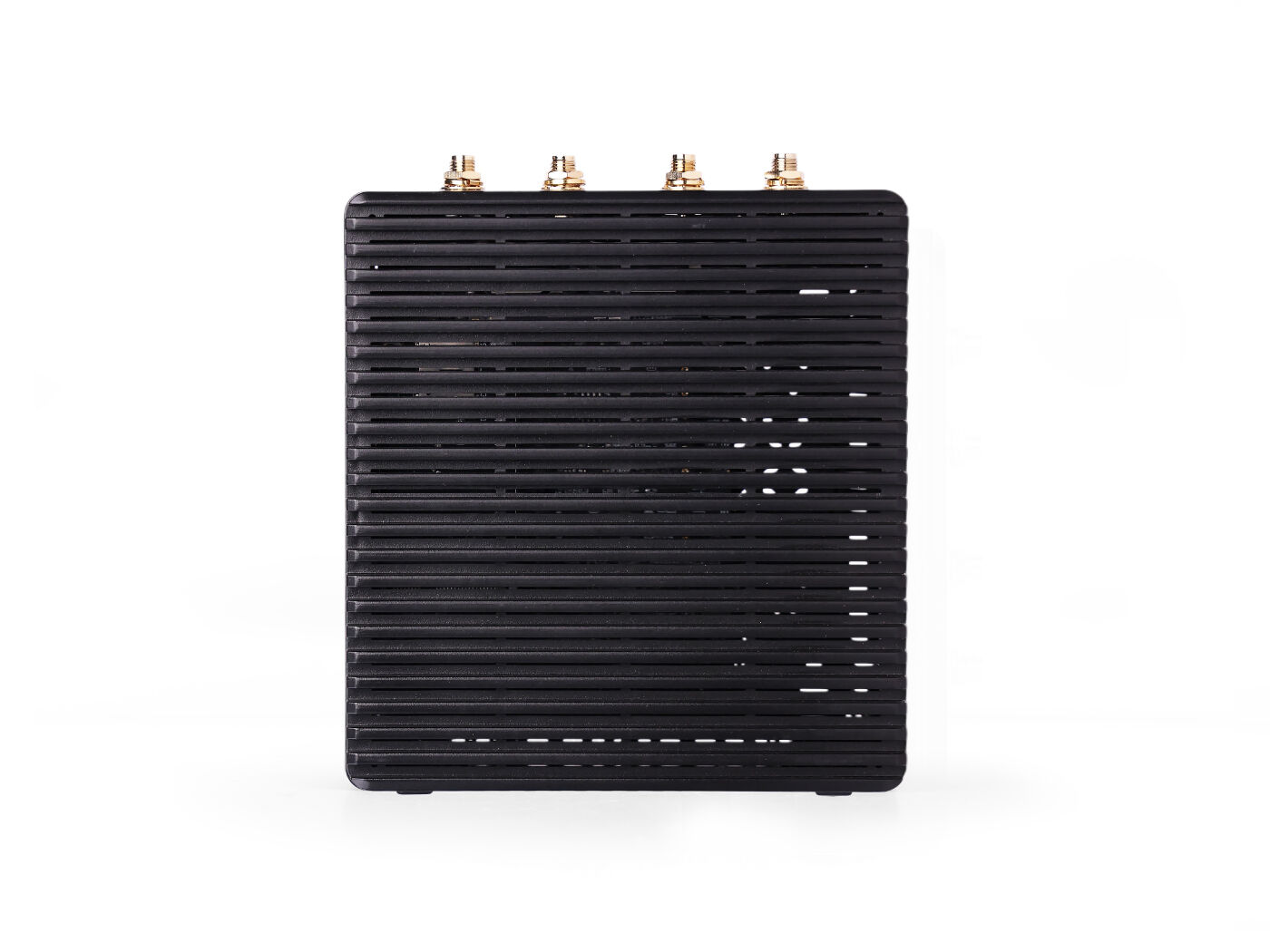

reComputer Classic Jetson™

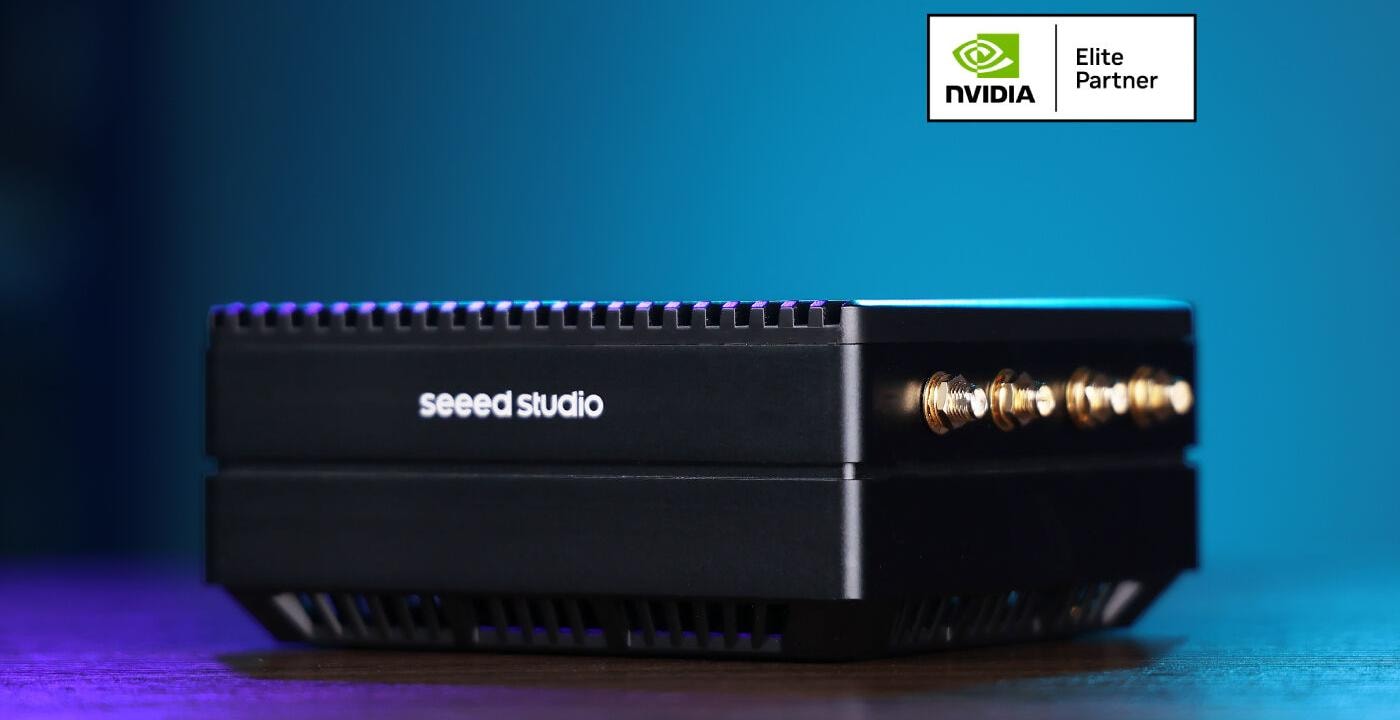

reComputer Classic Jetson™ is a powerful and compact edge AI device series built on NVIDIA® Jetson™ Orin™ modules, featuring rich interface configurations for both development and production environments.
  • Powerful Embedded AI Platform
    Compatible with Jetson Orin series modules, offering AI performance from 20 TOPS to 100 TOPS to meet different performance requirements.
  • Design for Both Development and Production
    Equipped with rich I/O interfaces: USB 3.2, HDMI, Ethernet, M.2 Key M, M.2 Key E, mini-PCIe, 40-pin GPIO and more.
  • Diverse Communication Capabilities
    Support multiple wired and wireless communication options, including Wi-Fi and LTE expansion.
  • Immediately Go-to-Market
    Pre-installed with JetPack system, Linux OS BSP ready for rapid development and deployment.
  • Comprehensive Certification
    Certified with ROHS, CE, FCC, KC, UKCA, REACH and other standards.
  • Long-term Supply Guarantee
    Production lifecycle until at least 2032, ensuring stable supply for long-term projects.
Product Overview
The reComputer Classic Jetson™ series is a powerful and compact edge AI device family based on the NVIDIA® Jetson™ Orin™ platform. This series is compatible with Jetson Orin Nano and Orin NX modules, providing AI performance options from 20 TOPS to 100 TOPS, with rich interfaces including USB 3.2, HDMI, Ethernet, M.2 Key E for Wi-Fi modules, M.2 Key M for SSD, mini-PCIe for LTE modules, CAN, 40-pin GPIO and more.
Product Features

Build the Most Powerful Embedded AI Platform

Compatible with Jetson Orin series modules, providing 20-100 TOPS AI performance across different models to meet various edge AI application requirements from entry-level to high-performance.

Design for Both Development and Production

Equipped with a rich set of I/O interfaces: multiple USB3.2 ports, HDMI display output, Gigabit Ethernet, M.2 Key M storage expansion, M.2 Key E wireless module support, mini-PCIe LTE module support, 40-pin GPIO expansion interface and more.
Support multiple wired and wireless communication methods, including Wi-Fi and LTE expansion.

Immediately Go-to-Market

Pre-installed with JetPack system, Linux OS BSP ready, significantly reducing development cycles.
Certified with ROHS, CE, FCC, KC, UKCA, REACH and other standards.

Long-term Supply Guarantee

Production lifecycle: until at least 2032, providing stable supply assurance for long-term projects.

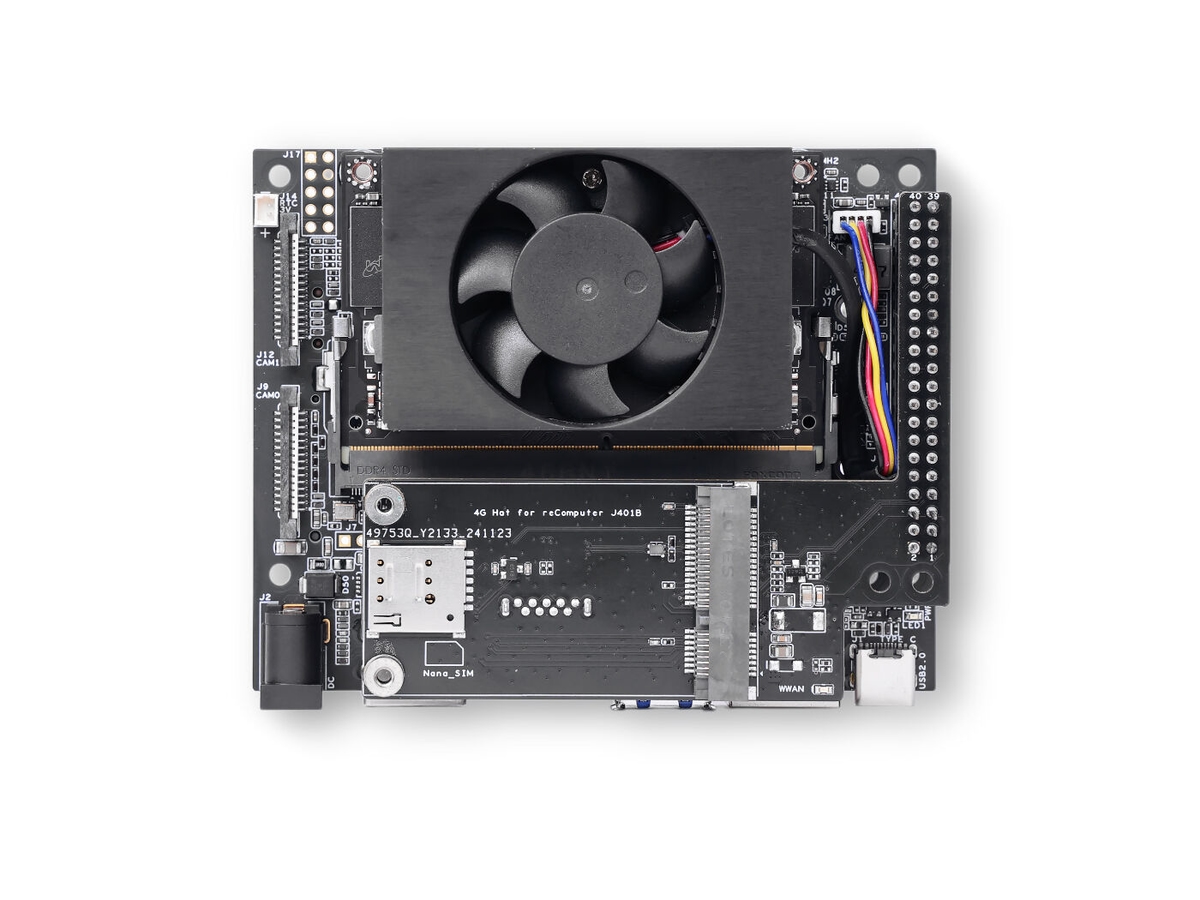

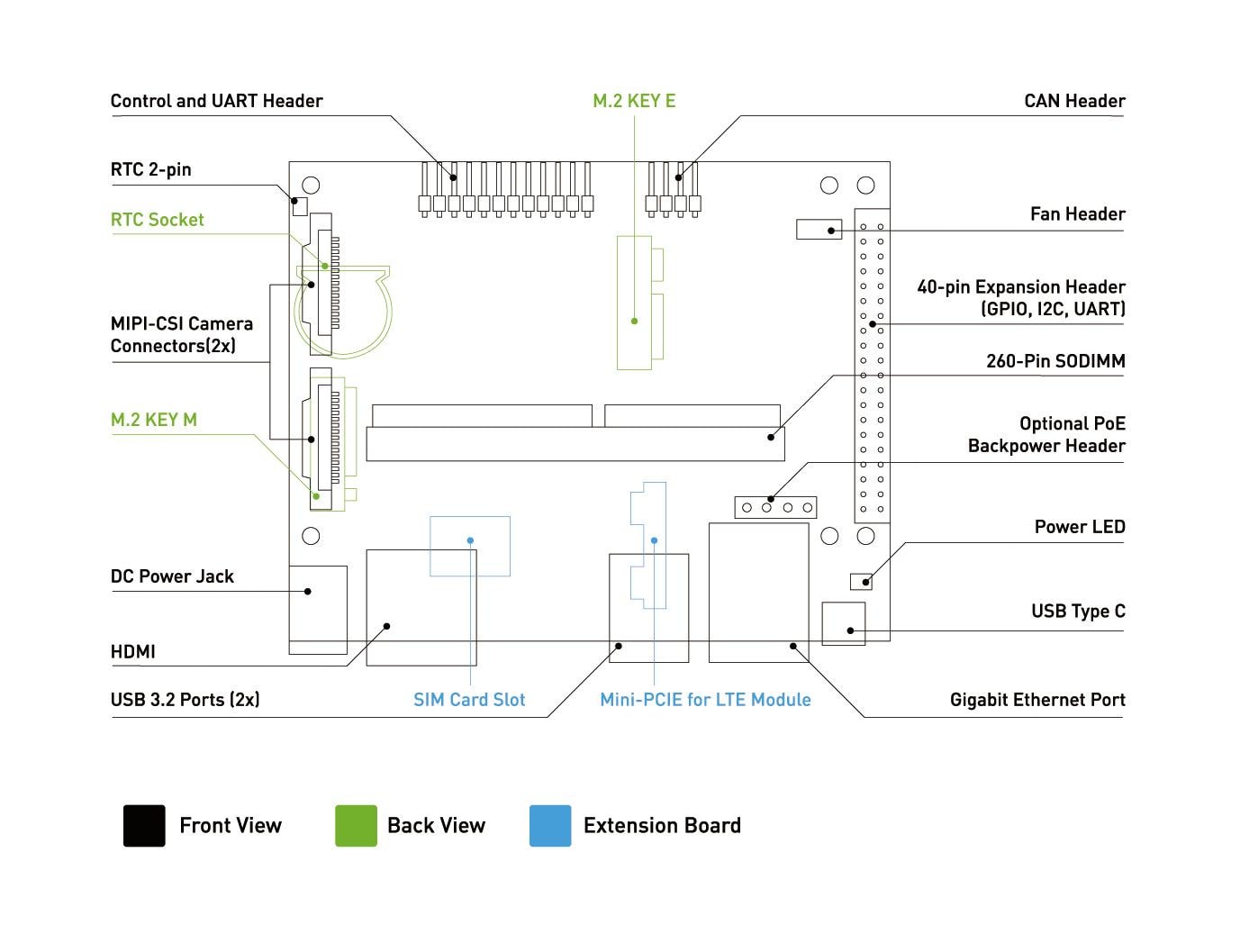

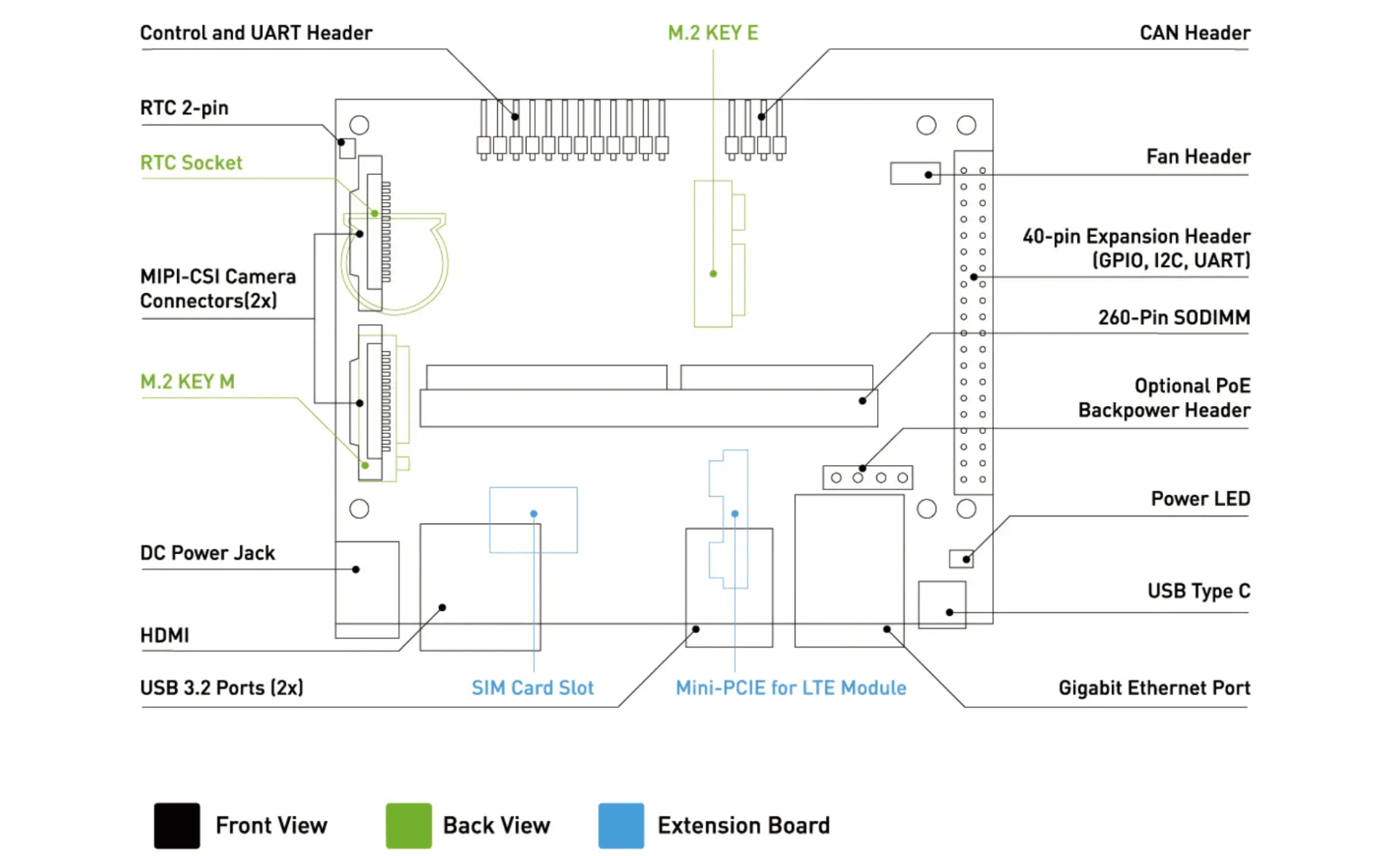

Hardware Overview

Hardware Overview

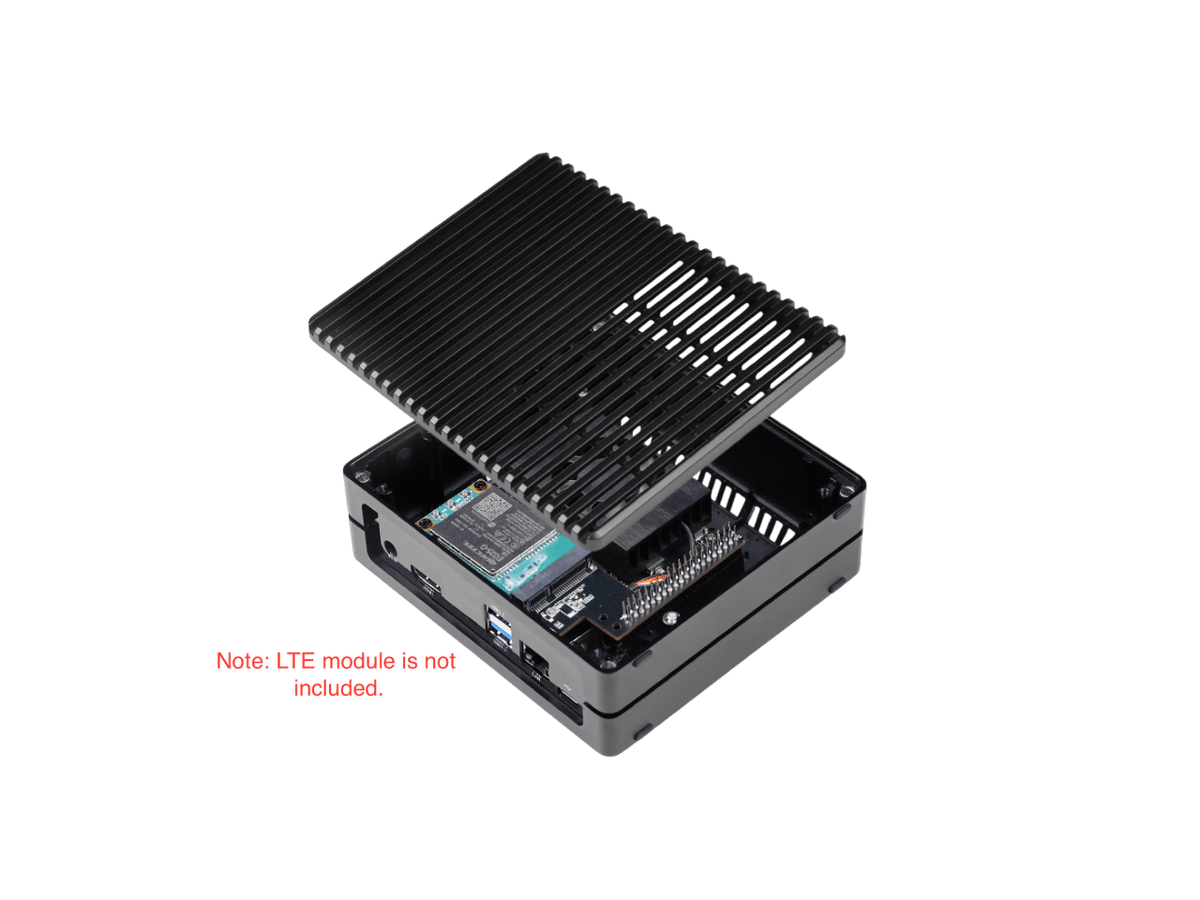

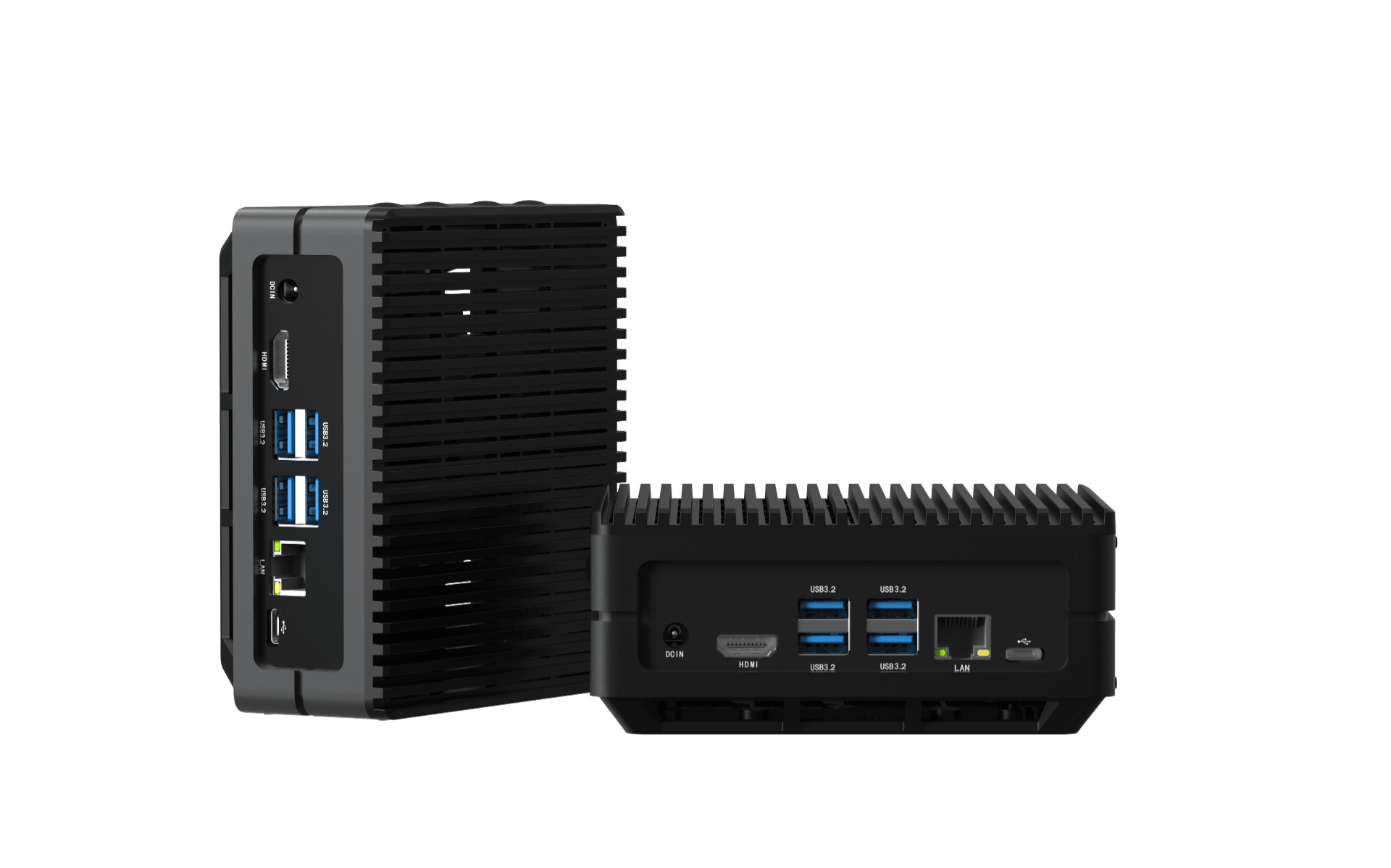

The reComputer Classic Jetson™ series adopts a modular design, supporting desktop deployment, wall mounting and other installation methods, flexibly adapting to various deployment environments.

Application Scenarios

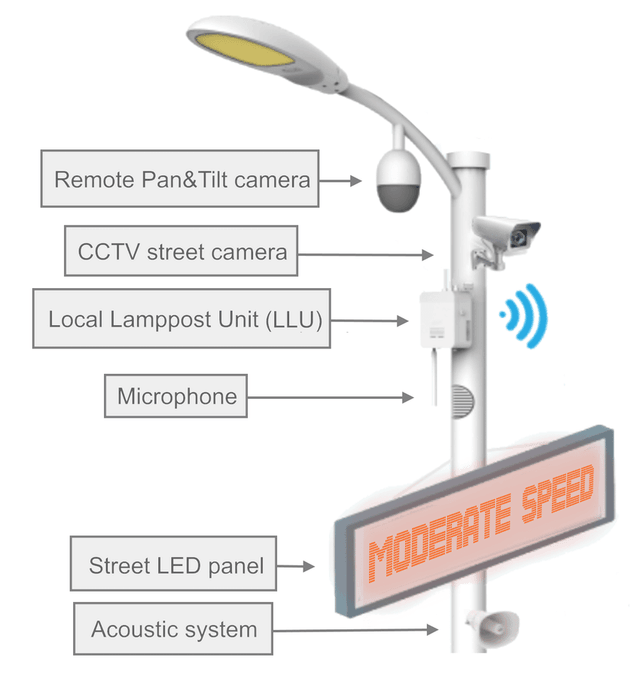

Smart Lamppost

Smart lampposts monitor traffic with sensors and transmit data for better traffic control. They integrate solar power, store energy for night use, and may feed excess power to the grid.

Smart Lamppost Application

EV Battery Swapping/Charging System

Battery swapping eases EV range anxiety. Charging stations, connected to the smart grid, optimize charging times. Some EVs can also supply power to the grid.

EV Charging System

Smart Recycling Center

Sensors in recycling bins reduce waste collection trips. Energy-efficient equipment runs during off-peak hours, and recycled materials are used for smart grid and EV components.

Smart Recycling Center

Other Application Areas

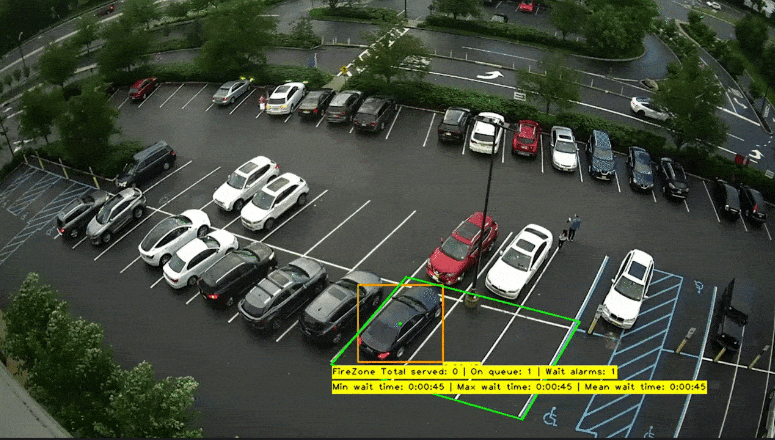

• AI Video Analytics
• Machine Vision
• Robotics
• Generative AI and Computer Vision Model Deployment

Model Selection Comparison
Specifications J3010 J3011 J4011 J4012
Module Jetson Orin Nano 4GB Jetson Orin Nano 8GB Jetson Orin NX 8GB Jetson Orin NX 16GB
AI Performance

20 TOPS (Original Mode)

34 TOPS (Super Mode)

67 TOPS 100 TOPS 100 TOPS
GPU

512-core NVIDIA Ampere Architecture

16 Tensor Cores

1024-core NVIDIA Ampere Architecture

32 Tensor Cores

1024-core NVIDIA Ampere Architecture

32 Tensor Cores

1024-core NVIDIA Ampere Architecture

16 Tensor Cores

CPU

6-core Arm® Cortex®-A78AE

1.5GHz (Original) / 1.7GHz (Super)

6-core Arm® Cortex®-A78AE

1.5GHz

8-core Arm® Cortex®-A78AE

2GHz

8-core Arm® Cortex®-A78AE

2GHz

Memory

4GB 64-bit LPDDR5

34 GB/s

8GB 128-bit LPDDR5

68 GB/s

8GB 128-bit LPDDR5

102.4 GB/s

16GB 128-bit LPDDR5

102.4 GB/s

Storage Pre-installed 128GB NVMe SSD Pre-installed 128GB NVMe SSD Pre-installed 128GB NVMe SSD Pre-installed 128GB NVMe SSD
Operating Temperature -10℃~60℃ -10℃~60℃ -10℃~60℃ -10℃~60℃
Hardware Specifications
ParameterJ3010J3011J4011J4012
Product Series reComputer J3010reComputer J3011reComputer J4011reComputer J4012
Module Jetson Orin Nano 4GBJetson Orin Nano 8GBJetson Orin NX 8GBJetson Orin NX 16GB
AI Performance 34 TOPS67 TOPS100 TOPS100 TOPS
GPU 512-core NVIDIA Ampere Architecture
16 Tensor Cores		1024-core NVIDIA Ampere Architecture
32 Tensor Cores		1024-core NVIDIA Ampere Architecture
32 Tensor Cores		1024-core NVIDIA Ampere Architecture
16 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3		6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3		8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3		8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5
34 GB/s		8GB 128-bit LPDDR5
68 GB/s		8GB 128-bit LPDDR5
102.4 GB/s		16GB 128-bit LPDDR5
102.4 GB/s
Storage Pre-installed 128GB NVMe SSDPre-installed 128GB NVMe SSDPre-installed 128GB NVMe SSDPre-installed 128GB NVMe SSD
Interface Specifications
Interface TypeSpecification
Display 1x HDMI 2.1
CSI 2x CSI (2-lane 15pin)
Networking 1x Gigabit Ethernet (10/100/1000M)
USB 4x USB 3.2 Type-A (10Gbps) (J3010/J3011)
2x USB 3.2 Type-A (10Gbps) (J4011/J4012)
1x USB2.0 Type-C (Device Mode)
M.2 Key M 1x M.2 Key M for SSD
M.2 Key E 1x M.2 Key E for Wi-Fi module*
mini-PCIe 1x mini-PCIe for LTE module*
Fan 1x JST 4pin Fan Connector (5V PWM)
CAN 1x CAN
Multifunctional Port 1x 40-Pin Expansion Header
1x 12-Pin Control and UART Header
RTC RTC 2-pin
RTC Socket (supports CR1220*)
Power Supply DC 9-19V via 5525 DC Jack
Environmental Conditions
ParameterSpecification
Operating Temperature -10~60 °C
Other Specifications
ParameterSpecification
Dimensions 130mm x 120mm x 58.5mm
Weight Approx. 452g
Warranty 2 Years
Production Lifetime Until 2032
Statement Options marked with * require additional purchase
Product Introduction
  • Seeed NVIDIA Jetson Product Catalog
  • Seeed Jetson One Pager
  • Seeed NVIDIA Jetson Success Cases
User Manual
  • reComputer J3010 Datasheet
  • reComputer J4012 Datasheet
Product Design
  • Carrier Board Schematic
  • Carrier Board Schematic (J401B)
  • LTE Board Schematics
  • 3D File
Others
  • NVIDIA Jetson Comparison
  • NVIDIA Jetson Devices and Carrier Boards Comparison
Getting start with reComputer J30/40
This link introduces the reComputer J3011 series, which is built with Jetson Orin and is an intelligent edge box. It introduces its system composition, pre-installed software, product features (such as AI performance, size, interfaces, etc.), specification parameters of different models, and also mentions JetPack, interface usage, and technical support, etc.
Getting start with reComputer J401B

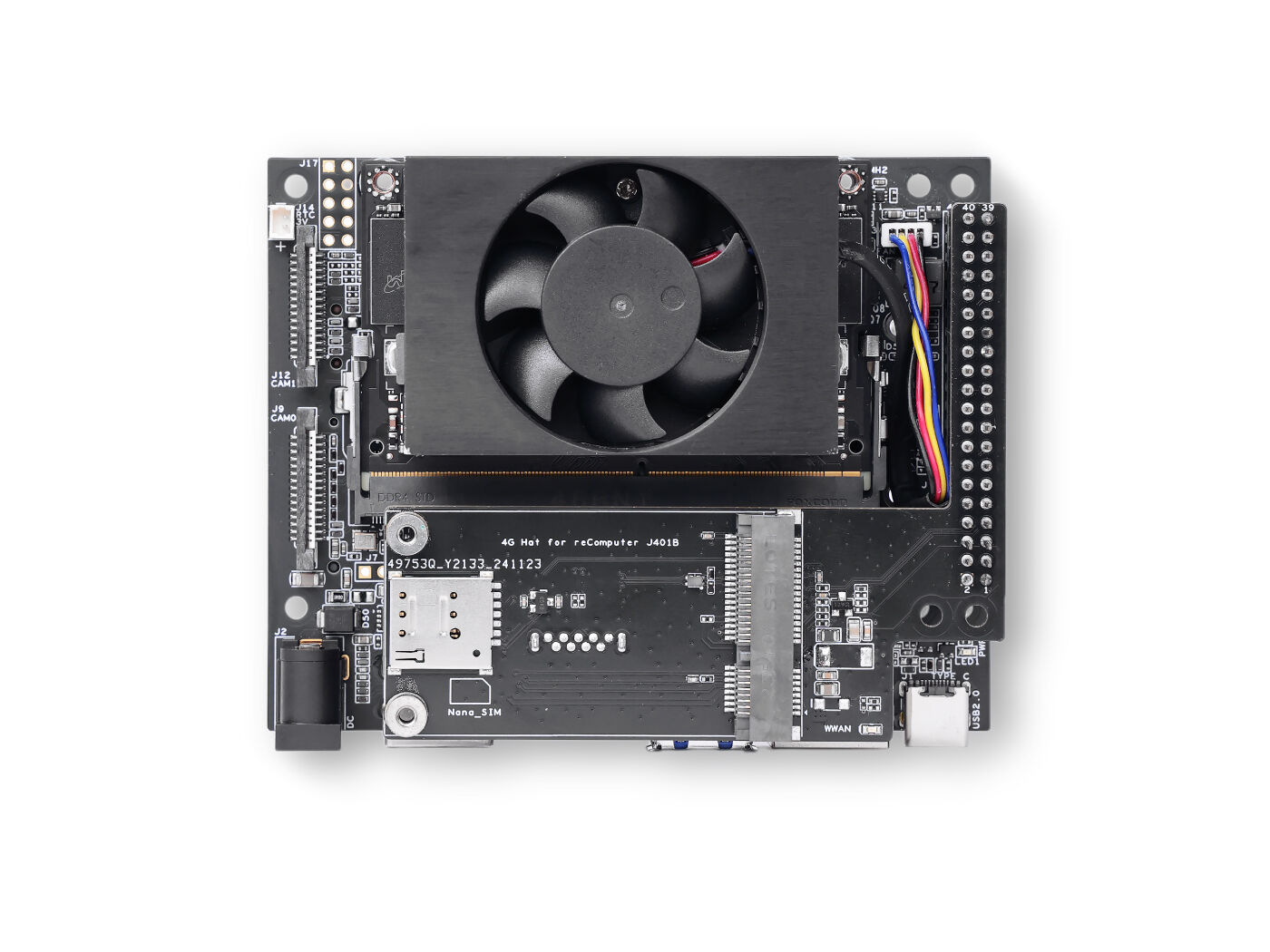

The reComputer J401B series is an iteration on reComputer Classic series. The reComputer J4011B with NVIDIA Jetson Orin NX 8GB modules is a powerful and compact edge AI device with rich interfaces: 2x USB 3.2, HDMI, Ethernet, M.2 Key E for Wi-Fi module, M.2 Key M for SSD, mini-PCIe for LTE module, CAN, 40-pin and more.
J401B Interfaces Usage
This wiki introduces the various different hardware and interfaces on the reComputer J401B and how to use them to expand your project ideas.

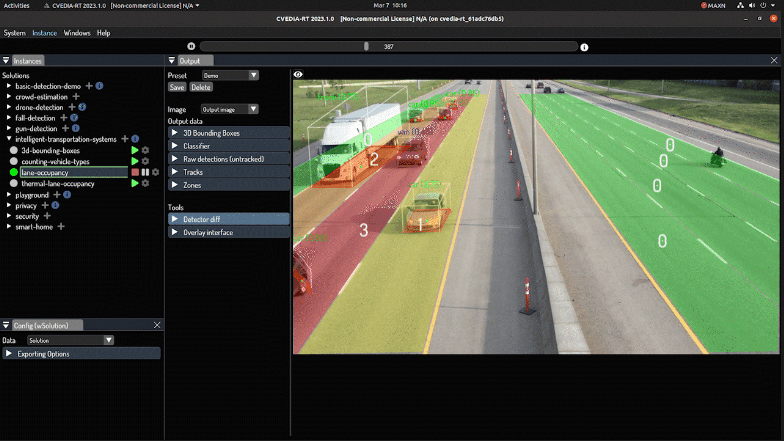

Getting Started with CVEDIA-RT on NVIDIA® Jetson Devices
CVEDIA-RT is a modular, cross-platform AI inference engine that provides the solid foundations for building decision support systems. It's designed from the ground-up with developers and integrators in mind, providing both high and low-level interfaces.
Getting Started with Lumeo on NVIDIA® Jetson Devices
Lumeo is a no-code video analytics platform that enables you to rapidly design, deploy, and monitor custom video analytics and other vision-AI enabled applications.

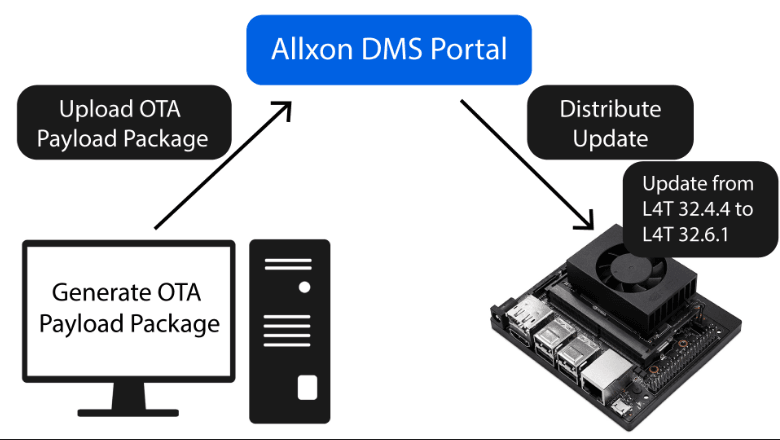

Update Jetson Linux Over-the-Air Using Allxon
Generally, NVIDIA provides "OTA Payload Package Update" mechanism which allows users to update their Jetson devices to newer versions of JetPack. Although it seems convenient to update the OS of Jetson devices, there is an additional effort which users need to make.
