reComputer Industrial R

reComputer Industrial R20/21/22, powered by Raspberry Pi CM5, are compact edge AI industrial controllers with rich interfaces and diverse wireless options, ideal for industrial AI, automation and IoT applications.

Raspberry Pi CM5 platform with up to 16GB RAM supports smooth multitasking and efficient data processing for AI and NVR workloads.

Supports up to 4x 1080p video streams at 30 FPS in real time for complex Vision AI workloads.

Fanless cooling is engineered for AI workload heat and stable operation from -20°C to 65°C.

Includes high-accuracy RTC, hardware watchdog, optional UPS supercapacitor, TPM/ATECC608A security module, IP40-rated aluminum alloy enclosure, DIN-rail and wall mounting, and production support until at least January 2036.

Hailo-8 AI accelerator options deliver up to 26 TOPS for low-latency real-time edge AI vision processing across multiple camera channels.

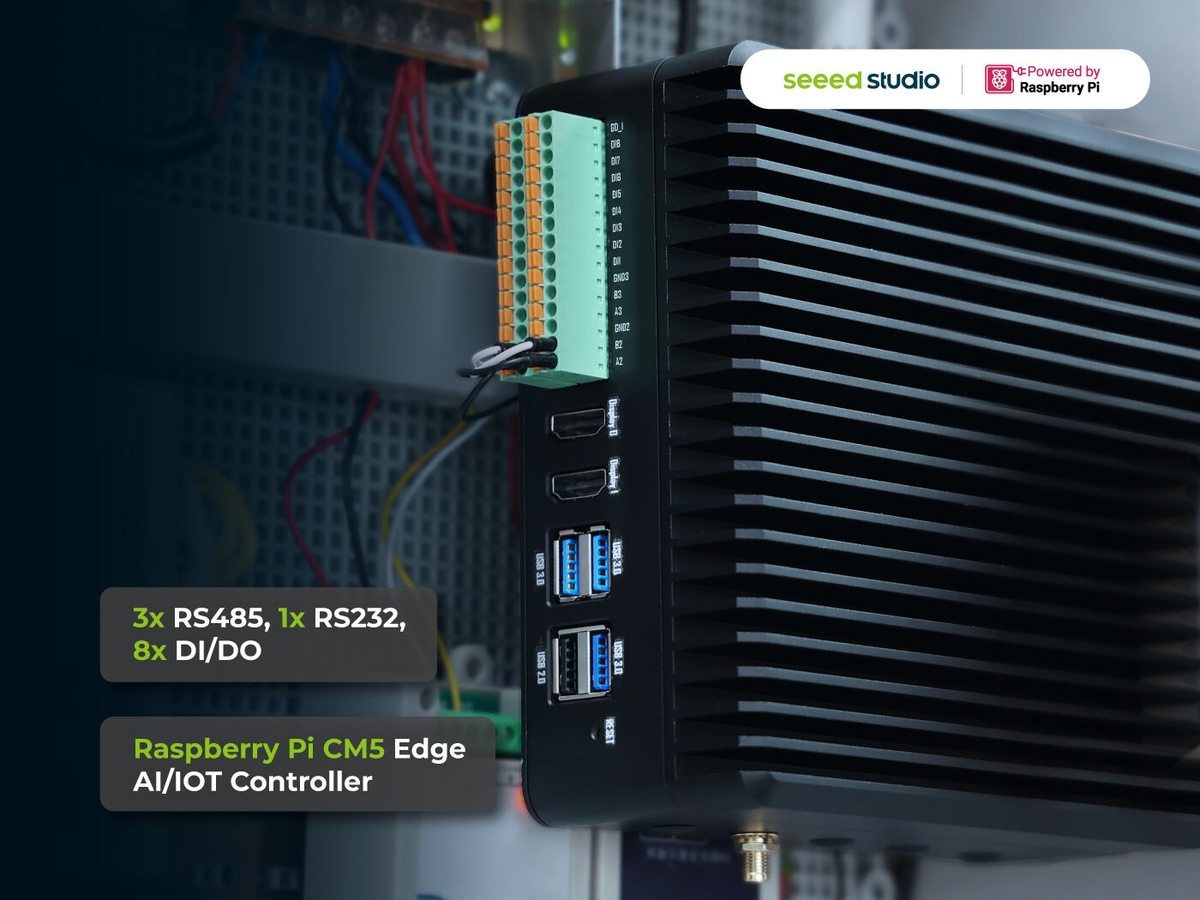

RS485, RS232, isolated DI/DO, CAN FD, Gigabit Ethernet with PoE PSE support, HDMI 2.0, USB 3.0, audio jack, and Nano SIM card slot support industrial deployment.

On-chip Wi-Fi and BLE plus expansion options for LTE, LoRa and 4G/5G modules.

Contact edge@seeed.cc for customization needs.

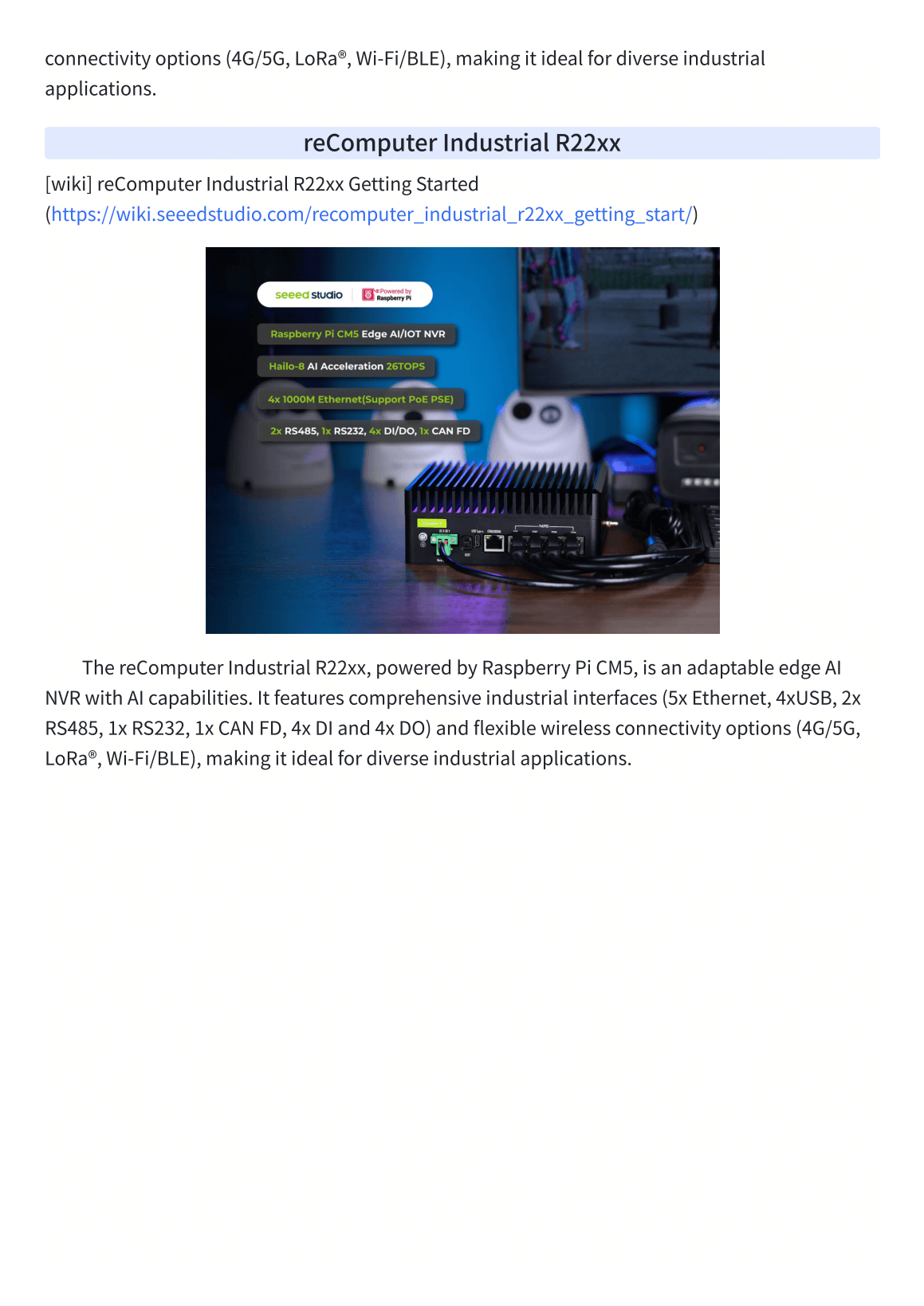

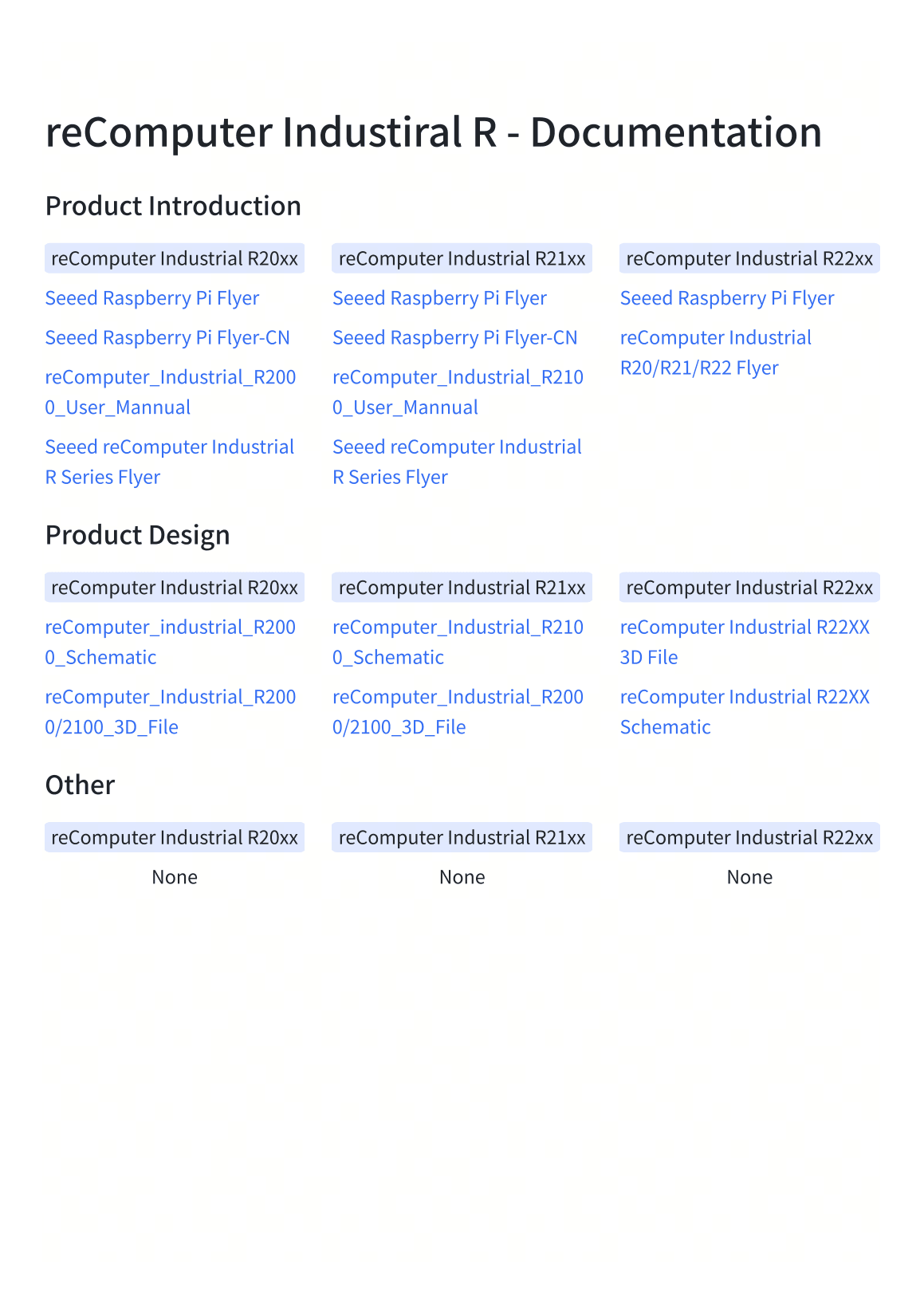

Hardware overview covers reComputer Industrial R20xx, R21xx and R22xx variants, including interface layout and mechanical drawings.

As an industrial-grade AI-powered NVR, the system supports object detection, recognition, tracking, OCR and abnormal event detection. It can process up to 4x 1080p video streams at 30 FPS at the edge, with PoE Ethernet ports for directly connecting and powering IP cameras.

Real-time video safety monitoring across production floors, workshops and restricted zones, including personnel presence detection, unsafe behavior recognition, PPE compliance monitoring and anomaly detection near critical equipment.

Multi-camera deployment for storage areas, loading docks and transit corridors, supporting intrusion detection, area occupancy monitoring, abnormal behavior recognition and asset movement tracking.

Local video analytics for customer flow statistics, crowd density analysis, dwell-time detection and abnormal event alerts, with edge AI acceleration and PoE camera support.

Centralized AI video analytics for entrances, corridors, parking areas and shared spaces, with compact DIN-rail and wall-mount installation for building control cabinets.

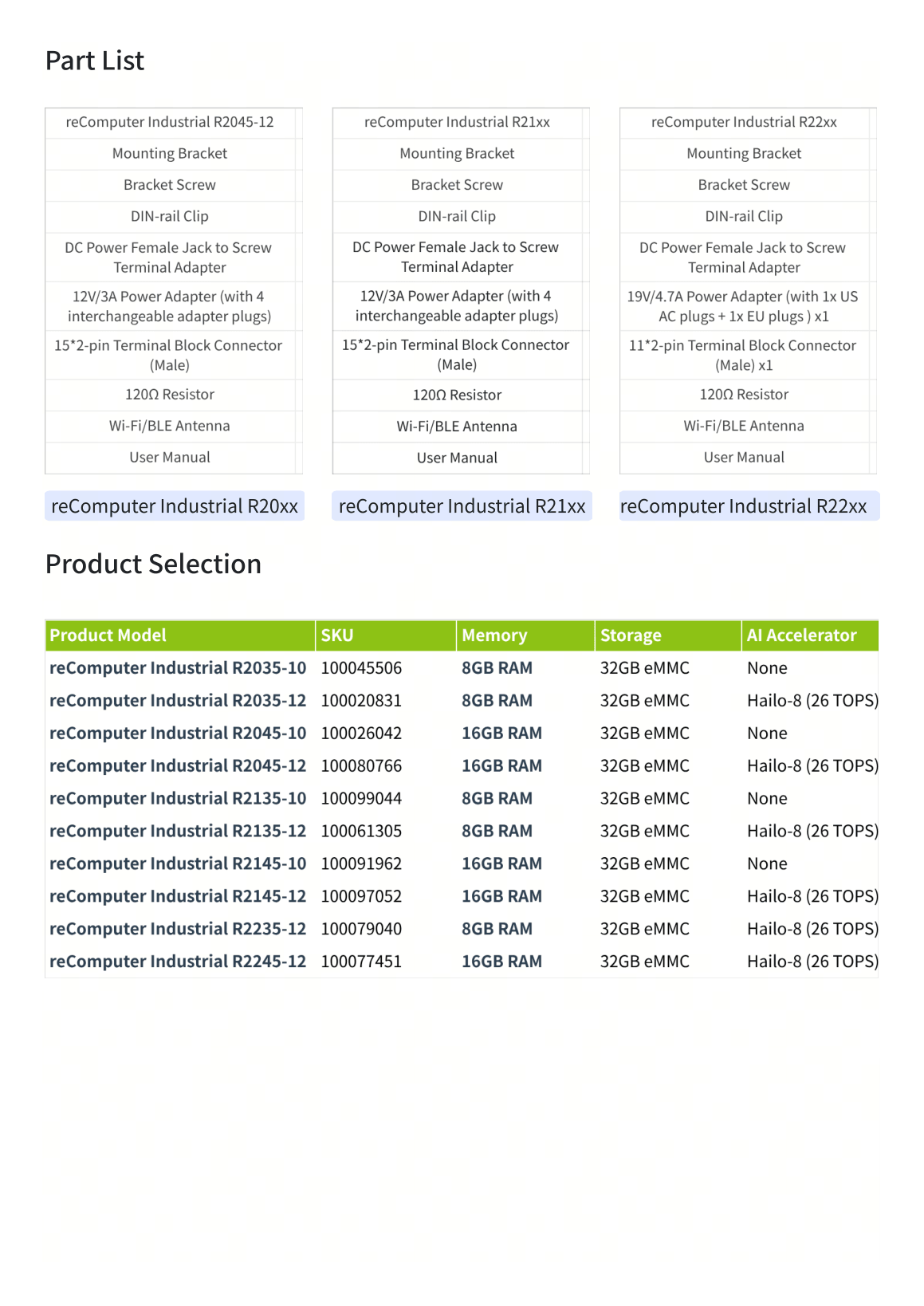

The series includes R20xx, R21xx and R22xx variants with mounting accessories, DIN-rail clip, power adapter, terminal block connectors, resistor, antenna and user manual depending on model.
