reComputer Mini Jetson™
reComputer Mini Jetson™ Series is a tiny AI computer powered by NVIDIA® Jetson Orin™ modules, delivering up to 100 TOPS AI performance, designed for embedding into autonomous machines with rich expansion capabilities.
-
Brilliant AI Performance for ProductionAchieves 20 TOPS (J3010), 40 TOPS (J3011), 70 TOPS (J4011), or 100 TOPS (J4012) AI performance with low power and latency, built by NVIDIA Orin SoC combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
-

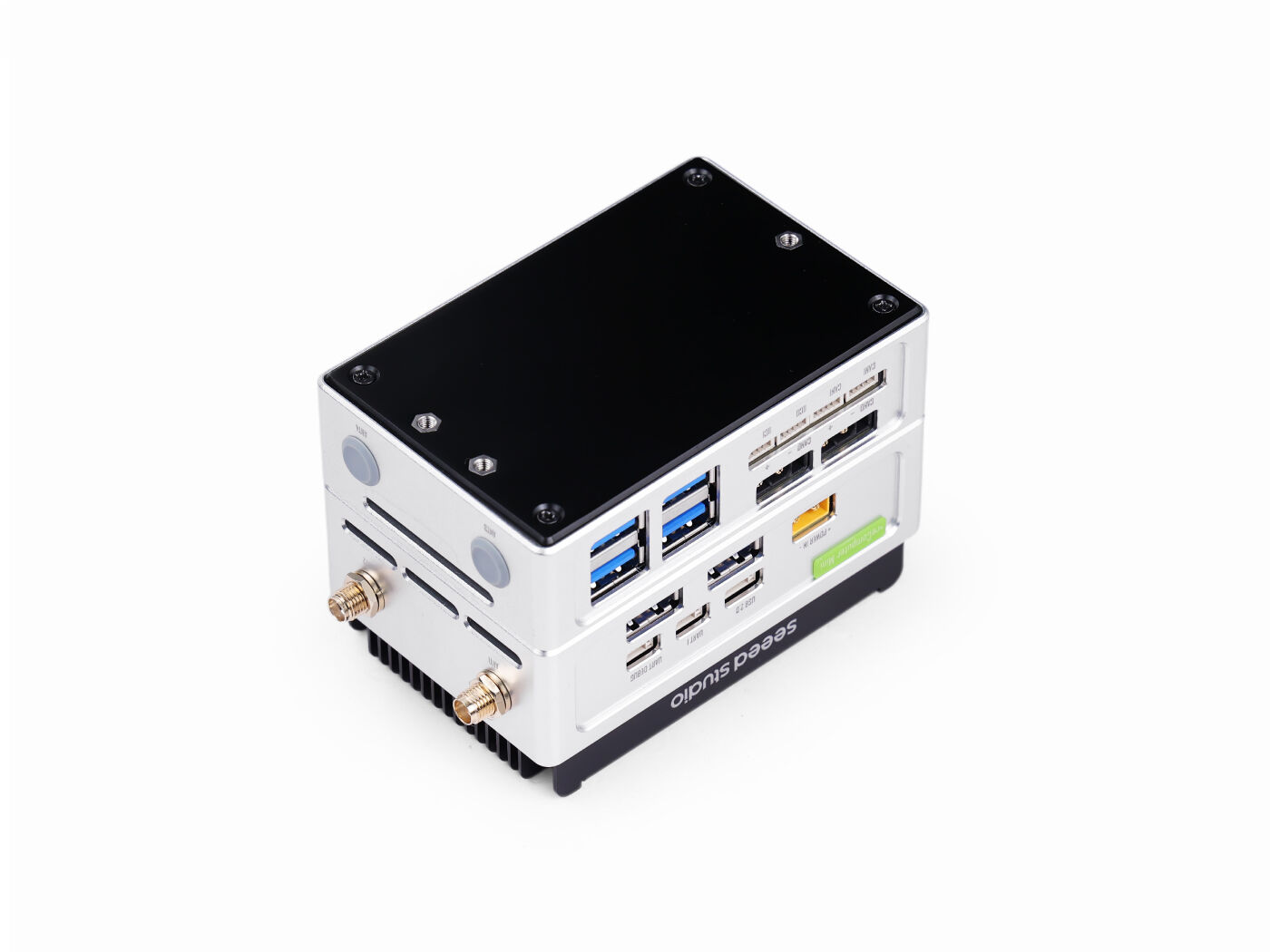

Hand-Size Edge AI DeviceCompact size at 63mm x 95mm x 66.7mm (with extension), featuring NVIDIA Jetson Orin NX (8GB/16GB) or Orin Nano (4GB/8GB) module, Mini J401 carrier board, fan and enclosure. Support desktop and wall mounting.
-
Expandable with Rich I/OsIncludes up to 8x USB, DP 1.4, 1x RJ45 for GbE, M.2 Key E, M.2 Key M, dual channel CAN, and GPIO for versatile connectivity options.
-
Accelerate Solutions to MarketPre-installed JetPack 6.0 on 128GB NVMe SSD, Linux OS BSP, supporting Jetson software and leading AI frameworks for rapid development.
-
Scale to DeploySupport OTA, remote management services powered by Allxon and Balena for easy fleet management and deployment.
-
Flexible CustomizationIncludes changing accessories modules, logo, and hardware interfaces modification based on reComputer Mini original design to meet specific requirements.

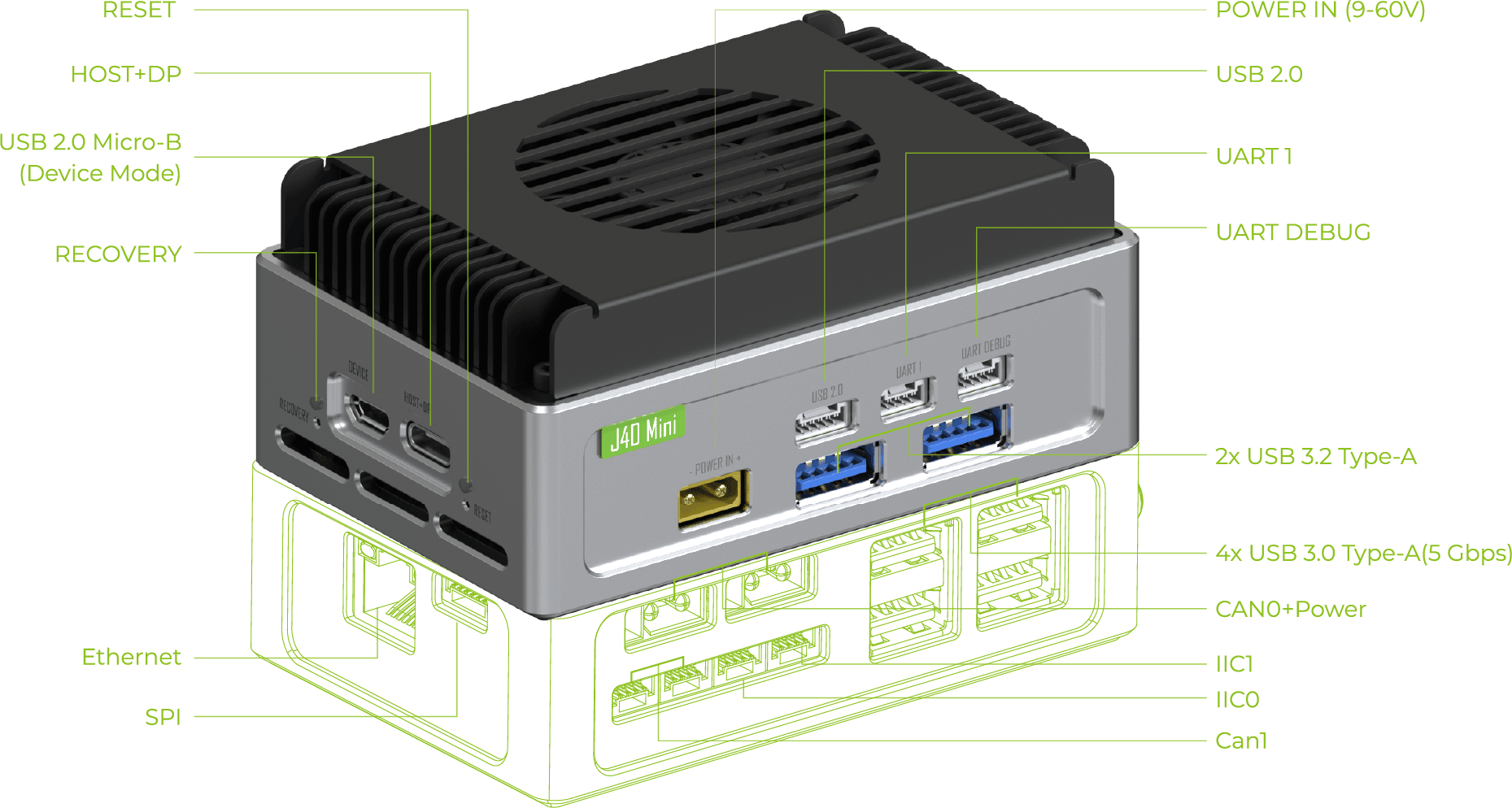

Hardware Overview
Desktop, wall Mount, expandable, or fit in anywhere
Application
Robotic Control
Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.
Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
Model Selection
| Product Model | Module Type | AI Performance | Memory | Video Encode | Video Decode |
|---|---|---|---|---|---|
| reComputer Mini J3010 | Orin Nano 4GB | 20 TOPS | 4GB LPDDR5 | 1080p30 supported by 1-2 CPU cores | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| reComputer Mini J3011 | Orin Nano 8GB | 40 TOPS | 8GB LPDDR5 | 1080p30 supported by 1-2 CPU cores | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| reComputer Mini J4011 | Orin NX 8GB | 70 TOPS | 8GB LPDDR5 | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
| reComputer Mini J4012 | Orin NX 16GB | 100 TOPS | 16GB LPDDR5 | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
Jetson Orin System on Module
| Specification | reComputer Mini J4012 - Orin NX 16GB | reComputer Mini J4011 - Orin NX 8GB | reComputer Mini J3011 - Orin Nano 8GB | reComputer Mini J3010 - Orin Nano 4GB |
|---|---|---|---|---|
| AI Performance | 100 TOPS | 70 TOPS | 40 TOPS | 20 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |||
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 6-core Arm® Cortex®-A78AE | ||
| Memory | 16GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 4GB 64-bit LPDDR5 |
| Video Encode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) | 1080p30 supported by 1-2 CPU cores | ||
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | ||
| DL Accelerator | 2x NVDLA v2 | / | ||
Carrier Board
| Specification | Details |
|---|---|
| Storage | 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included) |
| I/O | 2x USB 3.2 Type-A (10Gbps) 1x USB 2.0 Micro-B (Device Mode) 1x USB 3.2 Type-C (Host Mode) 1x USB 2.0 JST-5pin (Host Mode) 1x UART, 1x Debug Uart 1x DP 1.4 (included in Type-C connector) 1x 4 pin Fan Connector (5V PWM) 1x Reset Button; 1x Recovery Button 2x 60 pin High Speed Connector (For extension board) 1x 10 pin Power Connector (For extension board) 1x RTC 2-pin |
| Power | 1 x XT30 Connector (12-54V DC) |
| Dimensions (W x D x H) | 63mm x 95mm x 42mm (Without Extension) 63mm x 95mm x 66.7mm (With Extension) |
| Weight | 345g (Without Extension) 462g (With Extension) |
| Operating Temperature | -10℃~50℃ |
| Warranty | 1 Year |
Product Introduction
Product Design
Other

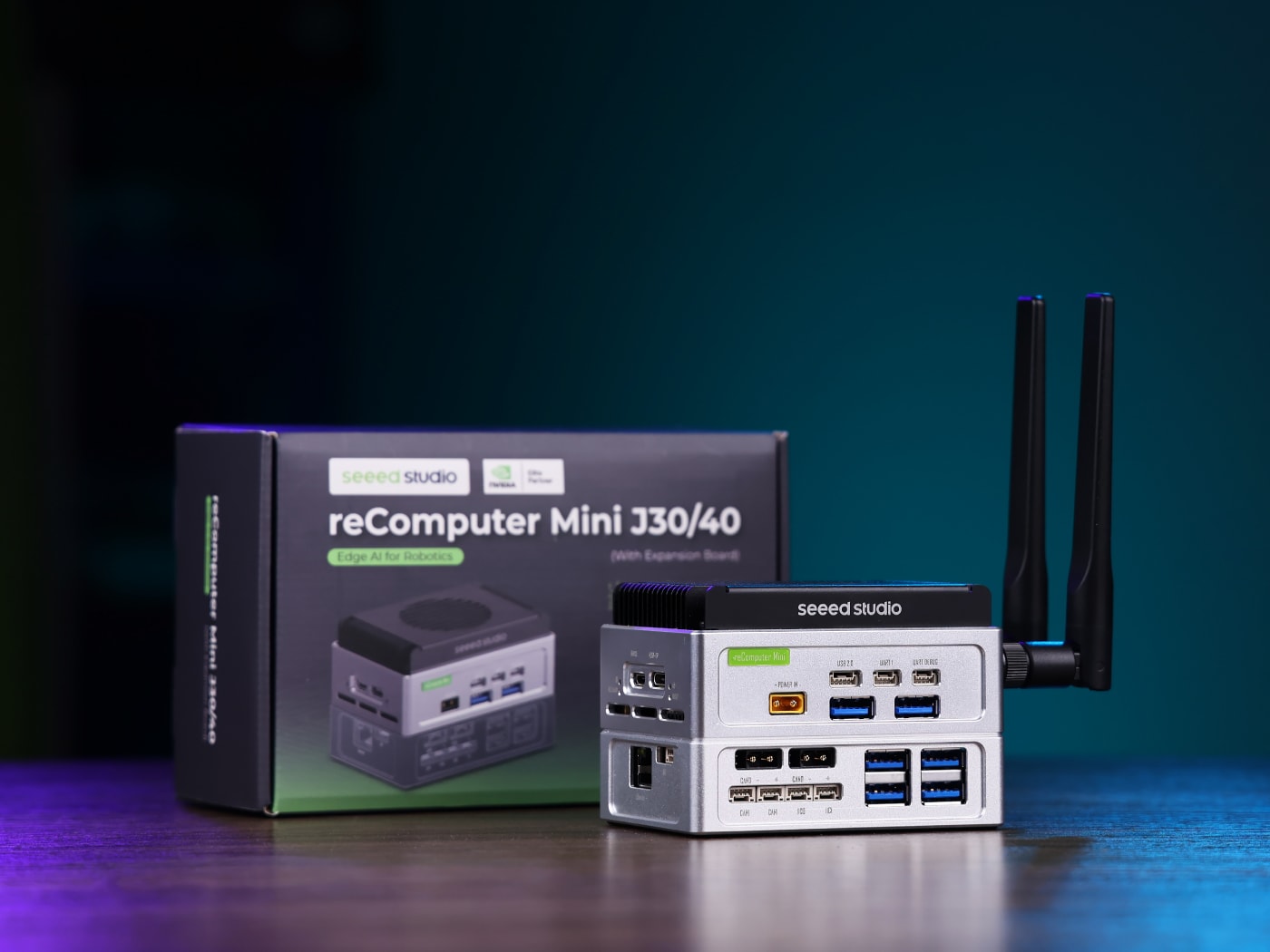

Getting Started with reComputer Mini
In this wiki, we will show you how to flash Jetpack to an NVMe SSD connected to the reComputer J30/40 Series. reComputer Mini J30/40 Series comes with JetPack 6.1 pre-installed on the included NVMe SSD, so that you do not need to flash it. However, if you want to flash it again or upgrade to the latest JetPack 6.0 version, you can follow this guide.

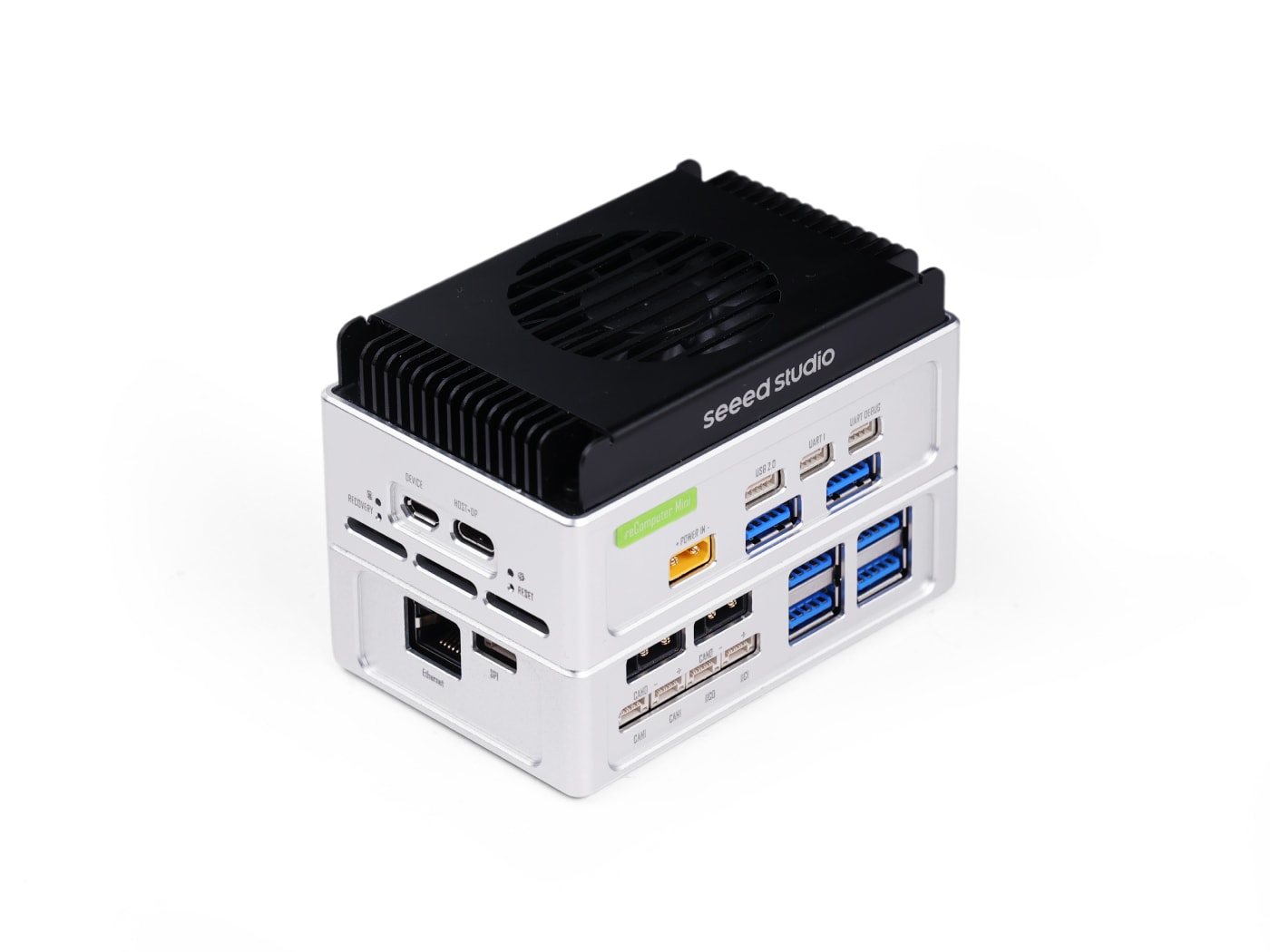

reComputer Mini Hardware and Interfaces Usage
reComputer Mini J401 carrier board supports NVIDIA Jetson Orin Nano/NX(Orin Nano 4GB/Orin Nano 8GB, Orin NX 8GB/Orin NX 16GB) bringing exceptional performance and being engineered to tackle tough edge computing tasks with ease. The following is the Mini J401 carrier board hardware and interface instructions.
Seeed Jetson Examples
Jetson examples library provides examples for running AI models and applications on NVIDIA Jetson devices with a single command.
