reComputer R1000 Series

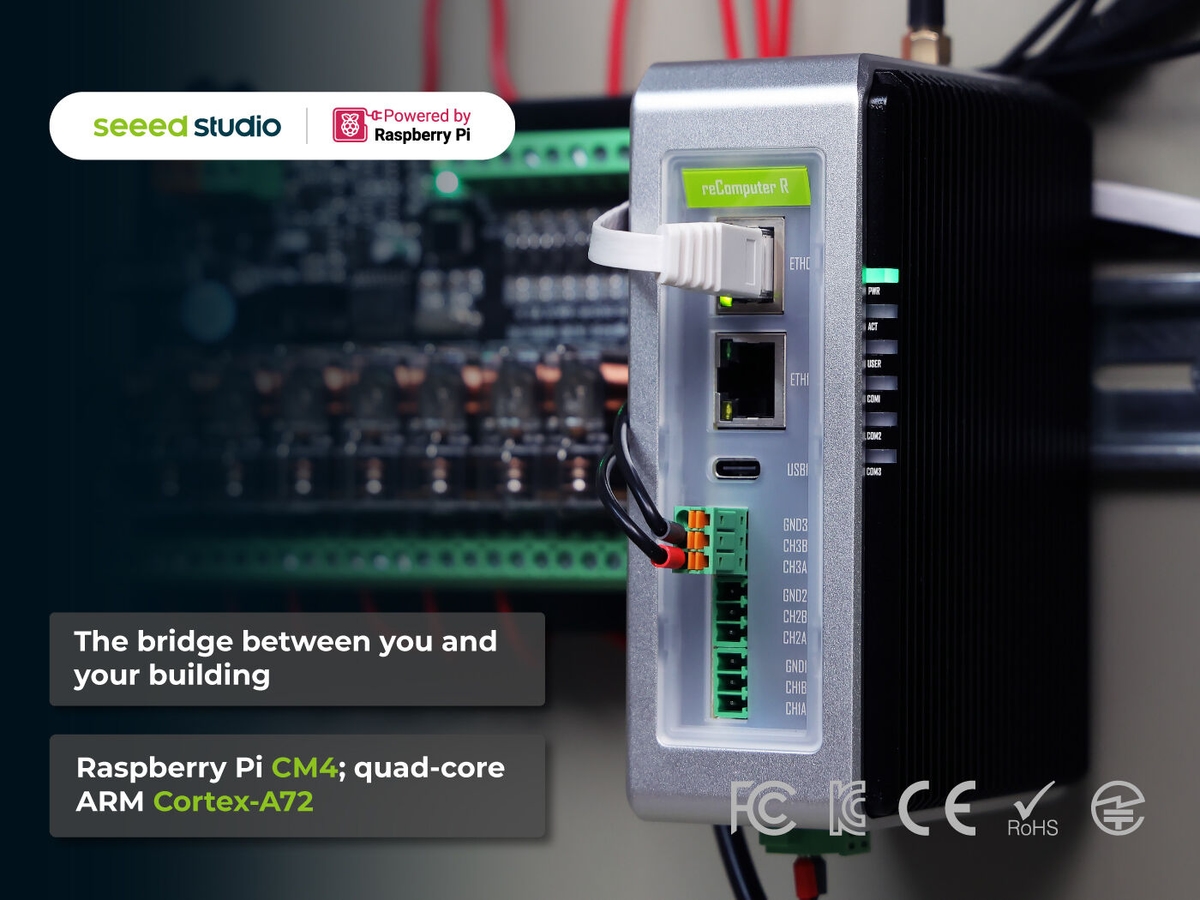

reComputer R1000 is a powerful and flexible industrial-grade Raspberry Pi IoT gateway & controller, CM4-powered, with AI capabilities. Equipped with rich industrial interfaces and wireless communication capabilities, compatible with AI NPU accelerator, it’s a perfect fit for remote access control, especially BMS, BAS, and iBMS applications.
-
Powerful AI Computing PlatformBased on Raspberry Pi CM4 quad-core Cortex-A72@1.5GHz processor, supports 2GB-8GB RAM configuration, compatible with AI NPU accelerator, providing powerful edge AI computing capabilities.
-
Rich Industrial InterfacesProvides diverse industrial interface configurations including RS485, RS232, Ethernet, digital input/output, meeting connection requirements for different industrial application scenarios.
-
Comprehensive Wireless CommunicationBuilt-in Wi-Fi/BLE, supports 4G LTE, LoRa®, Zigbee and other wireless communication protocols, enabling flexible remote connection and data transmission.
-
Industrial-Grade ReliabilityIP40 protection rating, -30~70°C operating temperature range, supports PoE power supply, UPS backup, hardware watchdog functions, ensuring 7×24 hours stable operation.
-
Security Encryption ProtectionEquipped with TPM 2.0 and ATECC608A encryption chips, providing hardware-level security protection to safeguard industrial data and communication security.
-
Flexible Storage ExpansionSupports eMMC storage, M.2 NVMe SSD expansion, some models support Micro SD card, providing flexible storage solutions.
Overview
reComputer R1000 series is an open, flexible, and powerful Raspberry Pi edge IoT gateway & controller, CM4-powered, with AI capabilities, conforming to industrial Raspberry Pi standards. This series features highly diverse connection options, multiple RS485 ports, dual Ethernet, HDMI, SIM card slot, M.2 NVMe SSD slot, and various wireless IoT connectivity capabilities including Wi-Fi, BLE, LoRa®, Zigbee. It also has PoE, UPS, and TPM2.0 to ensure security and reliability.

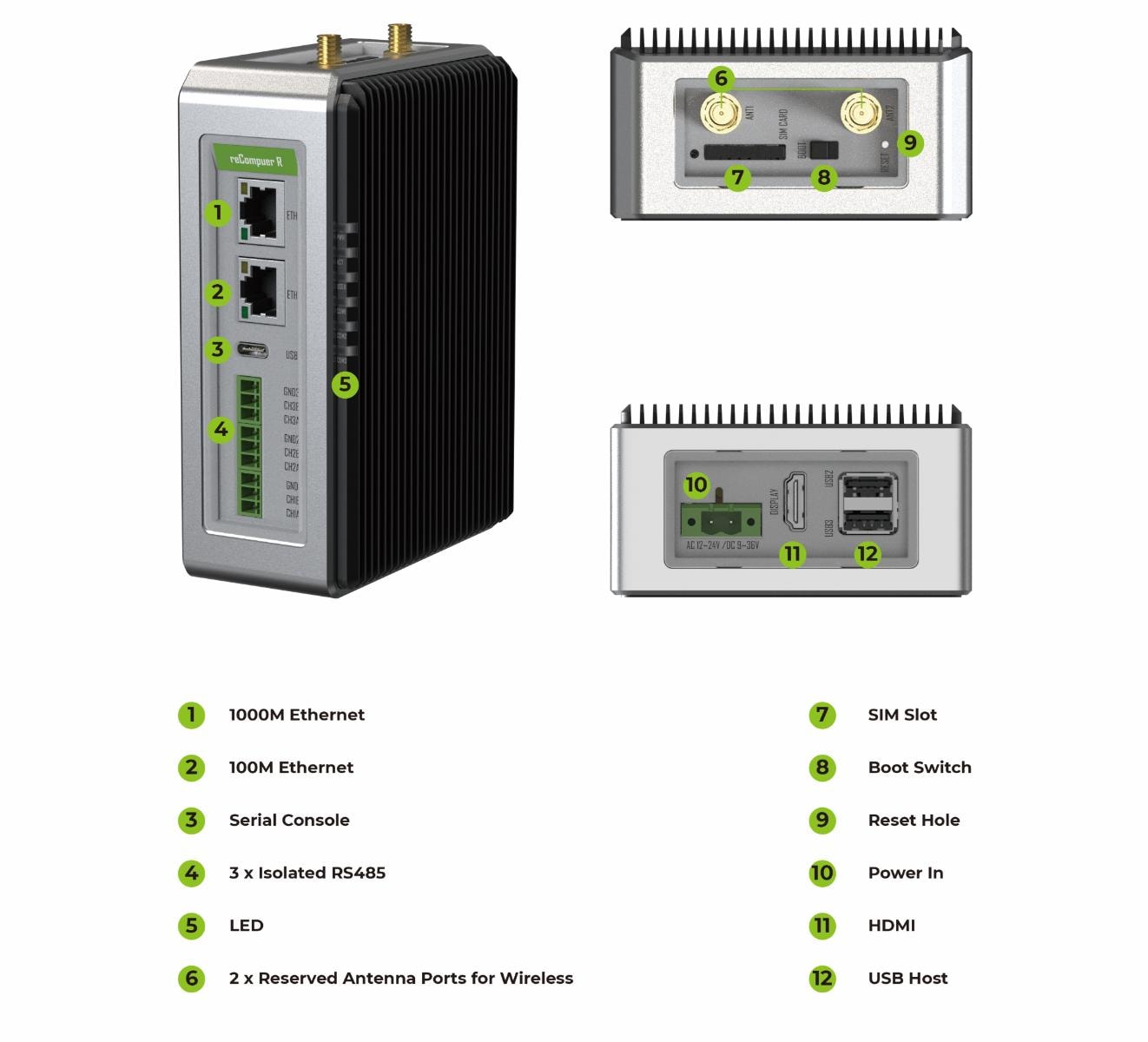

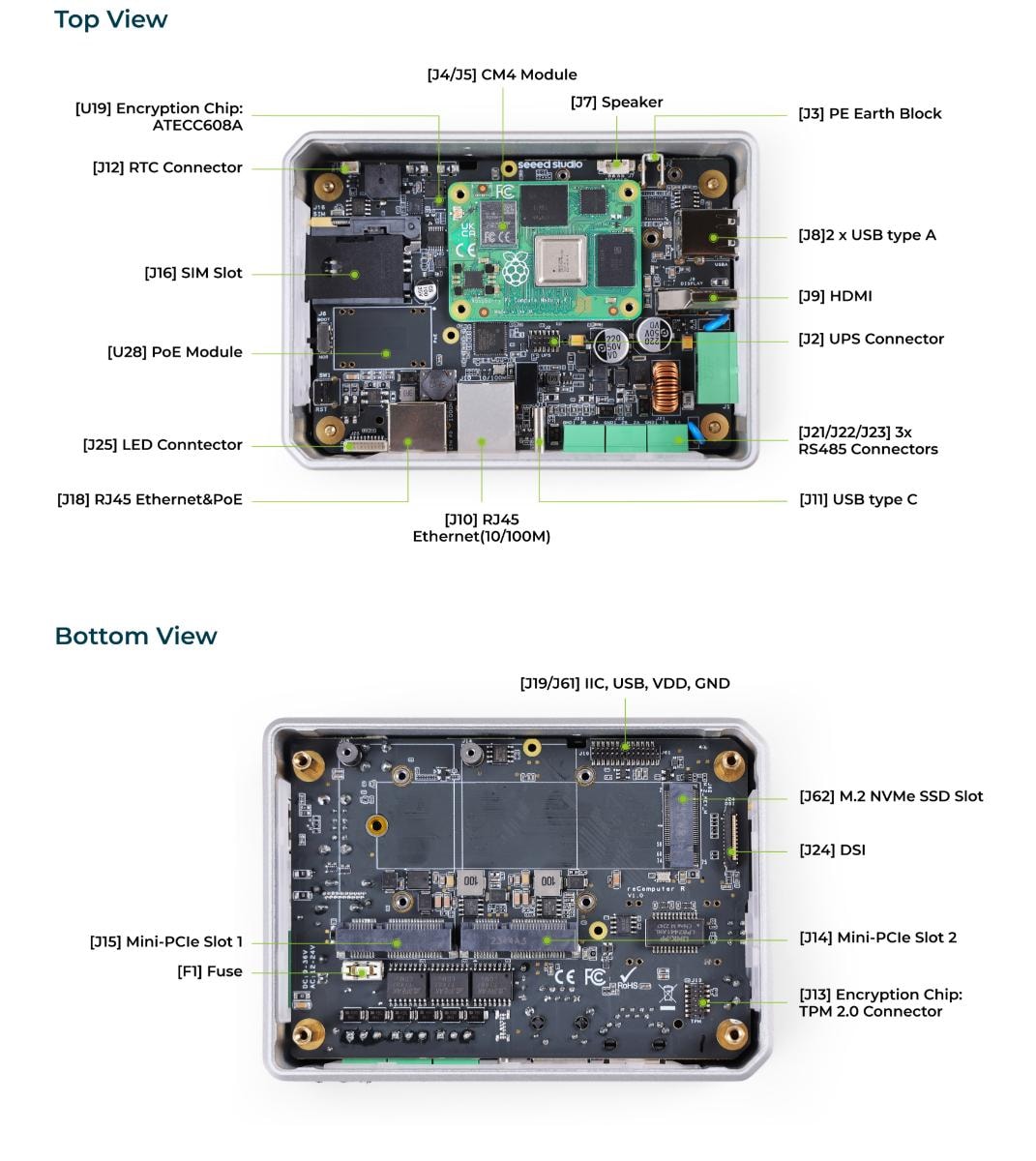

Hardware Overview
The reComputer R1000 series supports up to 8GB RAM for efficiently processing numerous data points, equipped with multiple isolated RS485 channels, versatile interfaces and various wireless communication protocols.
This hardware configuration offers a diverse range of connectivity options and expansion possibilities, suitable for various applications requiring communication, networking, and peripheral connections.
Applications

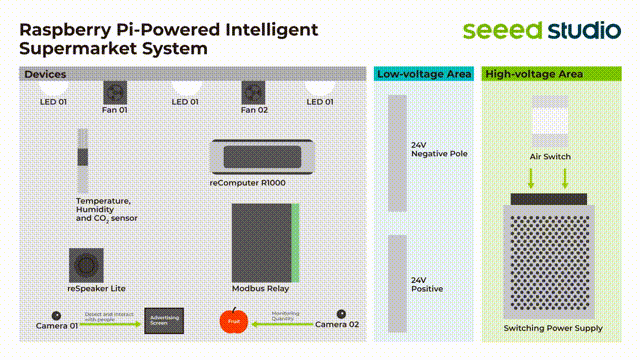

The application of the reComputer R1000 series spans five key areas: First Look Guide, Industrial Edge, Fleet Management, Cloud Solutions, and Computer Vision. It integrates various technology platforms including NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision.
Model Selection
reComputer R1000 series includes two sub-series, providing different configurations to meet various application requirements:
| Model | Processor | RAM | Storage | RS485 | RS232 | DI/DO |
|---|---|---|---|---|---|---|
| R1000 Sub-series | ||||||
| R1013-10 | CM4 4 cores 1.5GHz | 2GB | 8GB | 3×RS485 | N/A | N/A |
| R1024-10 | CM4 4 cores 1.5GHz | 4GB | 16GB | 3×RS485 | N/A | N/A |
| R1025-10 | CM4 4 cores 1.5GHz | 4GB | 32GB | 3×RS485 | N/A | N/A |
| R1035-10 | CM4 4 cores 1.5GHz | 8GB | 32GB | 3×RS485 | N/A | N/A |
| R1100 Sub-series | ||||||
| R1113-10 | CM4 4 cores 1.5GHz | 2GB | 8GB | 2×RS485 | 2×RS232 | 2×DI+2×DO |
| R1124-10 | CM4 4 cores 1.5GHz | 4GB | 16GB | 2×RS485 | 2×RS232 | 2×DI+2×DO |
| R1125-10 | CM4 4 cores 1.5GHz | 4GB | 32GB | 2×RS485 | 2×RS232 | 2×DI+2×DO |
| Parameter | Specification |
|---|---|
| Hardware Specification | |
| Product Series | R1000 Series |
| CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
| Operating System | Raspberry Pi OS, Ubuntu |
| RAM | 2GB/4GB/8GB |
| eMMC | 8GB/16GB/32GB |
| System Specification | |
| Input | 2-pin Terminal Block |
| PoE | IEEE 802.3af Standard 12.95W PoE* |
| Supply Voltage(AC/DC) | 12~24V AC/9~36V DC |
| Overvoltage Protection | 40V |
| Power Consumption | Idle:2.88W; Full Load:5.52W |
| Interface | |
| Ethernet | 1×10/100/1000 Mbps (supports PoE*) 1×10/100 Mbps IEEE802.3/802.3u |
| USB | 2×USB-A 2.0 Host 1×USB-C 2.0 (For flashing OS) |
| RS485 | 2-3×Isolated RS485 (model dependent) |
| RS232 | 2×Isolated RS232 (R1100 sub-series) |
| HDMI | 1×HDMI 2.0 |
| M.2 Slot | supports M.2 NVMe SSD |
| Wireless Communication | |
| Wi-Fi | 2.4/5.0 GHz |
| BLE | 5.0 |
| LoRa® | USB LoRa®*/SPI LoRa®* |
| 4G Cellular | 4G LTE* |
| Zigbee | USB Zigbee* |
| Ambient Conditions | |
| Ingress Protection | IP40 |
| Operating Temperature | -30~70 °C |
| Operating Humidity | 10~95% RH |
| Storage Temperature | -40~80 °C |
Product Introduction
User Manual
Product Design
- reComputer R1000 3D File
- reComputer R1000 Schematic Design, PCB Design
- reComputer R1100 3D File
- reComputer R1100 Schematic Design, PCB Design
Others
reComputer R1000 Getting Started
The reComputer R1000 edge IoT controller is built on the high-performance Raspberry Pi CM4 platform, featuring a quad-core A72 processor with a maximum support of 8GB RAM and 32GB eMMC.

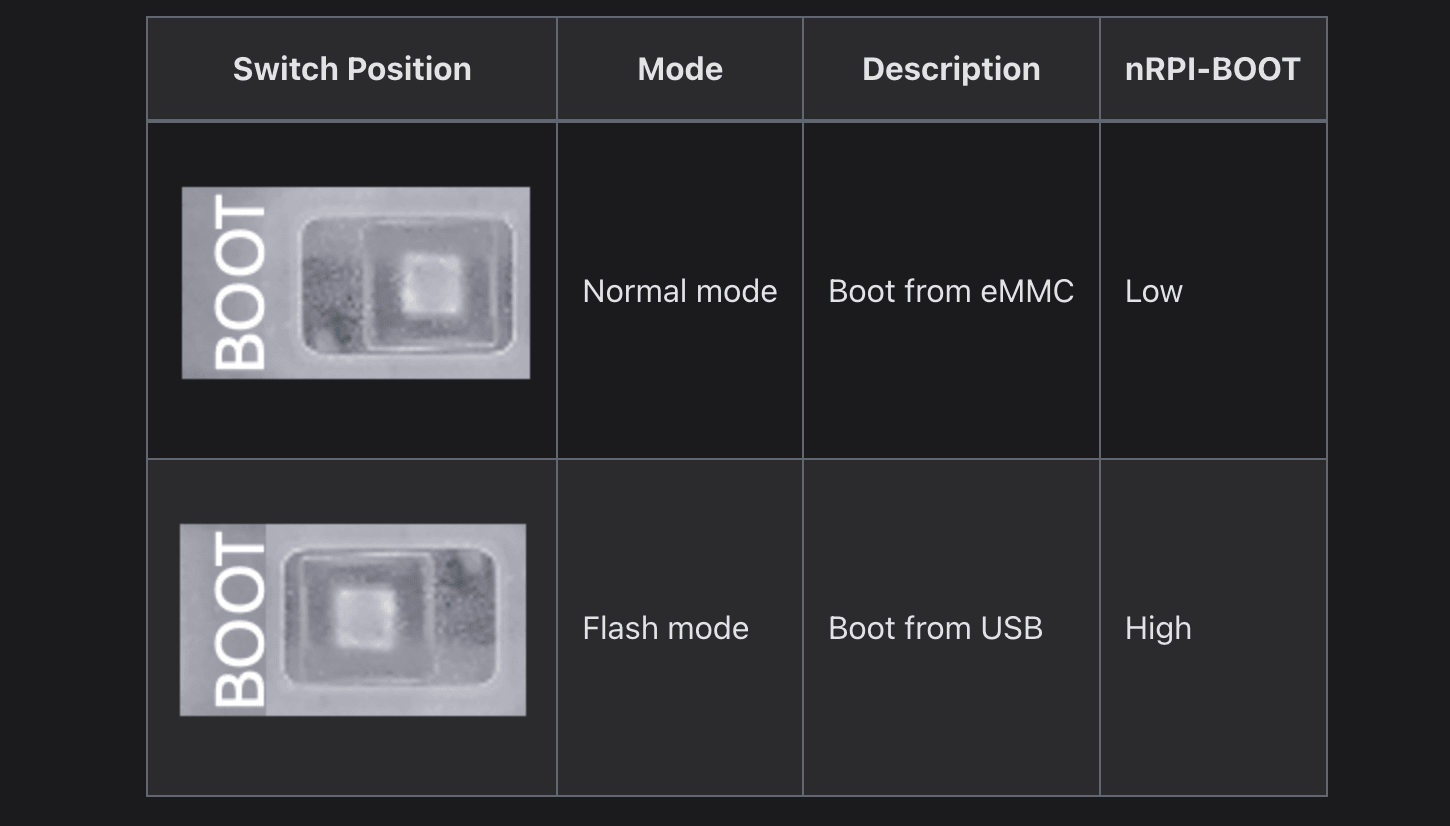

reComputer R1000 Flash OS
The reComputer R1000 edge IoT controller is built on the high-performance Raspberry Pi CM4 platform. This controller is well-suited for remote device management, energy management, and various other scenarios in the field of smart buildings.

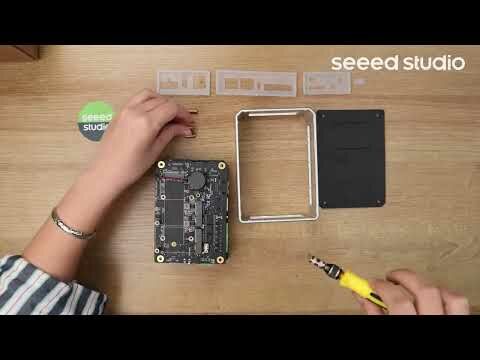

ReComputer R1000 Assembly Guide
This Wiki will show you how to Assemble and Disassemble the unit to install peripherals components, as well as the option for mounting.

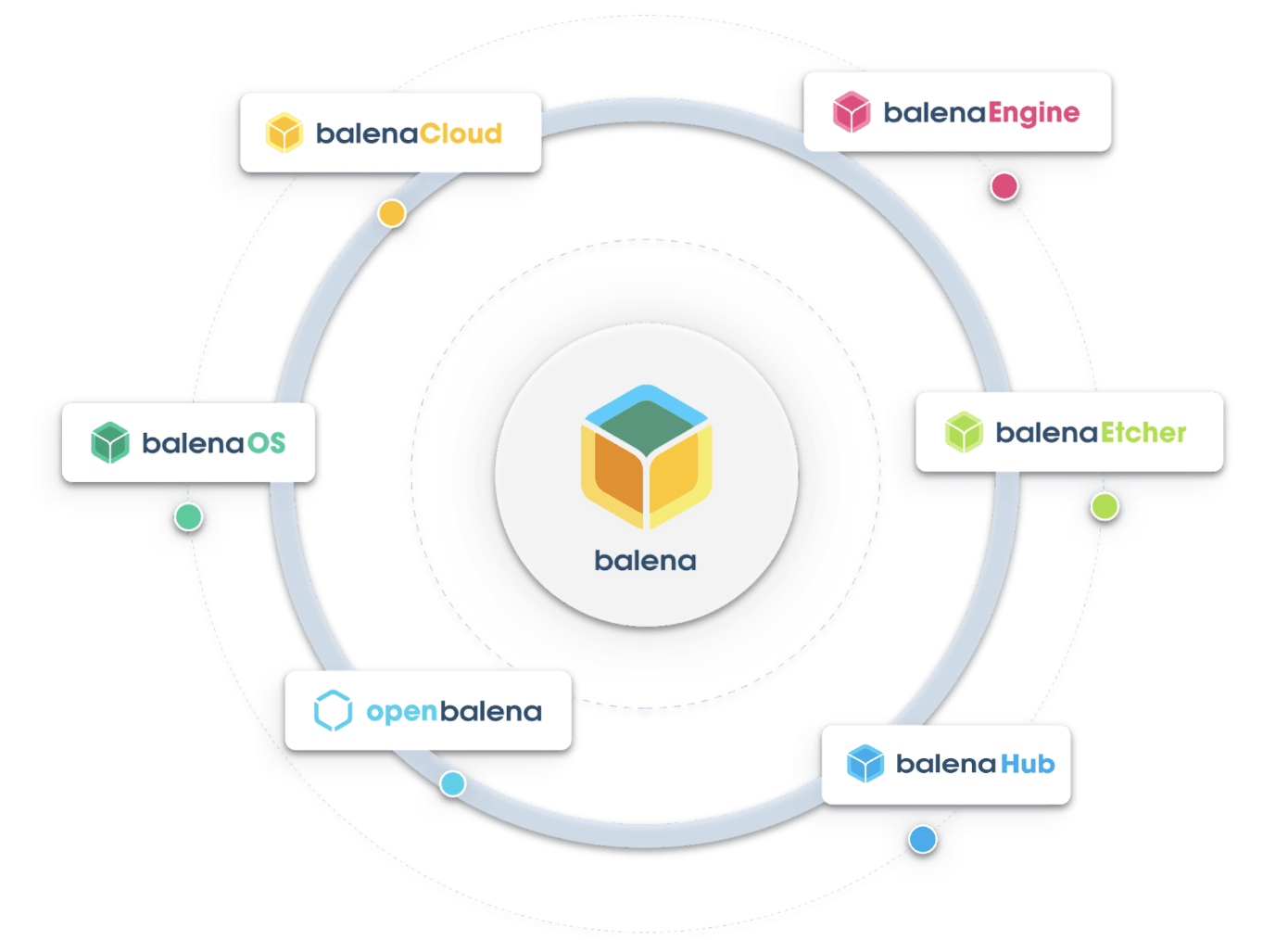

reComputer R1000 with balena
balena provides a unified way to push code updates, manage device configurations and ensure devices run reliably and securely in the field, regardless of their location or network conditions.

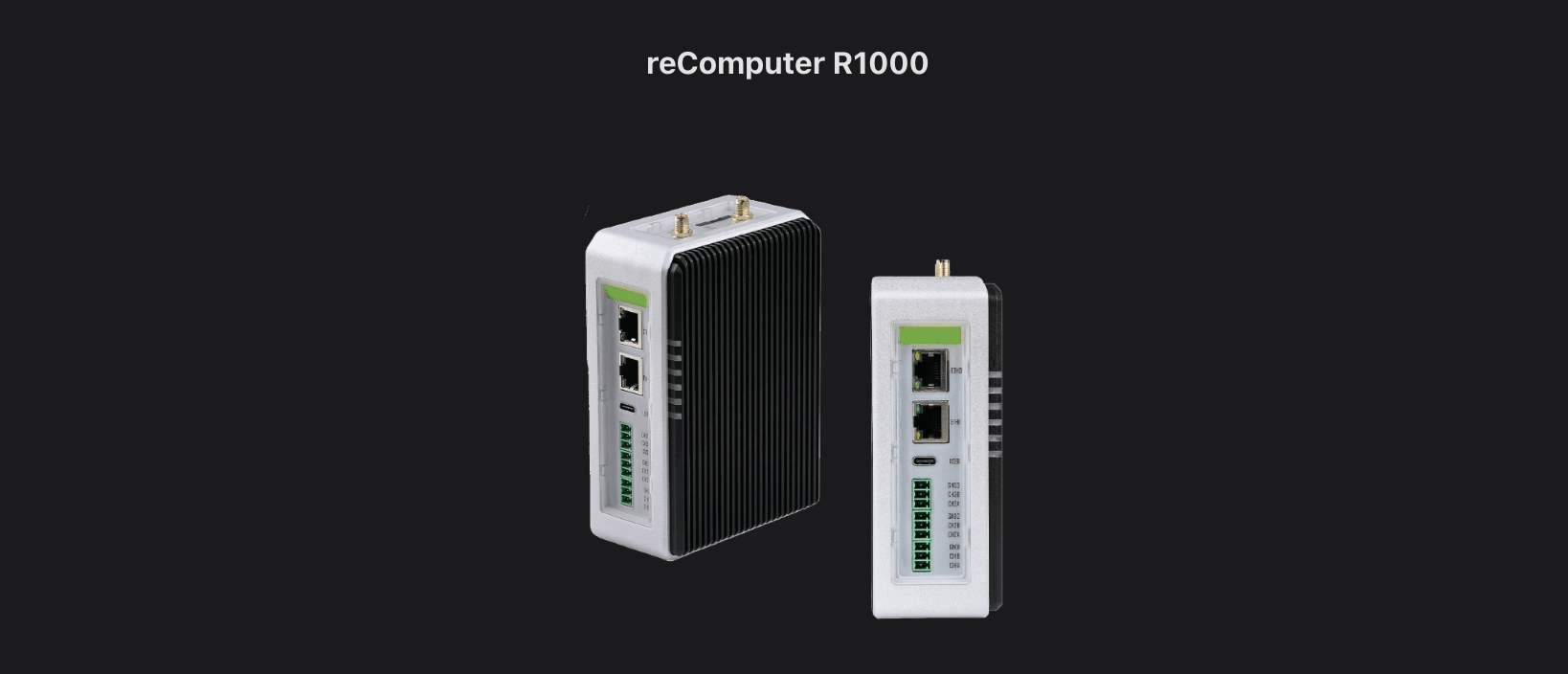

reComputer R1000 Getting Started with Node Red
Node-RED is a versatile programming tool designed to connect hardware devices, APIs, and online services seamlessly. This tutorial shows the process of using node-red on Recomputer R1000.

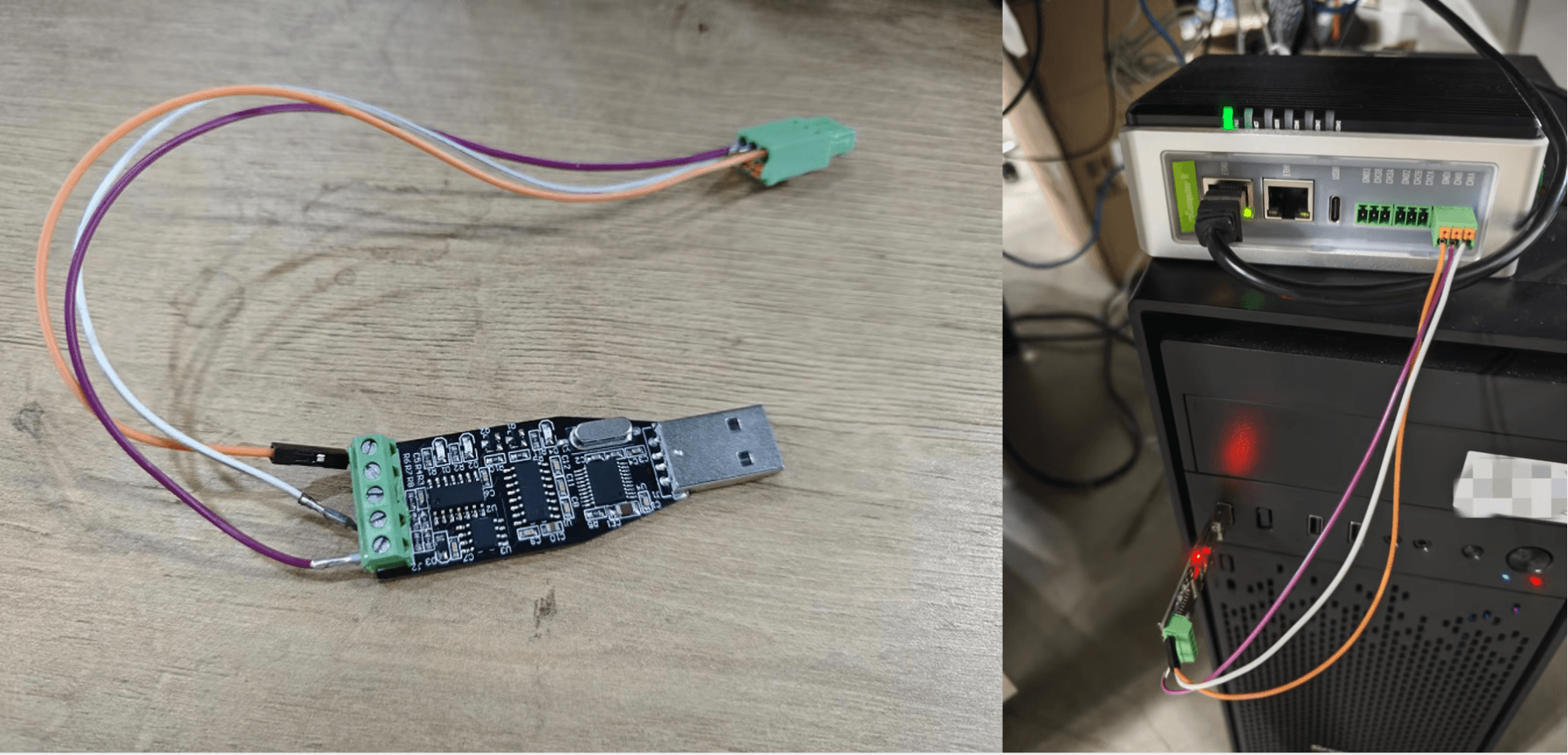

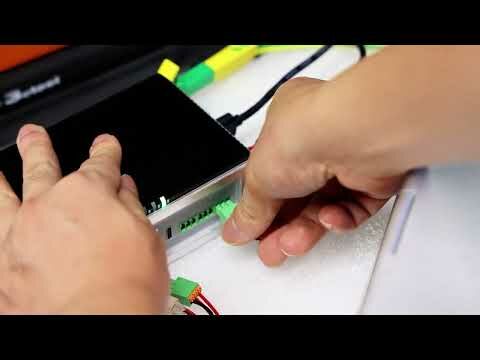

How to use rs485 and modbus rtu with reComputer R1000
This article mainly introduces how to use the 485 communication function of reComputer R1000, and tests the RS485 and Modbus communication functions.
