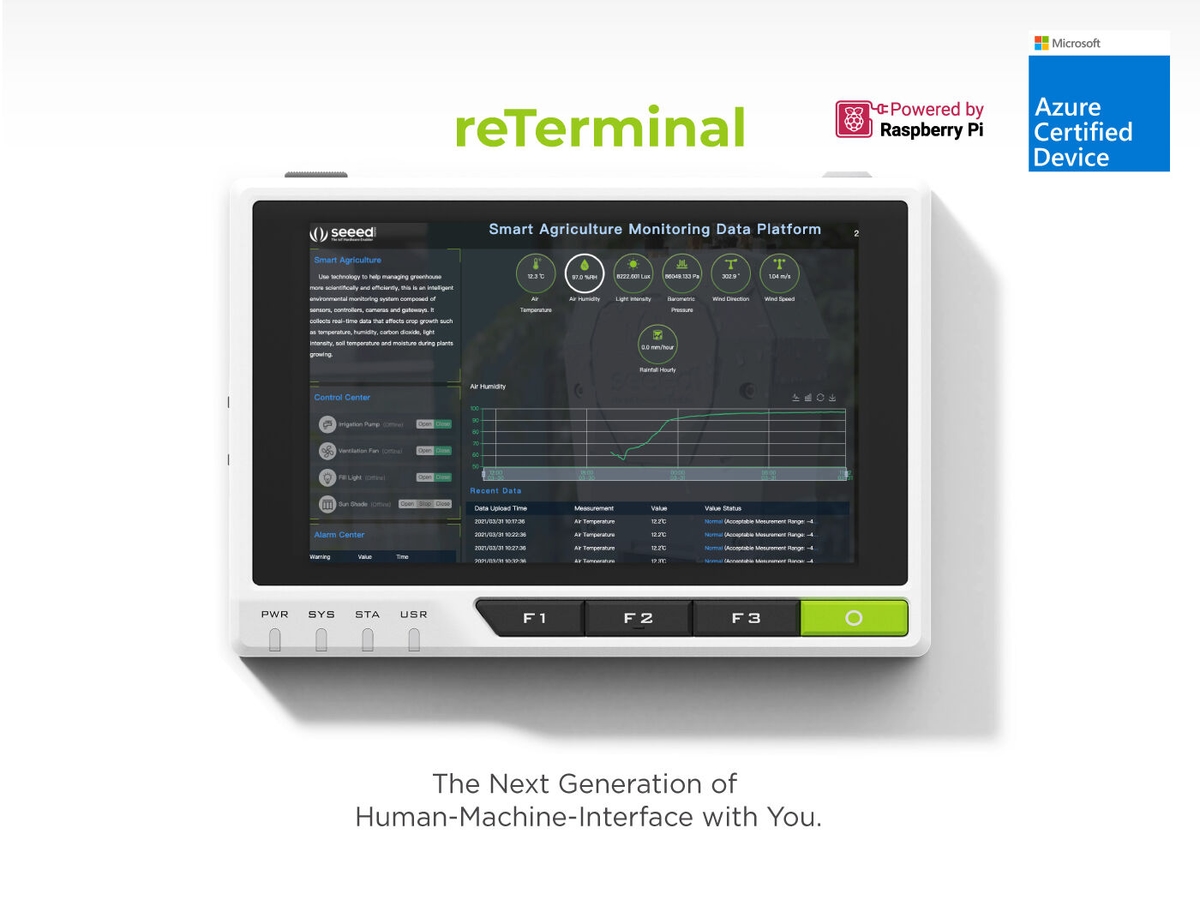

reTerminal 5"
The reTerminal is an all-in-one board, powered by Raspberry Pi CM4, integrated with one IPS panel type multi-touch screen, carried with dual-band 2.4GHz/5GHz Wi-Fi & Bluetooth 5.0, pre-installed Debian system. By designing in modularization, the board is equipped with high-speed connectors to an expansion board. Designed for home assistance and individual AI development applications.
-
Raspberry Pi All in One BoardPowered by RPi CM4 32GB, integrated with IPS multi-touch screen, dual-band Wi-Fi & Bluetooth, pre-installed compatible Linux system
-
Modular DesignFeaturing industrial high-speed expansion interface and 40-Pin Raspberry Pi compatible header
-

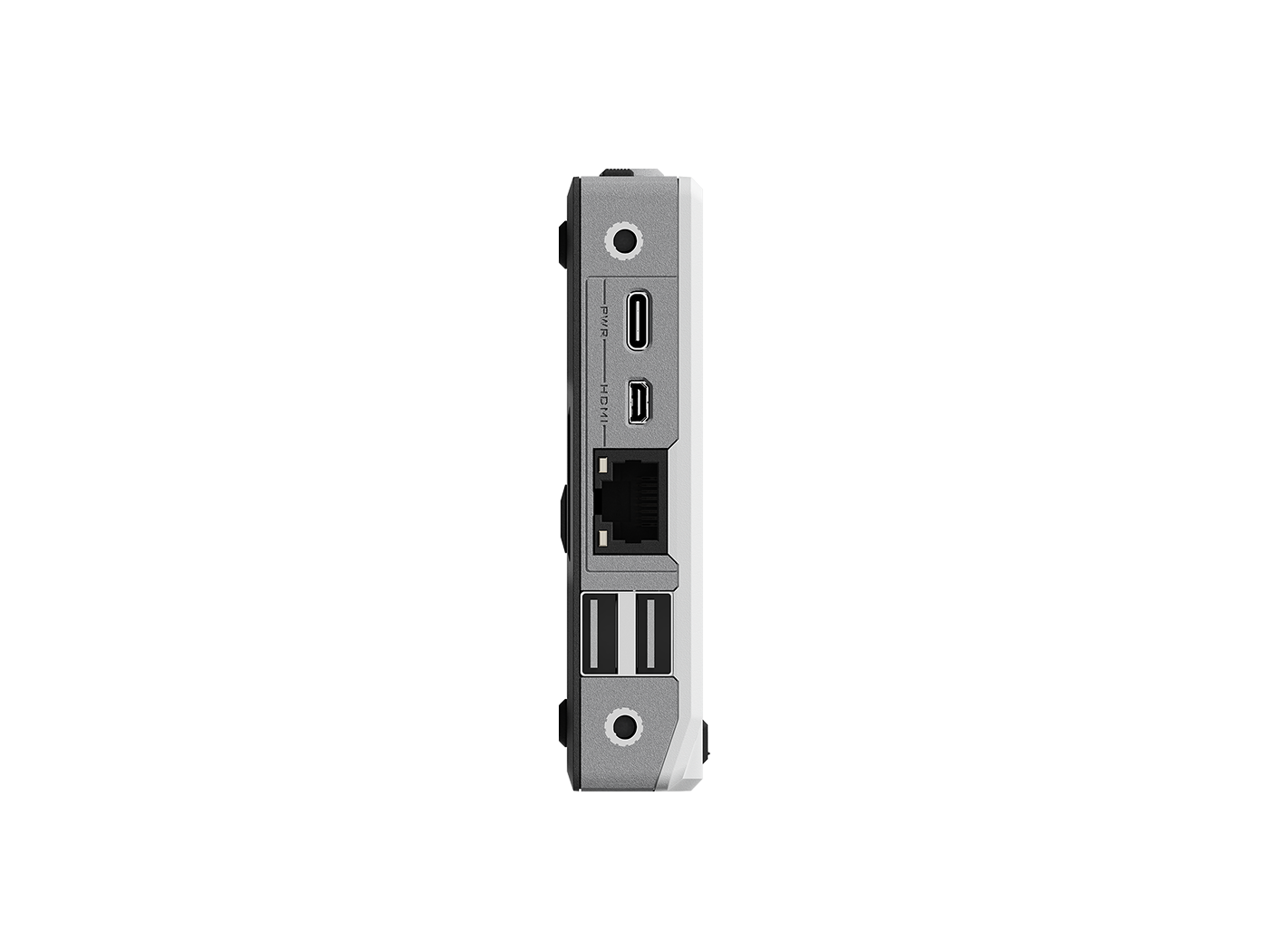

Rich Interfaces & ComponentsEquipped USB Type-A ports, Gigabit Ethernet, micro-HDMI, micro-SD card slot, MIPI camera interface, light sensor, accelerometer, buzzer, RTC and programmable buttons
-
Neat Personal AssistanceEnjoy yourself in multiple interested Dashboard or AI projects by Seeed and communities while utilizing built-in sensors and components
-

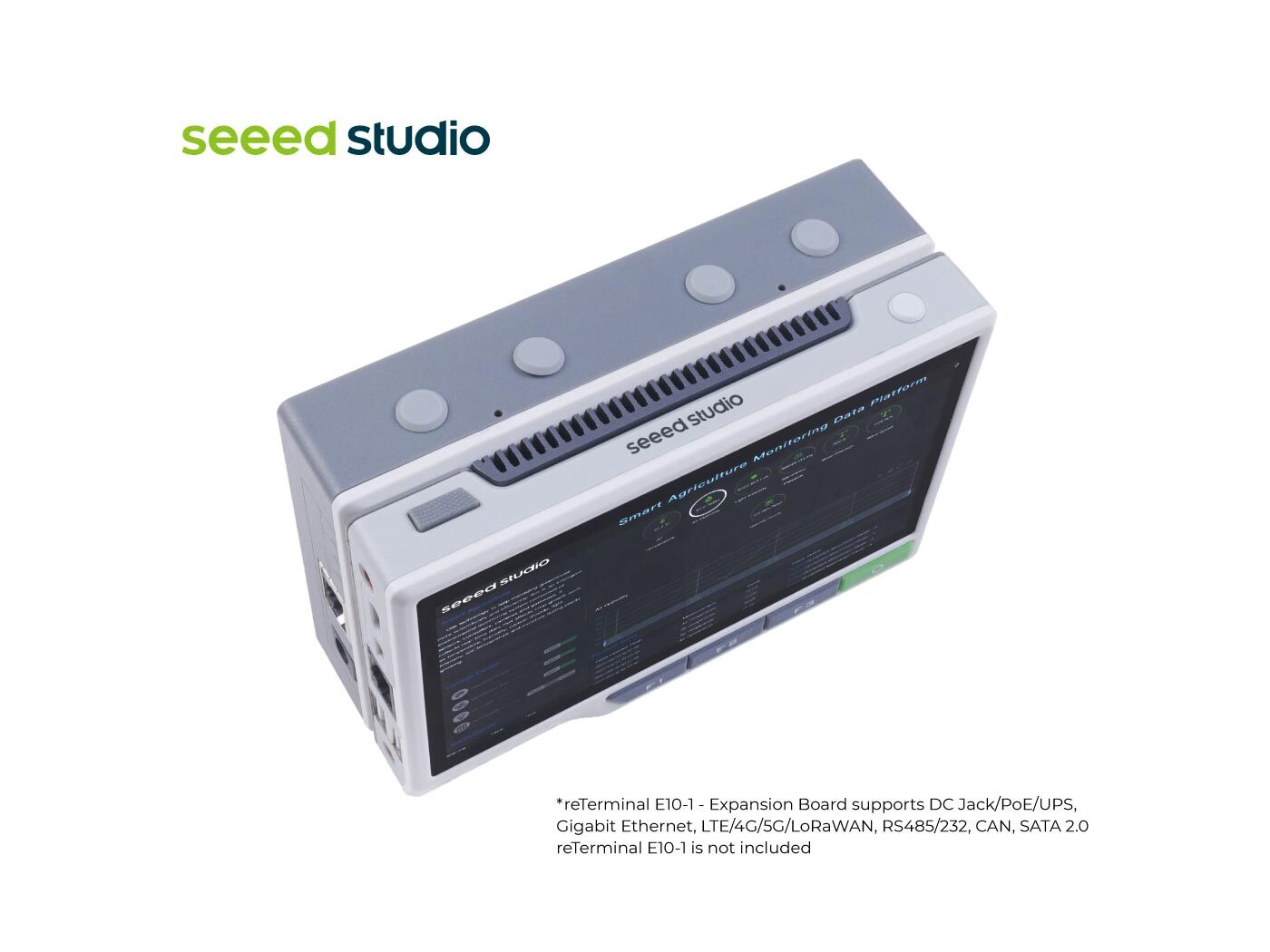

Great Industrial FacilityBenefit from stable Raspberry Pi-based operating system, multiple expanded industrial-level connectors, cryptographic co-processor, and official Seeed expansion board reTerminal E10-1
-
Hardware SecurityEquipped with cryptographic co-processor (Microchip ATECC608A) for secure hardware-based key storage, asymmetric sign, verify, and key agreement
reTerminal - 5'' HMI | CM4108032 | All-In-One | Modular Design | IPS multi-touch screen | Rich Interfaces
Feature
- Raspberry Pi All in One Board:
Powered by RPi CM4 32GB, integrated with IPS multi-touch screen, dual-band Wi-Fi & Bluetooth, pre-installed compatible Linux system - Modular Design:
Featuring industrial high-speed expansion interface and 40-Pin Raspberry Pi compatible header - Rich Interfaces & Components:
Equipped USB Type-A ports, Gigabit Ethernet, micro-HDMI, micro-SD card slot, MIPI camera interface, light sensor, accelerometer, buzzer, RTC and programmable buttons - Neat Personal Assistance:
Enjoy yourself in multiple interested Dashboard or AI projects by Seeed and communities while utilizing built-in sensors and components - Great Industrial Facility:
Benefit from stable Raspberry Pi-based operating system, multiple expanded industrial-level connectors, cryptographic co-processor, and official Seeed expansion boardreTerminal E10-1

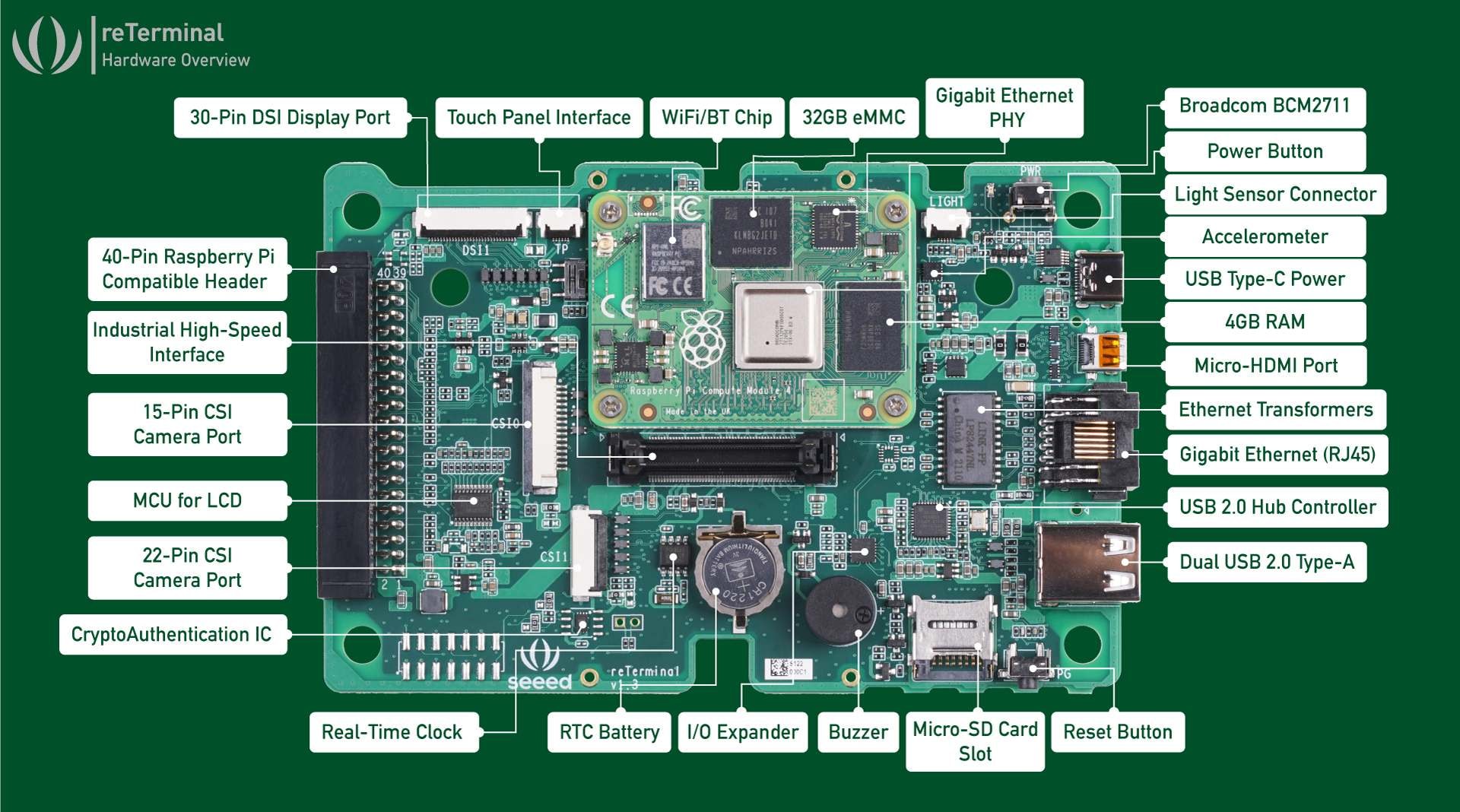

Hardware Overview
Application

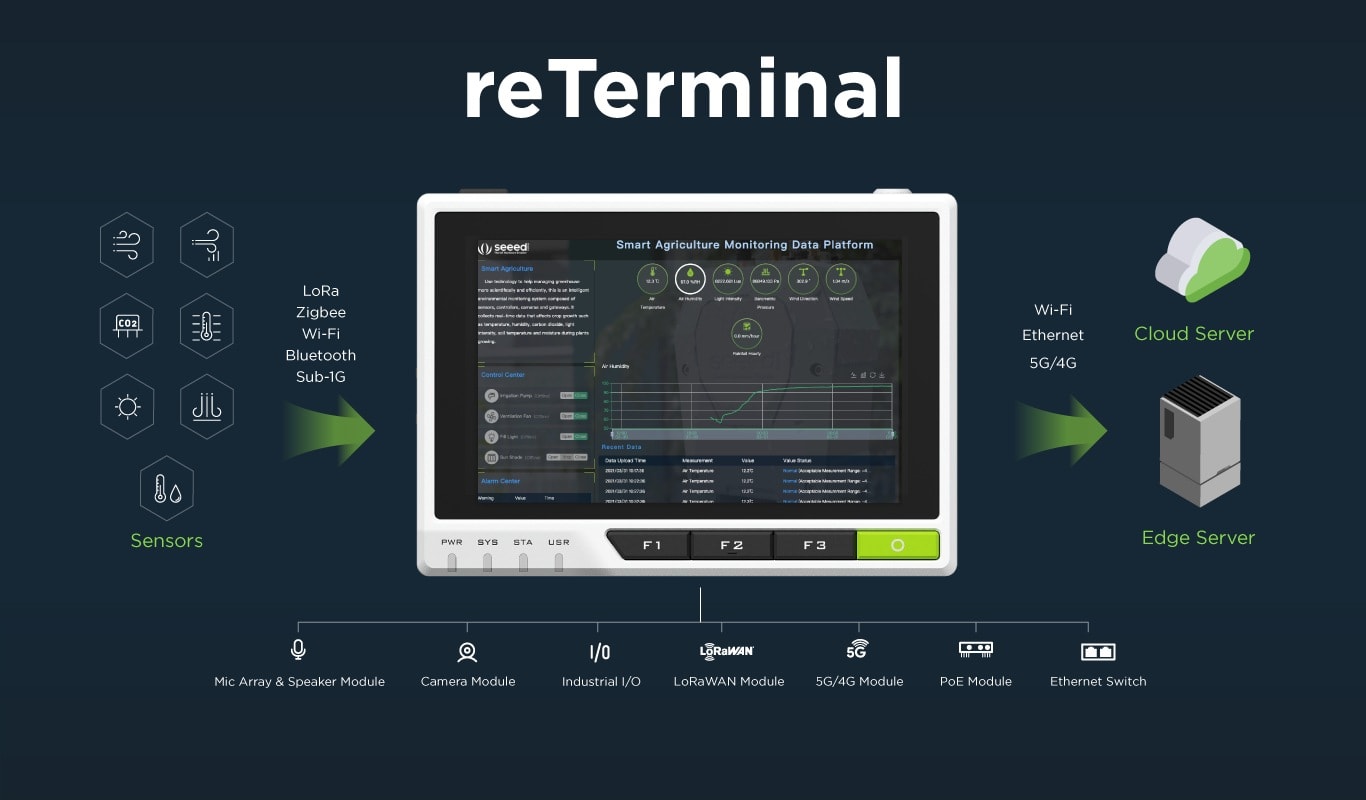

The reTerminal can be your personal useful development board since it is built around Raspberry Pi CM4 module, and it provides multiple function thanks to its unique modular design and rich interfaces. You will find it more interesting when you discover there are plenty of skillful IoT & AI projects published by Seeed and the community.
And yet what about Industrial Internet of Things(IIoT) applications? It can be even amazed that reTerminal has equipped a cryptographic co-processor. That is to say, the reTerminal assembles a stable Linux operating system, high-speed expansion connector, multiple types of universal I/O, and hardware security, all of which make it hardware-ready for industrial equipment monitor and control.
| Specification | Details |
|---|---|
| Platform | |
| Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) |
| Frequency | 64-bit SoC @ 1.5GHz |
| Memory | |
| Capacity | 8GB |
| Technology | LPDDR4 with on-die ECC |
| eMMC | |
| Capacity | 32GB |
| Wireless | |
| Wi-Fi | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE |
| Display | |
| LCD | 5-inch 720x1280 LCD |
| Touch Panel | Capacitive touch panel (support multi-touch) |
| Video | |
| HDMI | 1 x Micro HDMI output (up to 4Kp60 supported) |
| CSI | 1 x 2-lane MIPI CSI camera interface |
| Multimedia |
H.265 (4Kp60 decode)
H.264 (1080p60 decode,1080p30 encode) OpenGL ES 3.0 graphics |
| Built-In Modules | |
| Real-Time Clock |
NXP Semiconductors PCF8563T
Low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 ℃ |
| Accelerometer |
STMicroelectronics LIS3DHTR
16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale |
| Encryption |
Microchip ATECC608A
Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement |
| Light Sensor |
Levelek LTR-303ALS-01
Digital light sensor |
| Internal IO Expansion | Microchip MCP23008-E |
| Buzzer | ≥85dB @10cm 2700±300Hz |
| External I/O | |
| GPIOs |
Up to 5 × UART
Up to 5 × I2C Up to 5 × SPI 1 × SDIO interface 1 × DPI (Parallel RGB Display) 1 × PCM 1 × PWM channel Up to 3× GPCLK outputs |
| Vertical expansion interface |
1 × PCIe 1-lane Host, Gen 2 (5Gbps)
1 × USB 2.0 port (highspeed) 26 x GPIOs POE |
| Power | |
| Voltage | 5V DC |
| Current | 3A(Minimum) |
| Temperature | |
| Operating Temperature | 0 - 70°C( For the LCD Screen: 0 - 60°C) |
| Mechanical | |
| Dimensions | 140mm x 95mm x 21mm |
| Weight | 285g |
| Certification | |
| Certificates | CE, FCC, TELEC(211-210815) |
Product Design
User Manual
Others
Certification

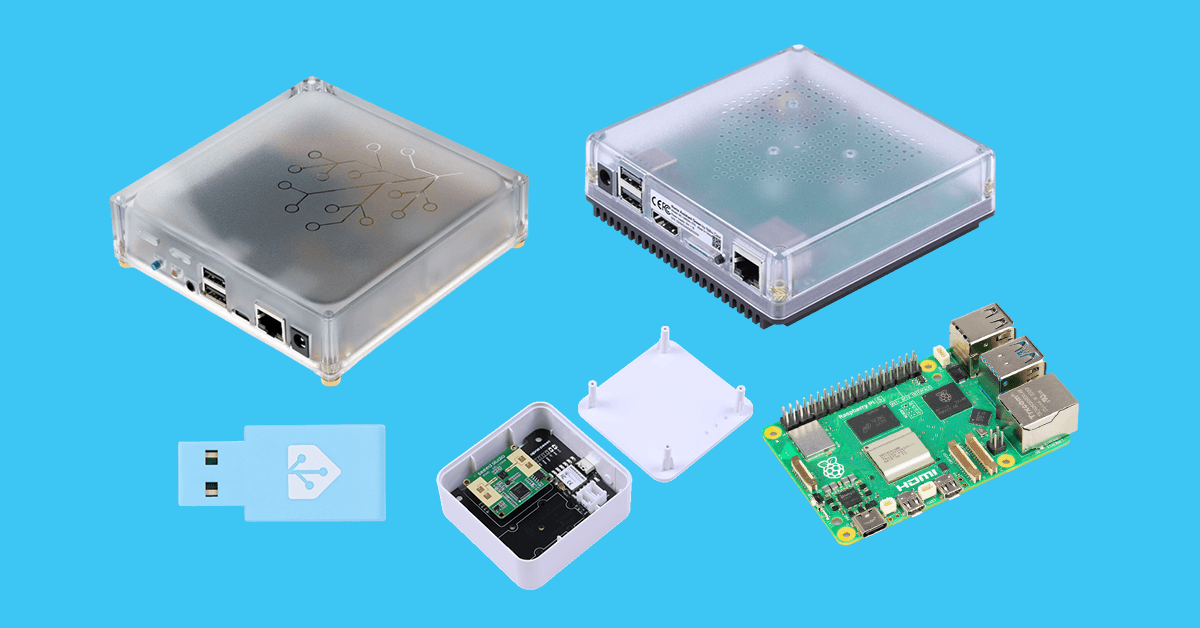

Best Home Assistant Hardware for Building a Smart Home
