LoRaWAN® AI Camera
IP66 rated LoRaWAN® Vision AI Sensor, ideal for low-power, long-range TinyML Edge AI applications. It features 480*480, 10 FPS, 863MHz ~928MHz, battery power supply, sending only the reference results via LoRaWAN, fully respecting privacy and ensure security.
-
Advanced Edge AI CameraEquipped with a powerful MCU-based vision camera processor performing local inference at 480×480 resolution at 10 FPS. By transmitting only inference results, it ensures data privacy and minimizes network bandwidth usage.
-
No-Code AI Model Deployment and TrainingPre-loaded with three on-device AI models (human detection, people counting, and meter reading) for out-of-box vision applications. Natively integrates with SenseCraft AI, a web-based platform offering 300+ pre-trained models for instant deployment and simple 3-step training workflow for classification and detection models.
-
LoRaWAN® ConnectivitySupports global frequency bands (863-928 MHz) with transmission range up to 10 km in optimal conditions, enabling reliable long-distance communication.
-
2 Power OptionsFeatures a 19Ah SOCl2 D-size battery inside. Compatible with external DC power supply via optional junction box.
-
IP66 Rating Environmental DurabilityFeatures IP66-rated protection against dust ingress and strong water jets. Operates reliably in temperatures from 0°C to 70°C, suitable for diverse indoor and outdoor deployments.
-
SenseCraft Cloud IntegrationIncludes SenseCraft Mate mobile app and web portal for easy device configuration, device management and quick data visualization. Features open API support and 3-month FREE trial access, it’s compatible with third-party IoT platforms.
Features
The SenseCAP A1102 LoRaWAN® Vision AI Sensor is a smart edge device that runs TinyML AI models locally, transmitting only inference results via LoRaWAN® (863-928MHz) for enhanced privacy and power efficiency. Operating at 480×480 resolution with 10 FPS, it comes with three pre-deployed models for human detection, people counting, and meter reading, while offering no-code access to 300+ pre-trained models or custom model training through the SenseCraft AI platform. It also supports model deployment from TensorFlow Lite and PyTorch frameworks. Users can configure the device and the frequency bands via the SenseCraft App, and deploy the IP66-rated sensor in harsh indoor or outdoor environments. With a built-in battery, making it ideal for various AI applications requiring long-range communication.

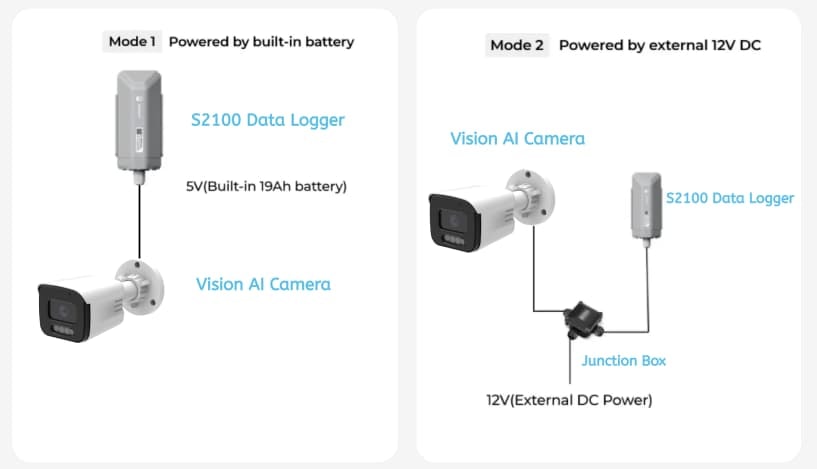

Power Supply Options
Option 1: The SenseCAP A1102 operates in cyclic mode using a built-in 19Ah D-type Li-SOCl2 battery. The battery is commercially available for easy replacement and enables standalone outdoor deployment without requiring external power.
Option 2: The SenseCAP A1102 supports constant operation through a 12V DC power supply connection. An extra matching junction box is needed for straightforward installation and assembly.
Hardware Overview
Onboard
Applications
• Person Detection
• People Counter
• Face Detection
• Specific Object Detection
• People Counter
• Face Detection
• Specific Object Detection
| Parameter | Specification |
|---|---|
| Product Model | SenseCAP A1102 |
| Microcontrollers | Vision AI: Himax-6538
LoRaWAN Network: Wio-E5 (STM32WLE5JC) |
| Camera |
Module: OV5647
Lens size: 1/4" Focal length: 3.4 mm (adjustable) Resolution: 2592 × 1944 pixels Pixel size: 1.4 µm × 1.4 µm Maximum frame rate: 1080p @ 30 fps, 720p @ 60 fps FOV: 62° |
| Model Execution and Inference | 480 * 480 >10 fps |
| LoRaWAN® Transmission |
Protocol: LoRaWAN v1.0.3 Class A LoRaWAN® Frequency: IN865/EU868/US915/AU915/ AS923 Communication Distance: 2 to 10km (depending on the environment) Max Transmitted Power: 19dBm |
| Power Supply | Built-in Battery or DC 12V/1A (with external junction box wiring) |
| Power Consumption | 102mA |
| Battery |
Capacity: 19Ah (non-rechargeable) Type: Standard D-size SOCl2 Battery |
| Local Storage Memory | 8GB MicroSD Card (Class 10) for storaging up to 20,000 images with timestamp and supports to export |
| IP Rating | IP66 |
| Operating Temperature | 0-70 °C |
| Operating Humidity | 0-100% RH (non-condensing) |
| Cable Length | 2 meters |
| Device Weight | 719g |

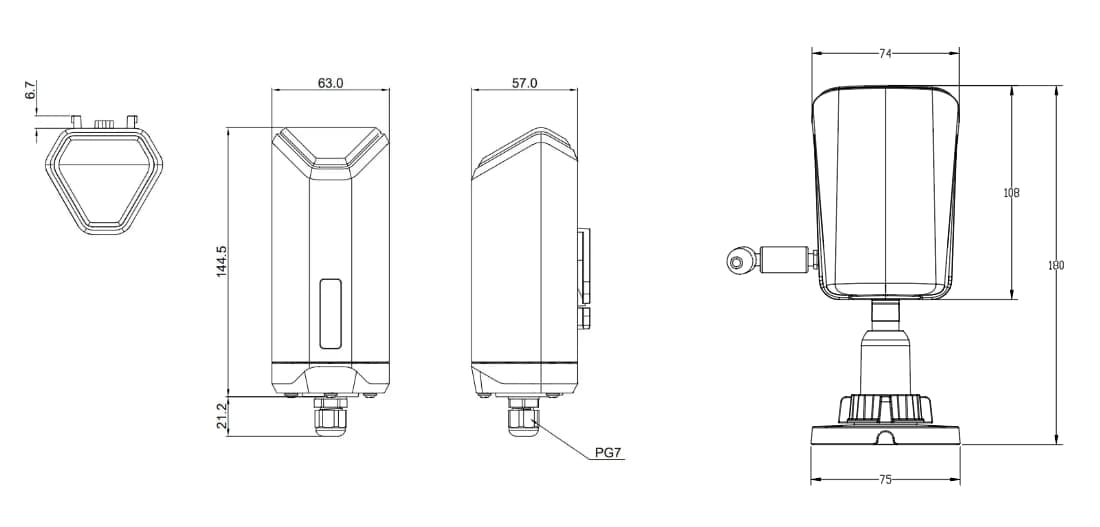

| Device Dimensions | Camera:180mm*75mm*70mm DTU: 144.5mm*63mm*57mm |
