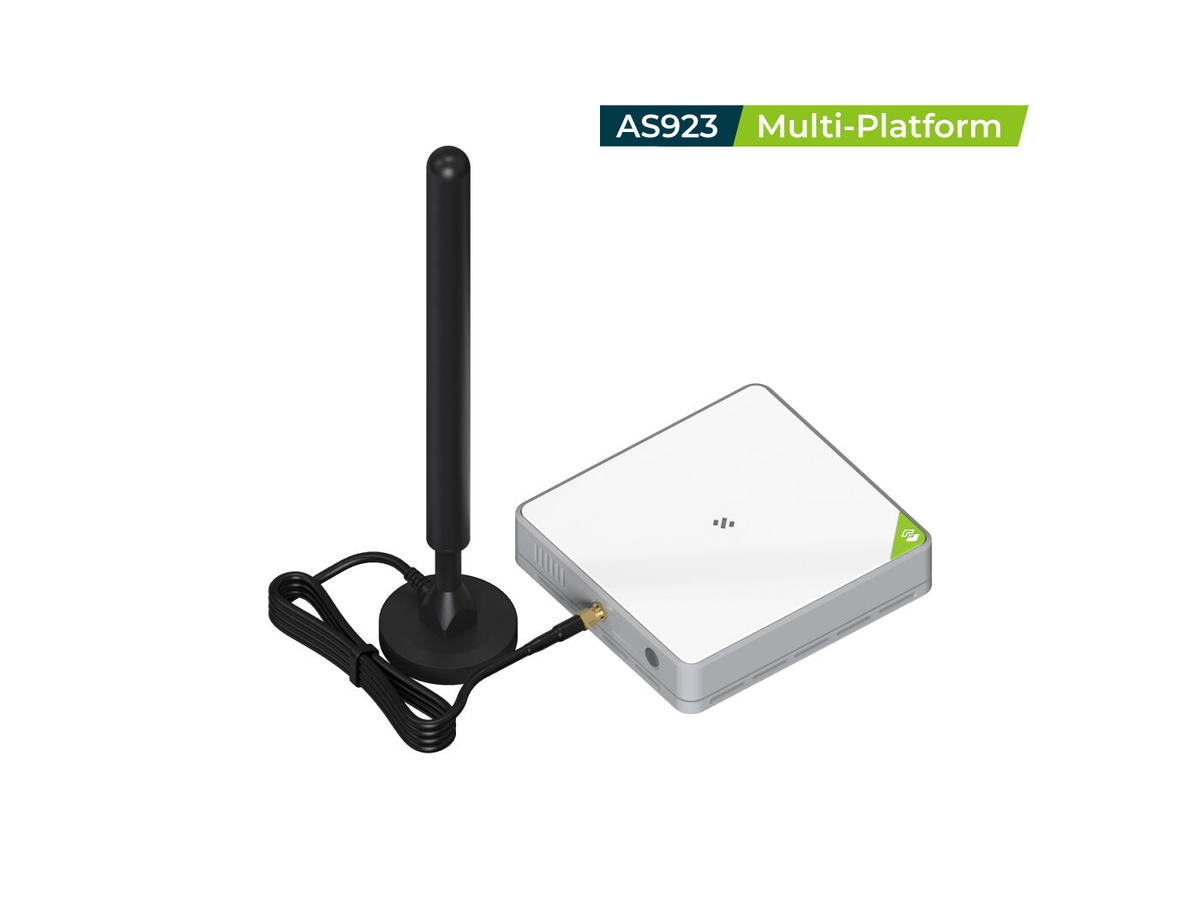

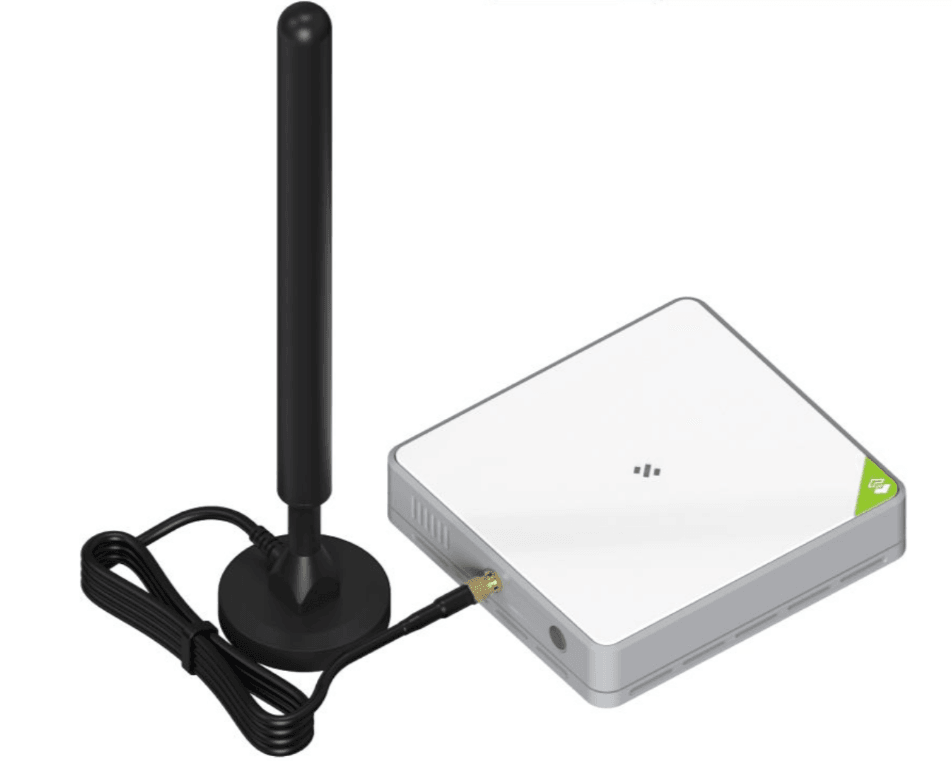

LoRaWAN® Multiple-Platform Gateway
The SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a fully customizable and open-sourced LoRaWAN® gateway that supports connection to various network servers. It supports global LoRaWAN® frequency plans from 865 MHz to 923 MHz and can be used in multiple LoRaWAN® applications like smart building, environmental monitoring systems, precision farming, etc. It has wide-range coverage and strong signal output capability and other features, making it the perfect gateway for building a LoRaWAN® network.
-
Open-Source SupportEasily customize and develop users own LoRaWAN solutions for seamless integration into their specific use cases.
-
Support Multiple LoRaWAN® Network ServersCompatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.
-
Built-in LoRaWAN Network ServerBased on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
-
Built-in SenseCAP Local Console for ConfigurationProvides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
-
Support Power-over-Ethernet (PoE)For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device.
-
Wide-range Coverage and Strong SignalProvides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
Introduction

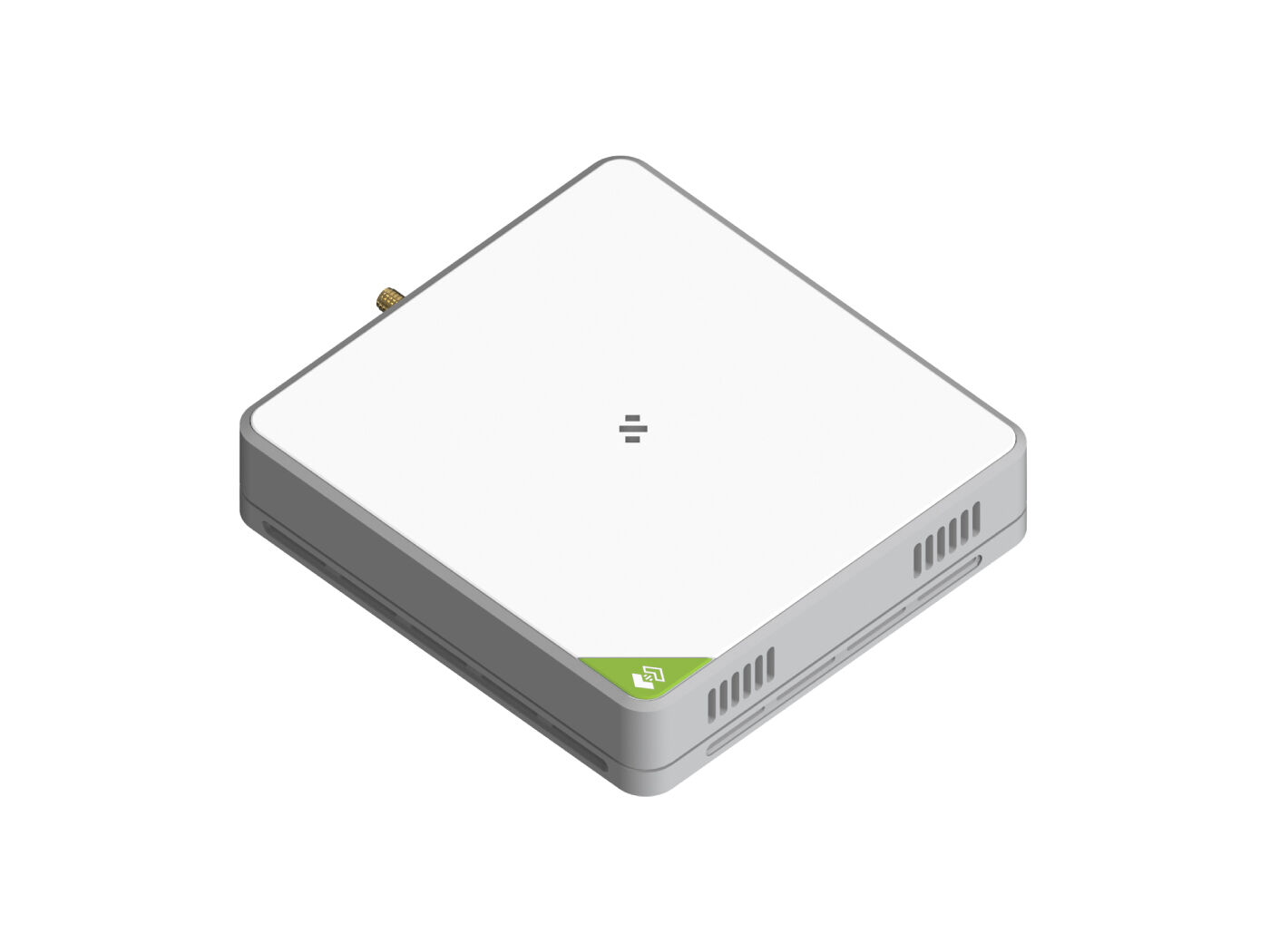

SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a standard LoRaWAN® gateway that supports connecting to different network servers.
As a LoRaWAN® gateway, it could be able to provide miles of wireless network coverage and data transmission capacity for your LoRaWAN® devices.
SenseCAP M2 Multi-Platform LoRaWAN® Gateway supports multiple applications like smart agriculture, smart city, or any smart project that requires network densification, providing both unique superior coverage and operational excellence.

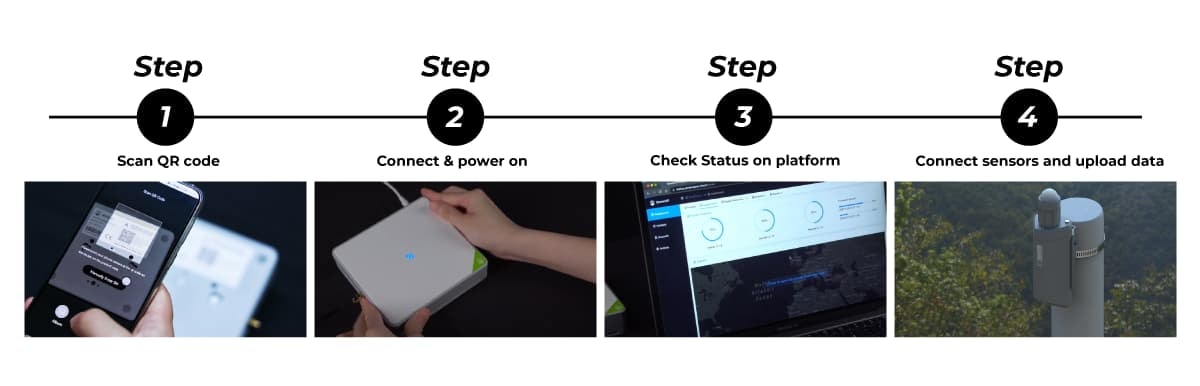

The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCraft App and
SenseCraft Data Platform
in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN® network solutions.
SenseCraft Data Platform
in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN® network solutions.
- Scan the QR code for device binding
- Connect gateway to internet and power on
- Check gateway status on the SenseCraft Data Platform
- Connect sensors to the network and upload data to the cloud

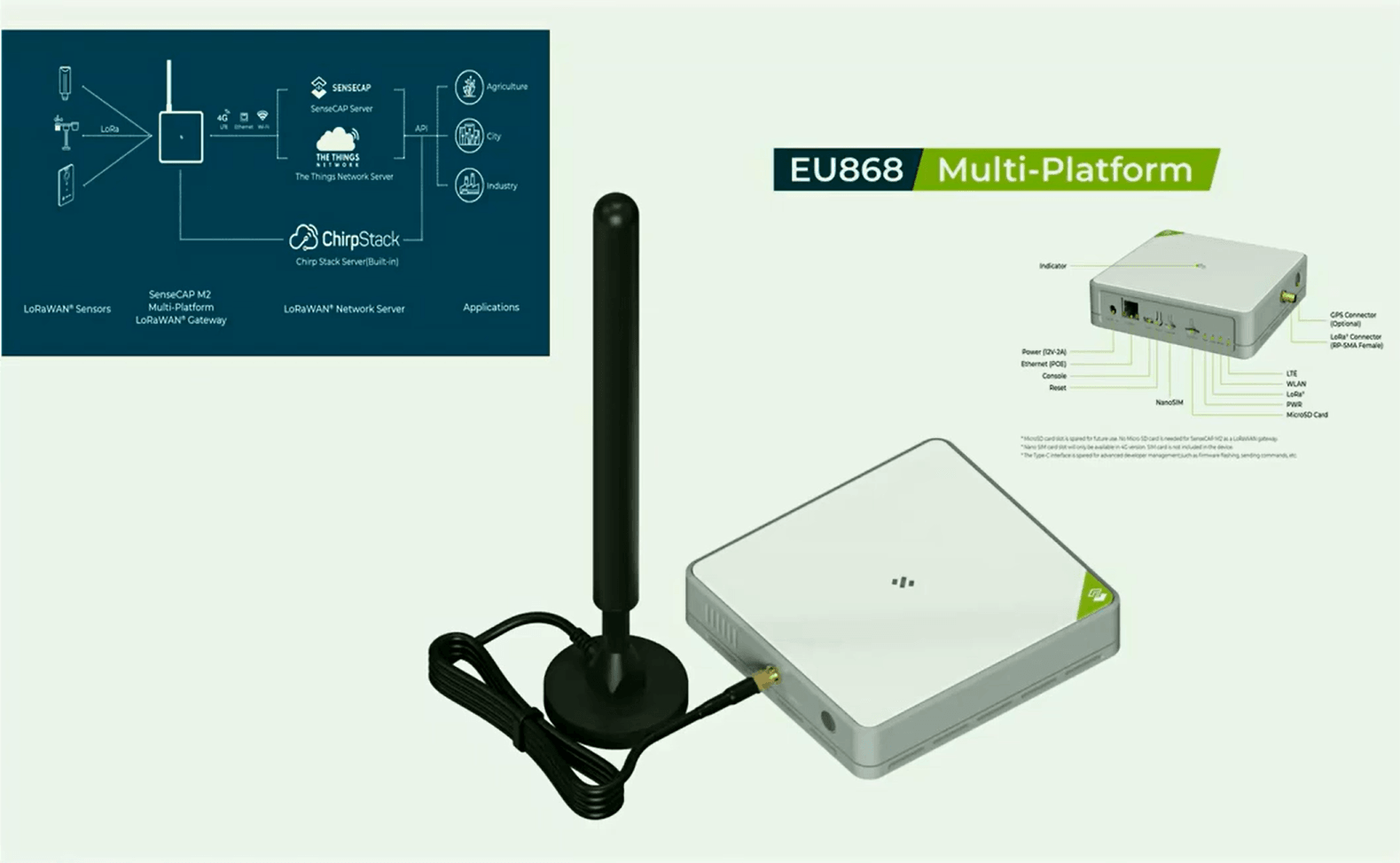

Here is the network architecture for reference:
SenseCAP M2 Multi-Platform LoRaWAN® Gateway can be configured in 2 ways:
1. Wi-Fi/ Ethernet access to the SenseCAP Local Console
2. Access the SenseCAP Local Console via SenseCraft Data Platform remotely
1. Wi-Fi/ Ethernet access to the SenseCAP Local Console
2. Access the SenseCAP Local Console via SenseCraft Data Platform remotely

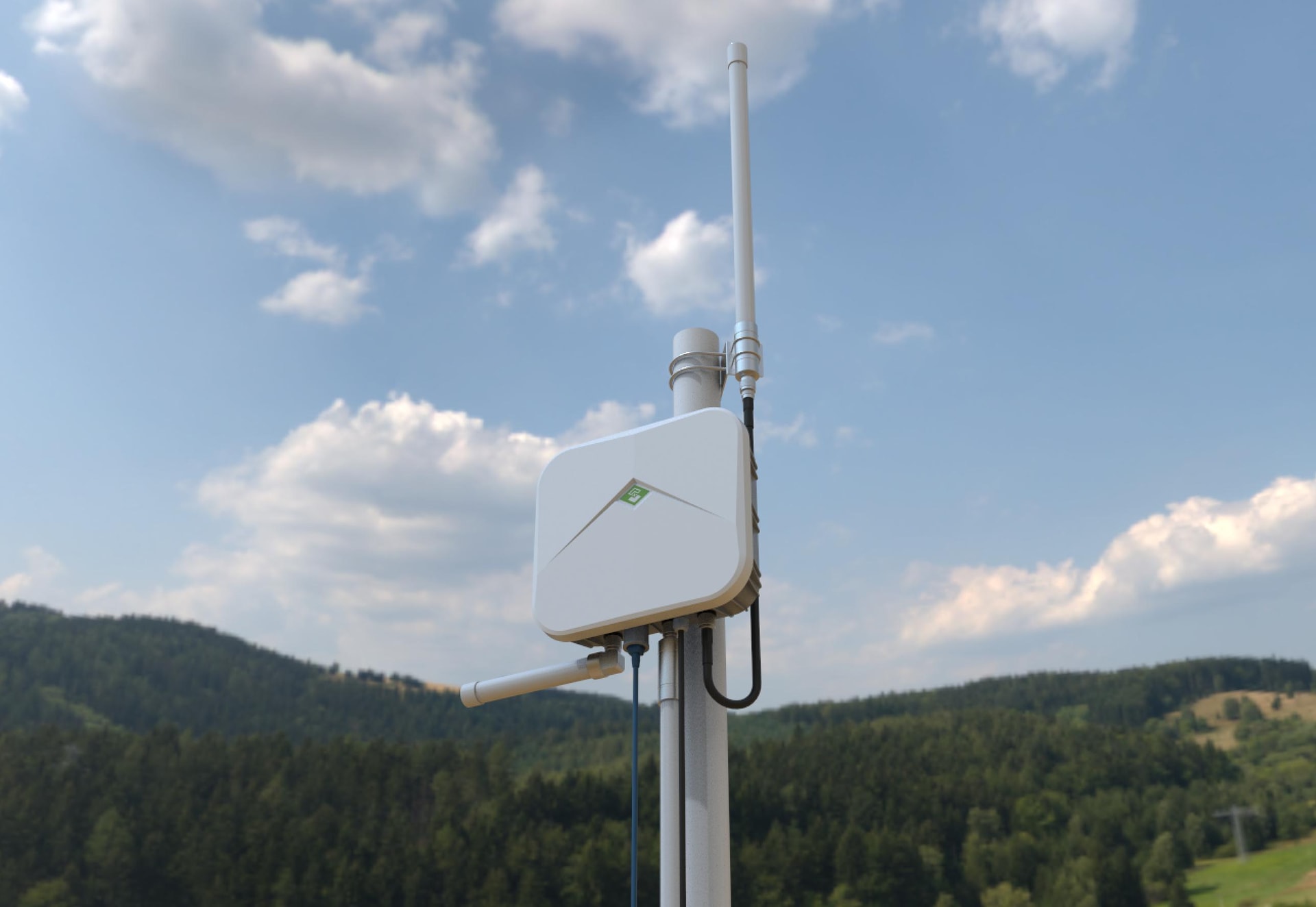

Additionally, If you want to deploy the SenseCAP M2 Multi-Platform LoRaWAN® Gateway outdoors, you might need to apply shell accessories to meet the requirements for outdoor deployments. Check the SenseCAP Ourdoor Enclosure with high robustness for quick deployment.

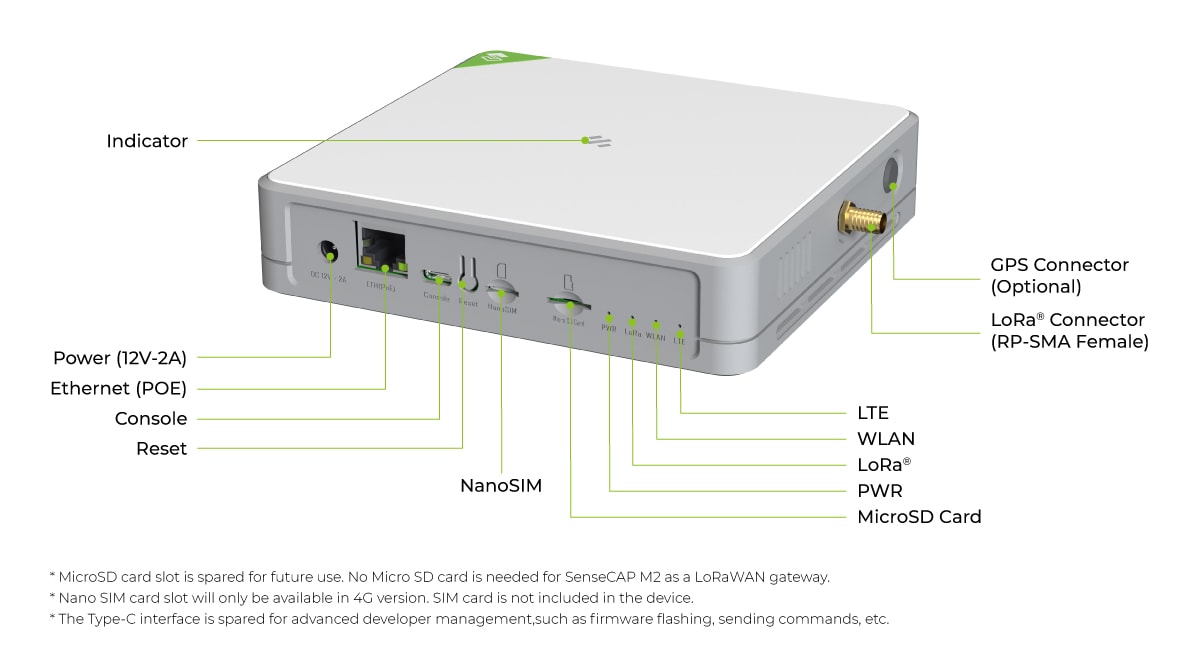

Interface
.jpg)
Applications
- Smart Agriculture
- Smart Building
- Environmental Monitoring
- Other Wireless Sensing Applications
Selection Guide
| Model | SKU | Frequency Plan | Switchable Frequency Band | Regional Adapter |
|---|---|---|---|---|
| AS923 Version | 114992983 | AS923 | US915/AU915/KR920/AS923 | Standard |
| US915 Version | 114992982 | US915 | US915/AU915/KR920/AS923 | Standard |
| AU915 Version | 114993135 | AU915 | AU915/US915/KR920/AS923 | Australian version |
| Parameter | Specification |
|---|---|
| Processor | MT7628(MIPS24KEc@580MHz) |
| RAM | DDR2 128MB |
| Flash | 32MB |
| Long Range Gateway Chip | SX1302 |
| Channel | 8 |
| LoRaWAN® Protocol | V1.0.3 Class A/Class B/Class C |
| Frequency Plan | IN865/EU868/RU864/US915/AU915/KR920/AS923 |
| Long Range Sensitivity | -125dBm @125KHz/SF7 -139dBm @125KHz/SF12 |
| Long Range TX Power | Up to 26 dBm |

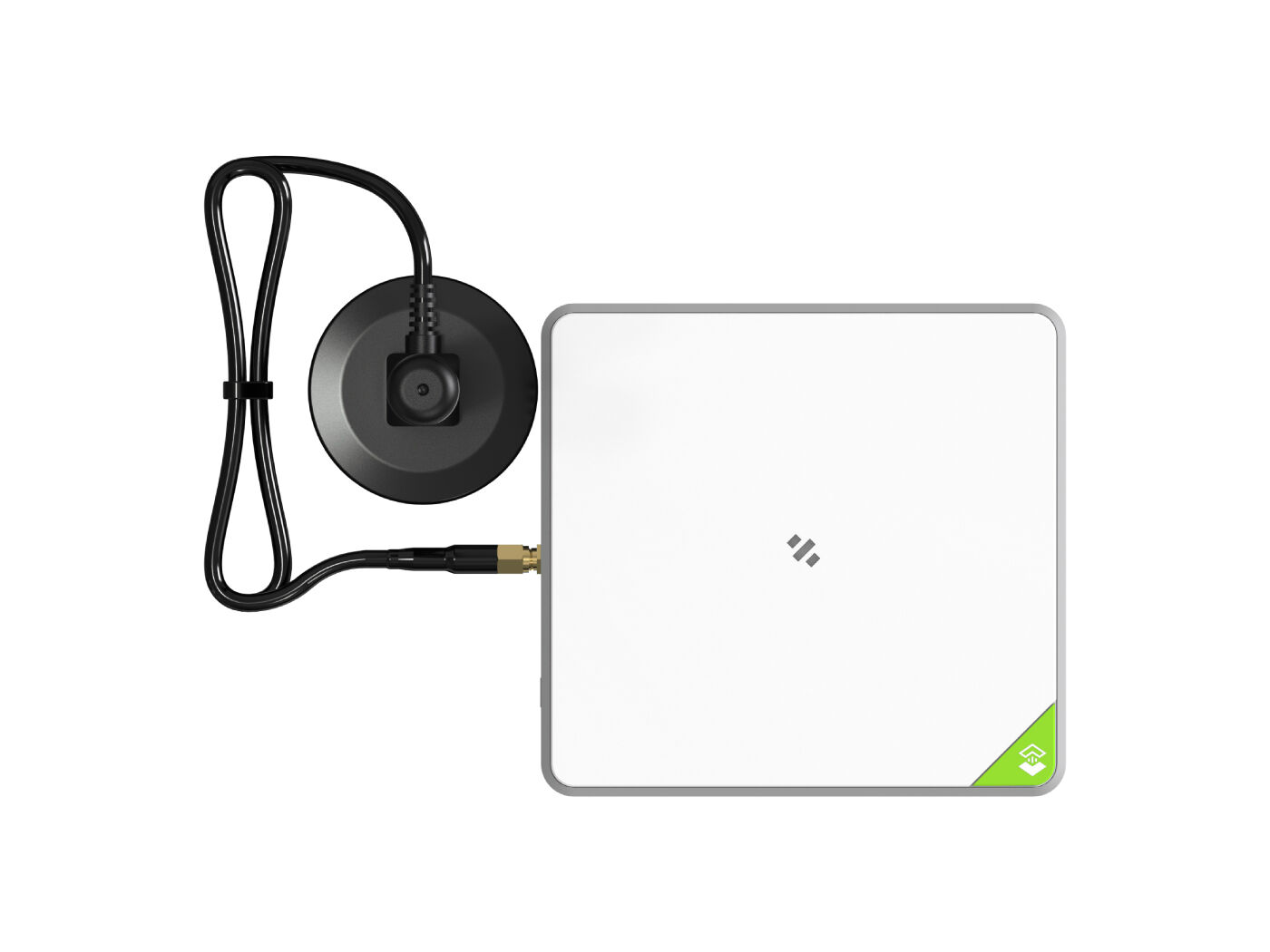

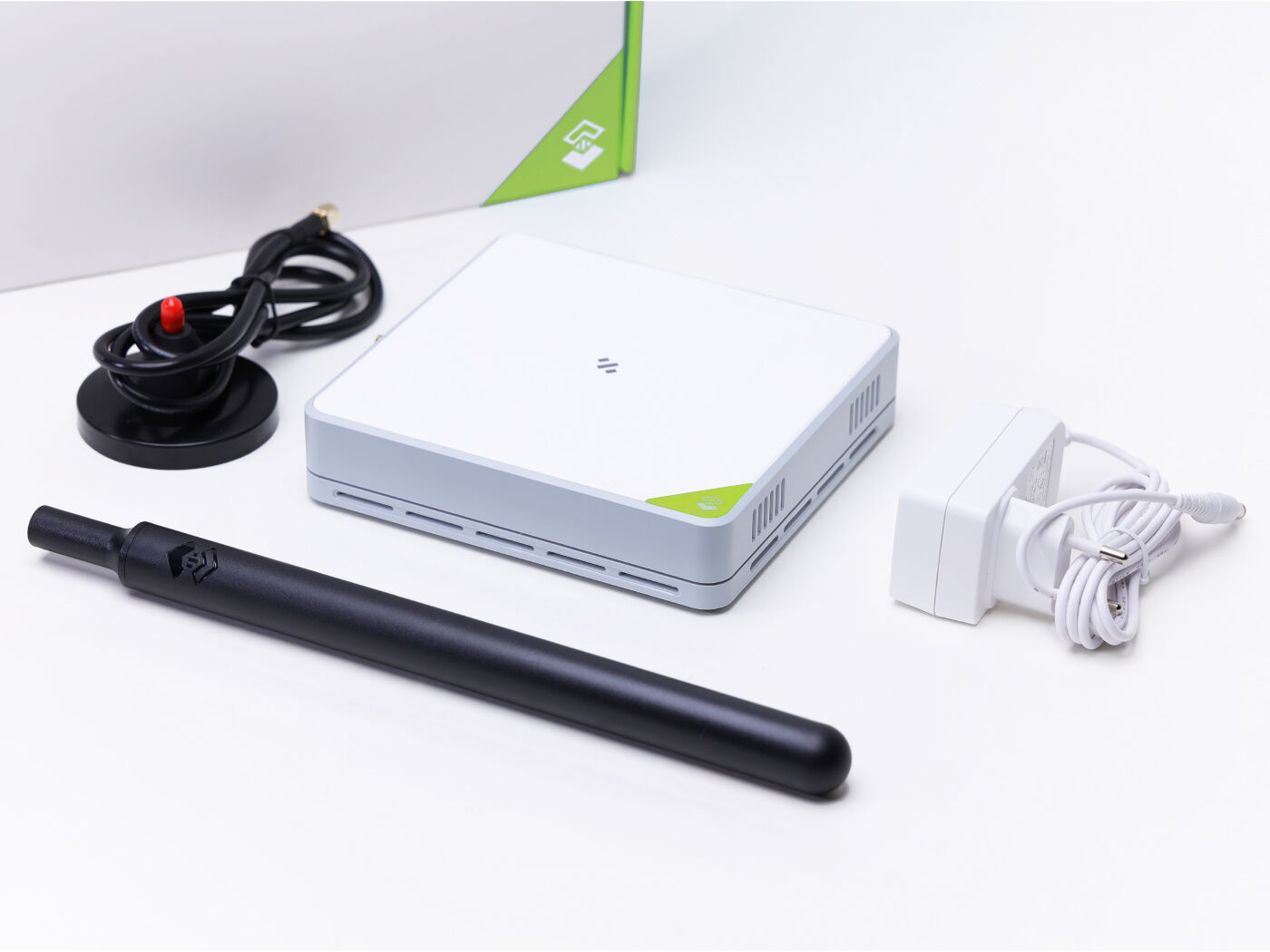

| Antenna | Long Range: 3dBi External Antenna with Base Wi-Fi: Internal Antenna |
| Antenna Impedance | 50 Ohm |
| Wi-Fi | Support 2.4 GHz 802.11 b/g/n |
| Ethernet | 1xRJ45 (10M / 100 M), PoE PD support |
| Cellular(Optional) | Another version is optional, coming soon |
| Input Voltage | DC 12V - 2A PoE (IEEE 802.3 af), 40V-57V DC |
| Interfaces | Ethernet RJ45 * 1 RP-SMA Female Antenna Connector * 1 Micro SD Card Slot (Future use) * 1 USB Type-C (Console) * 1 |
| Management Software | Web |

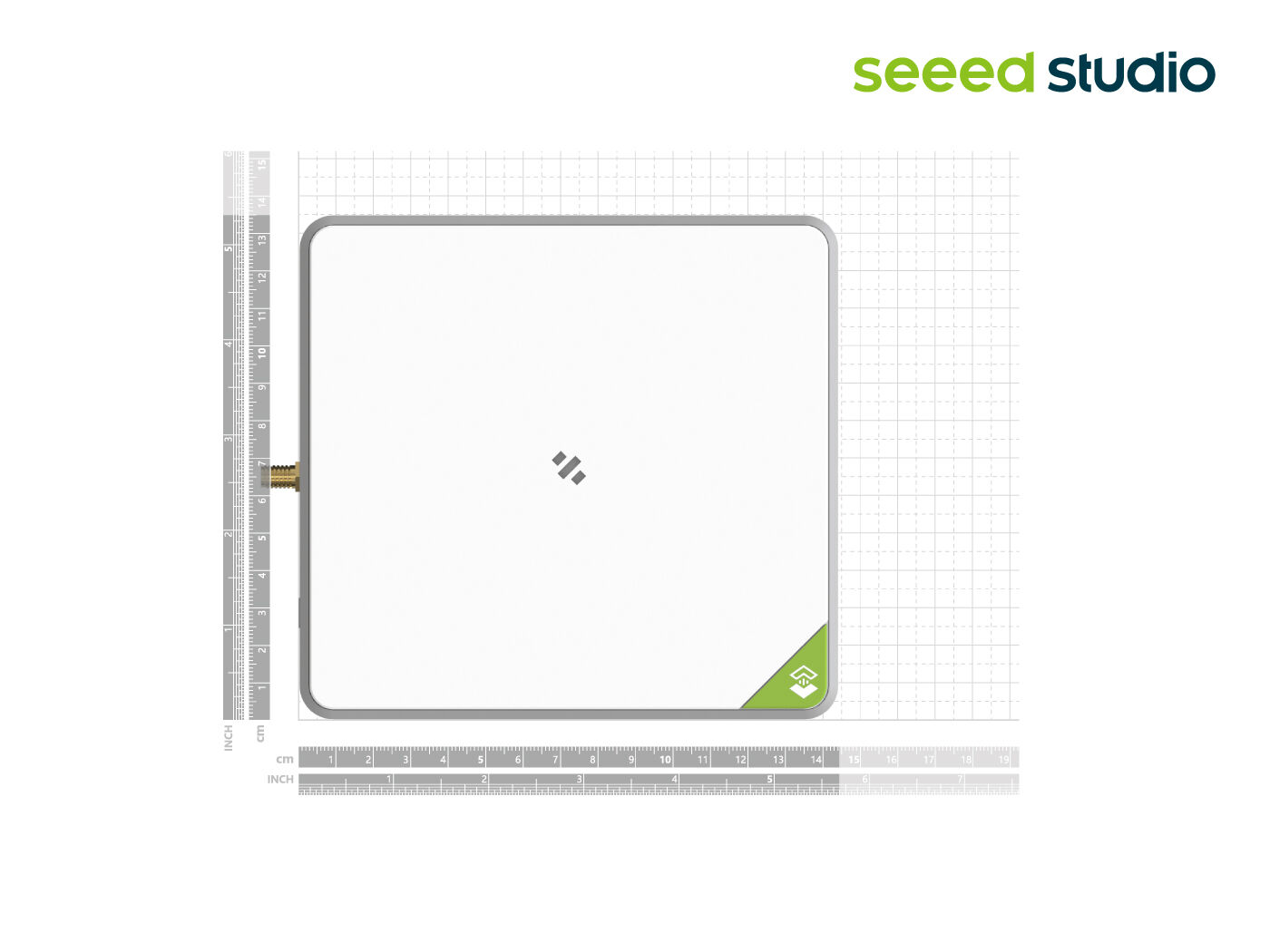

| Dimension | 143.6x135x34mm (connector not included) 150.6x135x34mm (connector included) Package: 340*230*65mm |
| Operating Temperature | -20°C to 55°C |
| Relative Humidity | 0% - 85% (non-condensing) |
