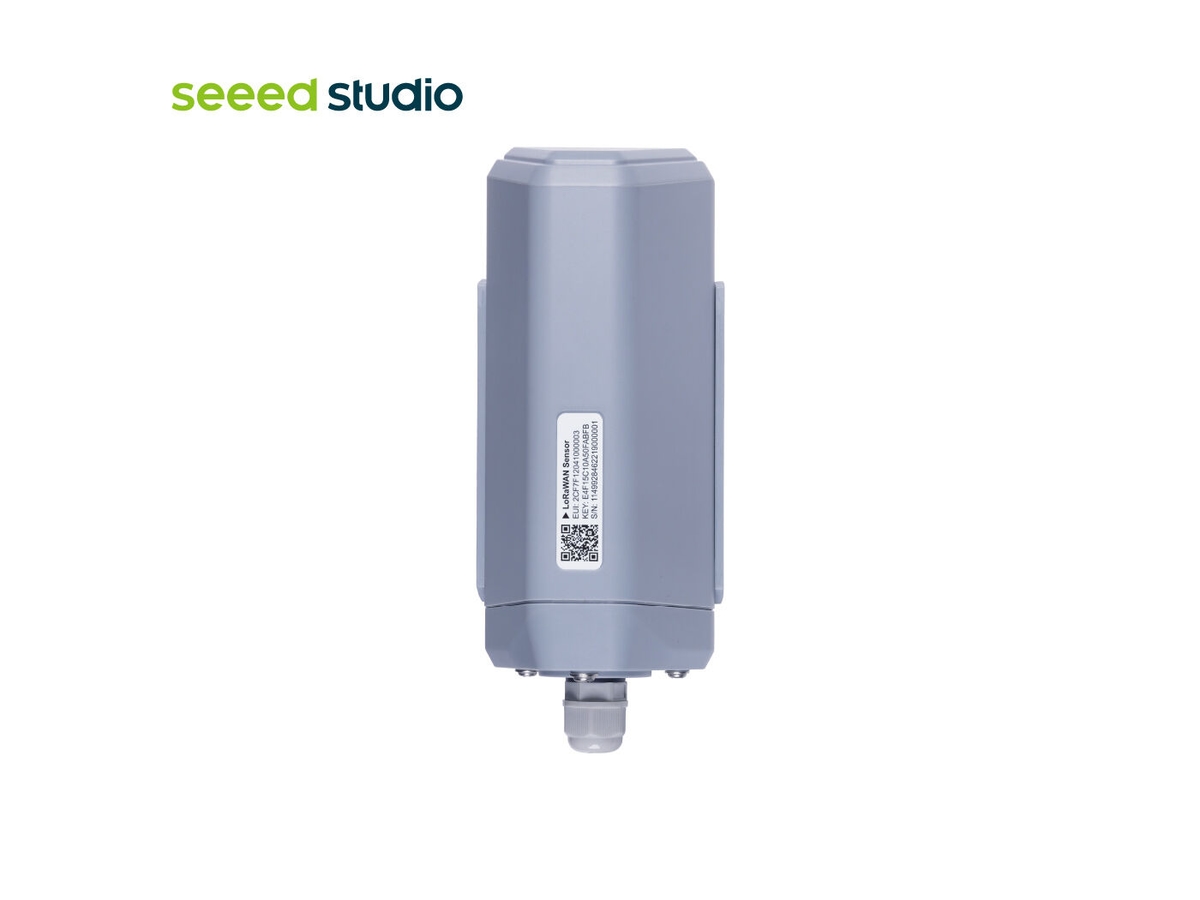

LoRaWAN® Data Logger

A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in
Bluetooth and APP service for OTA configuration and remote device management.

• Strong Compatibility with different Sensors: supports all MODBUS-RTU
  RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors.
• Compatible with Worldwide LoRaWAN® Networks: Compatible with LoRaWAN® V1.0.3 protocol and can
  work with LoRaWAN® gateway (support the universal frequency plan from 863MHz ~928MHz).
• Long Range & replaceable Battery powered: With LoRaWAN® wireless transmission, S2100 supports
  19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban
  scenes and 10km in line of sight scenes.
• Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated
  enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
• Remote configuration and management: Seeed provides SenseCraft App and SenseCraft Data Platform,
  allows users to remotely manage data and configure.

High-performance Guarantee

We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and
durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X
went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme
conditions.

• High-Low Temperature Test - determine performance under adverse temperature conditions.
• Conformance Test - whether the collected values of multiple devices are consistent
• Waterproof Test
• Freezing Test
• Long-Range Communication Test - whether the device loses packets under long-distance transmission
• R&D and Production Test - to test the pass rate of multiple devices under factory conditions

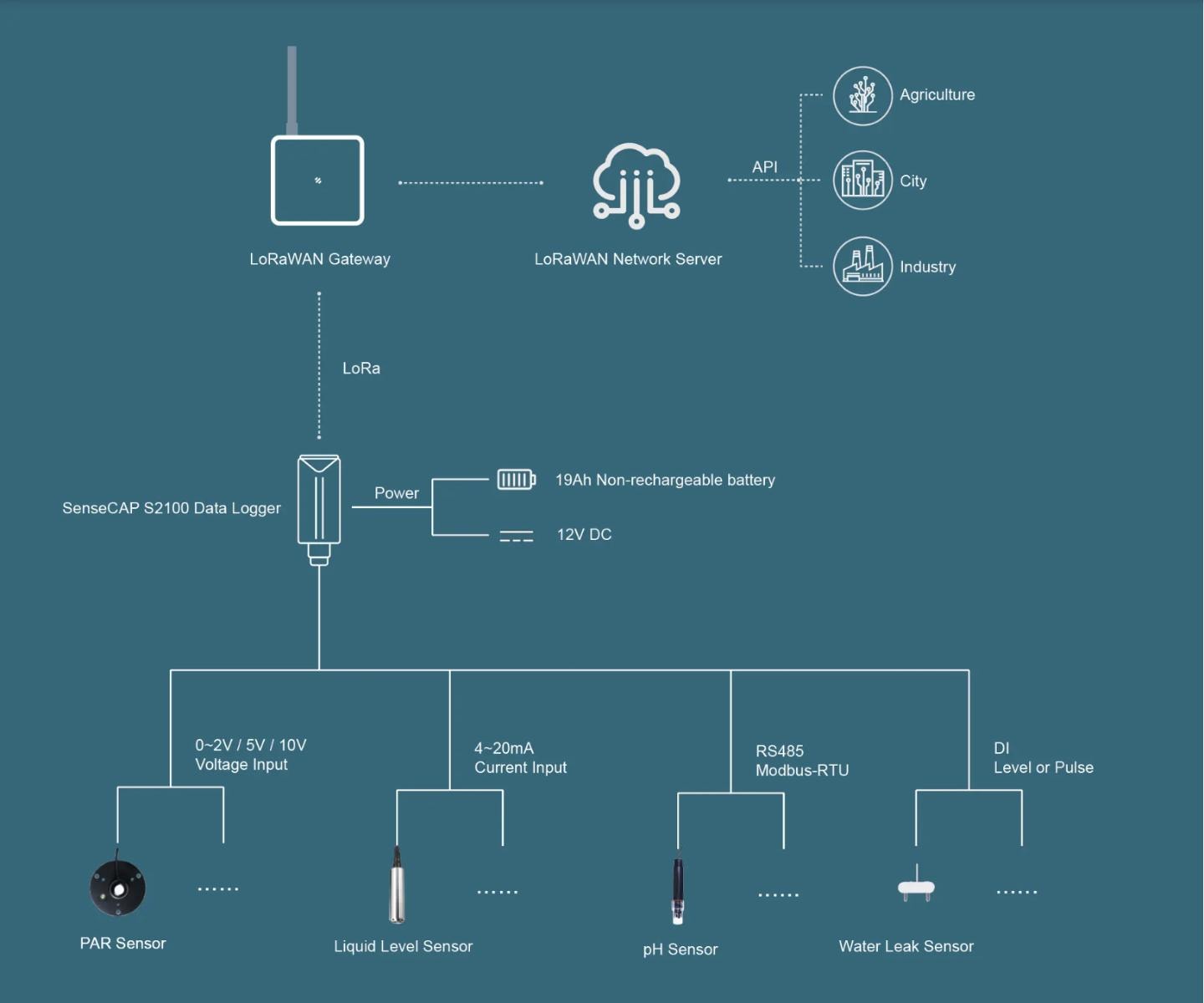

SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to
the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can
cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically
optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or
connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery
is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU
is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment
for DIY Industrial level LoRaWAN Sensors.

S2100 LoRaWAN Data Logger/DTU supports MODBUS-RTU RS485/Analog/GPIO input and transmit the data from sensors to the
LoRaWAN network.

It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power
consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of
usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh
environments.

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to
say, every single device can support the frequency plans below:

The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via
Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

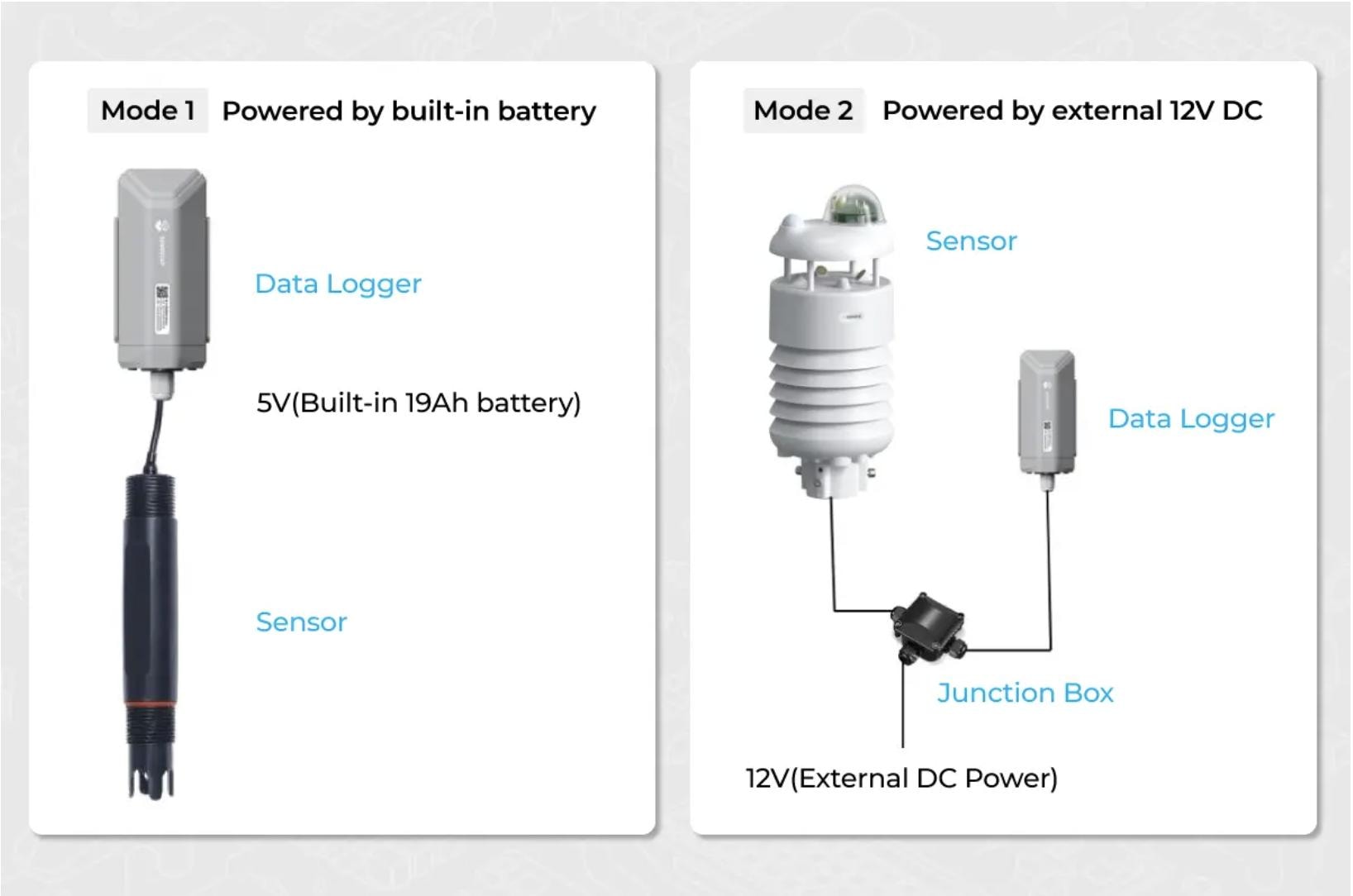

Option 1: the data logger/DTU can work in Periodic mode. Powered by a built-in
19Ah Standard D-size Li-SOCl2 battery which is easy to buy online, it can be installed and deployed in an outdoor
environment without additional power.

Option 2: the data logger/DTU can work in Constant Power mode with an external 12V
DC power supply. We provide a matching Junction Box Kit so that the data logger/DTU can be
quickly assembled.

S2100 LoRaWAN Data Logger/DTU is a single-channel collector, and only supports one of the following protocols at one
time:

• RS485: Support standard RS485 Modbus-RTU protocol
• Analog: 2 x 0~10V or 2 x 4~20mA.
• GPIO: 1 x GPIO, collect level or pulse signal

Precision Agriculture, Industrial Manufacturing, Smart Building

SenseCAP S2100 is compatible with LoRaWAN® V1.0.3 protocol and can work with Gateway - LoRaWAN.

LoRaWAN® gateways can provide LoRaWAN® network coverage which is required when using such sensors. S210X can be
connected to different LoRaWAN® gateways while what Seeed provides offers you a seamless user experience.

Helium Network: Sensors work in areas covered by Helium Network (Check on Helium Explorer). You can check the SenseCAP M1 LoRaWAN Indoor Gateway - and SenseCAP M2 Light Hotspot and Software License - Seeed Studio.

LoRaWAN Network: Sensors work in LoRaWAN® networks, like The Things Network, Loriot, Chirpstack, etc. You can check
the SenseCAP Gateway - LoRaWAN EU915 - Seeed Studio and the SenseCAP-Multi-Platform-LoRaWAN-Indoor-Gateway-SX1302-US915-p-5472 - Seeed Studio.

We highly recommend that you use our SenseCAP M2 Multi-Platform LoRaWAN Gateway, which is a standard LoRaWAN®
gateway that supports connection to different network servers. With its affordable price of $99, its
cost-effectiveness becomes a standout advantage, especially when building your private LoRaWAN network.

Seeed provides SenseCraft Data platform and SenseCraft App to help users better manage and check data remotely

• SenseCraft Data Platform, for Device, Data, and Access Key Management - Seeed Studio IIoT Solutions is a web service to
  enable users to manage SenseCAP devices and view data through the web.Bind and manage all devices in one account
• Includes Dashboard, Device Management, Data Management, and Access Key Management
• Provides MQTT and HTTP API to users for further development
• SenseCraft App
  in iOS and Android Versions - Seeed Studio IIoT Solutions is a powerful APP for data visualization and
  remote device management.Save time - provides a scan-and-play experience to enable users to complete the whole
  configuration in 4 steps
• Works for people with less or no technical background to get started with sensor data easily
• Acquire and view data on clean user interfaces
• Set time intervals: improve the battery efficiency
• Set threshold values: focus on the data you need to take action for - coming soon
• Send alarms if data is out of the safe range - coming soon

Apart from working with existing sensor nodes, the S2100 data-logger can also be connected with SenseCAP S2110 Grove Converter to achieve a plug-and-play outdoor LoRaWAN sensor deployment
experience with various selections of Grove Sensors. It is an ideal solution for developing, fast prototyping, and
small deployment for DIY Industrial level LoRaWAN Sensors. Moreover, you can use your existing Seeed Grove Sensors to build your
outdoor LoRaWAN sensors without coding. You should try out this kit.
