Air Temperature and Humidity Sensor
A battery-powered IP66 wireless air temperature and humidity sensor with measurement ranges of -40℃ ~ 85℃ and 0 ~ 100%RH respectively, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management. Used for smart agriculture, smart yard, and environmental monitoring solutions.
-
Compatible with worldwide LoRaWAN® networksCompatible with different kinds of LoRaWAN® gateways to provide a fast connection with LoRaWAN® network (Supporting 863MHz~928MHz general frequency plans).
-
Long-Range and Battery PoweredUltra-wide transmission range of 2 kilometers in urban scenarios and 10 kilometers in line-of-sight scenarios. Powered by an easily-replaceable standard Li-SOCl2 battery (Model: ER34615) with up to 10 years of battery life.
-
Designed for Harsh Environment-40℃~85℃ Operating Temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
-
Easy ConfigurationSenseCAP provides No-Code Experience and users can finish the configuration with the SenseCraft App in 4 steps.
-
High-Performance GuaranteeGone through 6 reliability tests before being released and meets the requirement of working perfectly under extreme conditions.
-
Dual Parameter MonitoringSimultaneously measures air temperature and humidity with high precision for comprehensive environmental monitoring.

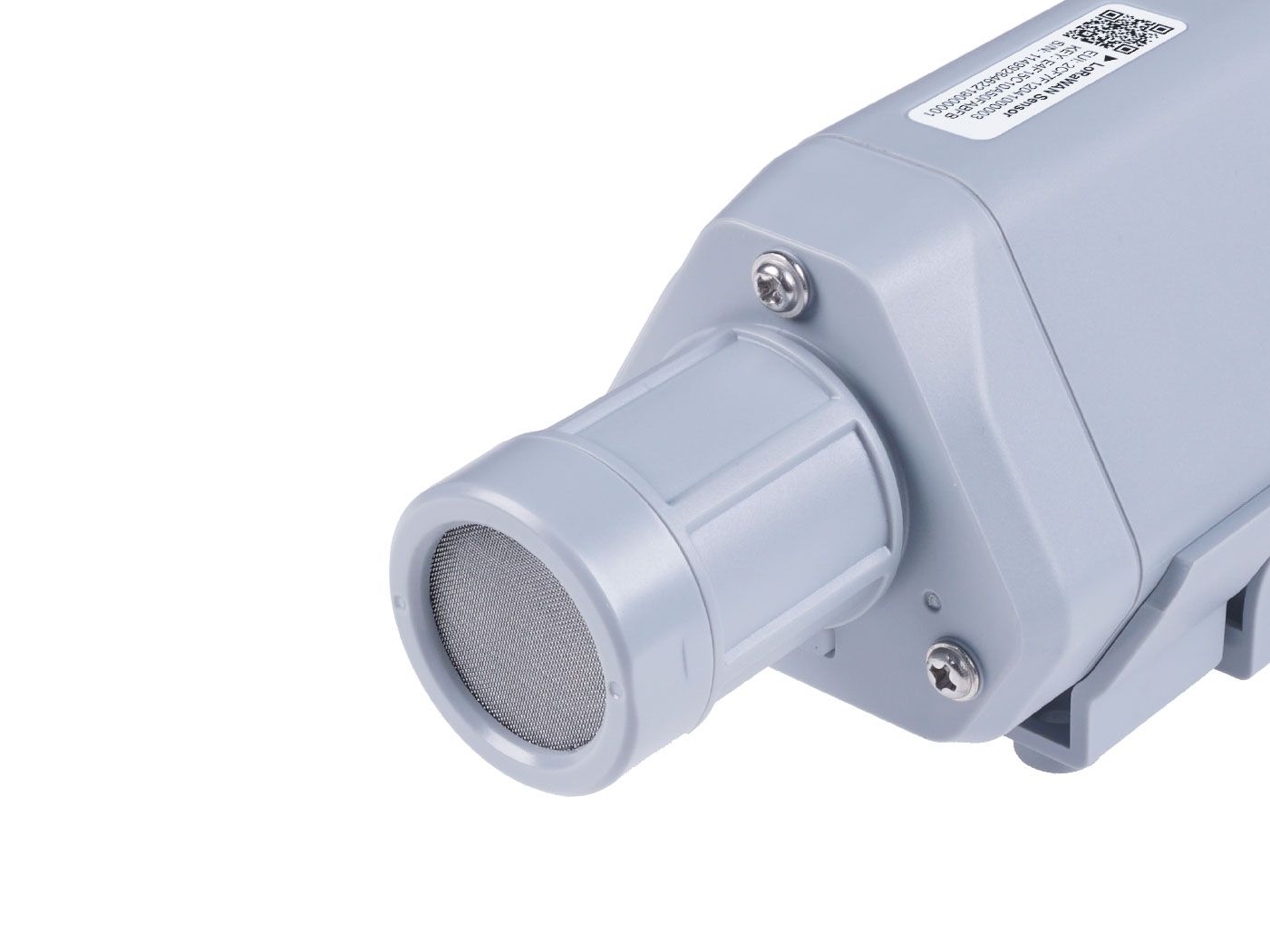

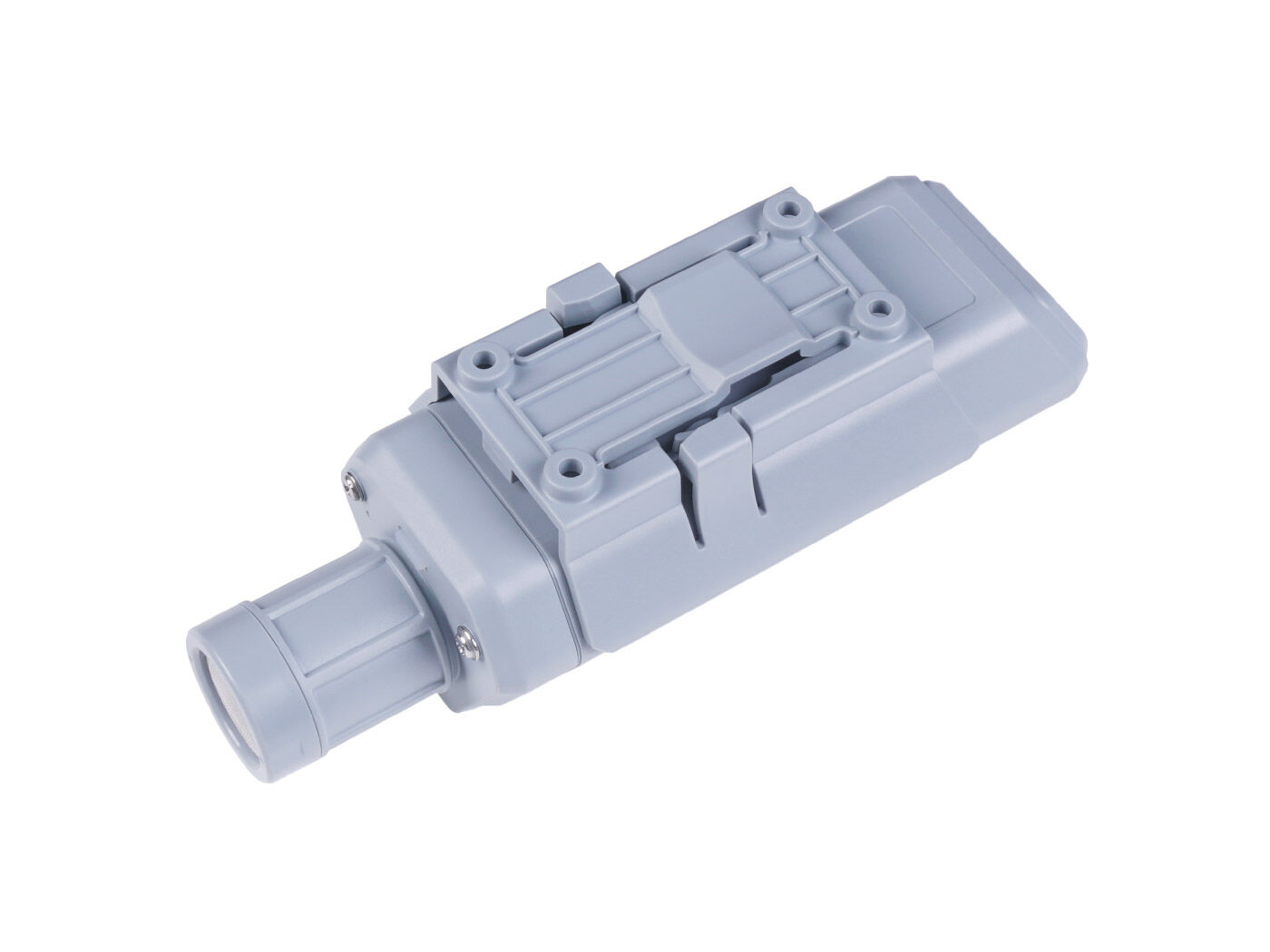

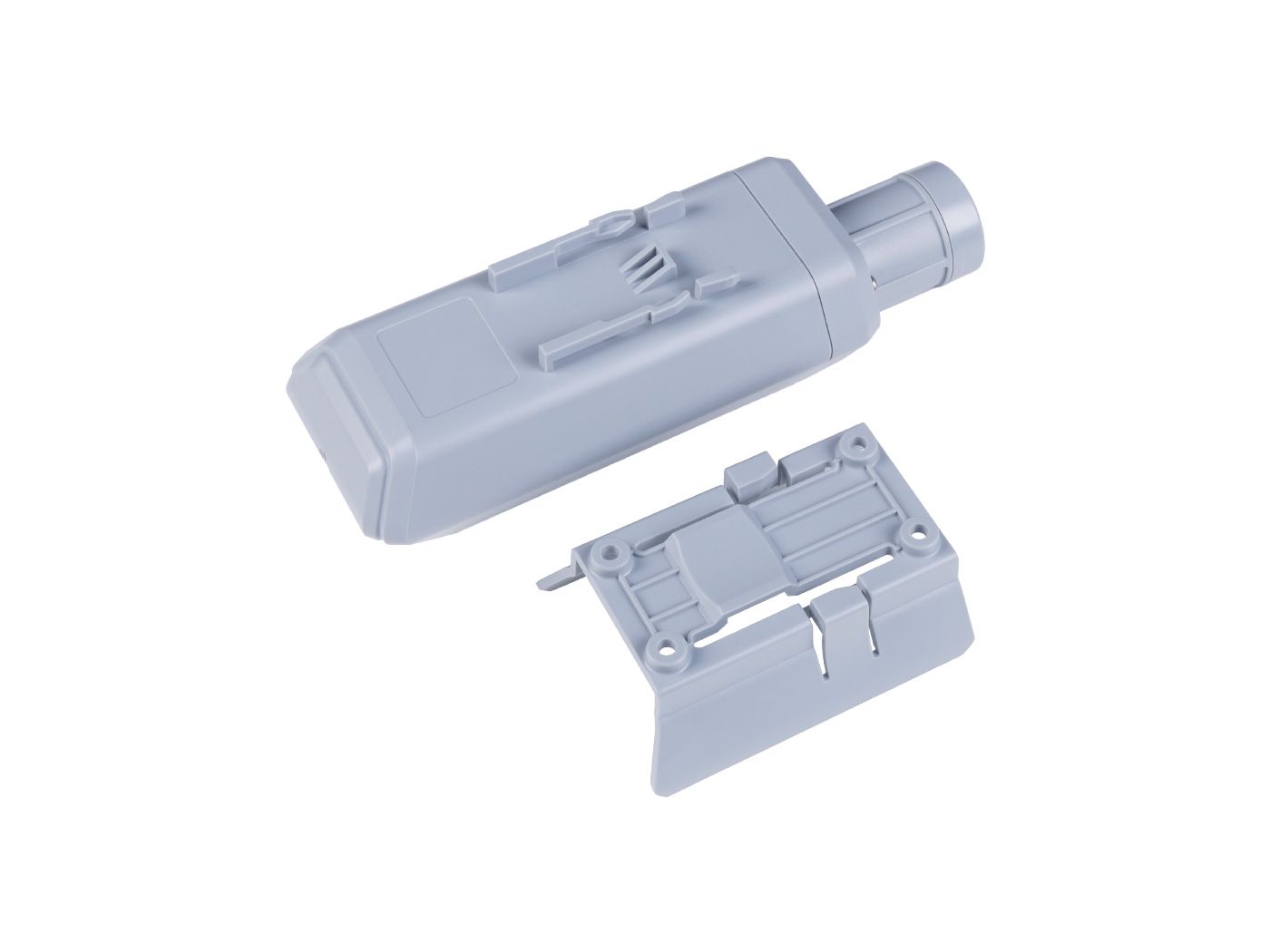

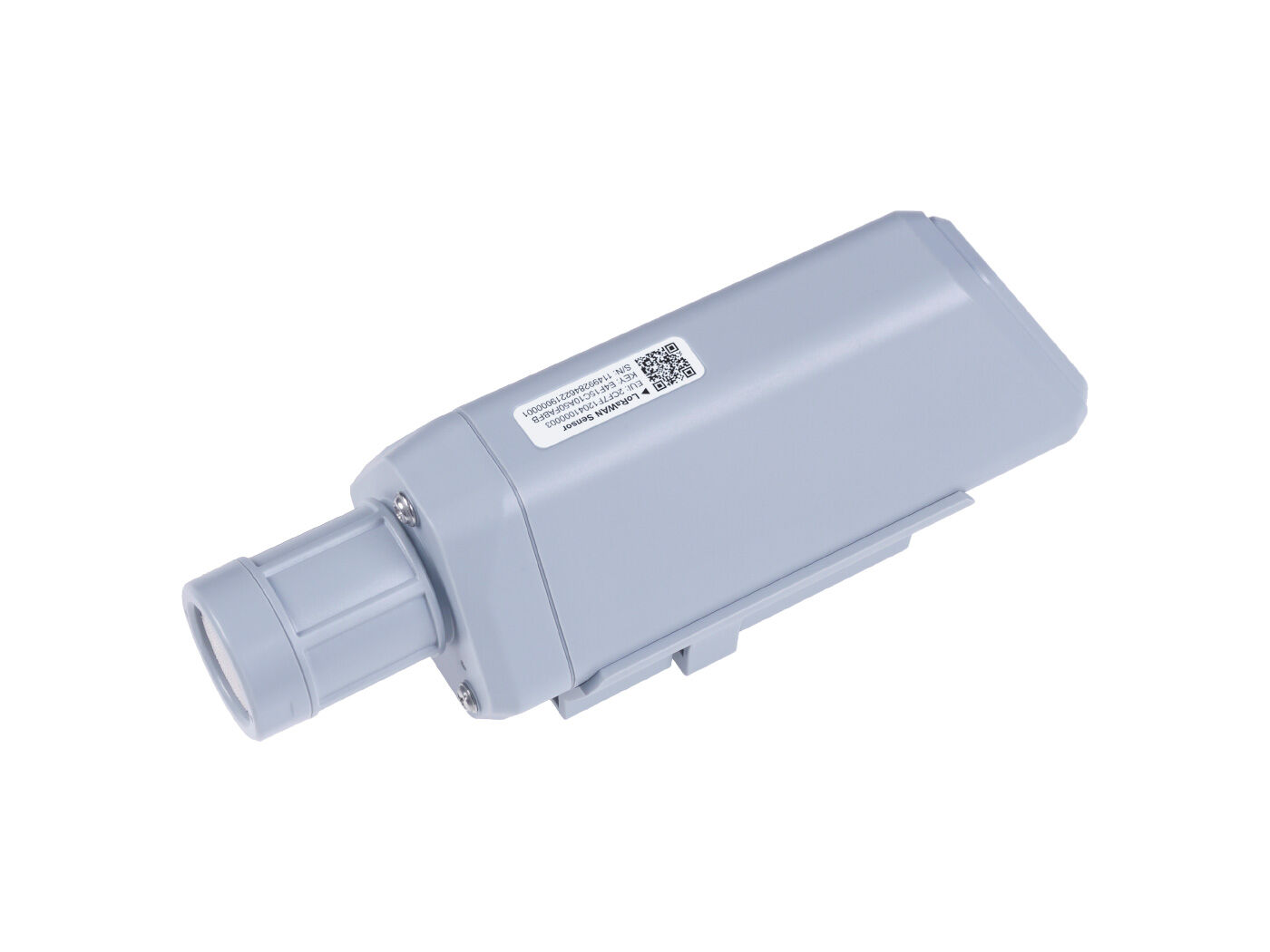

SenseCAP LoRaWAN S2101 Sensor measures temperature and humidity in the atmosphere at the range of -40℃ to 85℃ and 0 to 100 %RH (non-condensing) respectively, making it widely applicable in industrial environmental sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and covers a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
SenseCAP S210X is a series of wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.
High-performance Guarantee
We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.
- High-Low Temperature Test - determine performance under adverse temperature conditions.
- Conformance Test - whether the collected values of multiple devices are consistent
- Waterproof Test
- Freezing Test
- Long-Range Communication Test - whether the device loses packets under long-distance transmission
- R&D and Production Test - to test the pass rate of multiple devices under factory conditions
Application
Poultry Farm, Livestock Shed, Greenhouse, Office, Home, Cold Chain, and Warehouse
SenseCAP S210X is compatible with LoRaWAN® V1.0.3 protocol and can work with Gateway - LoRaWAN Device - SenseCAP.
LoRaWAN® gateways can provide LoRaWAN® network coverage which is required when using such sensors. S210X can be connected to different LoRaWAN® gateways while what Seeed provides offers you a seamless user experience.
Helium Network: Sensors work in areas covered by Helium Network (Check on Helium Explorer). You can check the SenseCAP M1 LoRaWAN Indoor Gateway - US915 - Seeed Studio and SenseCAP M2 Light Hotspot and Software License - Seeed Studio.
LoRaWAN Network: Sensors work in LoRaWAN® networks, like The Things Network, Loriot, Chirpstack, etc. You can check the SenseCAP Gateway - LoRaWAN EU915 - Seeed Studio and the SenseCAP-Multi-Platform-LoRaWAN-Indoor-Gateway-SX1302-US915-p-5472 - Seeed Studio.
We highly recommend that you use our SenseCAP M2 Multi-Platform LoRaWAN Gateway, which is a standard LoRaWAN® gateway that supports connection to different network servers. With its affordable price of $99, its cost-effectiveness becomes a standout advantage, especially when building your private LoRaWAN network.

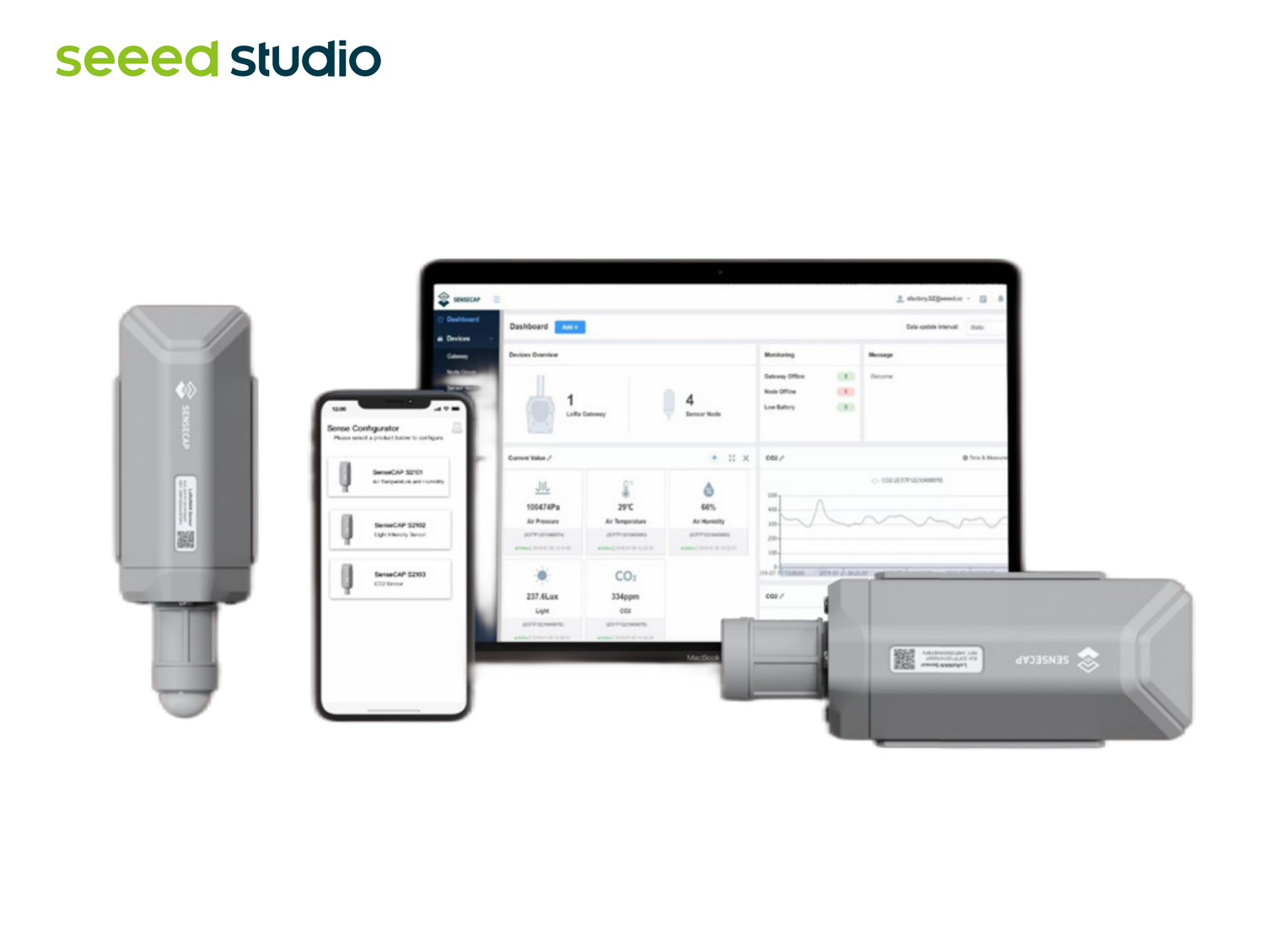

Seeed provides the SenseCraft Data Platform and SenseCraft App to help users better manage and check data remotely
- SenseCraft Data Platform, for Device, Data, and Access Key Management - Seeed Studio IIoT Solutions is a web service to enable users to manage SenseCAP devices and view data through the web.Bind and manage all devices in one account
- Includes Dashboard, Device Management, Data Management, and Access Key Management
- Provides MQTT and HTTP API to users for further development
- SenseCraft App in iOS and Android Versions - Seeed Studio IIoT Solutions is a powerful APP for data visualization and remote device management.Save time - provides a scan-and-play experience to enable users to complete the whole configuration in 4 steps
- Works for people with less or no technical background to get started with sensor data easily
- Acquire and view data on clean user interfaces
- Set time intervals: improve the battery efficiency
- Set threshold values: focus on the data you need to take action for - coming soon
- Send alarms if data is out of the safe range - coming soon
| Parameter | Specification |
|---|---|
| Air Temperature | |
| Range | -40 to +85 °C |
| Accuracy | ±0.2 °C |
| Resolution | 0.01 °C |
| Long-term Drift | <0.03 °C/year |
| Air Humidity | |
| Range | 0 to 100%RH |
| Accuracy | ±1.8 %RH |
| Resolution | 0.01 %RH |
| Long-term Drift | <0.25 %RH/year |
| General Parameters | |
| Product Model | S2101 |
| Microcontroller | Wio-E5 |
| Support Protocol | LoRaWAN v1.0.3 Class A |
| Built-in Bluetooth | App Tool to change parameters |
| LoRaWAN Channel Plan | IN865/EU868/US915/AU915/ AS923/KR920/RU864 * |
| Max Transmitted Power Sensitivity | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to10km (depending on gateway antenna and environments) |
| IP Rating | IP66 |
| Operating Temperature | -40 to +85 °C |
| Operating Humidity | 0 to 100% RH (non-condensing) |
| Device Weight | 280g |
| Certification | CE / FCC / RoHS |
| Battery (Contained in equipment) | |
| Battery Life | Up to 10 years** |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D-size SOCl2 Battery |
* Every single device can support 7 frequency plans.
** This wireless LoRaWAN sensor supports up to 10 years of battery life, but the actual battery life varies from data upload interval, data payload, and distance between gateways.
*** We have updated the battery life table, which should provide you with a better estimate of the actual battery life of your device. We recommend that you refer to the updated table when making any judgment or decision related to the battery life of your device.
LoRaWAN Frequency
S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support the frequency plans below:
| Frequency Plan | Common Name | Sub-band |
|---|---|---|
| EU863-870 | EU868 | ___ |
| US902-928 | US915 | Sub-band from 1 to 8 |
| AU915-928 | AU915 | Sub-band from 1 to 8 |
| AS923 | AS923 | AS923_1, AS923_2, AS923_3, AS923_4 |
| IN865-867 | IN865 | ___ |
| KR920-923 | KR920 | ___ |
| RU864-867 | RU864 | ___ |
The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.
