Light Intensity Sensor

We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and
durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X
went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme
conditions.

• High-Low Temperature Test - determine performance under adverse temperature conditions.
• Conformance Test - whether the collected values of multiple devices are consistent
• Waterproof Test
• Freezing Test
• Long-Range Communication Test - whether the device loses packets under long-distance transmission
• R&D and Production Test - to test the pass rate of multiple devices under factory conditions

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to
say, every single device can support the frequency plans below:

The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via
Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

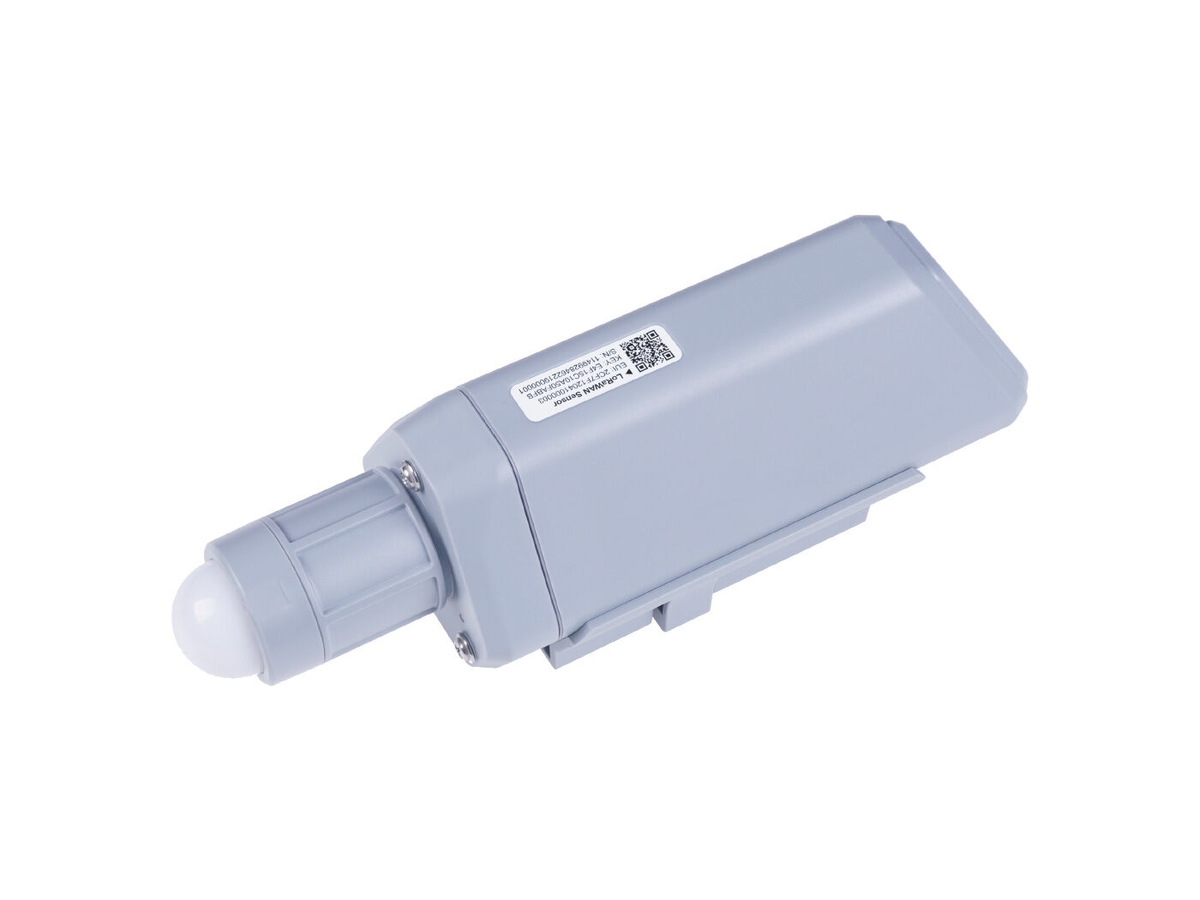

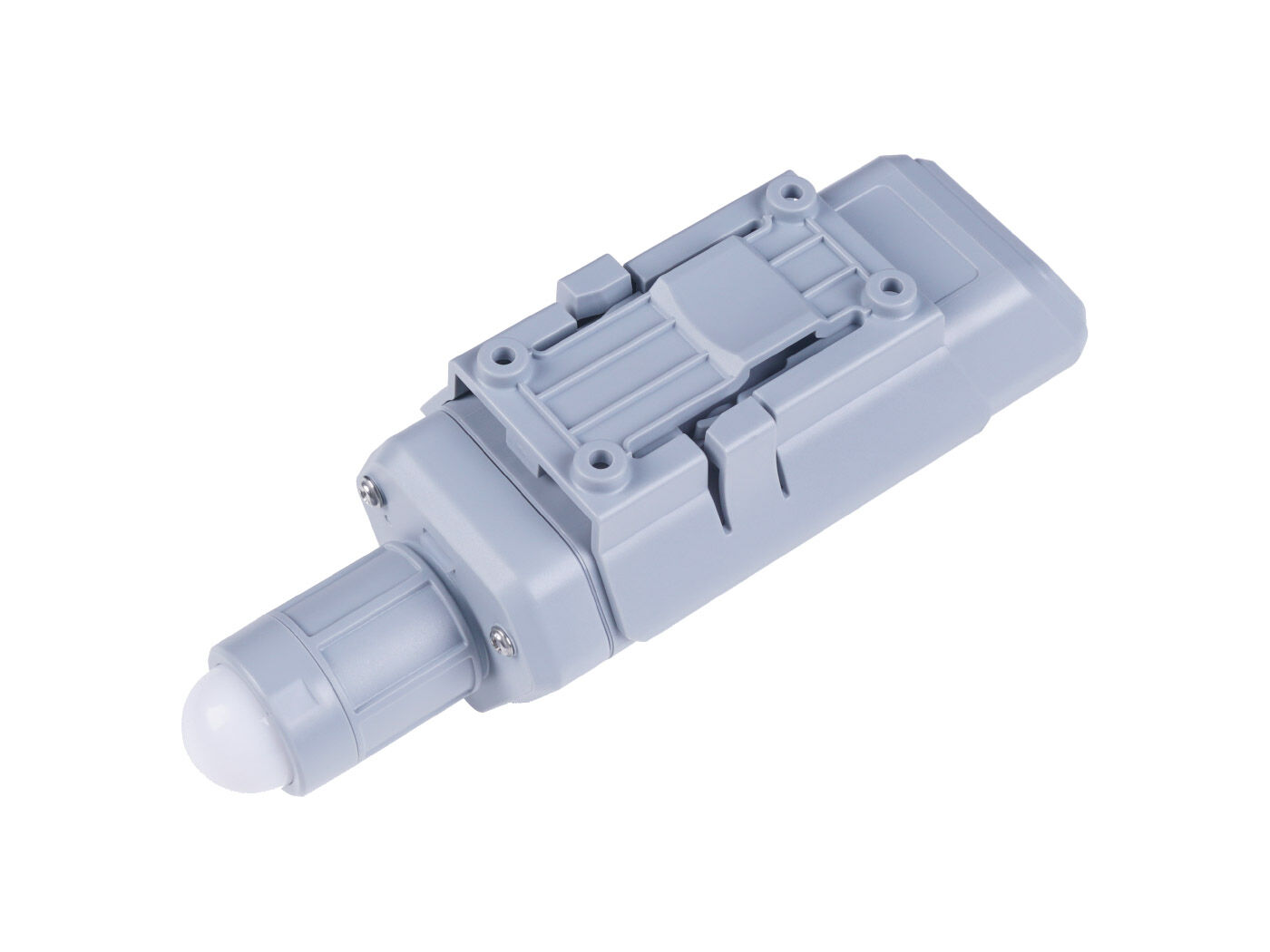

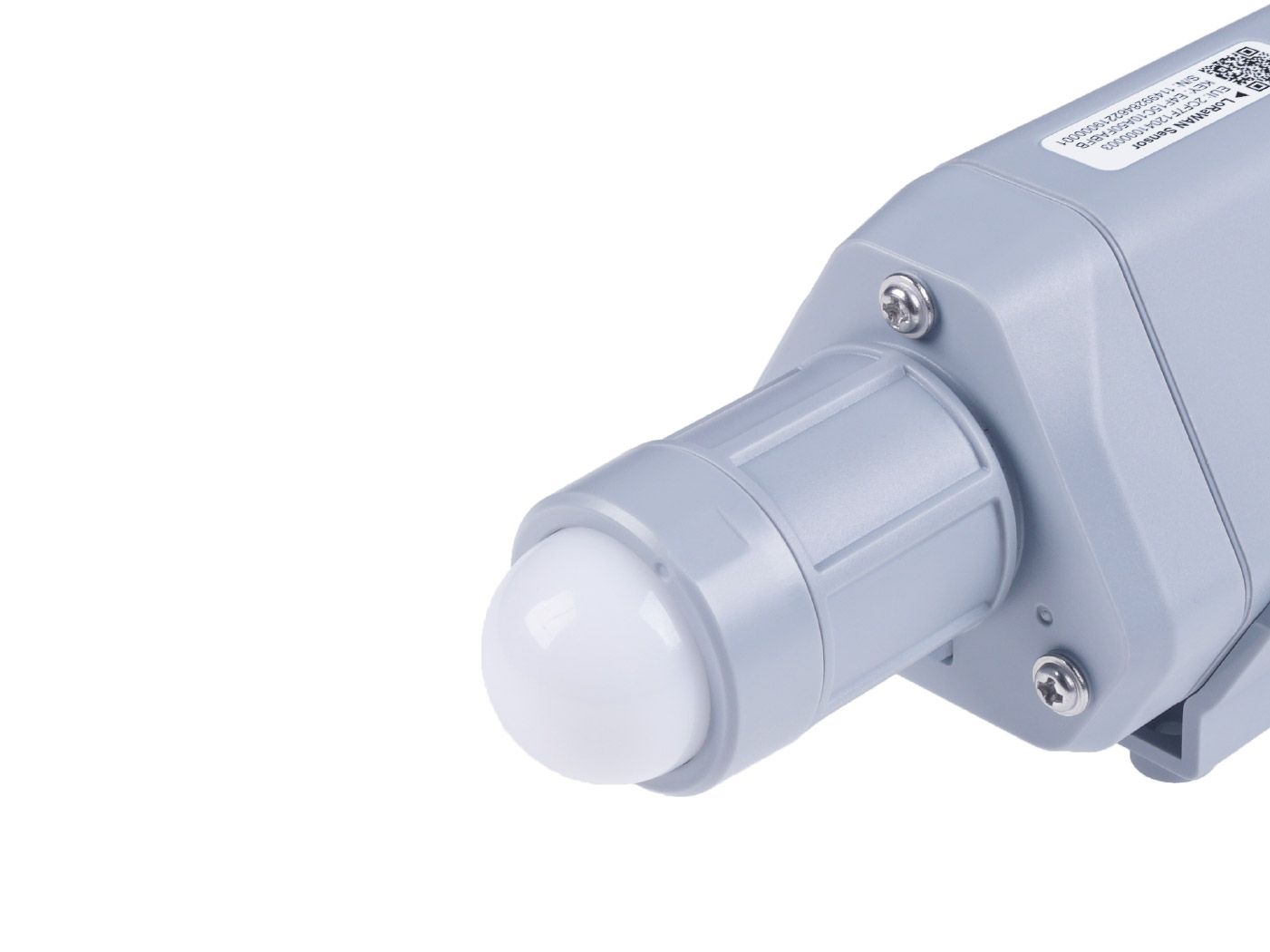

SenseCAP LoRaWAN S2102 Sensor measures light intensity at the range from 0 to 188000 lux, with an accuracy of ±10%
and a resolution of 1 lux, making it widely applicable in industrial environmental sensing scenarios. It is
specifically optimized for OTA with built-in Bluetooth, which enables quick setup and upgrade. Benefiting from LoRa
and IP66 design, this sensor features stability and reliability and can cover a long transmission range while
keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and

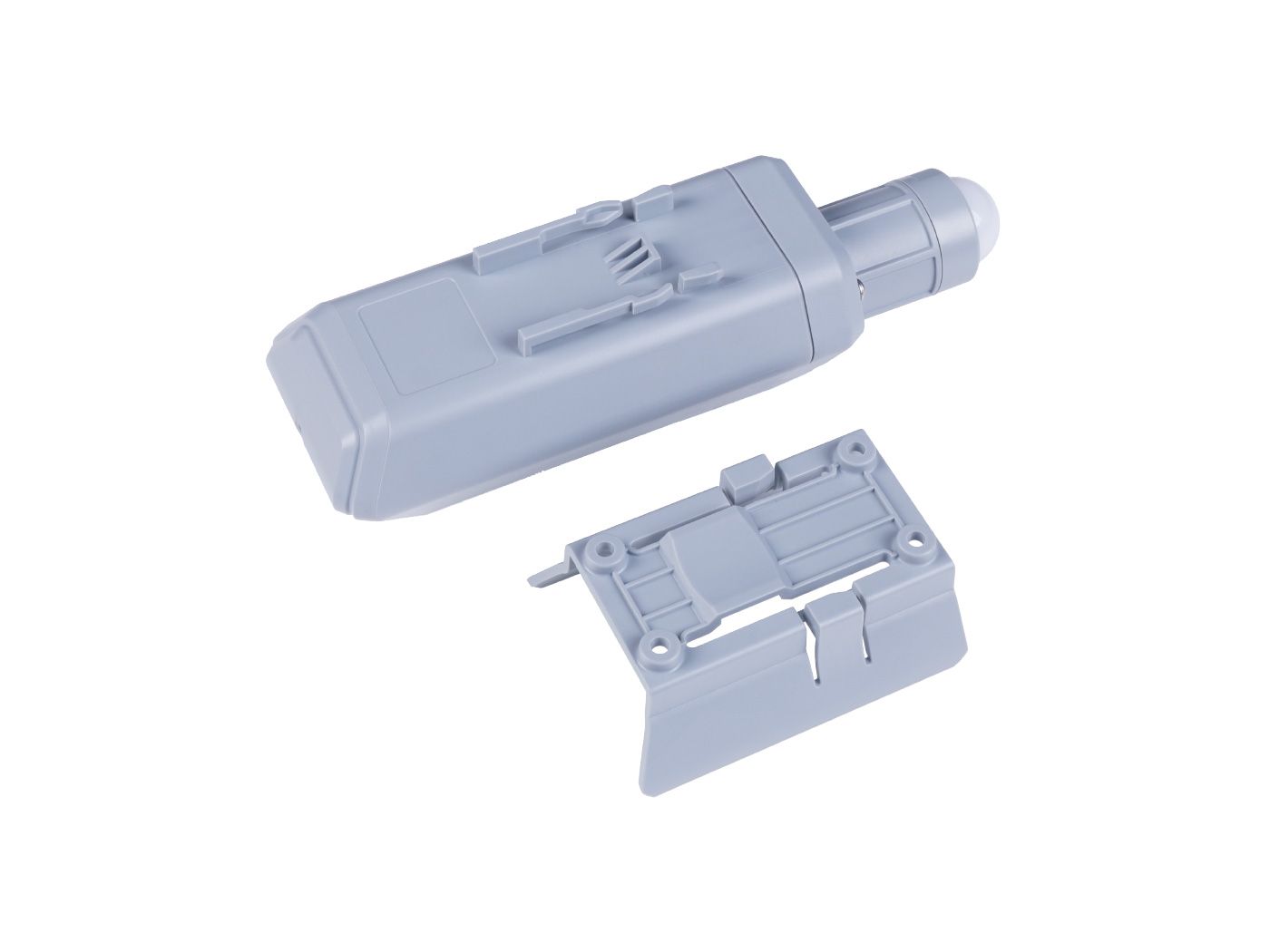

complexity of the deployment, and can be disassembled and installed in a few minutes.

It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power
consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of
usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh
environments.

Poultry Farm, Livestock Shed, Greenhouse, Hydroponics, Building and Street Lighting

SenseCAP S210X is compatible with LoRaWAN® V1.0.3 protocol and can work with Gateway - LoRaWAN.

LoRaWAN® gateways can provide LoRaWAN® network coverage which is required when using such sensors. S210X can be
connected to different LoRaWAN® gateways while what Seeed provides offers you a seamless user experience.

Helium Network: Sensors work in areas covered by Helium Network (Check on Helium Explorer). You can check the SenseCAP M1 LoRaWAN and SenseCAP M2 Light Hotspot and Software License -.

LoRaWAN Network: Sensors work in LoRaWAN® networks, like The Things Network, Loriot, Chirpstack, etc. You can check
the SenseCAP Gateway - LoRaWAN EU915 - Seeed Studio and the SenseCAP-Multi-Platform-LoRaWAN-Indoor-Gateway-SX1302-US915-p-5472 - Seeed Studio.

We highly recommend that you use our SenseCAP M2 Multi-Platform LoRaWAN Gateway, which is a standard LoRaWAN®
gateway that supports connection to different network servers. With its affordable price of $99, its
cost-effectiveness becomes a standout advantage, especially when building your private LoRaWAN network.

Seeed provides the SenseCraft Data Platform platform and SenseCraft App to help users better manage and check data remotely

• SenseCraft Data Platform, for
  Device, Data, and Access Key Management - Seeed Studio IIoT Solutions is a web service to enable users to
  manage SenseCAP devices and view data through the web. Bind and manage all devices in one account
• Includes Dashboard, Device Management, Data Management, and Access Key Management
• Provides MQTT and HTTP API to users for further development
• SenseCraft App in iOS and
  Android Versions - Seeed Studio IIoT Solutions is a powerful APP for data visualization and remote device
  management. Save time - provides a scan-and-play experience to enable users to complete the whole configuration
  in 4 steps
• Works for people with less or no technical background to get started with sensor data easily
• Acquire and view data on clean user interfaces
• Set time intervals: improve the battery efficiency
• Set threshold values: focus on the data you need to take action for - coming soon Send alarms if data is out
  of the safe range - coming soon
