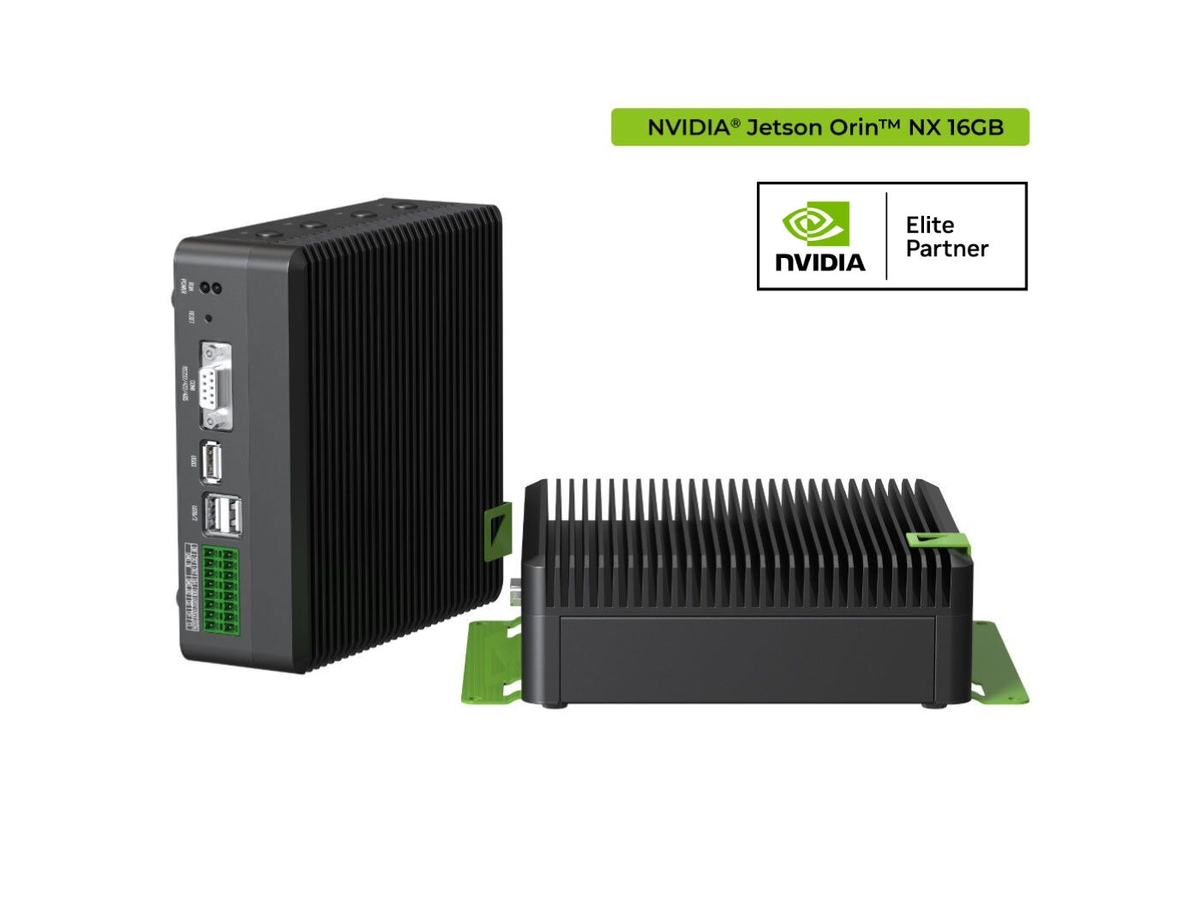

reComputer Industrial Jetson™

reComputer Industrial series is a fanless edge AI device powered by NVIDIA Jetson™ modules, delivering 20-100 TOPS AI performance with hybrid connectivity and versatile mounting options for harsh environment deployment.

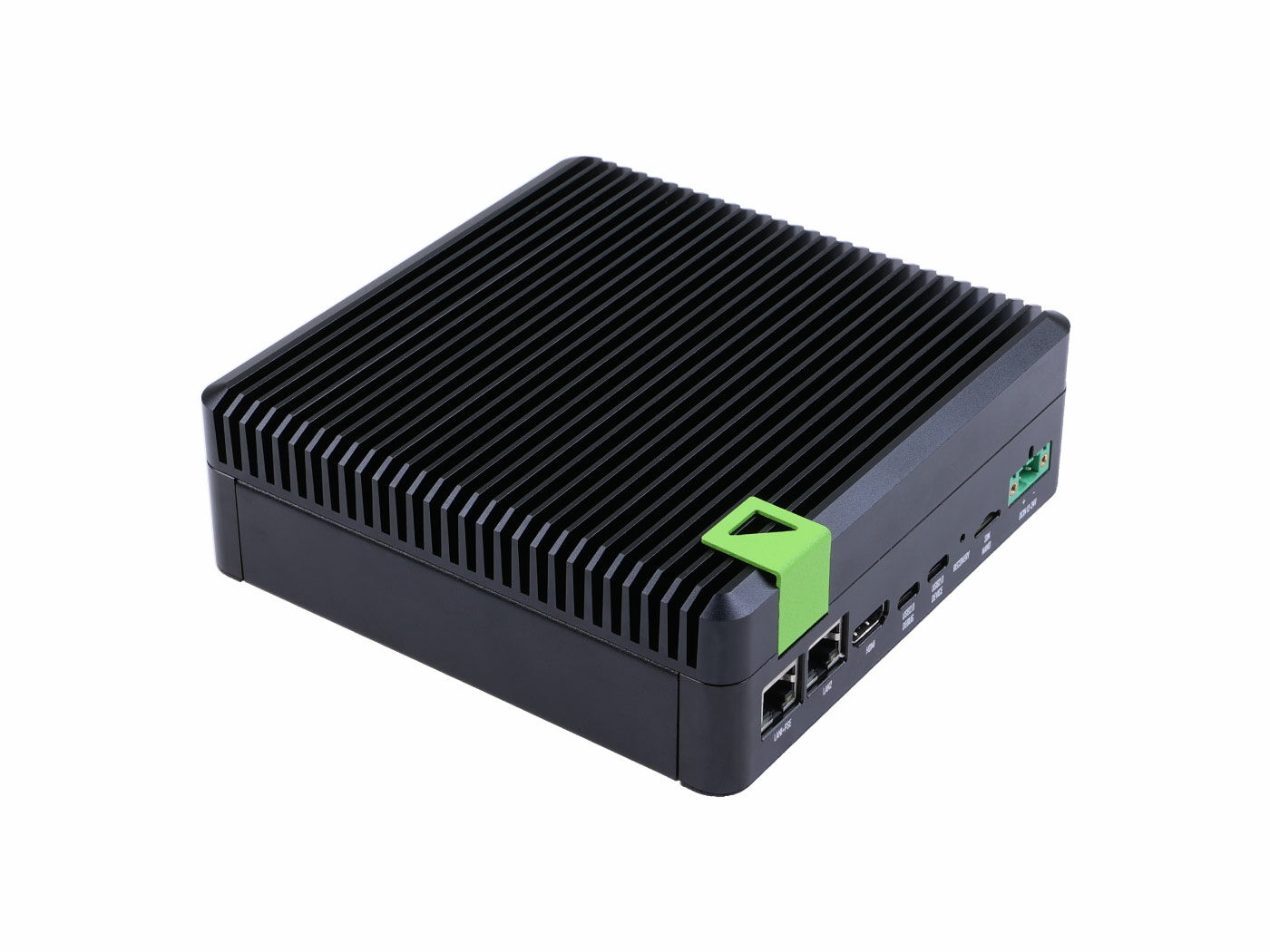

Fanless Compact Design

Thermal reference design with wide temperature support -20°C to 60°C, stable operation with 0.7m/s airflow
Rich Industrial Interfaces

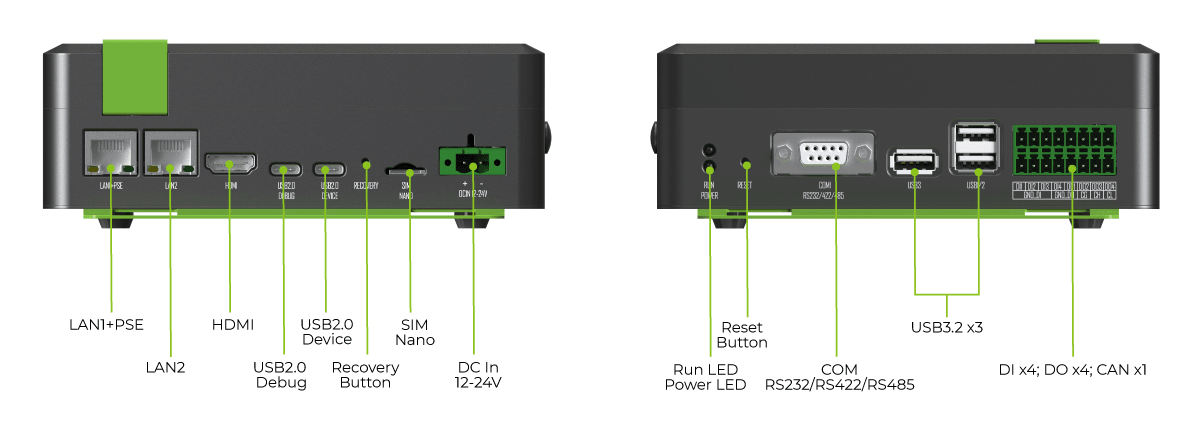

2x RJ-45 GbE ports (1 for PoE-PSE 802.3 af), 1x RS232/422/485, 4x DI/DO, 1x CAN, 3x USB3.2 interfaces
Hybrid Connectivity

Support 5G/4G/LTE/LoRaWAN®/GPS module expansion (optional), equipped with 1x Nano SIM card slot
Flexible Mounting

Support desktop, DIN rail, wall-mounting, VESA mounting options to adapt to different deployment scenarios
Powerful AI Performance

Features NVIDIA Jetson™ Xavier NX or Orin series modules, delivering 20-100 TOPS AI performance
Complete Certification

FCC, CE, RoHS, UKCA certified, compliant with industrial application standards

Hardware Overview

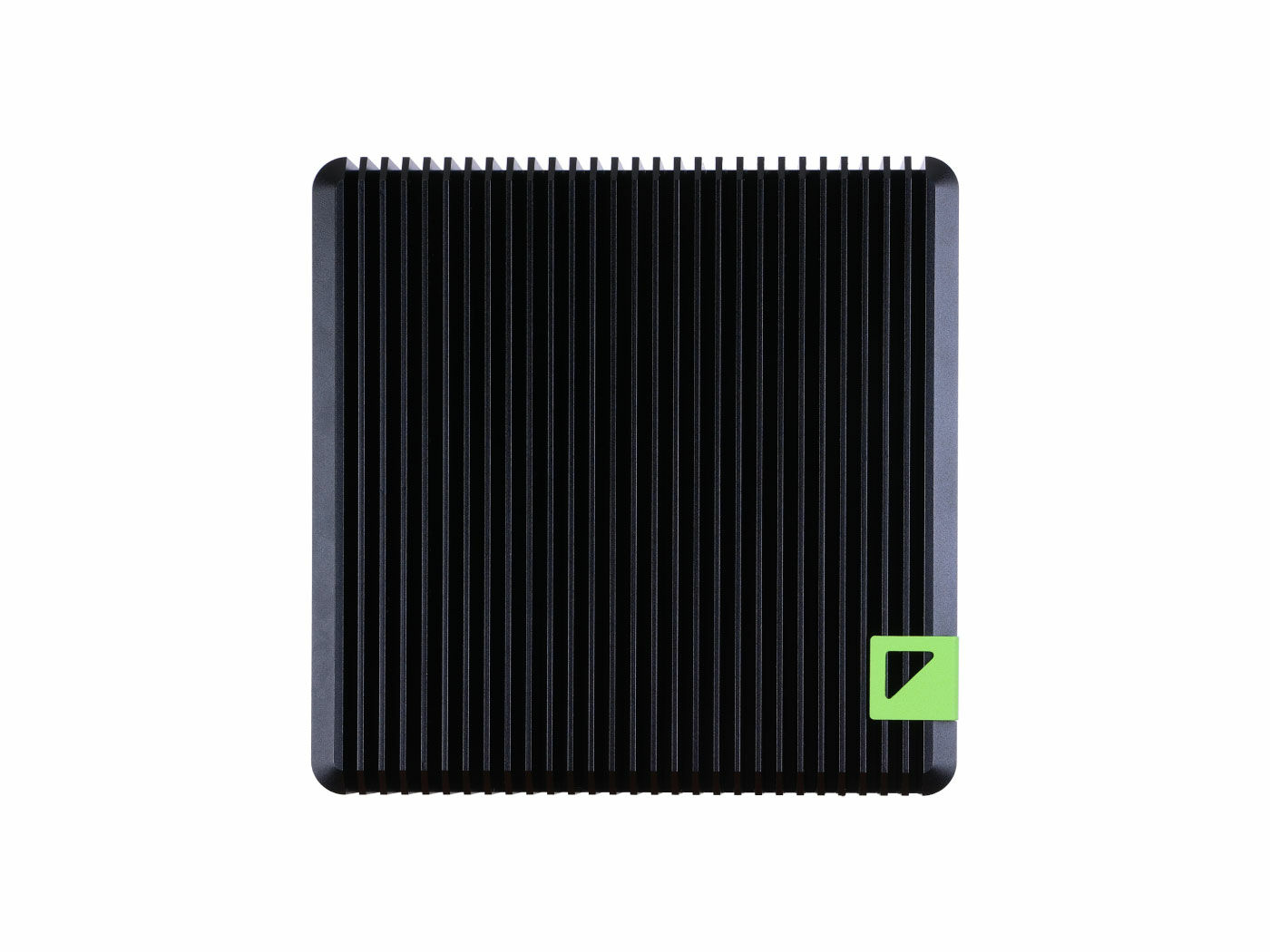

Full System

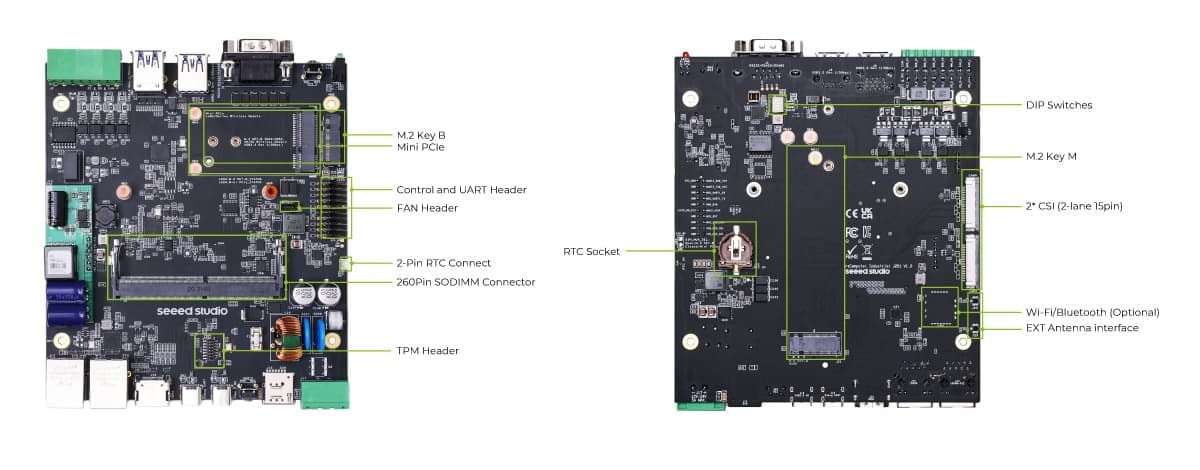

Carrier Board

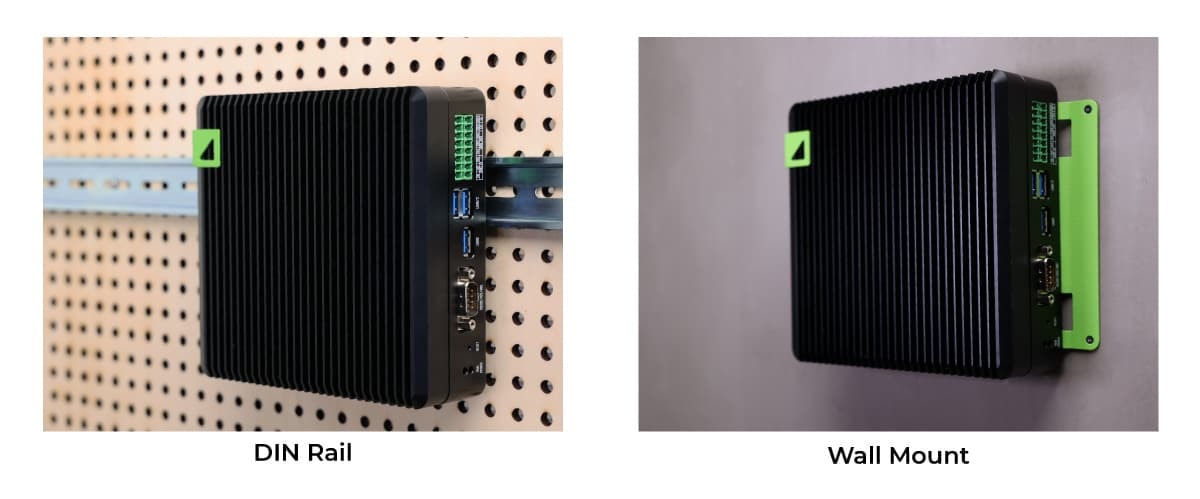

Flexible Mounting: Desktop, Wall Mount, DIN Rail, VESA

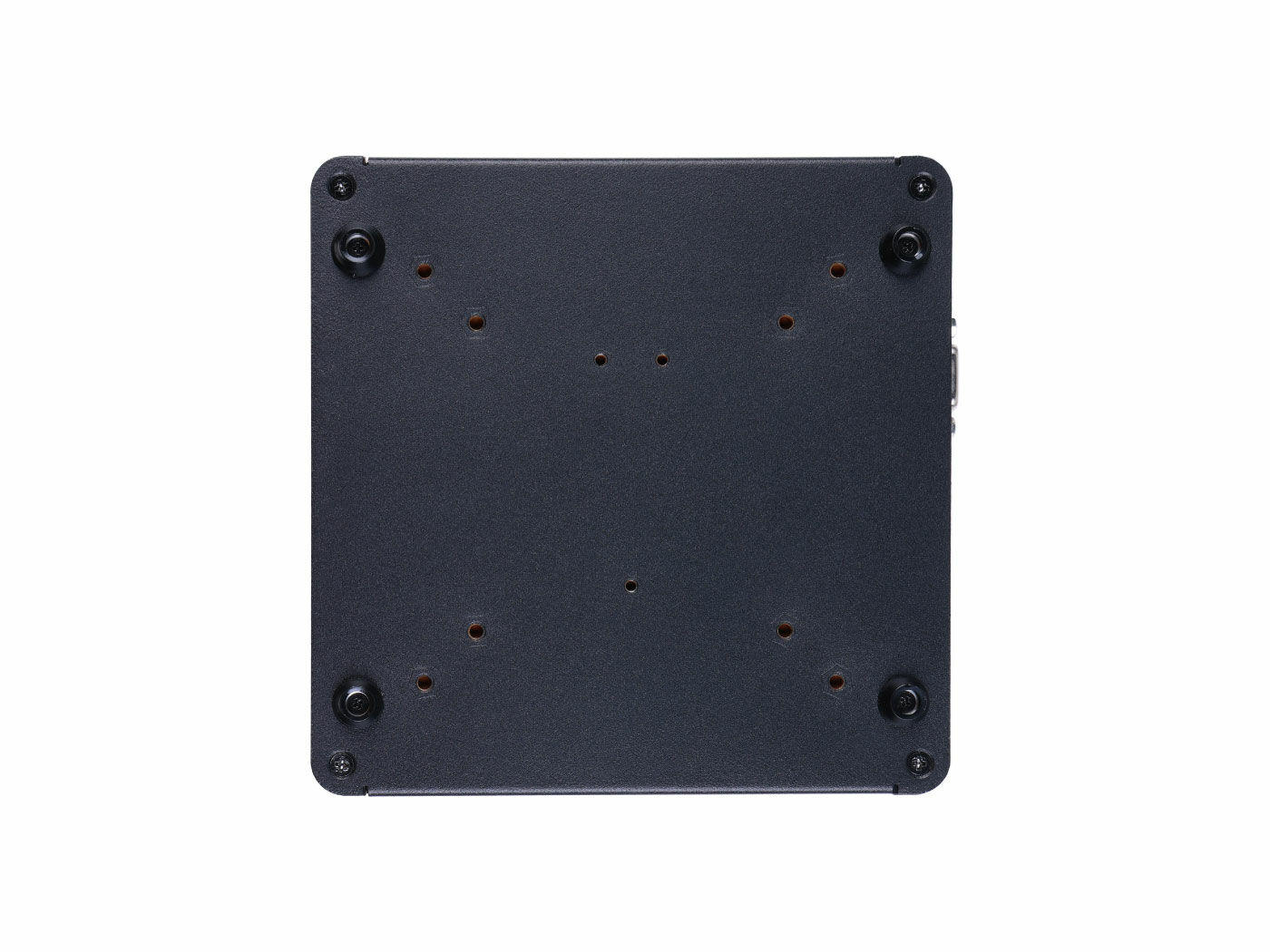

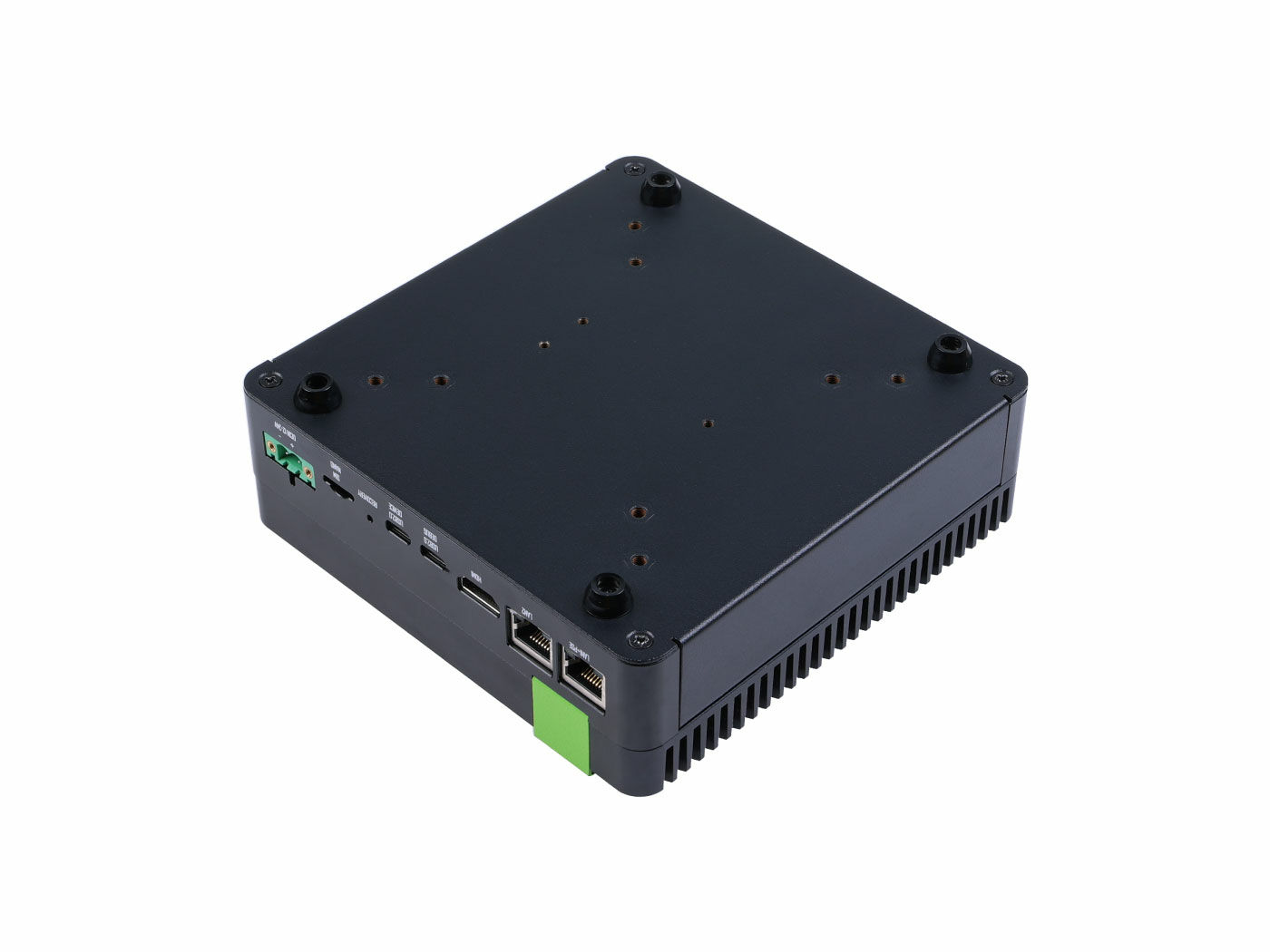

You can either place the device on a desk, mount the device on a VESA mount or mount it on a wall with the back screw holes. You can also place the device on a DIN Rail with the included brackets.

Application Fields

The reComputer Industrial series is a versatile and powerful platform that can be used to develop a wide range of AI-powered applications, enabling digital transformation across industries. Suitable applications include: AI Video Analytics, Machine Vision, Medical Imaging, Autonomous Mobile Robot (AMR), Generative AI.

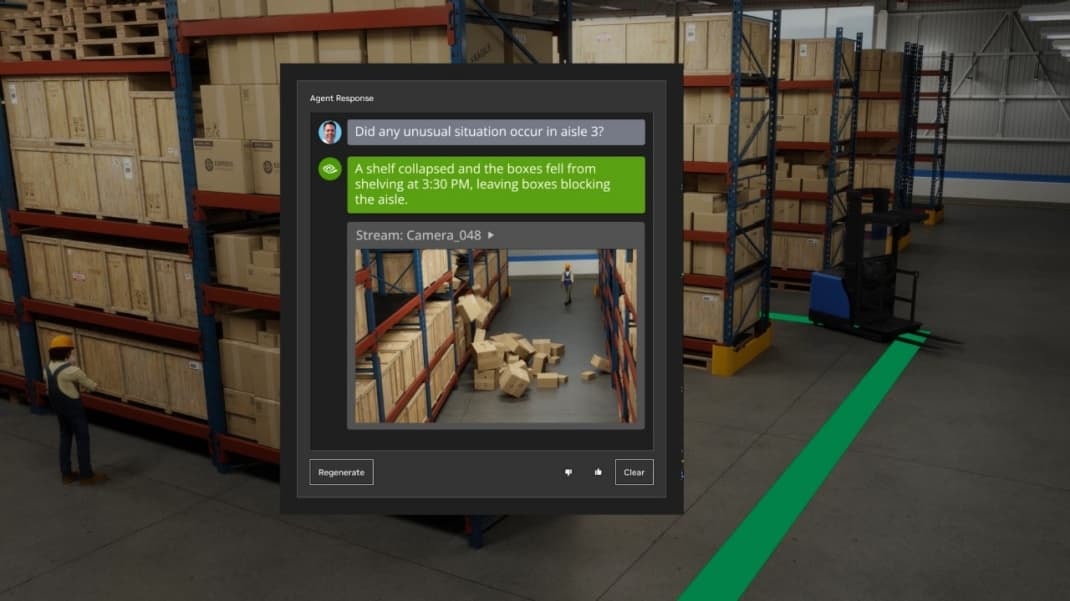

Capable of Bringing Generative AI to the Edge

Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.

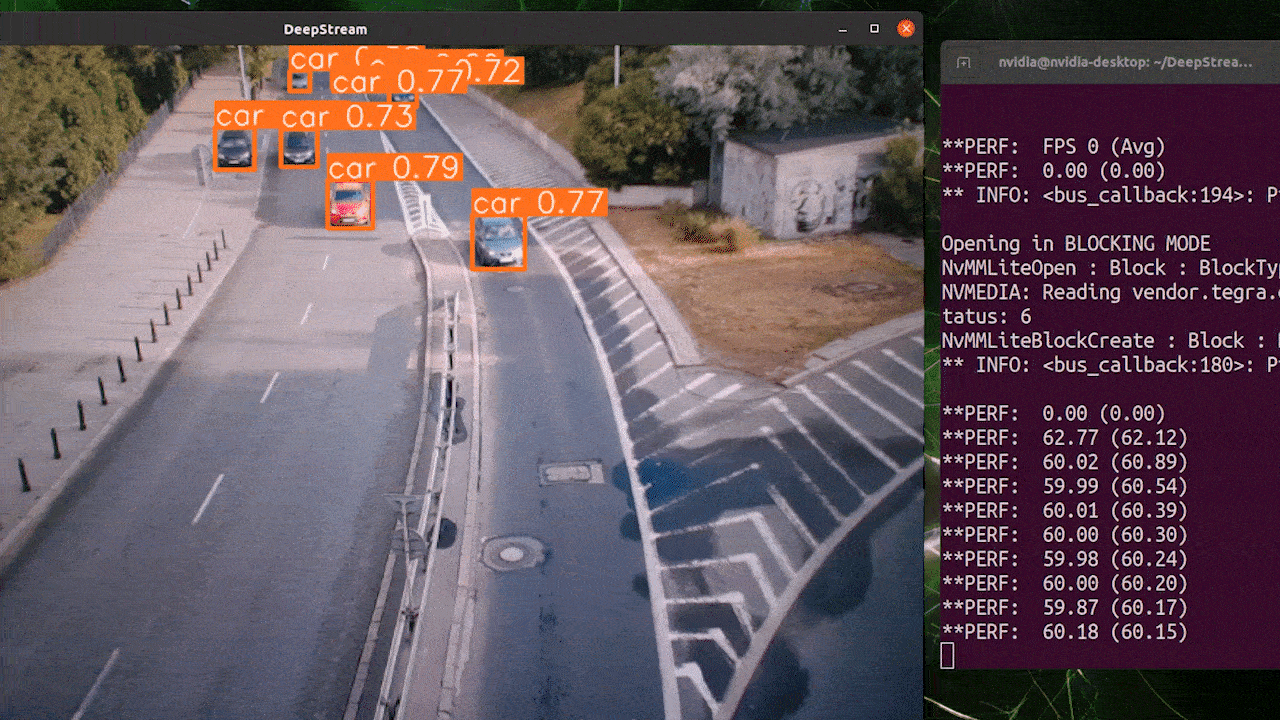

Build Multi-streams AI Video Analytics

For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.).

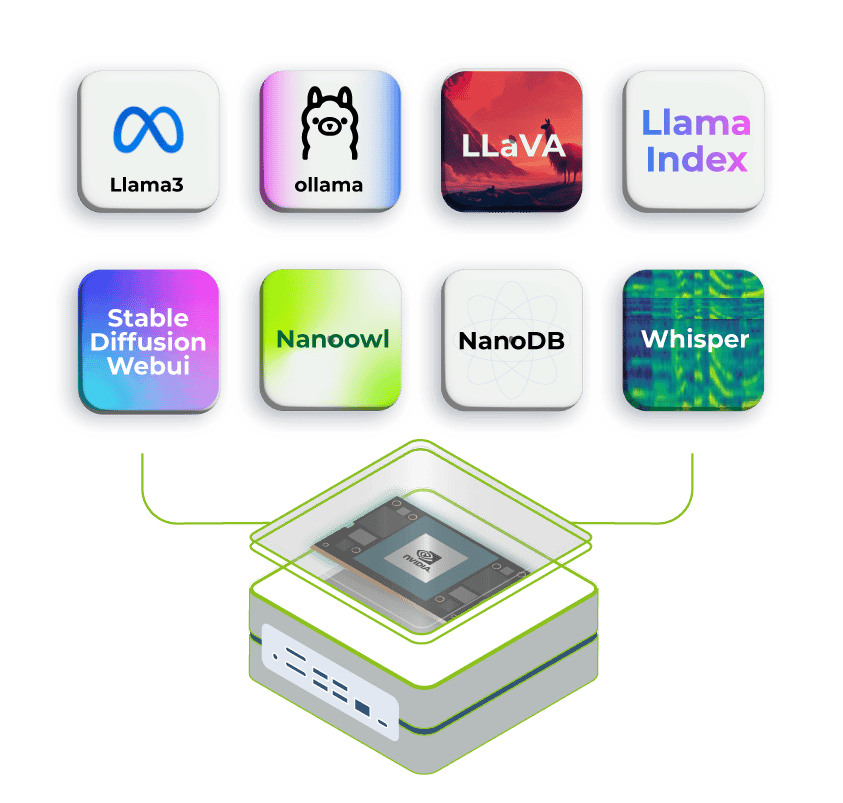

Fastest Way to Deploy Generative AI and Computer Vision Models

We have jetson-examples prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.

Model Selection

Based on different AI performance requirements and memory configurations, the reComputer Industrial series offers the following model options:

Product Model	Jetson Module	AI Performance	Memory	GPU Cores	CPU Cores	Operating Temp
J4012	Orin NX 16GB	100 TOPS	16GB	1024-core Ampere	8-core A78AE	-20°C~60°C
J4011	Orin NX 8GB	70 TOPS	8GB	1024-core Ampere	6-core A78AE	-20°C~60°C
J3011	Orin Nano 8GB	40 TOPS	8GB	1024-core Ampere	6-core A78AE	-20°C~60°C
J2012	Xavier NX 16GB	21 TOPS	16GB	384-core Volta	6-core Carmel	-20°C~60°C
J2011	Xavier NX 8GB	21 TOPS	8GB	384-core Volta	6-core Carmel	-20°C~60°C
J3010	Orin Nano 4GB	20 TOPS	4GB	512-core Ampere	6-core A78AE	-20°C~60°C

All models use the same carrier board design, providing consistent industrial interfaces and mounting options, with the main differences being the performance and memory configuration of the Jetson modules.

Jetson Module Specifications Comparison

Specification	J4012	J4011	J3011	J2012	J2011	J3010
AI Performance	100 TOPS	70 TOPS	40 TOPS	21 TOPS	21 TOPS	20 TOPS
Jetson Module	Orin NX 16GB	Orin NX 8GB	Orin Nano 8GB	Xavier NX 16GB	Xavier NX 8GB	Orin Nano 4GB
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	384-core NVIDIA Volta™ GPU with 48 Tensor Cores	384-core NVIDIA Volta™ GPU with 48 Tensor Cores	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU	6-core Arm® Cortex®-A78AE	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU, 6MB L2 + 4MB L3	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU, 6MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory	16GB 128-bit LPDDR5	8GB 128-bit LPDDR5	8GB 128-bit LPDDR5 68 GB/s	16GB 128-bit LPDDR4x 59.7GB/s	8GB 128-bit LPDDR4x 59.7GB/s	4GB 64-bit LPDDR5 34 GB/s

Carrier Board Specifications (Common for All Models)

Category	Item	Details
Storage	M.2 Storage	1x M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128GB included)
Networking	Ethernet	1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15W) 1x LAN2 RJ45 GbE (10/100/1000Mbps)
	Wi-Fi	Support SMD Wi-Fi/Bluetooth (Customized production, please contact order@seeed.cc)
	M.2 Key B	1x M.2 Key B support 4G/5G (Module optional)
I/O	USB	3x USB3.2 Gen1 1x USB2.0 Type C(Device mode) 1x USB2.0 Type C For Debug UART & RP2040
	DI/DO	4x DI, 4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO, 1x CAN
	COM	1x DB9 (RS232/RS422/RS485)
	Display	1x HDMI 2.0 Type A
	SIM	1x Nano SIM card slot
	Fan	Fanless, passive heatsink; 1x Fan connectors(5V PWM)
	TPM	1x TPM 2.0 connector (Module optional)
	RTC	1x RTC socket (CR1220 included), 1x RTC 2-pin
Camera	Camera	2x CSI (2-lane 15pin)
Power	Power Supply	DC 12V-24V Terminal block 2 pin
Power	Power Adapter	19V Power Adapter(without power cord)
Mechanical	Dimensions (W x D x H)	159mm x 155mm x 57mm
	Weight	1.57kg
	Installation	Desk, DIN rail, wall-mounting, VESA
Environment	Operating Temperature	-20 ~ 60°C with 0.7m/s
	Operating Humidity	95% @ 40 °C (non-condensing)
	Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
	Shock	50G peak acceleration (11 msec)
Warranty	Warranty	2 Years
