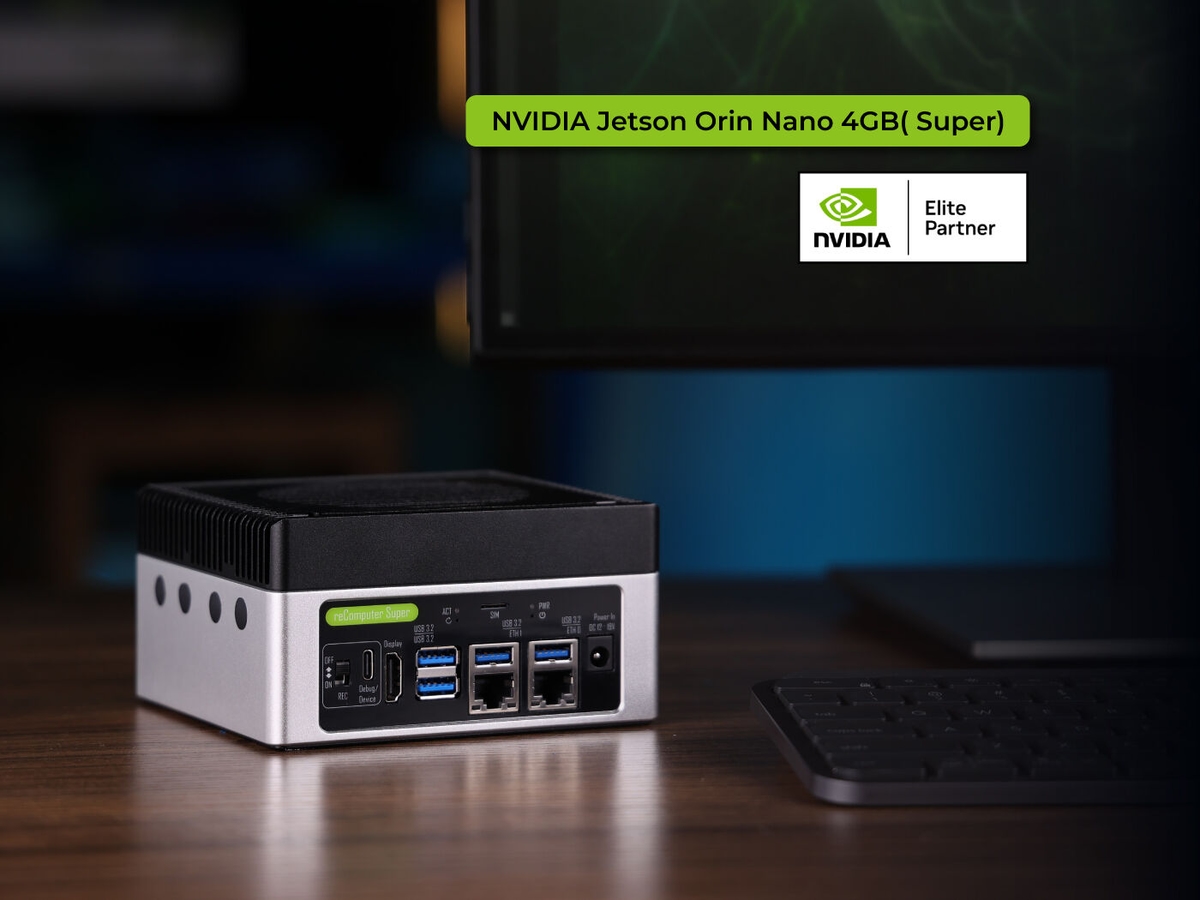

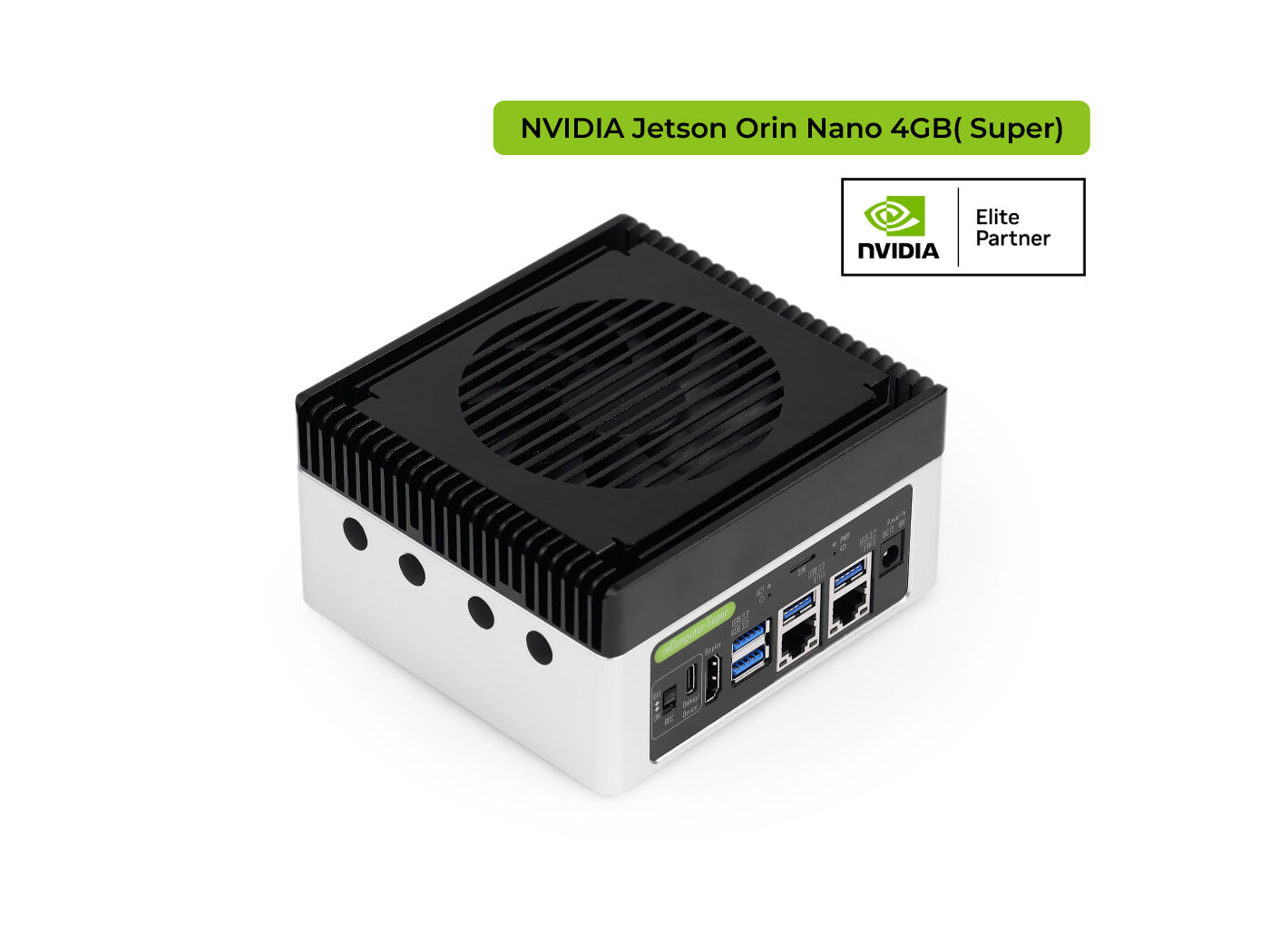

reComputer Super Jetson™

The reComputer Super Jetson™ Series is an intelligent edge AI system based on NVIDIA® Jetson™ Orin™ platform, delivering exceptional AI performance from 34 TOPS to 157 TOPS in Super mode, designed for demanding applications like vision AI, robotics, and generative AI.

Super Boost AI Performance

Delivers from 34 TOPS (Orin Nano 4GB) up to 157 TOPS (Orin NX 16GB) in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
Energy-Efficient Operation

Configurable power modes from 7W to 40W allow for optimized performance and energy consumption across different deployment scenarios.

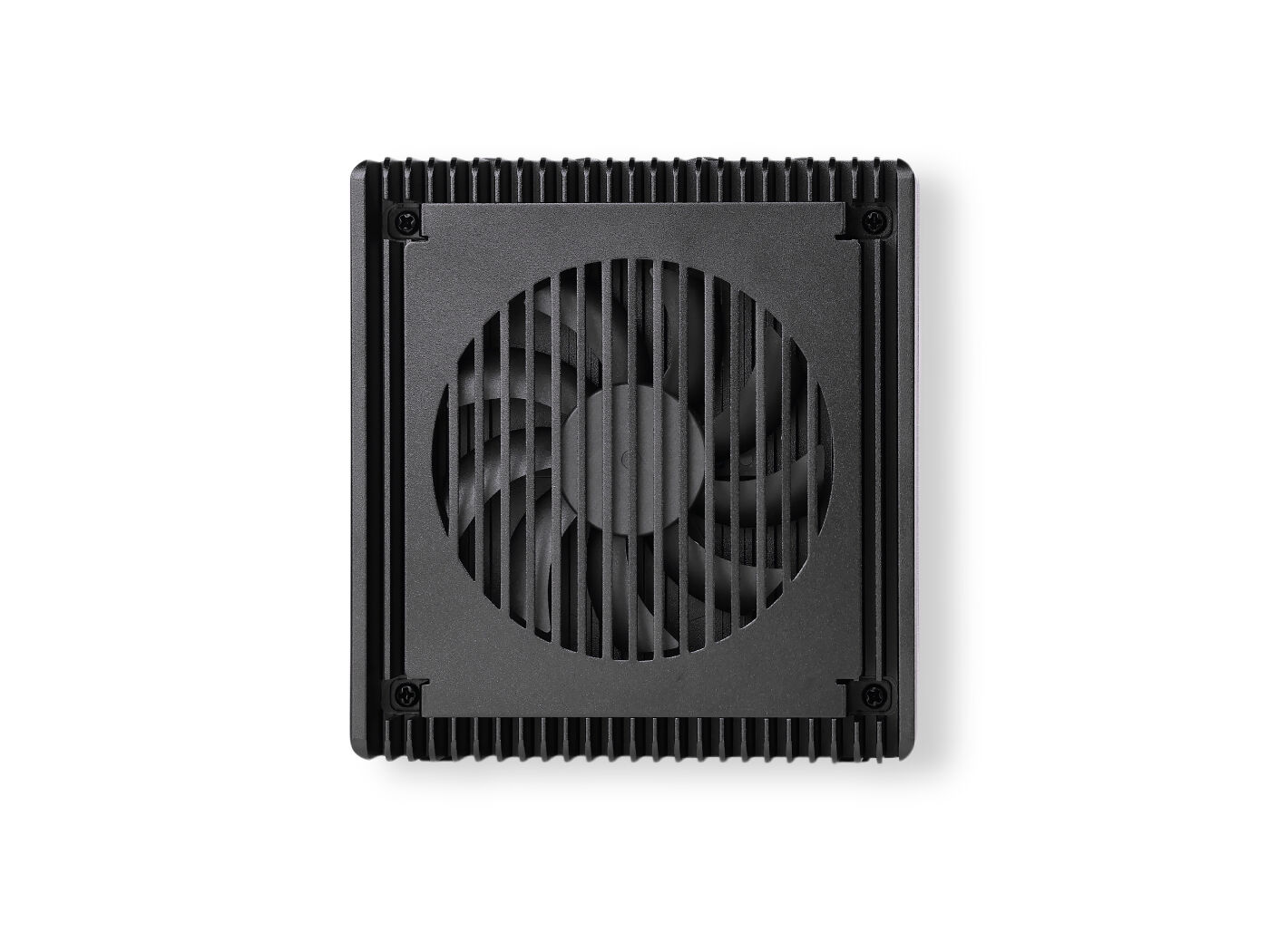

Robust Thermal Design

Operates reliably in temperatures from -20°C to 65°C, ensuring stable performance in various environmental conditions.
Rich Interfaces

Features 2×RJ45 Gigabit Ethernet, SIM card slot, 4×USB 3.2, HDMI 2.1, and CAN. Also includes M.2 Key E/M, Mini-PCIe, and 4×CSI for connectivity and cameras.
Ready for Deployment

Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Comprehensive Connectivity

Built-in Wi-Fi/BT/LTE wireless communication capability and dual Ethernet, ensuring seamless integration for video analysis, multimodal perception, and robotics applications.

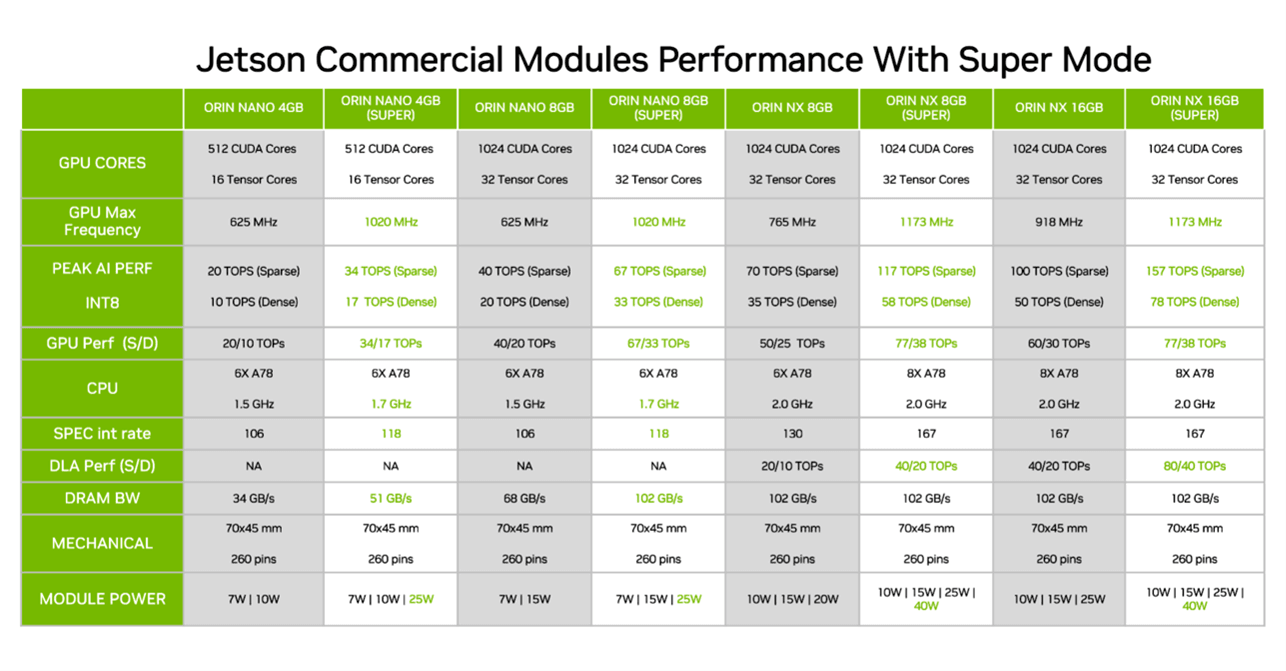

Jetson Modules Performance with Super Mode

Enhanced power management, improved higher frame rate processing, and reduced inference time.

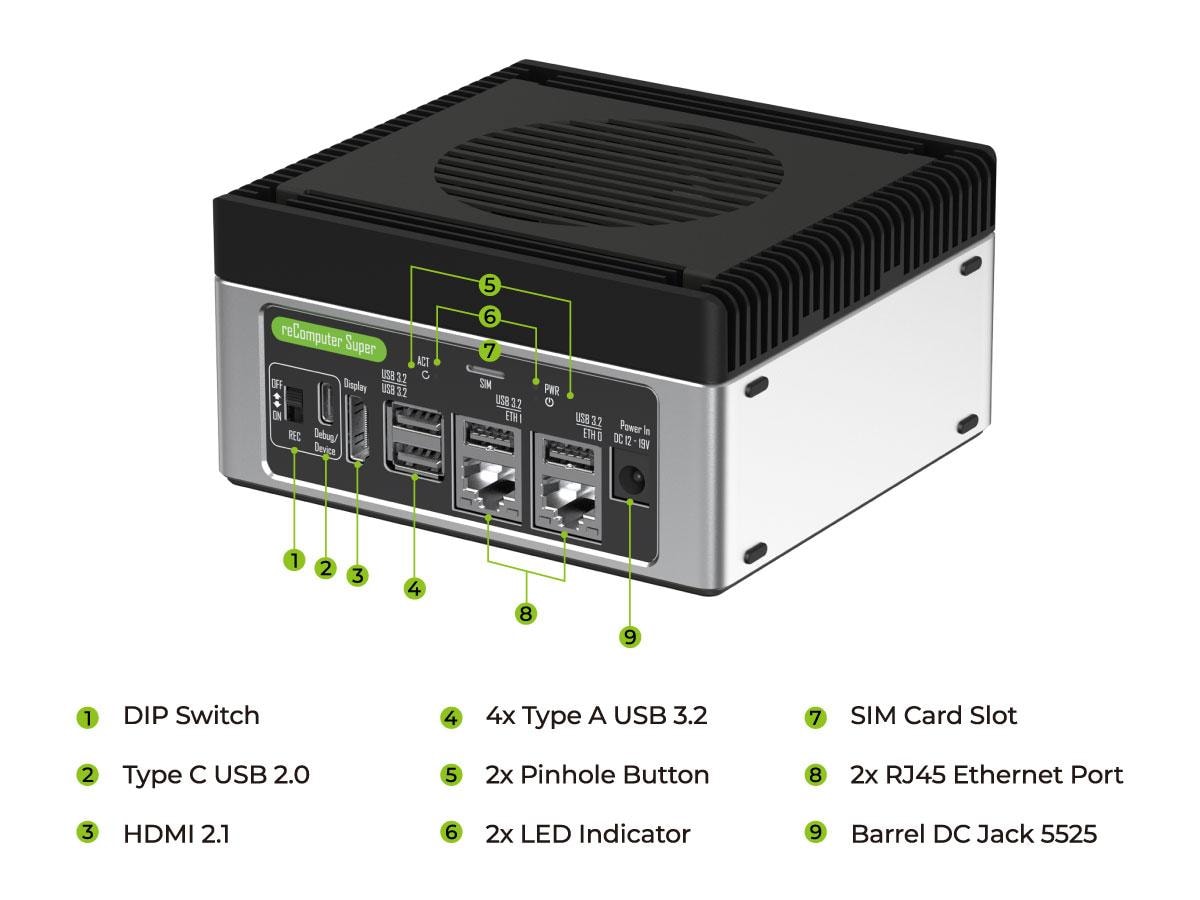

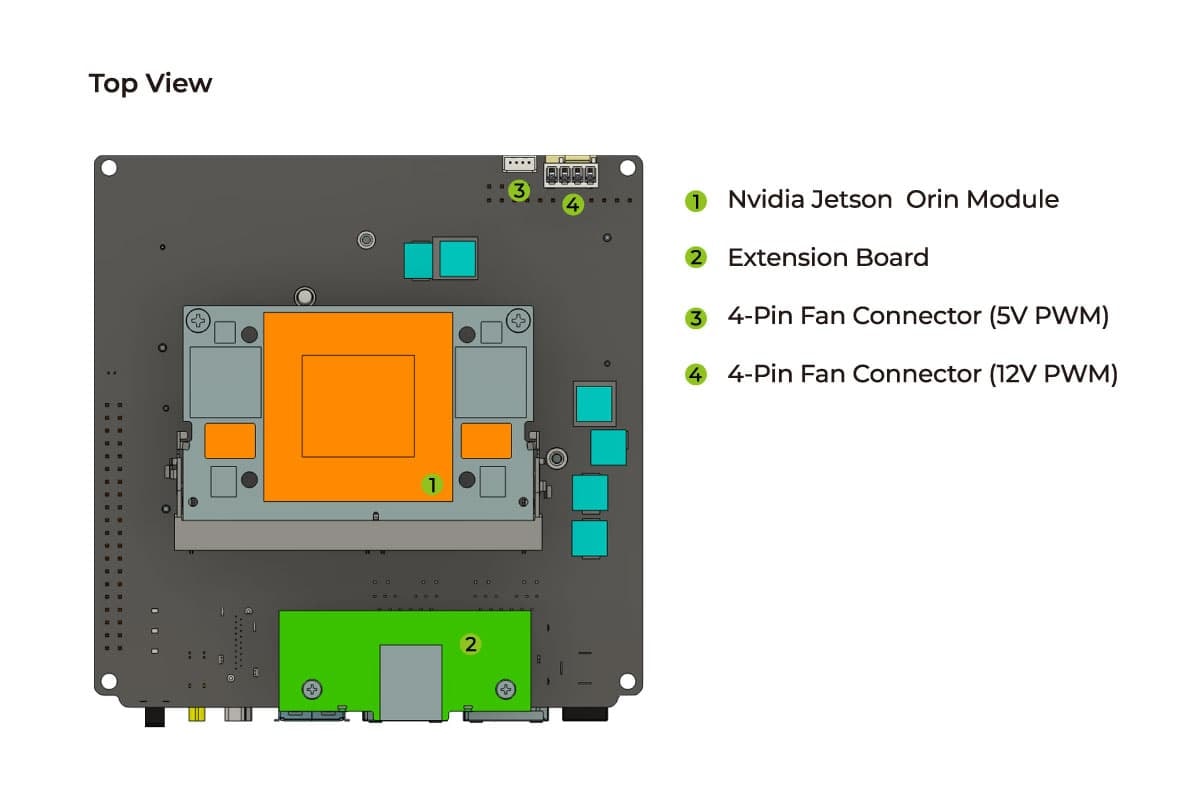

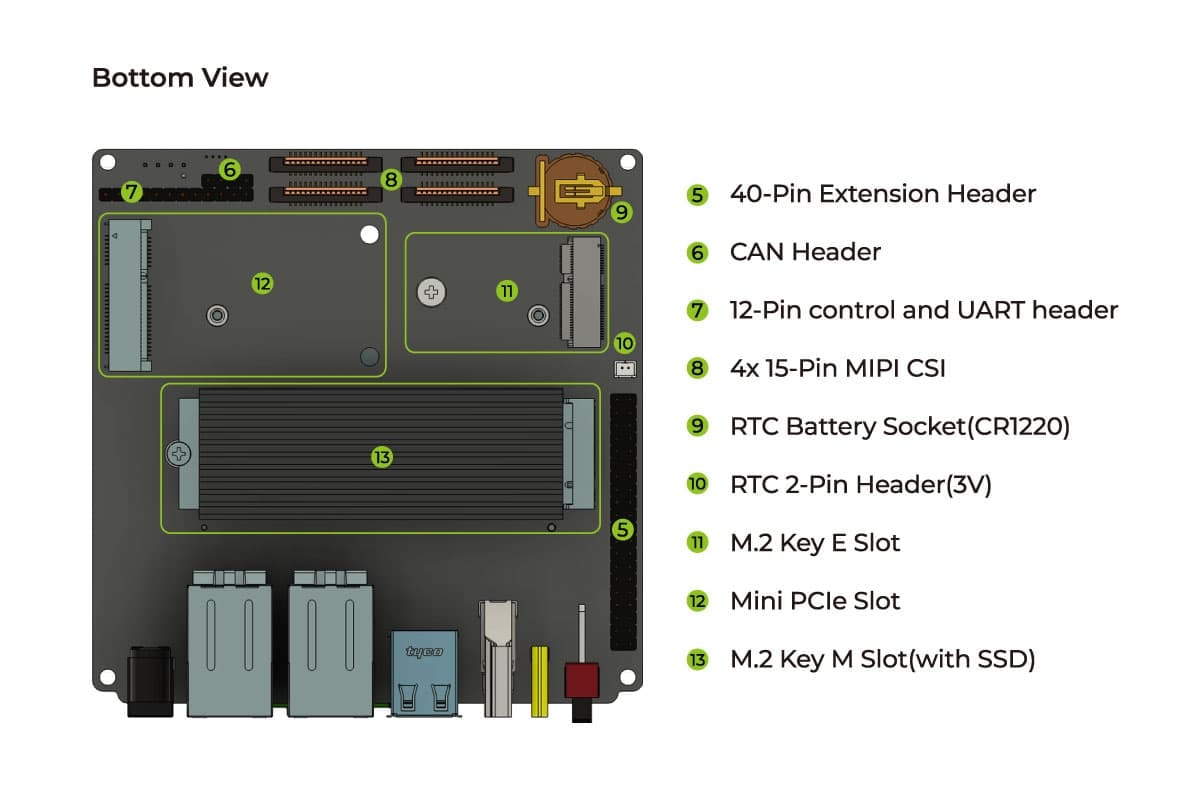

Hardware Overview

Application

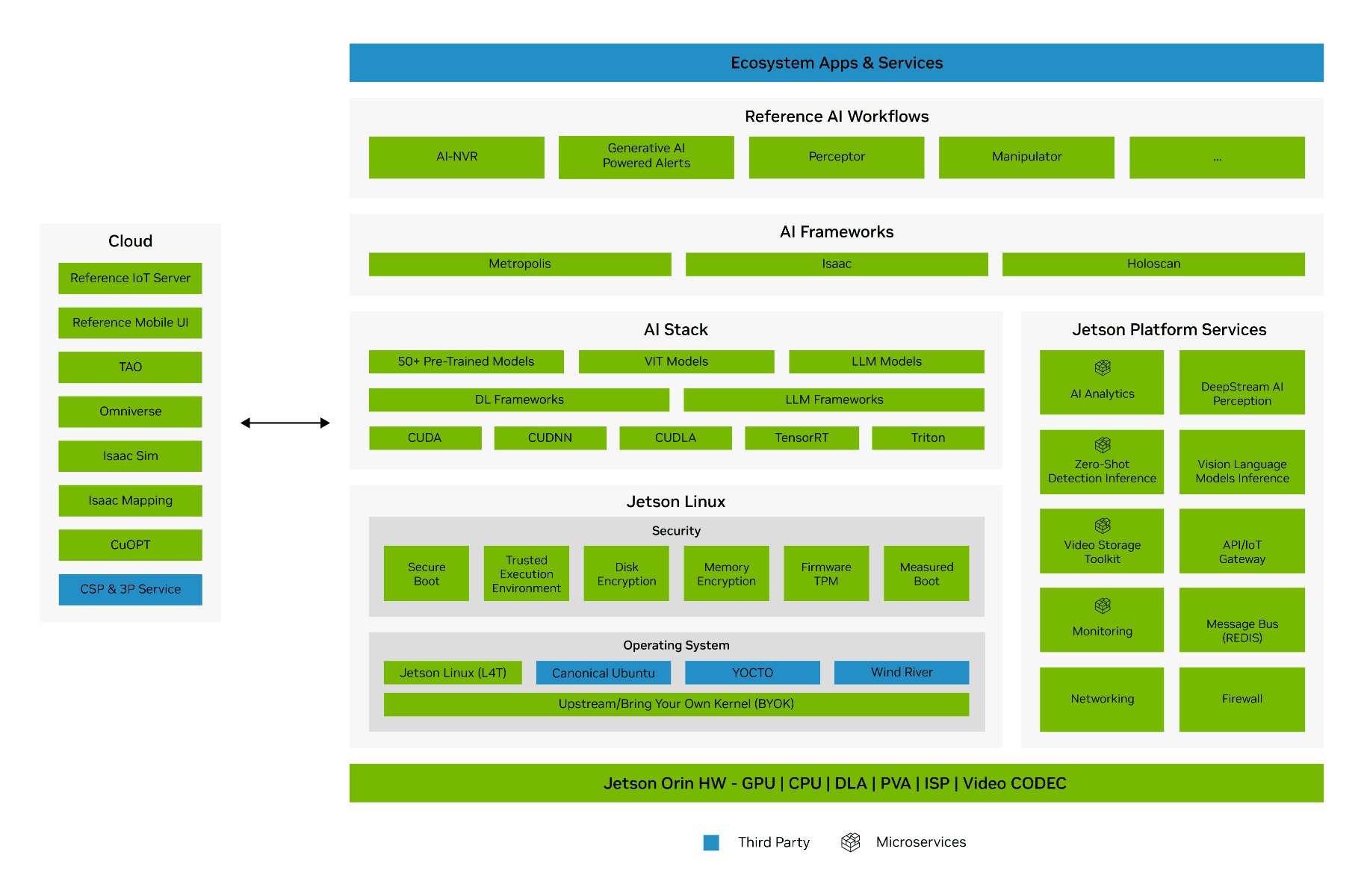

The NVIDIA AI Software Stack

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

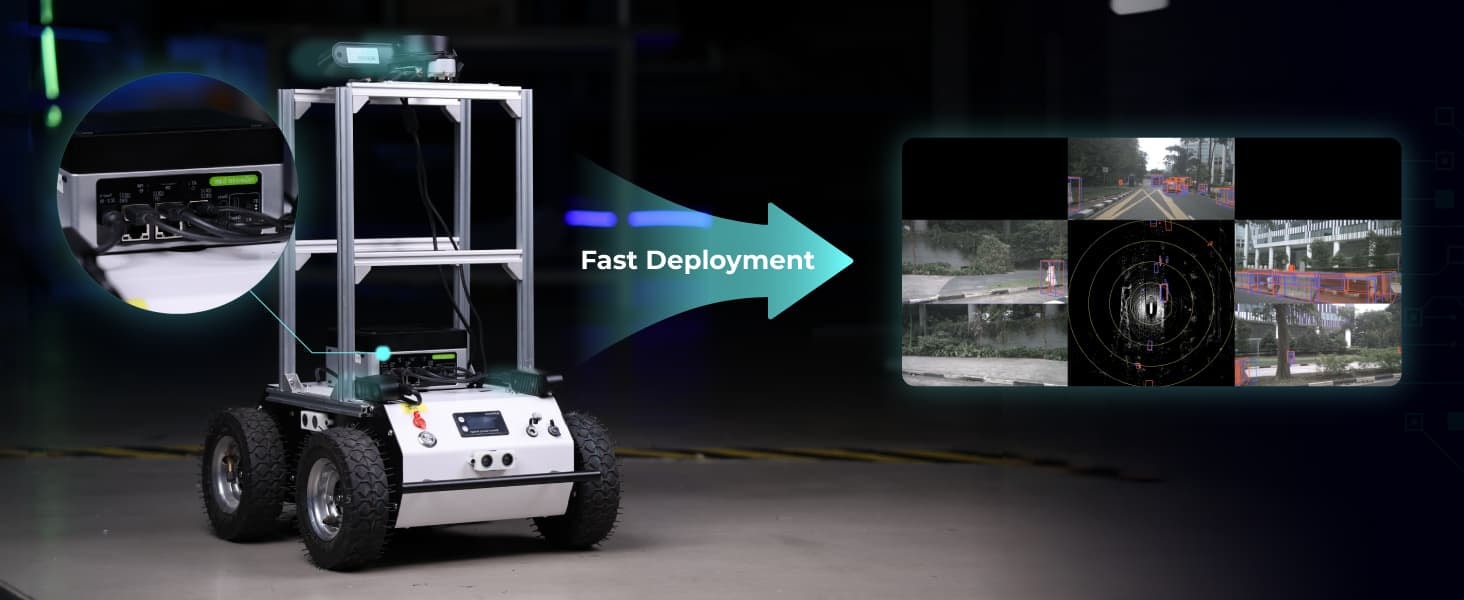

Designed for Edge AI Computer Vision Applications

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for Demanding AI Applications

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario.

We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.

Model Selection

Product Model	Processor	AI Performance	Memory	Power	GPU Max Frequency	CPU Max Frequency
J3010	NVIDIA Orin™ Nano 4GB	34 TOPS (MAXN_SUPER)	4GB LPDDR5	7W - 10W - 25W	1020 MHz	1.7 GHz
J3011	NVIDIA Orin™ Nano 8GB	67 TOPS (MAXN_SUPER)	8GB LPDDR5	7W - 15W - 25W	1020 MHz	1.7 GHz
J4011	NVIDIA Orin™ NX 8GB	117 TOPS (MAXN)	8GB LPDDR5	10W - 15W - 25W - 40W	1173 MHz	2.0 GHz
J4012	NVIDIA Orin™ NX 16GB	157 TOPS (MAXN)	16GB LPDDR5	10W - 15W - 25W - 40W	1173 MHz	2.0 GHz

Jetson Module Specifications

Specification	J3010	J3011	J4011	J4012
Applications Processor(AP)	NVIDIA Orin™ Nano 4GB	NVIDIA Orin™ Nano 8GB	NVIDIA Orin™ NX 8GB	NVIDIA Orin™ NX 16GB
AI Performance	34 TOPS (MAXN_SUPER)	67 TOPS (MAXN_SUPER)	117 TOPS (MAXN)	157 TOPS (MAXN)
Memory	4GB 64-bit wide LPDDR5 DRAM	8GB 128-bit wide LPDDR5 DRAM	8GB 128-bit wide LPDDR5 DRAM	16GB 128-bit wide LPDDR5 DRAM
Power	7W - 10W - 25W	7W - 15W - 25W	10W - 15W - 25W - 40W	10W - 15W - 25W - 40W
Operating Temperature	-20℃~65℃	-20℃~65℃	-20℃~65℃ (25W Mode) -20℃~60℃ (MAXN Mode)	-20℃~65℃ (25W Mode) -20℃~60℃ (MAXN Mode)

Carrier Board Specifications

Specification	Details
Storage	1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included)
Networking	1x M.2 Key E for WiFi/Bluetooth module 1x mini-PCIe for LTE 4G module 2x RJ45 Gigabit Ethernet
I/O	4x USB 3.2 Type-A (5Gbps) 1x USB 2.0 Type-C (Device Mode/Debug) 4x mipi CSI(2-lane 15-Pin) 1 x CAN(4-Pin Header) 1x HDMI 2.1
Power	12-19V 5525 Barrel DC Jack
JetPack Version	JetPack 6.2
Dimensions (W x D x H)	130mm x 120mm x 66mm
Weight	1110g
Warranty	2 Years
Certification	RoHS, REACH, CE, FCC, UKCA, KC
