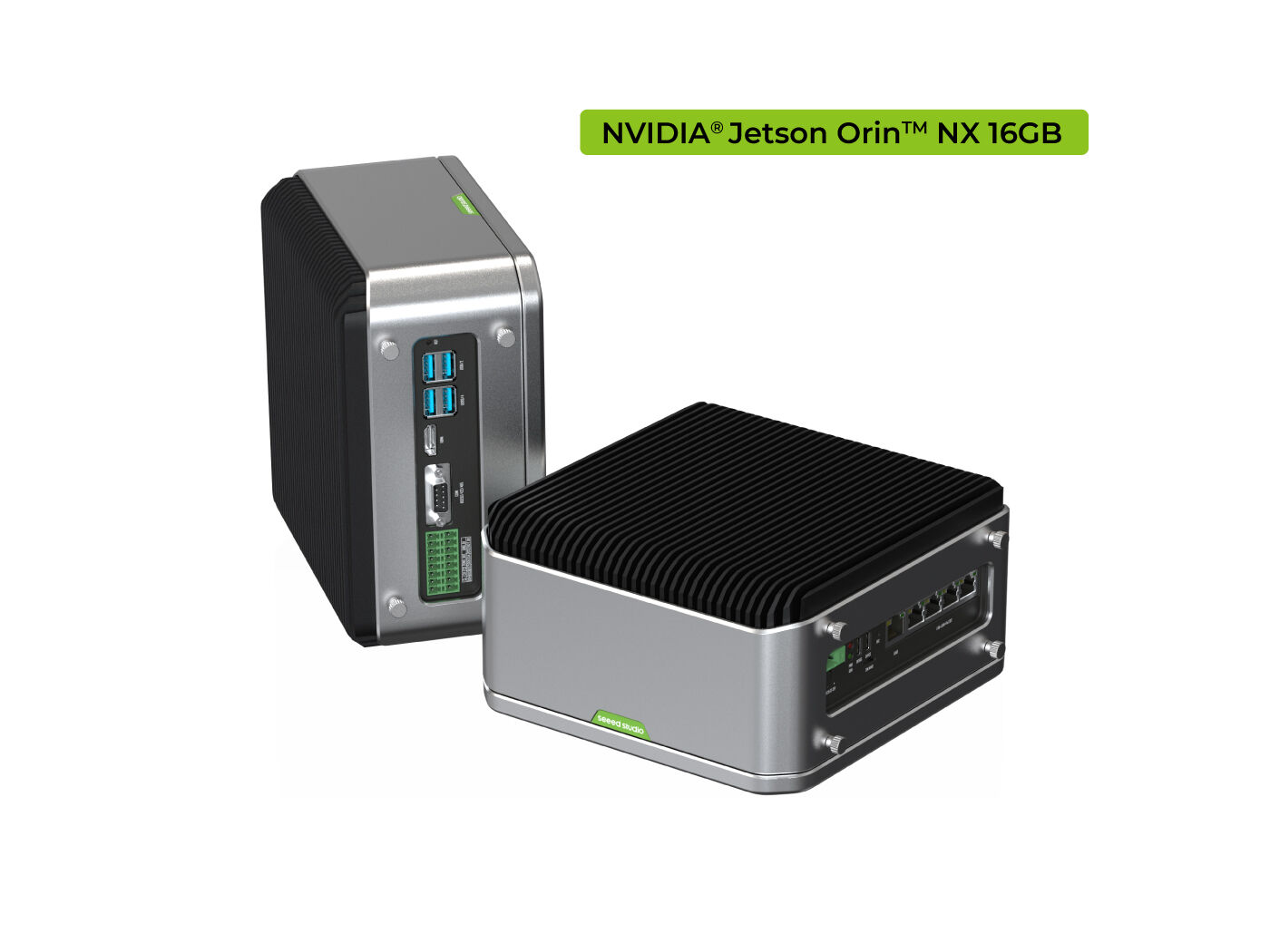

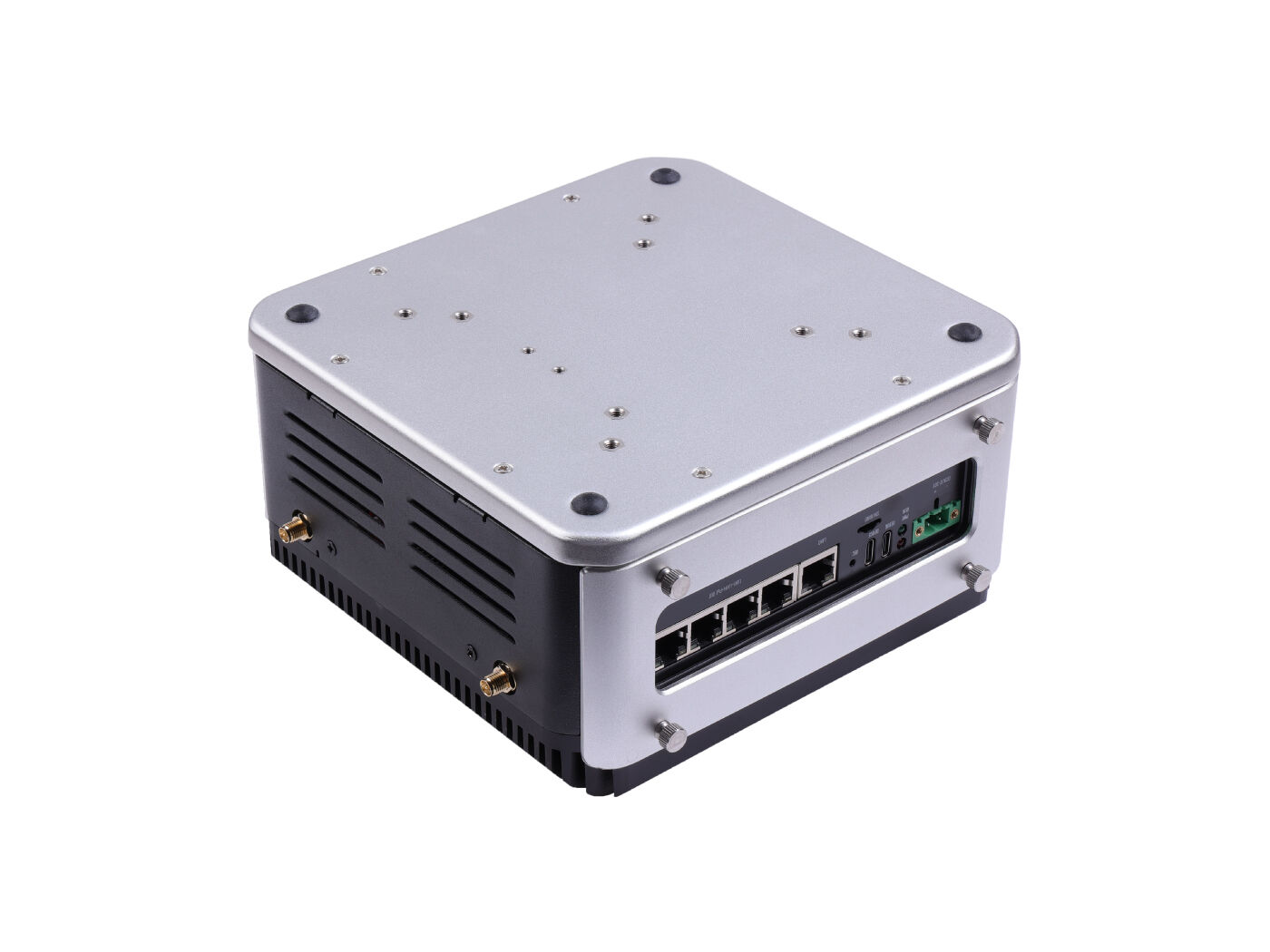

reServer Industrial Jetson™
reServer Industrial Jetson™ Series brings AI-enabled NVR to the edge and features NVIDIA Jetson Orin™ modules for high-performance AI computing, with fanless design, multiple Ethernet ports with PoE, expandable storage, and comprehensive industrial interfaces.
-
Fanless Compact Edge AI ServerPowered by NVIDIA Jetson Orin modules with up to 100 TOPS AI performance, wider temperature range from -20 ~ 60°C with 0.7m/s airflow for reliable operation in harsh industrial environments.
-
Multi-Stream Processing5x GbE RJ45 (4 ports with 802.3af PSE), handles multiple video streams with real-time processing capabilities for comprehensive surveillance and analytics applications.
-
Expandable Storage2x drive bays for 2.5″ SATA HDD/SSD, plus an M.2 2280 socket for NVMe SSD, providing flexible storage options for extended video recording and data processing needs.
-
Industrial InterfacesIncludes COM port (RS232/RS422/RS485), DI/DO ports, CAN port, USB3.1, and optional TPM2.0 module for seamless integration with industrial automation systems.
-
Hybrid ConnectivitySupports 5G/4G/LTE/LoRaWAN® (module optional) with Nano SIM card slot, enabling versatile wireless communication options for remote deployment scenarios.
-
Pre-installed JetPack SystemComes with pre-installed JetPack system and comprehensive software ecosystem, ready for immediate deployment of AI applications and computer vision solutions.
reServer Industrial Jetson™ Series
The reServer Industrial Jetson™ Series brings AI-enabled NVR capabilities to the edge, featuring NVIDIA Jetson Orin™ modules for exceptional AI performance in industrial environments. This fanless, ruggedized edge AI server is designed for demanding applications requiring reliable video processing, real-time analytics, and comprehensive industrial connectivity.

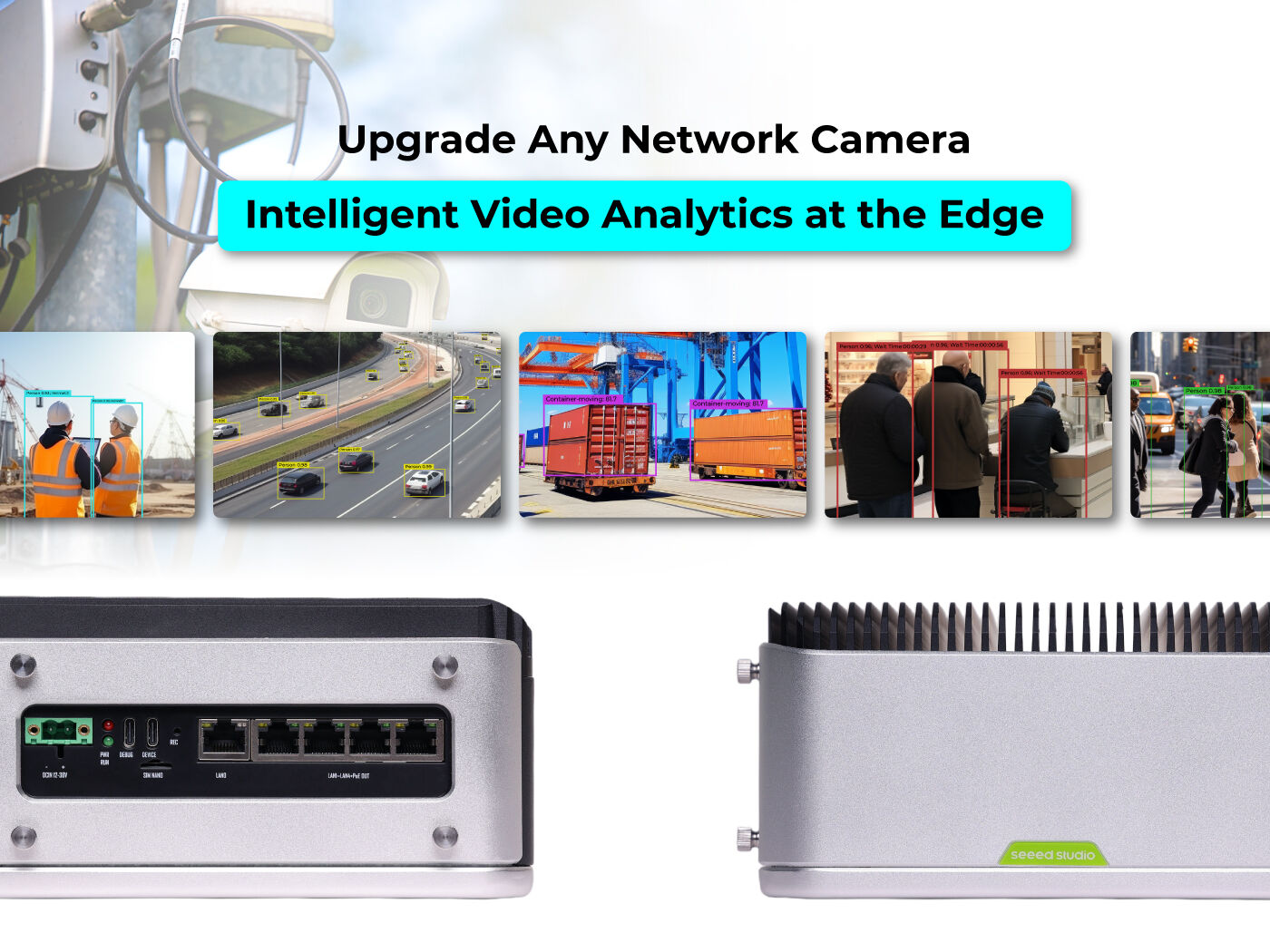

Unlock AI Capabilities for Existing Cameras and VMS
Powered by NVIDIA Jetson Orin modules delivering up to 100 TOPS of AI performance, the reServer Industrial series is capable of processing multiple video streams in real-time. The reServer empowers you to apply high-performance filters for critical insights across vast video footage, transforming traditional surveillance systems into intelligent, AI-driven monitoring solutions.
Smart Storage Solutions
Store and upload only noteworthy recordings for further processing. With two 2.5-inch hard drive bays, the reServer Industrial provides ample storage capacity, ensuring you have the space needed for expanding data requirements. The integrated M.2 NVMe SSD socket further enhances storage flexibility for high-performance applications.
Create Custom Analytics Made Easy
Out-of-box Tailored AI Solution: CVEDIA-RT comes with various AI models for face detection, vehicle and people detection, crowd estimation, and more, providing immediate deployment capabilities for common surveillance scenarios.
Build Video Analytics Workflow in a No-code Way: Effortlessly create custom video analytics solutions using Lumeo's innovative drag and drop tools, enabling rapid development and deployment without extensive programming knowledge.
End-to-End Computer Vision Development
Our comprehensive wiki resources help you start with computer vision software and development tools during each step of your application development:
• Obtain data for training - Guidance on data collection and preparation
• Label data for dataset preparation - Tools and techniques for efficient data annotation
• Train AI models - Model development and optimization strategies
• Optimize models to run best on edge devices - Performance tuning for edge deployment
• Deploy the model on the edge - Implementation and deployment best practices
• Remote management - Monitoring and maintenance of deployed solutions
• Label data for dataset preparation - Tools and techniques for efficient data annotation
• Train AI models - Model development and optimization strategies
• Optimize models to run best on edge devices - Performance tuning for edge deployment
• Deploy the model on the edge - Implementation and deployment best practices
• Remote management - Monitoring and maintenance of deployed solutions
Model Selection
The reServer Industrial Jetson™ Series offers multiple configurations to match specific performance requirements:
| Model | Processor | AI Performance | Memory | GPU Cores | DL Accelerator |
|---|---|---|---|---|---|
| J4012 | Orin NX 16GB | 100 TOPS | 16GB 128-bit LPDDR5 | 1024-core + 32 Tensor | 2x NVDLA v2 |
| J4011 | Orin NX 8GB | 70 TOPS | 8GB 128-bit LPDDR5 | 1024-core + 32 Tensor | 1x NVDLA v2 |
| J3011 | Orin Nano 8GB | 40 TOPS | 8GB 128-bit LPDDR5 | 1024-core + 32 Tensor | - |
| J3010 | Orin Nano 4GB | 20 TOPS | 4GB 64-bit LPDDR5 | 512-core + 16 Tensor | - |
| Specification | J4012 | J4011 | J3011 | J3010 |
|---|---|---|---|---|
| Jetson Module | Orin NX 16GB | Orin NX 8GB | Orin Nano 8GB | Orin Nano 4GB |
| AI Performance | 100 TOPS | 70 TOPS | 40 TOPS | 20 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | ||
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU | ||
| Memory | 16GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 68 GB/s | 4GB 64-bit LPDDR5 34 GB/s |
| DL Accelerator | 2x NVDLA v2 | 1x NVDLA v2 | - | |
| Operating Temperature | -20 ~ 60°C with 0.7m/s airflow | |||
| Dimensions (W x D x H) | 194.33mm x 187mm x 95.5mm | |||
| Weight | 2.8kg | |||
| Power | DC 12V-36V Terminal block 2 pin | |||
| Ethernet | 1x RJ45 GbE + 4x RJ45 GbE PoE (PSE 802.3af) | |||
| Storage | 2x Drive Bays for 2.5" SATA HDD/SSD + M.2 NVMe 2280 | |||
| Industrial I/O | 4x DI/DO, RS232/RS422/RS485, CAN, USB3.1 | |||
Product Introduction
User Manual
Product Design
Other

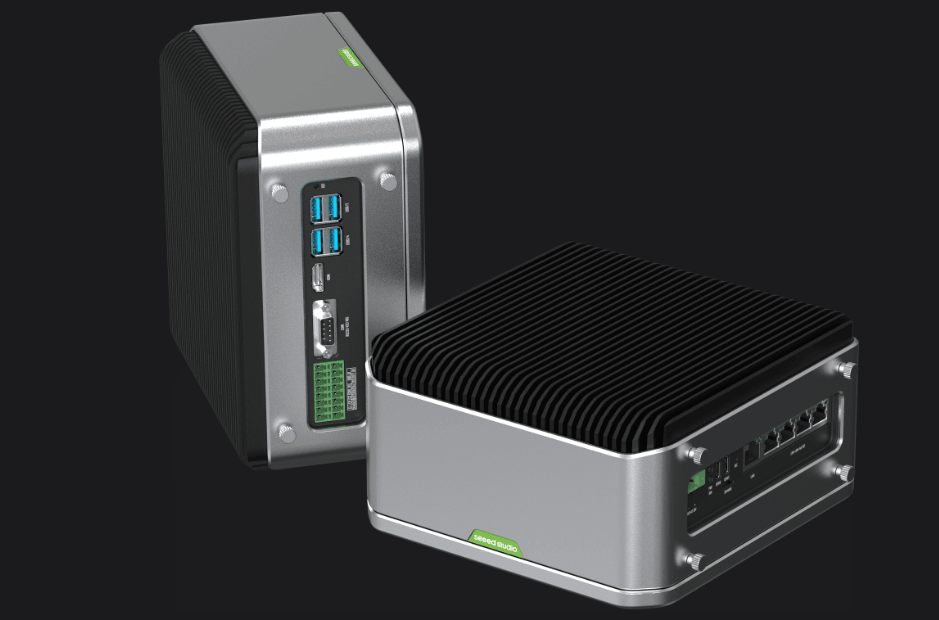

Getting Started with reServer Industrial
This wiki will help you to get started with the reServer Industrial series.

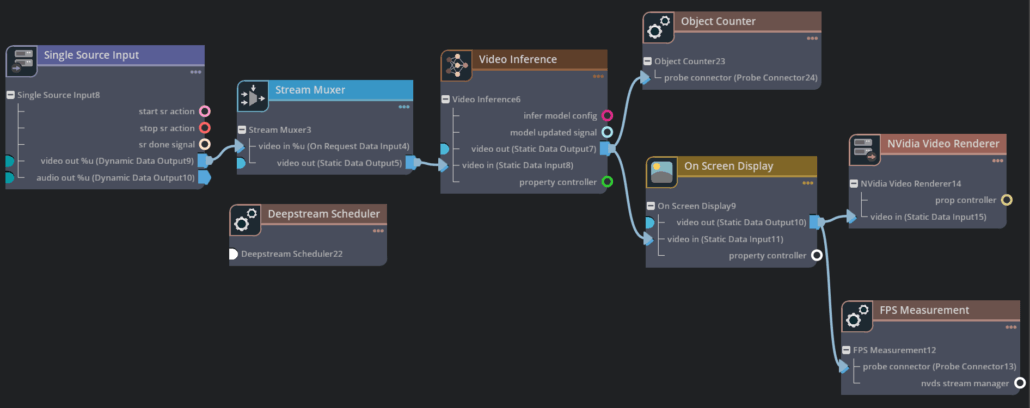

Developing Vision AI Application with NVIDIA DeepStream Graph Composer
Imagine the workflow of developing a video analytics application, there should be a programming pipeline in your head, as you got the input stream to decode and send it to the inference, checking out how much fps you can get, and then finally getting the video display result.
Video Analytics Solution in Airports for Operation Efficiency Improving and Safety Enhancement
Isarsoft delivered this AI-powered video analytics solution deployed in airport, in order to keep the constant operation and efficiency improving. It can also help enhance the surrounding safety, fully supported by the NVIDIA Jetson Orin NX edge device for analyzing and inferencing.

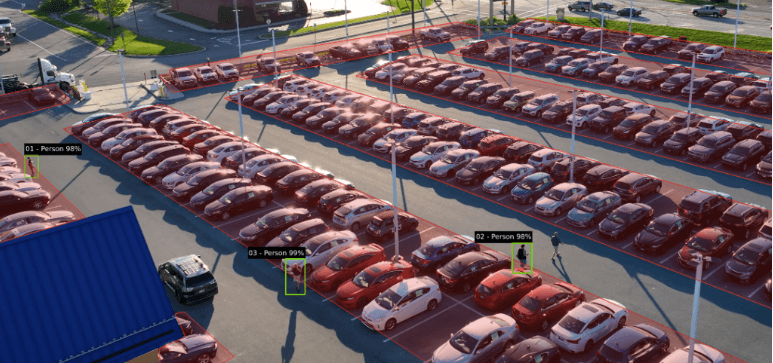

AI-Driven Video Analytics for Automotive Dealer Warehouse Security
