Plug & Play AI Camera

One AI camera, a gallery of apps — install object detection, text reading, face analysis or people counting from the camera's own console, and forward the results to Home Assistant

SenseCraftBeginner20minVision & Video AIAI Agent ReadySource Code

reCamera 2002 — console app gallery, on-board MQTT broker and ONVIF

reCamera Pro — apps come from the App Center in its firmware; no on-board broker

Reusable Site Templates

Places where one camera should take on different jobs over time, video must stay on the local network, and results belong in Home Assistant.

AppWhat it does
Object DetectionPeople, vehicles and 80 everyday classes
OCR Text ReaderChinese and English text on signs, labels and meter displays
Face AnalysisAge, gender and emotion, with optional face blur on the stream
Drowsiness DetectionEye closure time and yawn frequency
Weather ClassificationClear, cloudy, foggy, rainy, snowy (reCamera only)
QR Code ReaderEvery code in frame decoded at once
Fitness TrainerRep counts and form hints for squats, push-ups and curls
Fall DetectionRapid falls from a fixed indoor view
Retail People CountingEntry and exit counts, plus browsing, engaged and needs-help states
Monocular Depth EstimationFastDepth per-pixel relative distance (red-near blue-far), 3x3 proximity grid
ONVIF & RTSP GatewayStandard ONVIF WS-Discovery and authenticated RTSP stream for NVR / VMS

Not a fit: running two apps at the same moment, or pooling many cameras onto one host for central analysis.

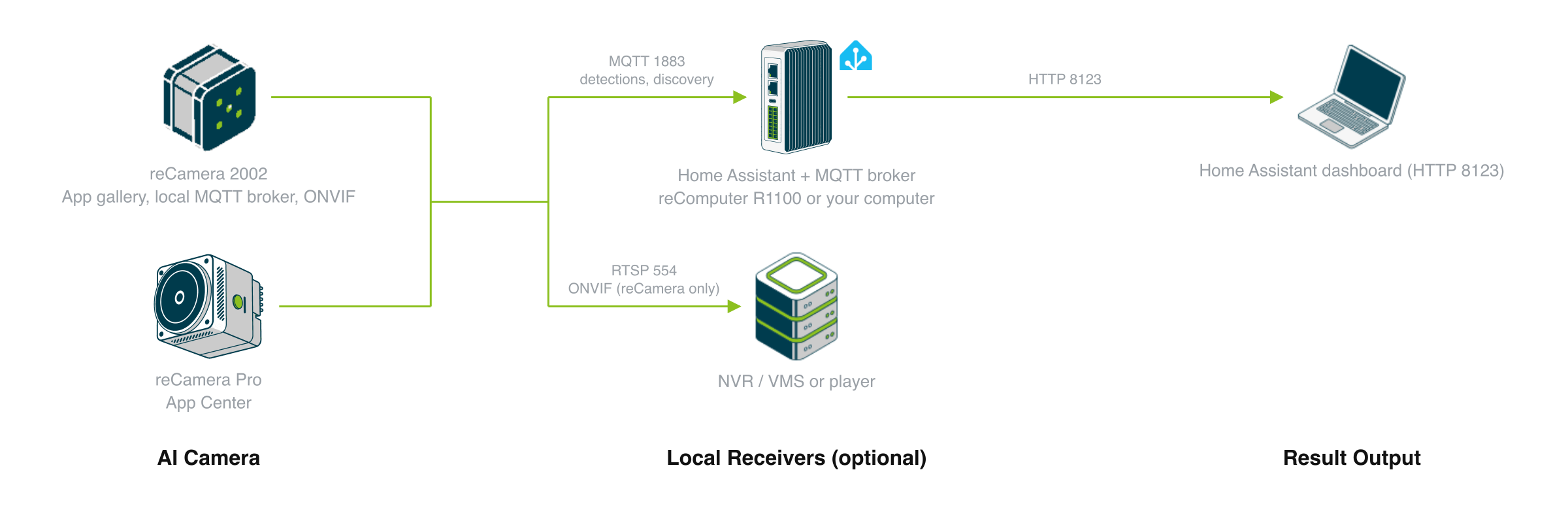

How it works

The camera works on its own. To bring results into Home Assistant, add one machine running Home Assistant and an MQTT broker.

AI Camera

AI runs on the camera; apps are installed and switched in the browser.

CameraWhere apps come fromOn-board MQTT brokerFits when
reCamera 2002The console's app galleryYesStart here; you need ONVIF for an NVR
reCamera ProThe App Center in the firmwareNoNewer hardware; adds a voice transcription app

One app at a time: starting an app stops the previous one without uninstalling it, and switching back is a click. On reCamera 2002, installing the console stops the existing Node-RED flow.

How well it works

The capabilities and conditions below come from the deployment guide; they are not a per-app accuracy test.

CapabilityConditions and limits
Install and switch apps in the browserYour computer downloads them; the camera needs no internet
Results in Home AssistantCamera and broker on the same network; entities appear on their own
Entities follow the running appOn reCamera Pro, a new app needs its MQTT output configured first
Face blurApplied before encoding; needs one power cycle after enabling
NVR discoveryONVIF, reCamera 2002 only

All inference runs on the camera, and video and results stay on the local network. How well each app detects depends on placement, light and distance; check it on the live preview at the site before going live.

What you get out of it

Once deployed, these are the ways in.

Entry pointWhat you get
http://<camera-ip>/Console: install and switch apps, live view, network and privacy settings
MQTT 1883Detection JSON and Home Assistant discovery
RTSPVideo stream; copy the address from the console's Integrations page or reCamera Pro stream settings
ONVIF 8000NVR / VMS discovery (reCamera 2002)
http://<host-ip>:8123Home Assistant dashboards and automations

Discovery carries results, not video; for a picture in Home Assistant, add the RTSP address through the Generic Camera integration. In Home Assistant, a Picture glance card puts the video and detection entities together, and an Entity → State trigger starts an automation.

How to deploy

Tell us about your site — we work out the hardware, then you connect the data and follow the steps.

Configure yours

Tell us about the site — we work out the hardware.

Self-service Consult & Deploy

On-site Duties

Besides running apps, what else does the camera have to do on site? The two cameras share most apps, but NVR discovery and weather classification are on reCamera only, and voice transcription is on reCamera Pro only.

Configure yours

Tell us about the site — we work out the hardware.

  • reCamera

    reCamera 2002 runs the app gallery, RTSP, ONVIF and its own MQTT broker. Point it at the Home Assistant you already run and the running app's entities appear on their own.

    硬件/物料名称数量型号/SKU说明
    reCamera 20021102991895-

  • reCamera + Home Assistant Server

    The same camera, plus a reComputer R1100 that runs Home Assistant and the MQTT broker for every camera on the network.

    硬件/物料名称数量型号/SKU说明
    reCamera 20021102991895-
    reComputer R11001113991374-

  • reCamera Pro

    The newer camera, with voice transcription in its App Center. It has no MQTT broker of its own, so each app is given the address of the broker beside your Home Assistant.

    硬件/物料名称数量型号/SKU说明
    reCamera Pro1100092895-

  • reCamera Pro + Home Assistant Server

    reCamera Pro plus a reComputer R1100 running Home Assistant and the MQTT broker. The broker is required here, because the camera carries none.

    硬件/物料名称数量型号/SKU说明
    reCamera Pro1100092895-
    reComputer R11001113991374-
Deployment Guide · 20min →

FAQ

Yes. Inference runs on the camera, and Home Assistant and the broker run on your own machine. Internet is needed only to install apps, and it is the computer running the deployer that goes online, not the camera.
