Efficient Energy Management System for Smart Buildings
A stable device control and energy management system running 24/7.
Building Energy Management
Occupancy-Driven HVAC and Lighting Control
A building energy retrofit solution prioritizing non-intrusive split-core metering and local edge control over complex BMS overhaul.
No-Outage Retrofit
0.5-class split-core CTs (100A/5A) clip on without power outages, keeping existing meters intact
Local On-Premises AI
reComputer edge AI gateways process data in telecom closets, publishing via LAN MQTT with zero cloud leak
Sub-100ms Field Bus Gateway
reComputer R1000 translates Modbus-RTU to BACnet with sub-100ms latency for real-time control
Scenario details
Three core scenarios: multi-protocol legacy system integration, cross-floor wireless sensor networks, and edge AI load inference.
Legacy System Integration
Pain Points & Challenges
Legacy building HVAC, lighting, and power metering rely on disparate, siloed protocols; full-scale smart overhauls are cost-prohibitive and time-consuming, blocking unified energy efficiency control.
Edge AI Solution
Deploy reComputer R1000 edge gateways and 0.5-class split-core CTs (100A/5A) without power outages, converting Modbus-RTU / BACnet under 100ms to unified MQTT.
Core Advantages
- Sub-100ms Bus: reComputer R1000 bridges Modbus-RTU and BACnet with sub-100ms latency
- Zero-Outage Clamp: 0.5-class split-core CTs snap on cables without cutting power
- LAN Broadcast: Normalizes output to MQTT and REST APIs directly to internal platforms
Air Quality & CO₂ Sensing
SenseCAP sensors monitor indoor temperature, humidity, light, and CO2 for workplace comfort and health.
Light, Temperature & Humidity Tracking
Continuous room climate and occupancy-load curves provide the baseline for dynamic HVAC savings.
Sub-Metered Energy Use
Measure sub-circuits with 0.5-class split-core CTs (100A/5A) clamped on without power interruptions.
Multi-Protocol Industrial Gateway
Ready to deployCross-Floor Wireless Mesh
Pain Points & Challenges
Complex concrete walls in large commercial and high-rise buildings make rewiring excessively costly and intrusive, leaving distributed sub-rooms and remote corners as energy telemetry blind spots.
Edge AI Solution
Deploy SenseCAP M2 LoRaWAN gateways with Ethernet/4G backhaul to penetrate multi-story concrete slabs and elevator shafts wire-free.
Core Advantages
- Deep Penetration: LoRaWAN penetrates multi-floor concrete slabs and elevator shafts
- Damage-Free: Battery-powered wireless sensors eliminate wall drilling and pipe laying
- Dual Backhaul: SenseCAP M2 supports Ethernet and 4G dual backhaul to ensure data continuity
LoRaWAN Field Collection
SenseCAP sensors collect room temp, humidity, light, and meter pulses, transmitting over long wireless ranges.
4G / Ethernet Uplink
SenseCAP M2 gateway reliably pushes aggregated data to platforms via Ethernet or 4G links.
Local Gateway Integration
Industrial edge gateways connect sensor networks and legacy equipment locally, delivering unified protocols to intranets.
Edge AI Load Inference
Pain Points & Challenges
Relying on cloud-only energy analytics incurs persistent bandwidth and GPU costs, introduces regulatory compliance risks when sensitive building data leaves premises, and risks lag during sudden electrical overload.
Edge AI Solution
Deploy reComputer industrial edge gateways in telecom rooms to run load anomaly inference and HVAC optimization locally with sub-100ms Modbus loops.
Core Advantages
- Zero Cloud Leak: Local edge compute processes data on-premise, keeping telemetry on LAN
- Sub-100ms Loop: Captures load spikes instantly with sub-100ms Modbus control loop response
- Zero Cloud Fees: One-time reComputer edge gateway deployment with no recurring cloud compute fees
Edge Branch Circuit Power Inference
reComputer edge gateways analyze sub-circuit load signatures locally to catch leakage and overload in milliseconds.
Dynamic HVAC & Lighting Optimization
Dynamically modulate cooling schedules and lighting zones based on occupancy and ambient temperature deltas.
On-Premises Private Security Dashboard
Telemetry and power data remain strictly within the local network via MQTT distribution for compliance.

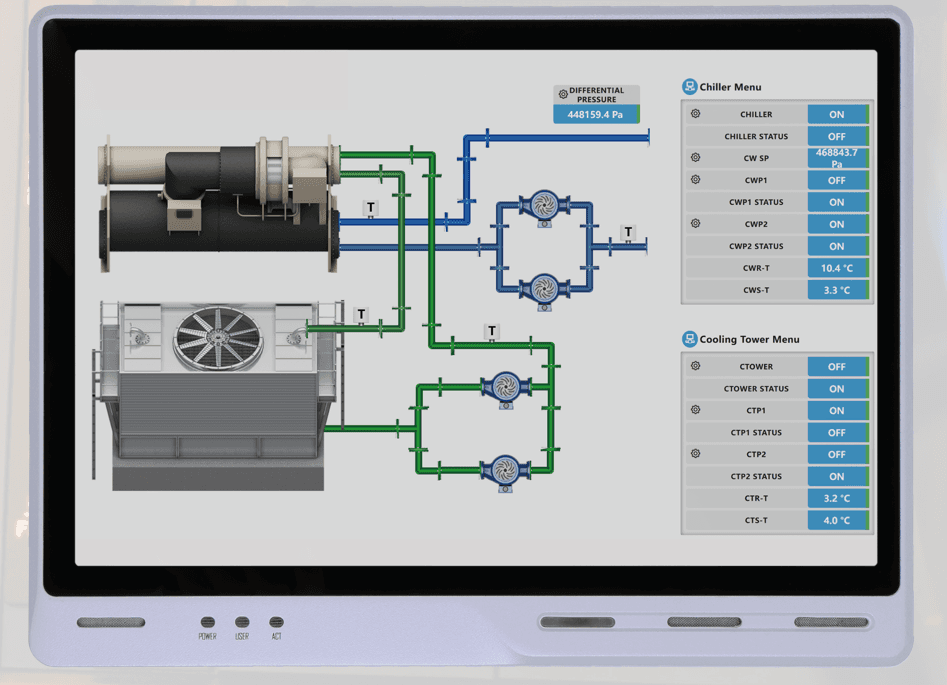

HVAC Automation Control
Ready to deployDeployment & Hardware Selection
Install split-core CT DIN meters in distribution panels, gateways in telecom closets, and occupancy sensors in conference rooms.
Not sure which to choose? View Full Selection Guide →
Use Case
Configure Your Solution
Pick the use case and gateway backhaul — get a discussable hardware list
Energy & Billing
Aggregate utility-meter readings — allocate energy by department / floor
硬件/物料名称 数量 型号/SKU 说明 reComputer R1225 LoRaWAN Gateway + Industrial Controller (EU868) 1 100079154 - SenseCAP S2100 Data Logger (RS485 → LoRaWAN, for legacy meters) 4 114992872 - Comfort & Energy Control
T&H + CO₂ → on-demand HVAC scheduling
硬件/物料名称 数量 型号/SKU 说明 reComputer R1225 LoRaWAN Gateway + Industrial Controller (EU868) 1 100079154 - SenseCAP S2101 LoRaWAN T&H Sensor 6 114992867 - SenseCAP S2103 LoRaWAN CO₂ + T&H Sensor 3 114992869 - Multi-Protocol Retrofit
Keep the legacy BMS — one gateway aggregates scattered devices
硬件/物料名称 数量 型号/SKU 说明 reComputer R1225 LoRaWAN Gateway + Industrial Controller (EU868) 1 100079154 - SenseCAP S2100 Data Logger (RS485 → LoRaWAN, scaled to onsite device count) 4 114992872 -

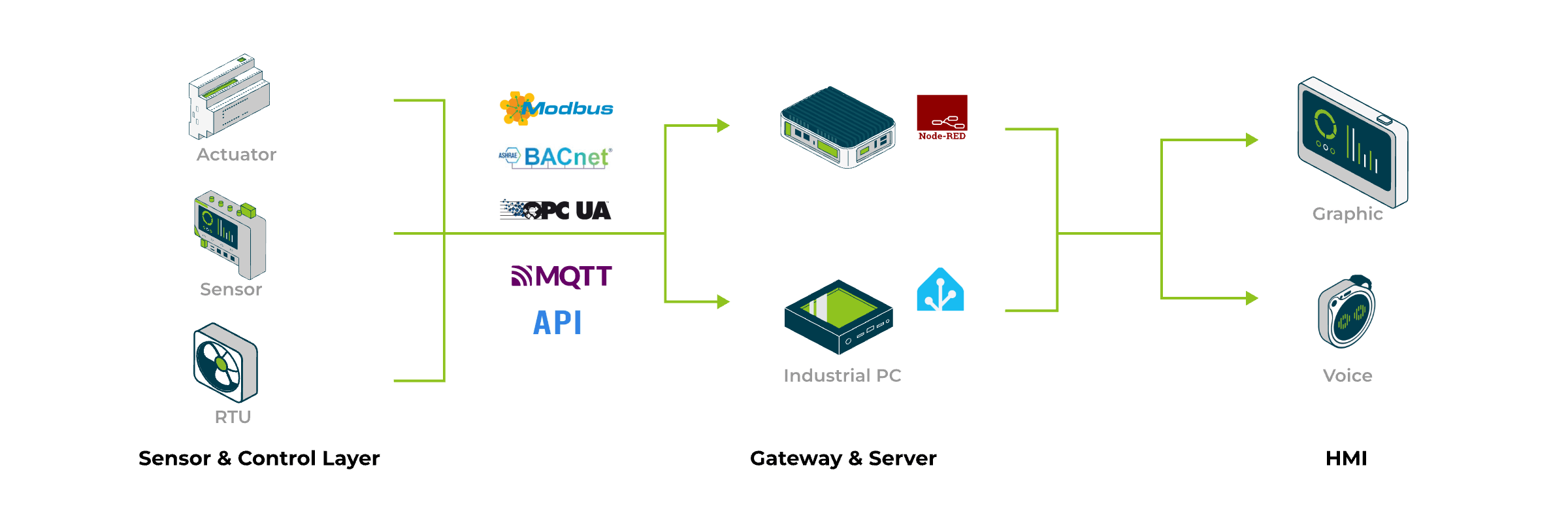

Deployment Architecture
Wire-Free Deployment & Local Bus
Three-tier retrofit: sensing tier (LoRaWAN & 0.5-class CTs) -> gateway tier (reComputer R1000/R1225 for multi-protocol bridge & control) -> application tier (LAN MQTT/platforms).
Core Advantages
- Zero-Outage Setup: 0.5-class split-core CTs snap on cables without cutting power
- Sub-100ms Bridge: reComputer R1000 bridges Modbus and BACnet with sub-100ms translation latency
- Local Control Loop: Telemetry and control loops stay on LAN via MQTT with zero cloud leak
| Image | Product | Measurements | Connectivity | IP Rating |
|---|---|---|---|---|
 | S2106 pH Sensor | pH 0~14 pH | LoRaWAN, BLE | IP66 |
 | S2108 Soil Moisture, Temperature and Pore EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C pore_EC 0~20 ms/cm (Bulk), 0~32 ms/cm (Pore) | LoRaWAN, BLE | IP66 |
 | S2101 Air Temperature and Humidity Sensor | temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2102 Light Intensity Sensor | light intensity 0~160000 lux | LoRaWAN, BLE | IP66 |
 | S2103 CO2, Temperature, and Humidity Sensor | CO2 400~10000ppm temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2105 Soil Moisture, Temperature and EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C EC 0~23 dS/m | LoRaWAN, BLE | IP66 |
 | S2107 Temperature Sensor with PT1000 | temperature -50~300°C | LoRaWAN | IP66 |
Field Sensors
Environmental & Sub-Metering Selection
SenseCAP S21xx battery-powered sensors mount wire-free, paired with 0.5-class split-core CTs (100A/5A) clamped without outages.
Core Advantages
- Microclimate Monitor: SenseCAP continuously tracks temp, humidity, and CO2 for comfort
- Occupancy Trigger: Watcher mmWave and vision sense presence to trigger power saving upon vacancy
- Non-Intrusive Meter: 0.5-class split-core CTs (100A/5A) clip onto wires without power cut
| Image | Product | Connectivity | Use Case |
|---|---|---|---|
 | reComputer R1225 Edge Gateway | Wi-Fi, Bluetooth/BLE, LoRaWAN | Building Central Energy Gateway & Edge Controller |
 | reComputer R1000 Edge Controller | Modbus, BACnet, Ethernet | DIN-rail Multi-protocol Converter & Power Monitoring |
 | reComputer R1100 Edge Gateway | WiFi, BLE, Ethernet, RS485, CAN bus | Edge Controller & Bus Aggregator for Equipment Rooms |
 | SenseCAP M2 Indoor Gateway | LoRaWAN, Ethernet, WiFi, BLE | Indoor LoRaWAN Wireless Sensor Coverage |
 | Sensor Hub 4G Data Logger | 4G LTE, LoRaWAN, MQTT, MODBUS-RTU | 4G Direct-to-Cloud Gateway for Remote Switchrooms |
 | S2100 Data Logger | LoRaWAN, BLE | Meter & sensor data collection in switchboards |
Gateways & Data Loggers
Multi-Protocol Conversion & Wireless Hub
reComputer R1000 and SenseCAP M2 mount on DIN rails, bridging Modbus-RTU / BACnet under 100ms with Gigabit Ethernet and LoRaWAN.
Core Advantages
- Sub-100ms Convert: reComputer R1000 translates Modbus-RTU and BACnet under 100ms
- Floor Penetration: SenseCAP M2 LoRaWAN penetrates concrete slabs covering blind spots
- DIN-Rail Rugged: Standard fanless DIN-rail design operates reliably from -20 to 70°C
| Image | Product | Core Positioning | Connectivity |
|---|---|---|---|
 | SenseCAP Watcher Smart Terminal | Desktop / Space Vision Occupancy Terminal | WiFi, BLE |
 | SenseCAP Indicator Desktop Panel | 4-inch Touchscreen Display & Control Terminal | WiFi, BLE, LoRa |
 | reTerminal DM Industrial Touch PC | 10.1-inch Industrial HMI Touch Panel | Ethernet, RS485, CAN bus |
 | reCamera Smart Camera | Edge AI Smart Vision Camera | SSH, HTTP, DNS |
 | reComputer J30 Series Edge Host | 40/70 TOPS Edge AI Vision Workstation | WiFi, BLE, Ethernet |
 | reComputer J40 Series Edge Host | 100/157 TOPS High-performance Edge AI Device | WiFi, BLE, Ethernet, RS485, CAN bus |
Edge AI & Terminals
Operation Touchscreens & Smart Terminals
Watcher senses occupancy at the edge, while reTerminal touchscreens provide on-site energy monitoring and parameter tuning.
Core Advantages
- Intuitive Touch: reTerminal displays sub-circuit energy metrics without boot computers
- Zero-Friction Vision: Watcher on-device vision detects presence without user intervention
- Rich Integration: Diverse physical interfaces and open ecosystem interface to BA systems
Success Cases
FAQ
No business interruption or wall damage required: 0.5-class split-core CTs (100A/5A) clip directly onto power cables without power outages. Indoor temperature, humidity, and occupancy sensors run on battery-powered SenseCAP wireless hardware without laying conduit, allowing retrofits during normal business hours.
Full legacy compatibility across multiple gateway models: use reComputer R1000 (3x isolated RS485 + dual GbE) for multi-meter polling, reComputer R1100 (R1125 features 1x CAN bus + RS485) for CAN-based systems, or R1124 (2x DI / 2x DO) for relay contact control. Built-in Modbus-RTU, BACnet, and OPC UA protocol translation operates under 100ms latency. Old meters integrate via clip-on CTs, while HVAC chillers connect via RS485, CAN, or dry contacts.
Fully supports on-premise air-gapped closed loops: reComputer edge computers run rule engines and load analytics inside local telecom closets, streaming over LAN MQTT or internal databases with zero cloud egress. De-identified metrics can also be selectively pushed to private clouds via HTTPS/MQTT.
The schedule depends on the number of points, protocol adaptation, and available work windows. Deployment can proceed by floor or system, with the detailed timeline determined by site conditions.
Definitely — and it is simpler there: one gateway + AC + meter delivers real-time energy monitoring and dynamic savings, no complex BMS needed. Chains in fast food, gas stations, and retail can also manage stores centrally, with headquarters viewing every store's energy on one platform.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
