Clear Audio
Clear voice in noise, with speakers separated automatically
Local Transcription
One RK3576 transcribes 12 streams; recordings never leave the site
Tuned, Ready to Run
4.82% character error rate in Chinese; the reference design is open

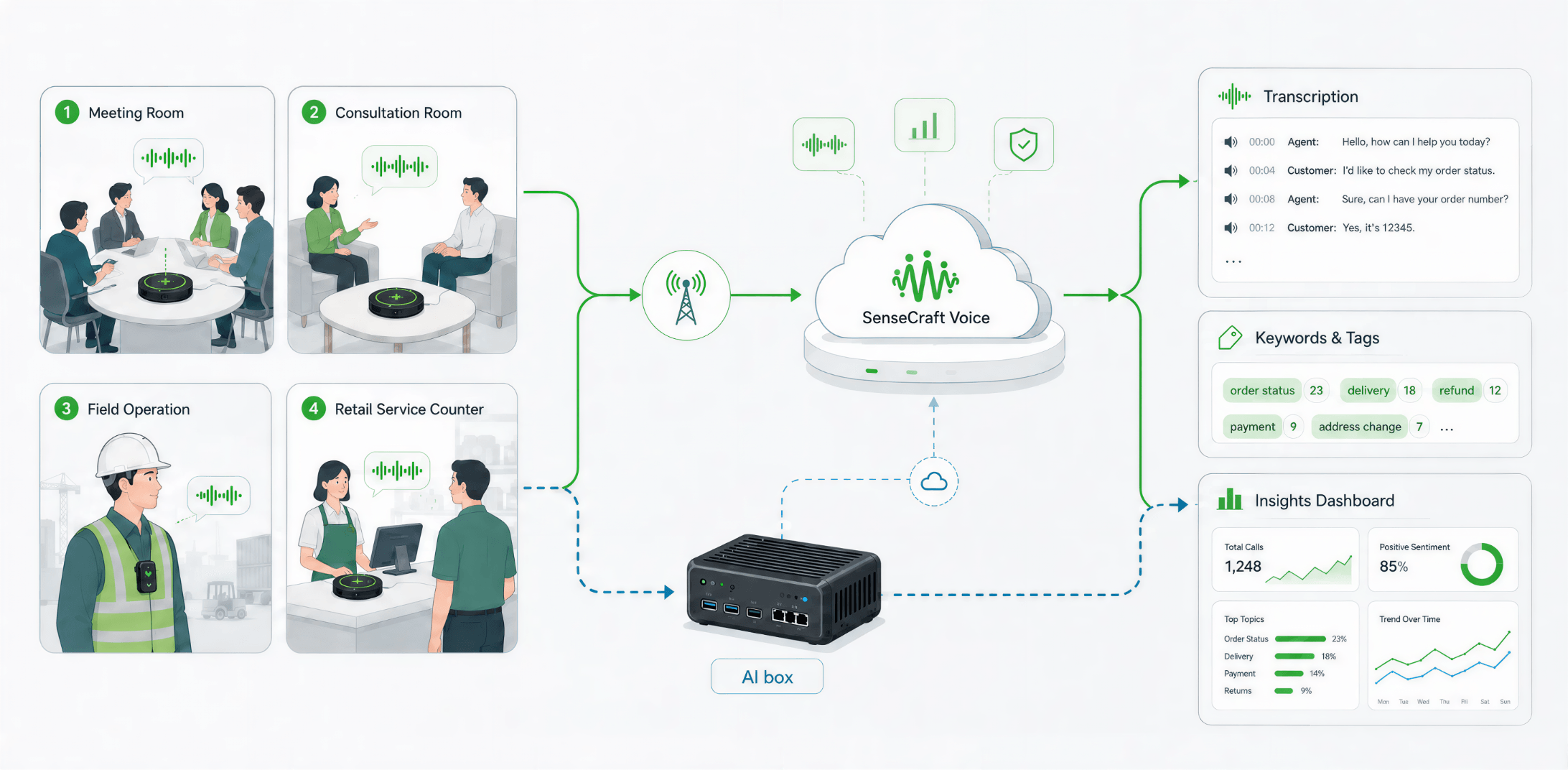

Scenario details

Four capture settings: meetings and training, consultations, mobile field work, and in-store service checks.

Install it once; no more sorting through recordings

Meeting rooms and training classrooms need action items, decisions and teaching points on record. Fixed microphones capture from power-on; transcripts are archived centrally and stay searchable.


Core Advantages

  • Auto-archiving
  • Traceable content
  • Less post-meeting work
DemowikiDocs
Scene Feature
Multi-directional Clear Audio Capture
A 4-mic array with multi-beam forming picks up speech from any direction within 5 m.
Scene Feature

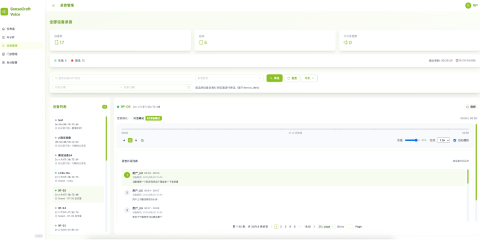

Structured Content Archiving

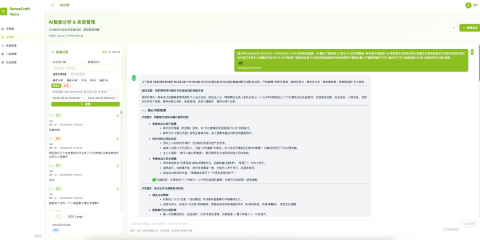

Transcripts generate in real time, separate speakers, and are searchable by time.
Scene Feature
Automatic Keyword & Event Tagging
Keywords auto-tag the important parts, so nobody replays the recording.

Full conversation records; the audio path follows the deployment

Medical consultations, legal advisory, finance and insurance need conversation records for audits and accountability. With local transcription, the recordings can stay inside the deployment.


Core Advantages

  • Conversation archiving
  • Compliance auditing
  • Configurable audio path
DemowikiDocs
Scene Feature

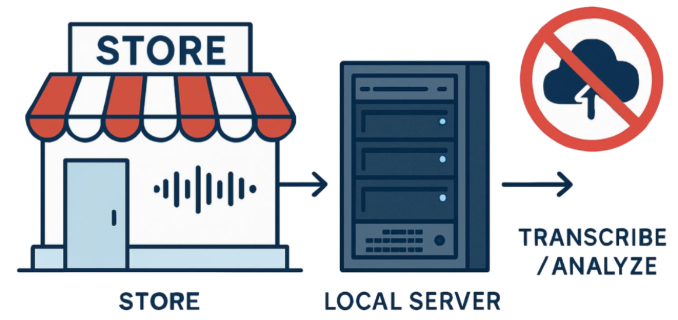

On-Device Voice Transcription
With local transcription the audio stays in the deployment; capture offline, sync by policy once connected.
Scene Feature
Structured Conversation Archiving
Conversations transcribed to structured text, key points extracted, forming searchable audit records.
Scene Feature

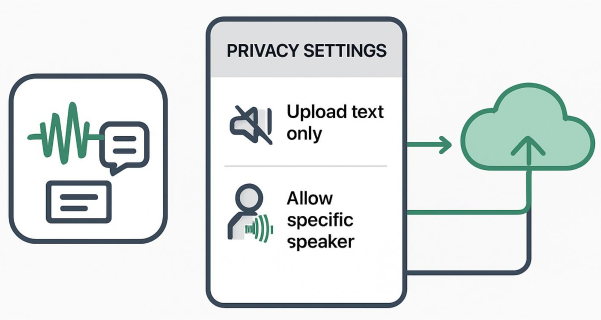

Granular Privacy Controls
Upload text only and keep the audio on site, configured to the venue's requirements.

Capture on the move, even with no network

Sales visits, field surveys and site inspections need notes taken on the move. The capture module travels with the device, records locally without a network, and syncs audio or text once connected.


Core Advantages

  • Speak-to-record
  • Offline storage
  • Less manual entry
DemowikiDocs
Scene Feature
On-the-Go Field Collection
Built into the mobile device — hands-free, records automatically.
Scene Feature

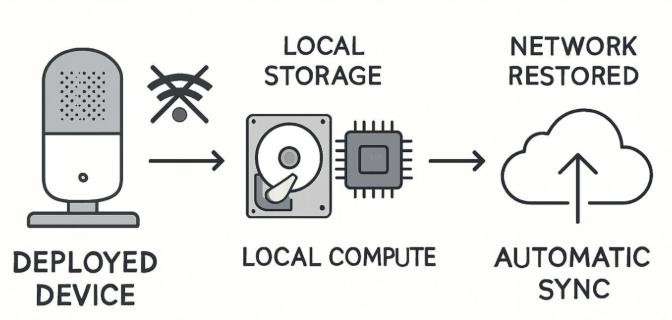

Reliable Offline Storage
Record locally when offline; sync timing and retries follow the deployment policy.
Scene Feature
Multi-language Transcription
Languages depend on the device and model chosen — confirm the combination before deployment.

One rollout across stores; see how the script is followed

Chain brands need to know whether each store follows the service script, but cannot visit every location. Deploy the same capture devices everywhere; keyword tagging surfaces the gaps for training and improvement.


Core Advantages

  • Multi-site deployment
  • Unified management
  • Trackable standard execution
DemowikiDocs
Scene Feature
Multi-store Unified Deployment
The same hardware rolls out across stores, with devices and settings managed centrally in the cloud.
Scene Feature

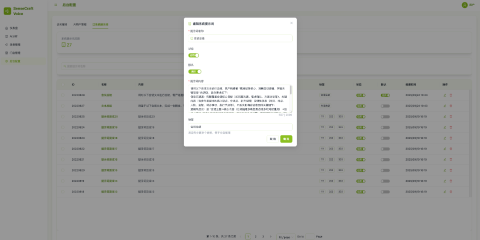

Service Content Keyword Auditing
Auto-checks each store's script against the standard — see exactly which line falls short.
Scene Feature

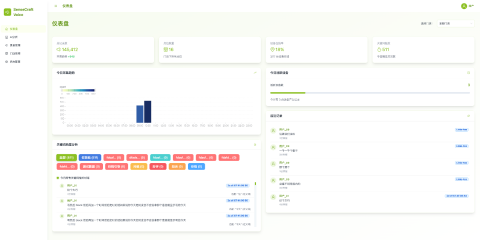

Cross-store Data Aggregation & Query
Filter by store, location and time period; regional managers see it all in one place.

Deployment & Selection Guide

Three questions in the configurator narrow it down to a model; the two architectures and the device comparisons are in the cards below.

Not sure which to choose? See the full selection guide →

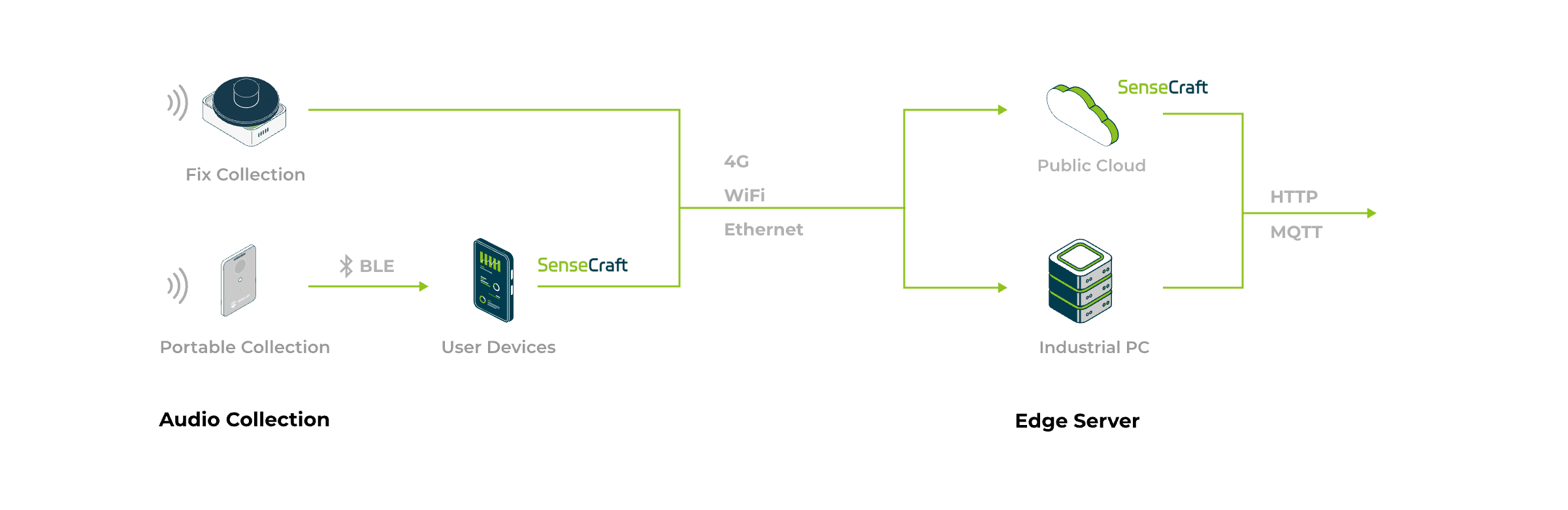

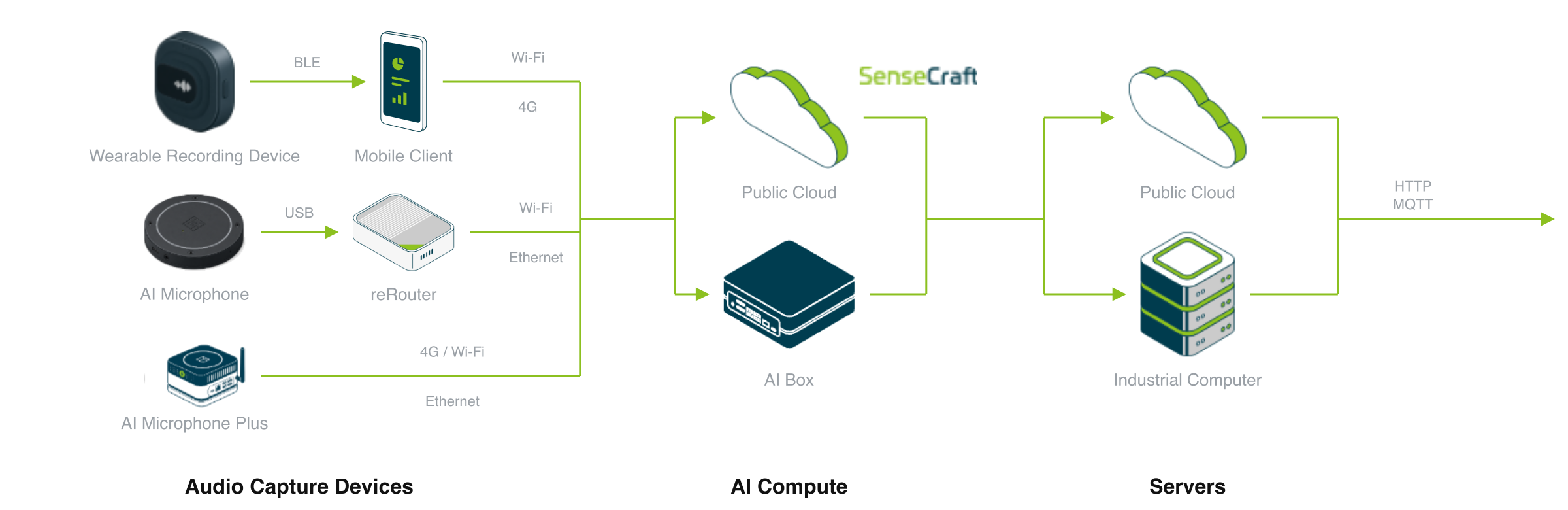

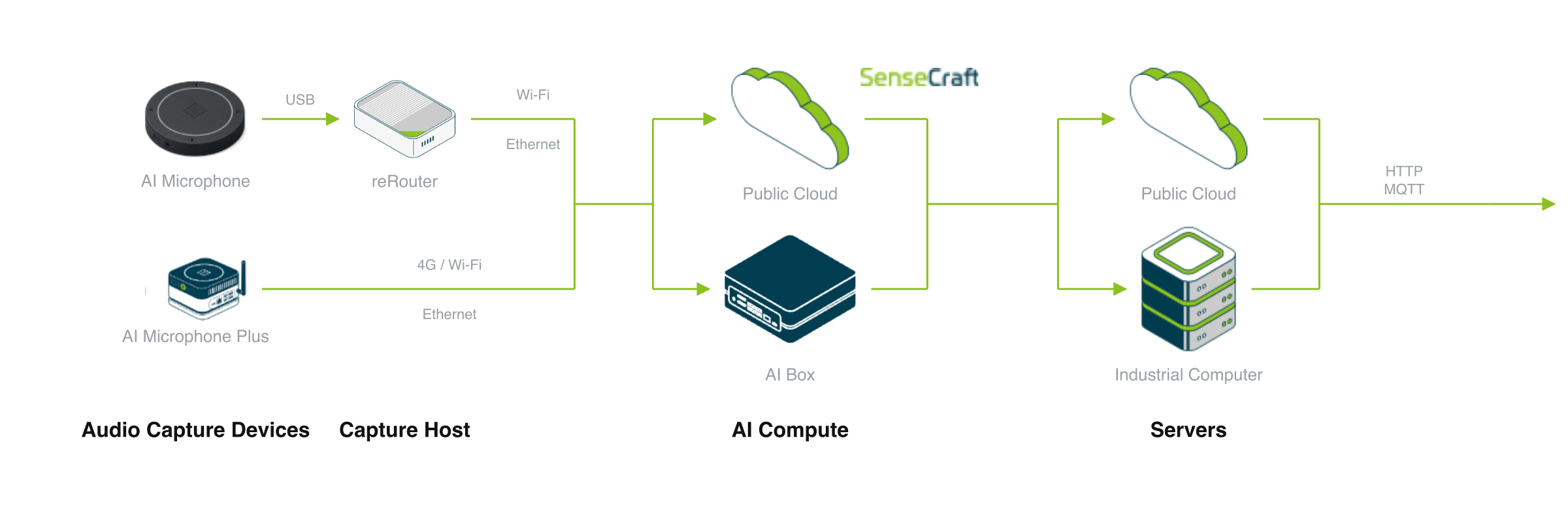

Transcription Mode

Cloud or local transcription — choose as needed

Option A — Cloud transcription: reSpeaker → Network → SenseCraft Voice → Dashboard
Option B — Local transcription: reSpeaker → AI Box → Local ASR → Optional sync


Core Advantages

  • Pick A
  • Pick B
ImageProductTierCapabilitiesScale
reRouter CM4 1432reRouter CM4 1432EntrySingle-language local transcriptionSmall single-point deployments, validated reference design
reComputer AI R2130-12reComputer AI R2130-12AdvancedReal-time multilingual transcriptionMedium scale, latency-sensitive
reComputer RK3576-30reComputer RK3576-30StandaloneMultilingual transcription + local analysisHigh privacy or offline environments
reComputer RK3588-30reComputer RK3588-30StandaloneMultilingual transcription + local analysisHigh privacy or offline environments

Choose a local AI box based on deployment scale and transcription capacity

Choose a local AI box based on deployment scale and transcription capacity, paired with a reSpeaker collection device. reRouter CM4 is the official SenseCraft Voice reference hardware — check compatibility of other models with the solutions team.


Core Advantages

  • Single-language local transcription only
  • Need real-time multilingual transcription
  • Need standalone offline + local analysis
ImageProductTypeRangeCoverageAmpAlgorithms
reSpeaker LiteLinear dual-mic~3m180°5WAEC · DoA
reSpeaker XVF3800Circular quad-mic~5m360°5WAEC · DoA · Multi-beam
reSpeaker XVF3800 (with Case)Circular quad-mic~5m360°5WAEC · AGC · DoA · VAD · Multi-beam
reSpeaker ClipWearable dual-mic~3m360°—Noise reduction (SpeexDSP)
reSpeaker Flex Circular-4Circular quad-mic~5m360°10WAEC · DoA · Multi-beam
reSpeaker Flex Linear-4Linear quad-mic~5m180°10WAEC · DoA · Multi-beam

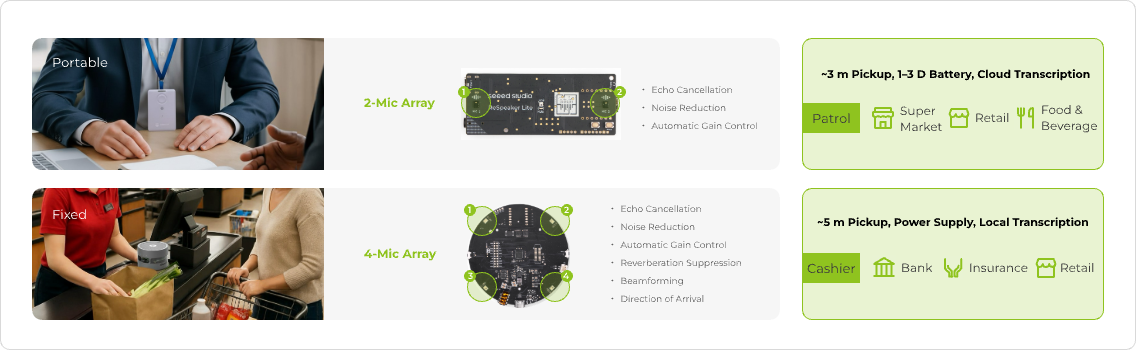

Choose the right reSpeaker for your scenario

reSpeaker Lite for mobile use; XVF3800 series for fixed installations — choose bare board, enclosed case, or Flex module based on your needs. All models come with pre-loaded acoustic AI algorithms, ready out of the box.


Core Advantages

  • Wearable for mobile use
  • 360° pickup at 5 m when fixed
  • Acoustics preset, no tuning

Success Cases

Automated Meeting Minutes for Self-Service Meeting Rooms

Automated Meeting Minutes for Self-Service Meeting Rooms

Integrate the collection system with the company's internal OA system. Scan a QR code to get transcripts and summaries, boosting work efficiency.

Sales Staff-Assisted Compliance Audits

Sales Staff-Assisted Compliance Audits

Sales staff wear collection badges to capture and upload conversations to the internal system for archiving and compliance review.
