reRouter

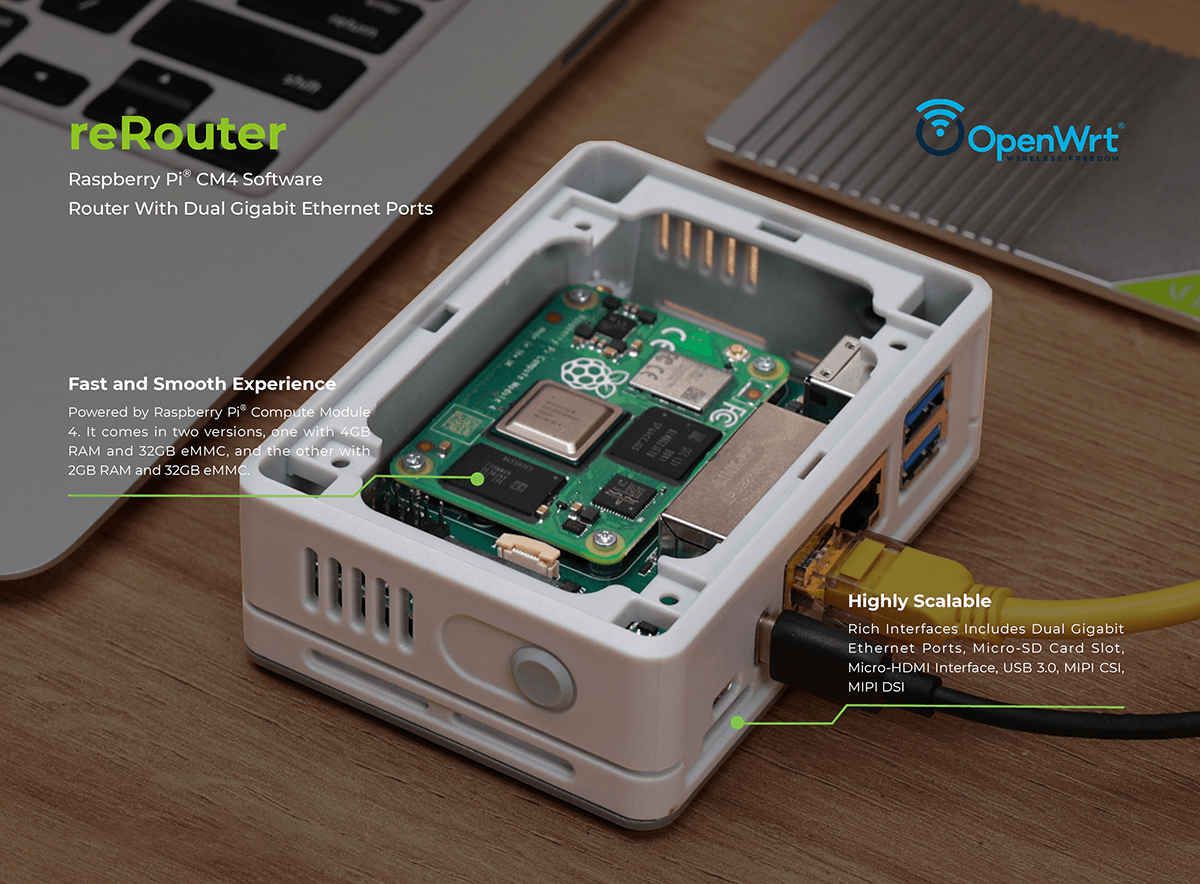

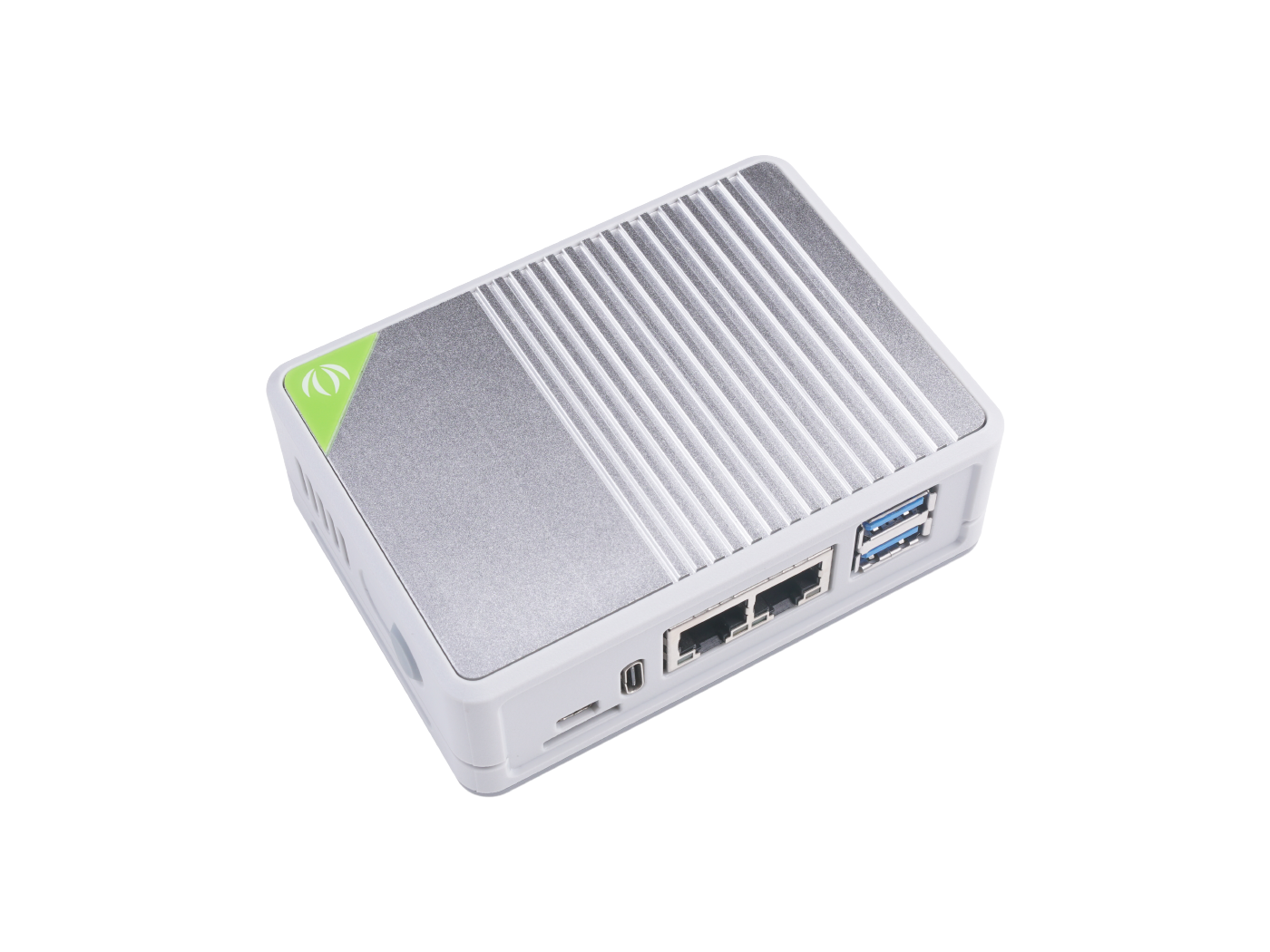

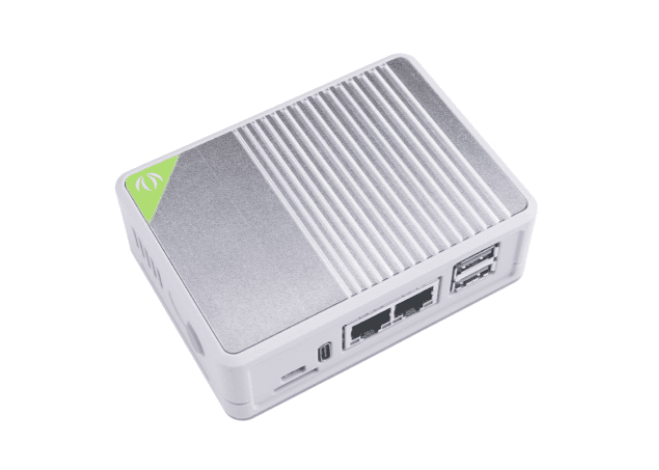

The Mini Router is pre-installed Seeed’s custom OpenWRT system, equipped with dual Gigabit Ethernet ports and dual USB 3.0 ports, as well as a Raspberry Pi Compute Module 4. The full system makes it suitable for soft router applications while keeping the hardware to a minimum.
-
Fast boot times and smooth overall experiencePowered by Raspberry Pi Compute Module 4 with RAM and eMMC storage
-

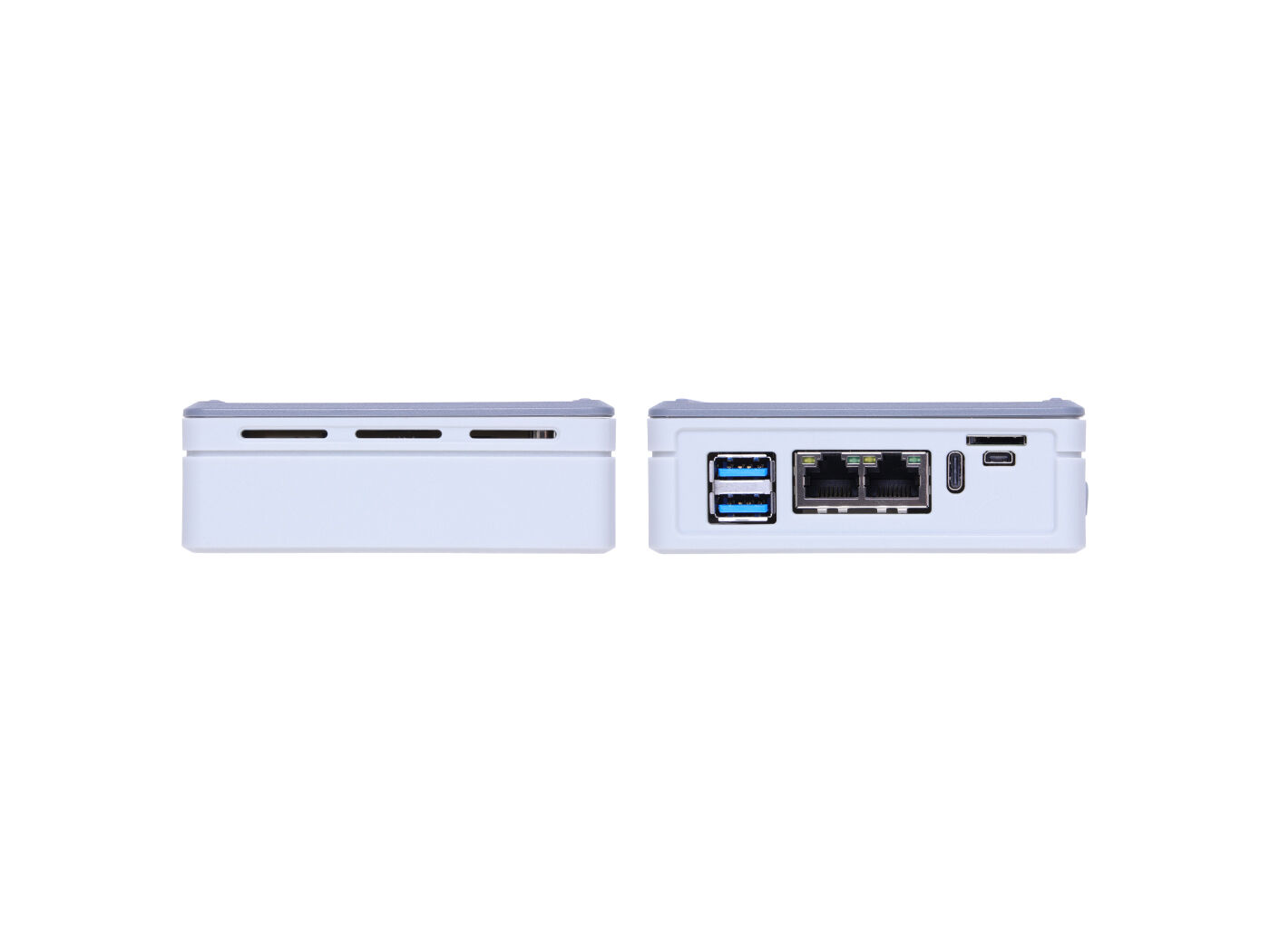

Compact and highly integrated75x64x21mm in size, with dual Gigabit Ethernet ports and dual USB3.0 ports
-
Highly scalable with rich IO peripheralsdual Gigabit Ethernet connectors, Micro-SD card slot, micro-HDMI interface, USB 3.0, MIPI CSI, MIPI DSI, etc.
-
Easy to deploy with stabilityDIN rail mount and keyhole slot allow you to hang it anywhere
-
Pre-installed OpenWRT firmwareOut of the box, can easily implement software router applications
-
Customization SupportedContact edge@seeed.cc for your customization needs

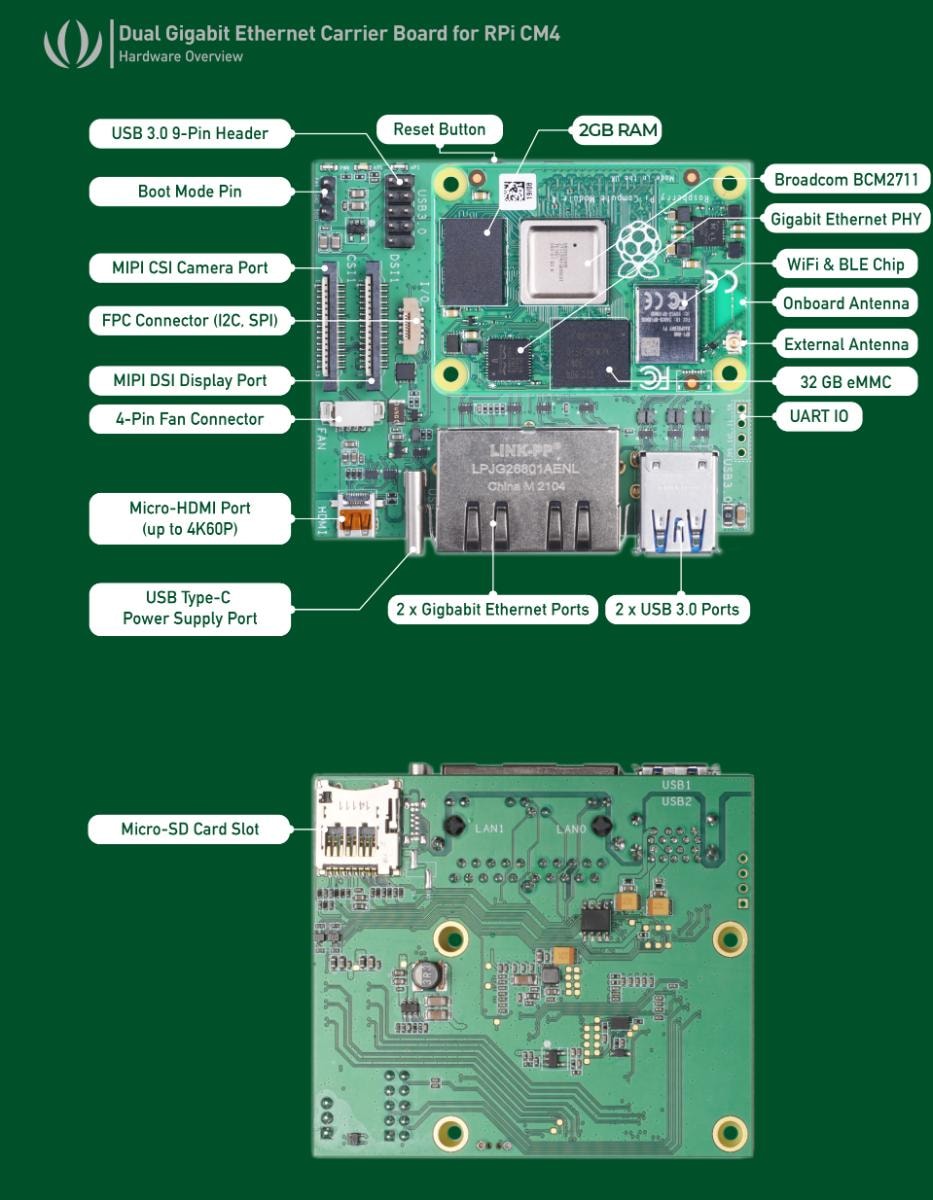

Hardware Overview
Application
- Software Router
- IoT applications
- Smart Home
- Camera / Video-related Projects
Part List
| Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 | 1 |
| Aluminum Case | 1 |
| International Wall Adapter Power Supply 5VDC 4A – Type-C (with US/AU/UK/EU plugs) | 1 |
Product Selection
| Product Model | SKU | Memory | Storage |
|---|---|---|---|
| reRouter CM4 1432 | 110110110 | 4GB LPDDR4 | 32GB eMMC |
| reRouter CM4 102032 | 110110205 | 2GB LPDDR4 | 32GB eMMC |
Carrier Board
| Specification | Details |
|---|---|

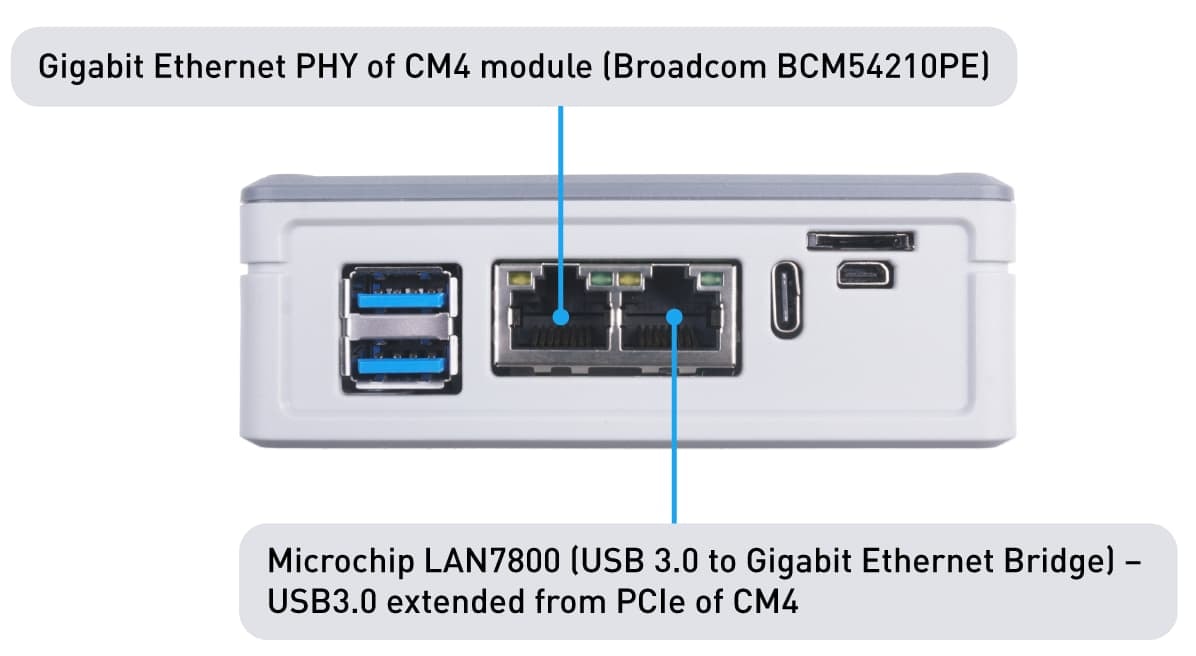

| Networking | Dual Gigabit Ethernet Connectors |
| USB 3.0 to GbE (Gigabit Ethernet Bridge) | Microchip's LAN7800 |
| USB | 2 x USB 3.0 Ports 1 x USB 3.0 9-Pin Header |
| Storage | Micro-SD Card Slot (load system Image for non-eMMC CM4 version) |
| Camera | 1 x MIPI CSI Connector |
| Display | 1 x MIPI DSI Connector 1 x Micro HDMI Connector |
| FPC | Interface for I2C and SPI |
| External Fan | Power connector for fan |
| Power | 5V/3A using USB Type-C Port |
| LAN7800 Industrial Temperature Range | -40°C to +85°C |

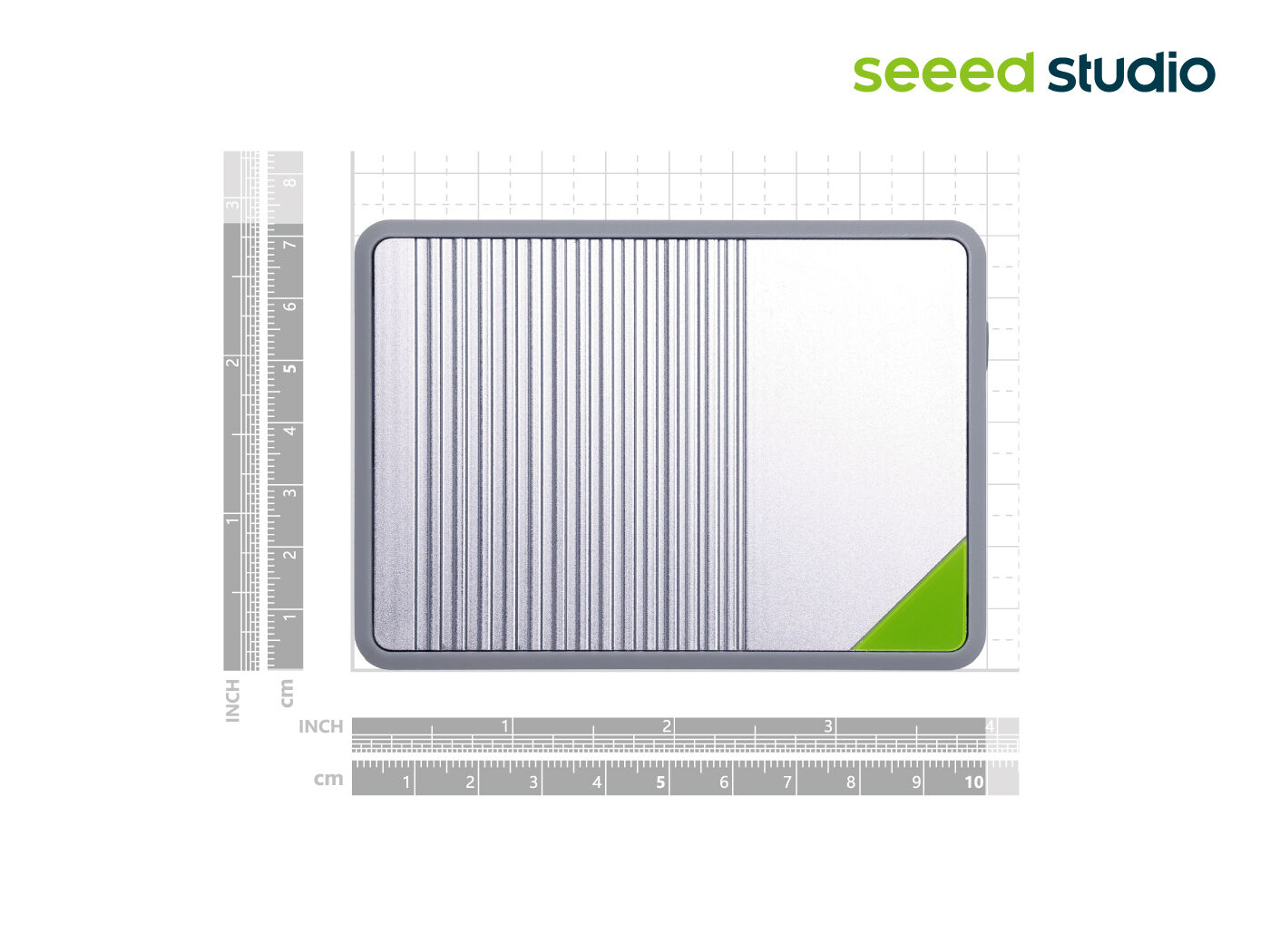

| Dimensions | 75x64x21mm |
| Weight | 43g |
Compute Module 4
| Specification | reRouter CM4 1432 | reRouter CM4 102032 |
|---|---|---|
| Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz | |
| Memory | 4GB LPDDR4 | 2GB LPDDR4 |
| Storage | 32GB eMMC | |
| Connectivity | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac Wi-Fi, Bluetooth 5.0, BLE with onboard and external antenna options | |
| Onboard Gigabit Ethernet PHY supporting IEEE1588 | ||
| 1 × USB 2.0 interface | ||
| PCIe Gen 2 x1 interface | ||
| 28 GPIO signals | ||
| SD card interface for SD card or external eMMC | ||
| Video | Dual HDMI interface (up to 4Kp60 supported) | |
| 2-lane MIPI DSI display interface | ||
| 2-lane MIPI CSI camera interface | ||
| 4-lane MIPI DSI display interface | ||
| 4-lane MIPI CSI camera interface | ||
| Multimedia | H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics | |
| Input power | 5V DC | |
| Operating temperature | 0 to +80°C | |
| Dimensions | 55 mm × 40 mm | |
| Production lifetime | Raspberry Pi Compute Module 4 will remain in production until at least January 2028 | |
| Compliance | Full list of local and regional product approvals | |
Product Design
Other
How to Build a Raspberry Pi Router – Step by Step Tutorial
This article is going to share exactly why you should consider building a custom Raspberry Pi Router – and more importantly, how!

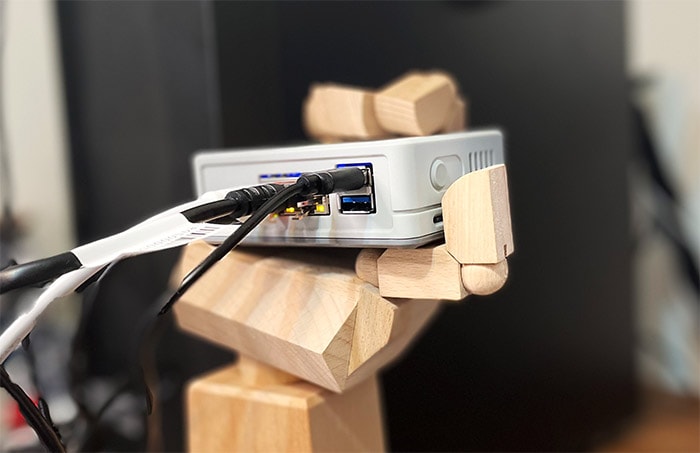

How to use Home Assistant with a Seeed Mini Router (Installation, Configuration and Control)
This is a blog about using Mini Router running the Home Assistant software.
Low Consumption Öchìn CM4 Carrier Custom Board Applied In Robotics, Drones, Home Automation and IoT, Manufactured by Seeed Fusion
The possibilities offered for this type of application by a machine such as the CM4 module are remarkable and in fact opens a wide range of new scenarios that are truly amazing！
Introducing the Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4
In this article, the team at Seeed is proud to present the Dual Gigabit Ethernet Carrier Board for the newest Raspberry Pi compute module. Let's begin!
[Github] buildroot external tree for macsec router
buildroot external tree for macsec router running on Seeed Studio Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4

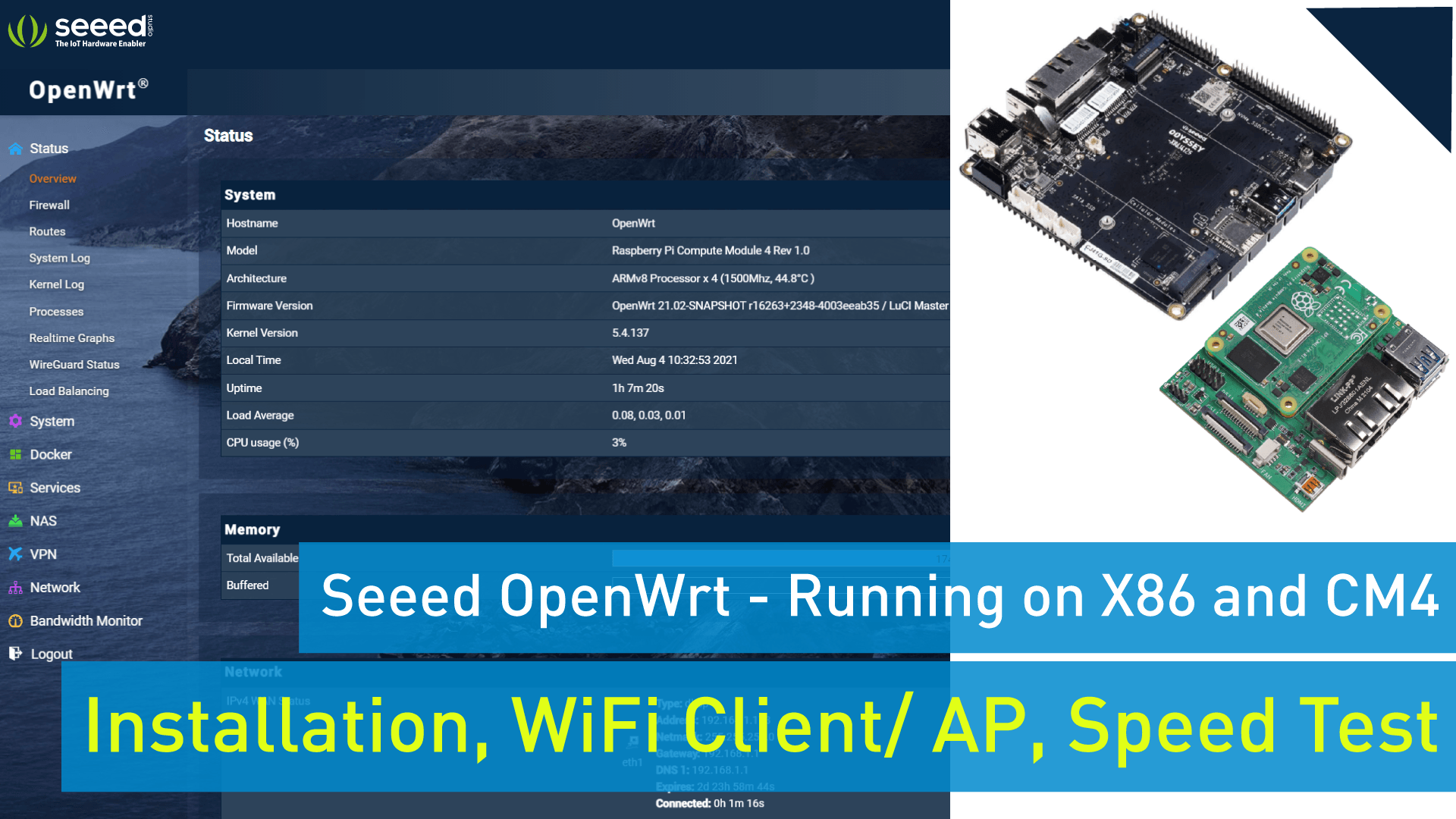

Getting Started with OpenWrt on Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 and ODYSSEY - X86J4125
