Emergency Response Command
Portable field-deployable workstations with local closed-loop personnel tracking and hazard sensing
A post-disaster data and device-management solution: build a local network first, then choose 4G, satellite, or another available link for backhaul.
Reliable Sensors
IP66, -40 to 85°C, years on a battery
Local Networking, Conditional Backhaul
Mesh locally without cellular; backhaul over 4G or satellite when available
Easy Deployment & Management
Grab the case and go: dozens of ready apps, Bluetooth setup
Scenario details

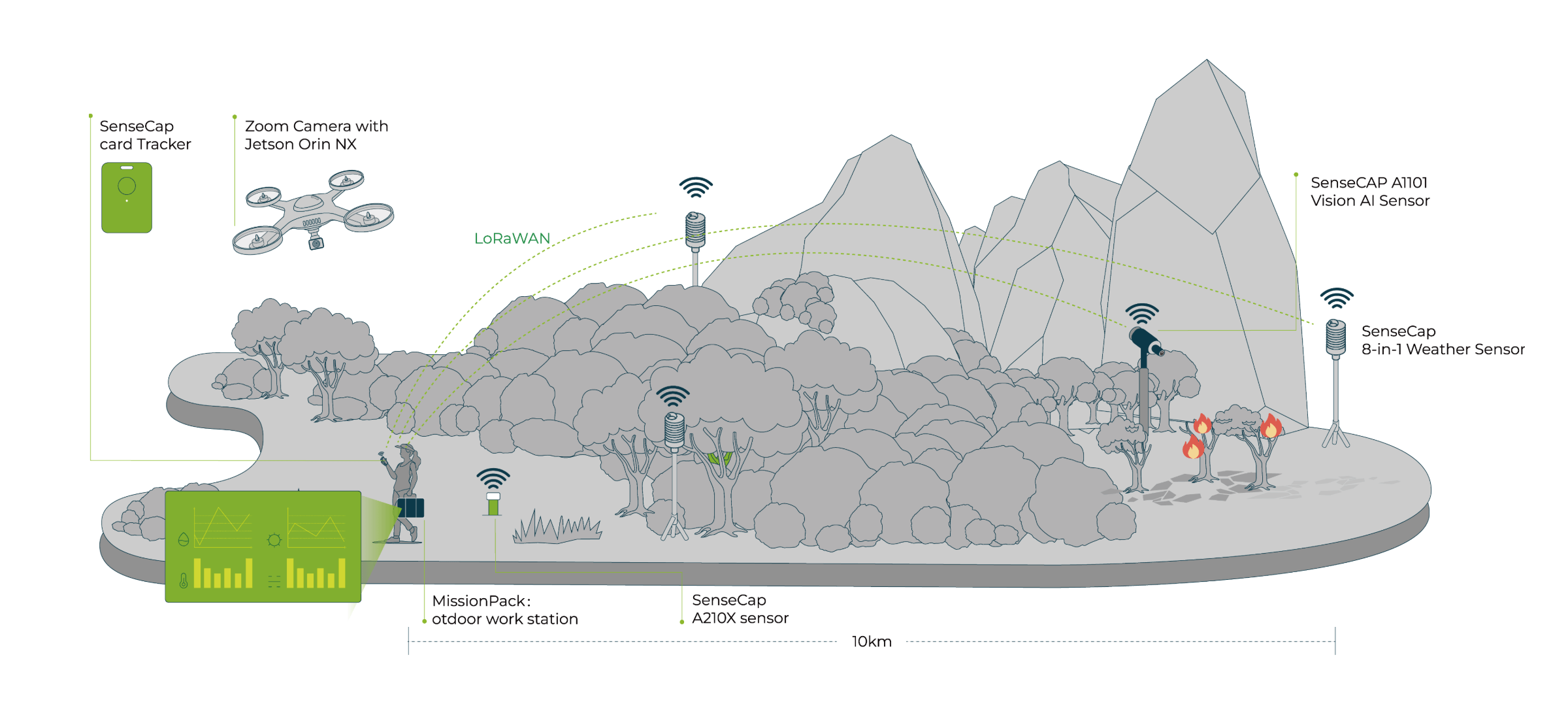

Three key pillars of emergency hazard response: on-site hazard factor sensing, off-grid mesh communications, and rescue personnel tracking.
Hazard Monitoring
Pain Points & Challenges
Harsh disaster environments make conventional monitoring gear too heavy, cumbersome, and grid-dependent; delays in capturing critical flood and gas telemetry hamper rapid command decisions.
Edge AI Solution
Deploy portable, rapid-deployment emergency workstations featuring self-contained power, local wireless links, and quick-connect interfaces to immediately acquire hazardous gas, water level, and microclimate data.
Core Advantages
- Rapid Field Deployment: Protective case houses probes for immediate turn-on testing
- Off-Grid Sensing: Local wireless link operates completely independent of public networks
- Plug and Play: Standard fieldbus interfaces connect submersible level and weather stations
Continuous Water-Level Monitoring
Submersible level meters monitor rivers and culverts in real time and trigger audible and visual alerts above the threshold.
Forest Soil & Weather Monitoring
Integrated weather stations collect wind and rainfall continuously, while soil-moisture sensors help assess landslide and fire risk.

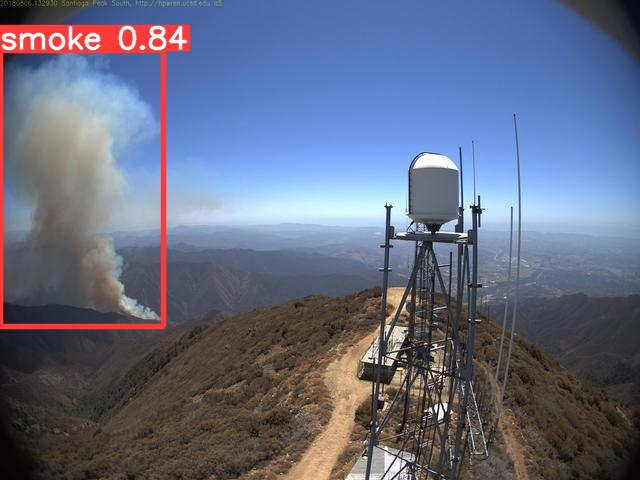

Forest-Fire Risk Alerts
Monitor abnormal warming and dryness in forest microclimates to identify fire risks early and support emergency dispatch.
Off-Grid Comms
Pain Points & Challenges
Severe disasters frequently paralyze cellular towers and electrical grids, severing communications and stranding rescue squads without real-time coordination from command centers.
Edge AI Solution
Establish an emergency private network using LoRa Mesh technology; decentralized hop-by-hop relaying delivers encrypted text messages, squad coordinates, and emergency alerts over kilometers without cellular coverage.
Core Advantages
- Decentralized Mesh: Zero reliance on cell towers; powers on into an ad-hoc private network
- Multi-Hop Reach: Self-healing mesh relay extends signals across valleys and rubble
- Encrypted Comms: Hardware encryption secures group broadcasts and direct messages

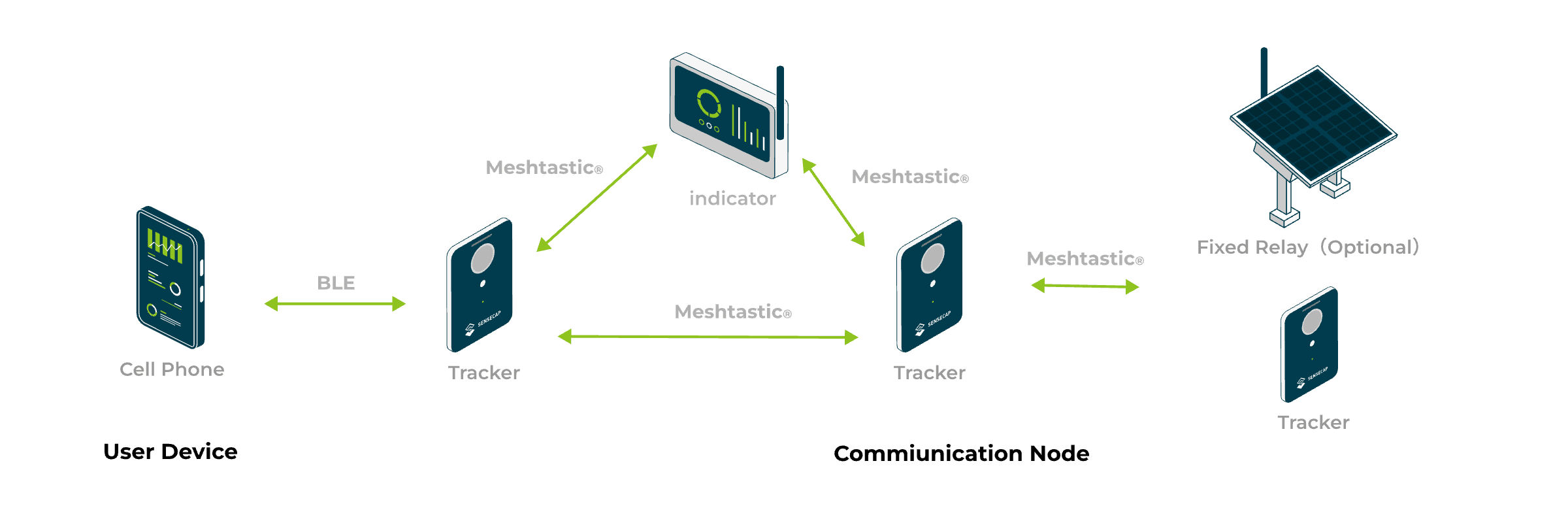

Decentralized Mesh Node Relay
Off-grid nodes autonomously relay packets hop-by-hop, extending communication over kilometers across complex terrain.
Team Text & Live Coordinate Sharing
Smartphones connect to nodes via BLE to send text commands and broadcast real-time GPS coordinates without cellular data.
Wearable One-Click SOS Broadcast
Team members can press a physical SOS button to instantly broadcast their emergency coordinates to all surrounding nodes.
Search & Rescue Tracking
Pain Points & Challenges
In remote forests, rugged mountains, or collapsed structures without cellular coverage, lost personnel and rescue squads vanish from tracking radar, risking secondary casualties.
Edge AI Solution
Equip rescue personnel and vulnerable assets with dual-mode GNSS tags transmitting live coordinates and status over long-range wireless networks, enabling one-touch SOS and geofence alerts.
Core Advantages
- Dual-Mode GPS: GNSS satellite and BLE sensing locate search teams continuously
- Long Battery Life: Low-power architecture supports multi-day non-stop operations
- One-Touch SOS: Dedicated physical emergency button instantly broadcasts coordinates
Search-Route Review
A handheld large-screen terminal replays search grids and team tracks to prevent missed areas and review coverage.
Low-Power Forest Tracking
Dual-mode GNSS and BLE tracking keeps a slim badge running for days and supports one-click or double-press SOS.
Camp & Shelter Safety
Deploy carbon-monoxide and smoke sensors in temporary shelters to protect evacuees and field camps.
Deployment & Hardware Selection
Mission packs feature portable gateways and stations; select sensors and tags by terrain and objectives.
Not sure which to choose? View Full Selection Guide →
Scenario
Configure Your Solution
Pick scenario, comms & power to generate a BOM
Urban Microclimate
Outdoor weather for aviation, grid O&M & light poles
硬件/物料名称 数量 型号/SKU 说明 SenseCAP S500 5-in-1 Weather Station (temp/humidity, pressure, wind speed & direction; RS485/SDI-12) 1 101991021 - Search & Rescue Tracking
Search and rescue personnel equipped with tracker cards for real-time team coordinates and SOS during network outages.
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker 5 114993073 - SenseCAP BC03 BLE Beacon 4 100085893 - SenseCAP M2 Indoor LoRaWAN Gateway 1 114992982 - Aquaculture & Water
Water quality for fish/shrimp ponds & wastewater
硬件/物料名称 数量 型号/SKU 说明 Industrial Turbidity Sensor (RS485) 1 101990793 - Industrial Dissolved Oxygen Sensor (RS485) 1 314990633 - SenseCAP S2100 Data Logger 1 114992872 - SenseCAP M2 Indoor LoRaWAN Gateway 1 114992982 -

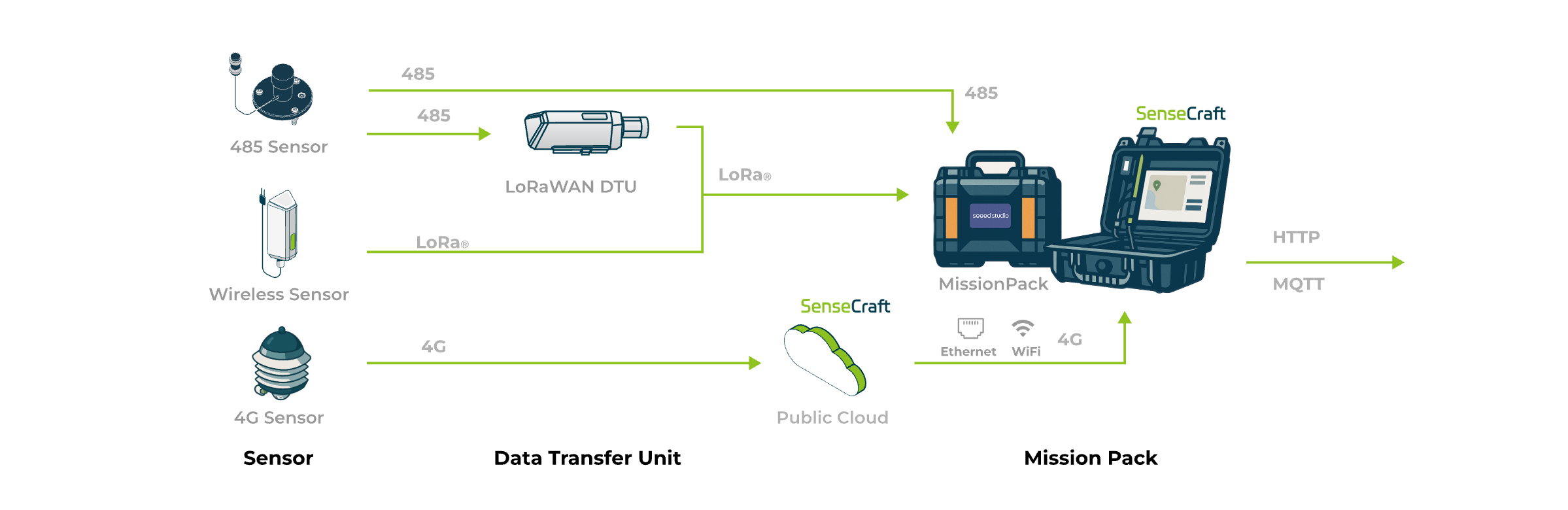

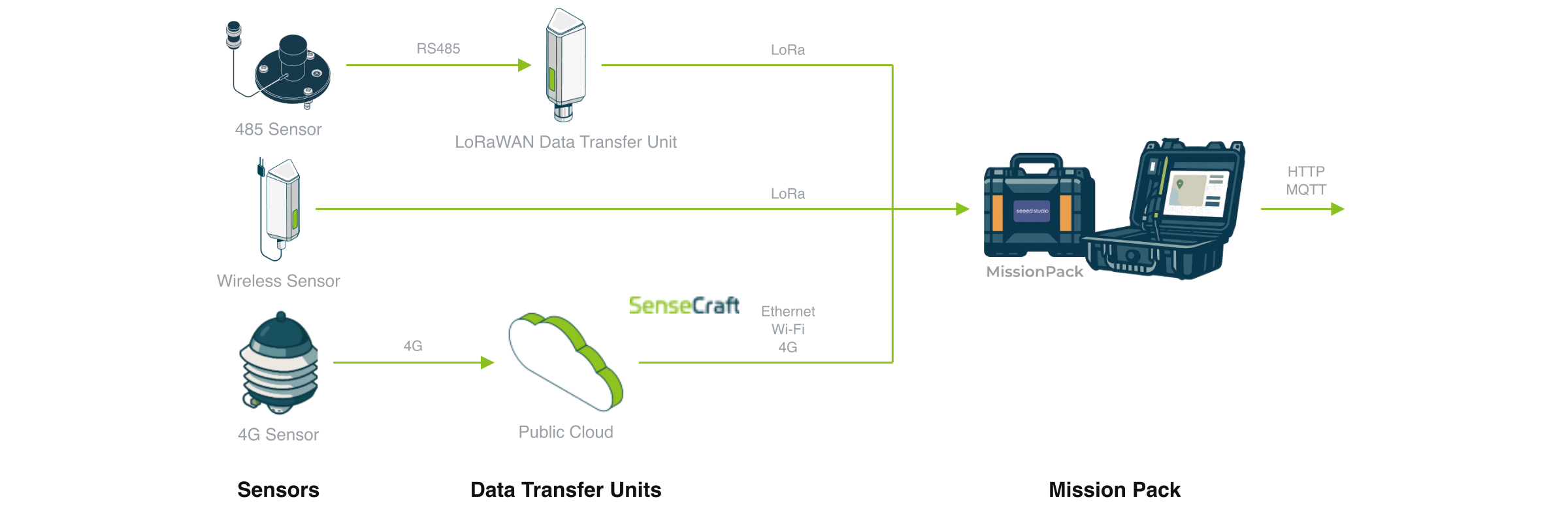

Deployment Architecture
Instant field emergency private mesh network
Open-and-run field mission pack houses battery-powered gateways aggregating sensors and tracker telemetry, operating fully off-grid with optional satellite/4G links.
Core Advantages
- Instant Mesh: Forms an autonomous private network immediately upon power-on
- Multi-Hop Relay: Mesh architecture extends signal through valleys and rubble
- Flexible Power: Compatible with solar panels, power banks, and vehicle DC
| Image | Product | Measurements | Connectivity | IP Rating |
|---|---|---|---|---|
 | S700 V2 7-in-1 Compact Weather Station | air temperature / relative humidity / barometric pressure / light intensity / rainfall / wind speed / wind direction | RS485, SDI-12 | IP66 |
 | S700-A 7-in-1 Compact Weather Station-Radar Rain | air temperature / relative humidity / barometric pressure / wind speed / wind direction / rainfall intensity (radar) / light intensity | IP66 | |
 | S700-B 7-in-1 Compact Weather Station with Station-Solar Radiation | air temperature / relative humidity / barometric pressure / precipitation intensity (optical) / wind speed / wind direction / global solar radiation / sunshine duration | Modbus | IP66 |
 | S700-C 7-in-1 Compact Weather Station (Solar Radiation & Radar Rain) | air temperature / relative humidity / barometric pressure / rain intensity (radar) / wind speed / wind direction / global solar radiation / sunshine duration | Modbus | IP66 |
 | Industrial Grade Liquid Level Sensor MODBUS RS485 | liquid_level 0~5m | MODBUS, RS485 | IP68 |
 | Industrial Soil Moisture & Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02A) | soil_moisture 0~100% saturation temperature -40~80C EC 0~10000 μs/cm | RS485, MODBUS-RTU | IP68 |
 | S2106 pH Sensor | pH 0~14 pH | LoRaWAN, BLE | IP66 |
 | S2108 Soil Moisture, Temperature and Pore EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C pore_EC 0~20 ms/cm (Bulk), 0~32 ms/cm (Pore) | LoRaWAN, BLE | IP66 |
 | S2101 Air Temperature and Humidity Sensor | temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2102 Light Intensity Sensor | light intensity 0~160000 lux | LoRaWAN, BLE | IP66 |
 | S2103 CO2, Temperature, and Humidity Sensor | CO2 400~10000ppm temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2105 Soil Moisture, Temperature and EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C EC 0~23 dS/m | LoRaWAN, BLE | IP66 |
 | S2107 Temperature Sensor with PT1000 | temperature -50~300°C | LoRaWAN | IP66 |
Emergency Sensors
Hydrological & meteorological emergency sensors
Submersible level sensors monitor rising water in culverts and rivers; compact weather stations track wind speed/direction to anticipate firespread.
Core Advantages
- Water Depth: Submersible hydrostatic probe measures flood and barrier lake levels
- Instant Weather: Ultrasonic station delivers second-by-second wind & rain updates
- Disaster Rugged: Heavy-duty casing resists mud abrasion and torrents
| Image | Product | Core Positioning | Uplink |
|---|---|---|---|
 | S2100 Data Logger | Sensor Data Logger / DTU | LoRaWAN |
 | Sensor Hub 4G Data Logger | 4G Industrial Sensor Hub | 4G LTE / Ethernet |
 | reComputer R1225 Edge Gateway | Industrial Edge Gateway & Controller | 4G / Wi-Fi / Dual GbE |
 | SenseCAP M2 Indoor Gateway | Portable LoRaWAN Gateway | Ethernet / 4G / Wi-Fi |
Portable Gateways & Relays
Emergency suitcase workstation and gateways
Integrated LoRaWAN gateway and edge industrial controller powered by rechargeable battery for portable or vehicle operations.
Core Advantages
- Rugged Case: Protective suitcase design is drop-proof and splash-proof
- Battery Driven: High-capacity battery keeps site operational during blackouts
- Multi-Uplink: Supports satellite, 4G cellular, and wired backhaul options
| Image | Product | Core Positioning | Positioning | IP Rating |
|---|---|---|---|---|
 | SenseCAP T1000-E Meshtastic Tracker | Off-Grid Meshtastic Search & Rescue Tracker | GPS + BLE Off-Grid Multi-Hop Mesh | IP65 |
 | SenseCAP T1000 Card Tracker | LoRaWAN Emergency Badge Tracker | GPS + Wi-Fi + BLE Indoor/Outdoor | IP67 |
Rescue Tracking Terminals
Off-grid rescue trackers with instant panic alarm
Ultra-low power design with multi-day battery life, supporting LoRaWAN and LoRa Mesh direct broadcast.
Core Advantages
- Waterproof IP67: Lightweight design for harness or pocket attachment
- Off-Grid Mesh: Multi-hop relay transmits positions and texts without cell service
- Panic Button: Large physical SOS button instantly broadcasts GPS coordinates
Success Cases
FAQ
The solution uses off-grid communication that does not depend on carrier base stations: devices talk directly over 2–5 km without infrastructure, and mesh networking extends coverage hop by hop automatically, with encrypted group and point-to-point messaging. Carry the portable base station with the team — the network forms wherever you go.
Front-end sensors are low-power designs that run years on battery — no charging concerns within a rescue cycle. Gateways and command terminals support battery plus solar combinations for sites without mains power. Devices operate at -40°C to 85°C with IP66 protection, handling storms, dust, and intense UV.
Designed for grab-and-go use: comms modules, gateways, and common apps come pre-integrated in a portable kit — power on at the site and the network forms. Sensors and positioning terminals are configured via phone app over Bluetooth, no IT specialists needed. Arrival to basic capability online takes hours, not days.
Upkeep is light: core devices are industrial-grade, low-power designs. Routine care is just periodic power-on self-checks, battery status, and firmware updates — all doable over the app's Bluetooth connection. Some teams also use the gear day to day for forest patrol and fire-prevention monitoring, combining readiness with daily use so nothing sits idle.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
