Indoor Positioning & Tracking
Smart badge blends BLE and GNSS tracking with one-touch SOS
BLE beacons and outdoor GNSS provide seamless hybrid tracking, though enclosed metal basements require denser anchors to prevent signal shadowing.
Long-Range LoRa Backhaul
2 km line of sight (nominal), 100–200 trackers per gateway
Double-Press SOS
Double-press the T1000 badge to alarm with person and place
IP67 and tamper alert
T2000 series is IP67 rated with tamper alert
Where this technology lands
Scenario
ScenarioCampus Safety Management
An easy-to-deploy campus safety solution: tags handle personnel location and SOS alerts, while edge AI analyzes video anomalies and connects events to existing security platforms.
Reference designCampus-level BLE Beacon Positioning System
Track assets and people indoors and outdoors on one map — BLE beacons inside, GNSS outside, with floor-plan georeferencing, geofence alarms and an offline basemap option.
Deployment & Selection
Answer five questions (what to track, coverage area, vehicle power, tracker count, number of indoor zones) and the configurator returns a device list. Architecture and the device catalog are in the cards below.
Not sure which to choose? See the full selection guide →
Tracking Target
What do you need to track?
Configure Your Solution
Select tracking target, coverage area, tracker quantity and number of indoor zones to get a recommended device list
People Outdoor
T1000 personnel badge + LoRaWAN gateway; suitable for outdoor patrol, campus sports fields, facility inspection, and other outdoor positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - People Indoor
T1000 personnel badge + BLE beacons + LoRaWAN gateway; suitable for hospitals, offices, teaching buildings, and other indoor zone positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - People Indoor+Outdoor
T1000 personnel badge + BLE beacons + LoRaWAN gateway; suitable for continuous positioning across buildings, campus, and outdoor areas
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - Vehicle Outdoor
T2000 asset tracker + LoRaWAN gateway; suitable for fleet vehicles, construction vehicles, and outdoor asset positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T2000-A Asset Tracker trackers 100082900 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - Vehicle Indoor+Outdoor
T2000 asset tracker + BLE beacons + LoRaWAN gateway; suitable for underground parking, warehouses, campus roads, and other mixed zones
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T2000-A Asset Tracker trackers 100082900 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 -

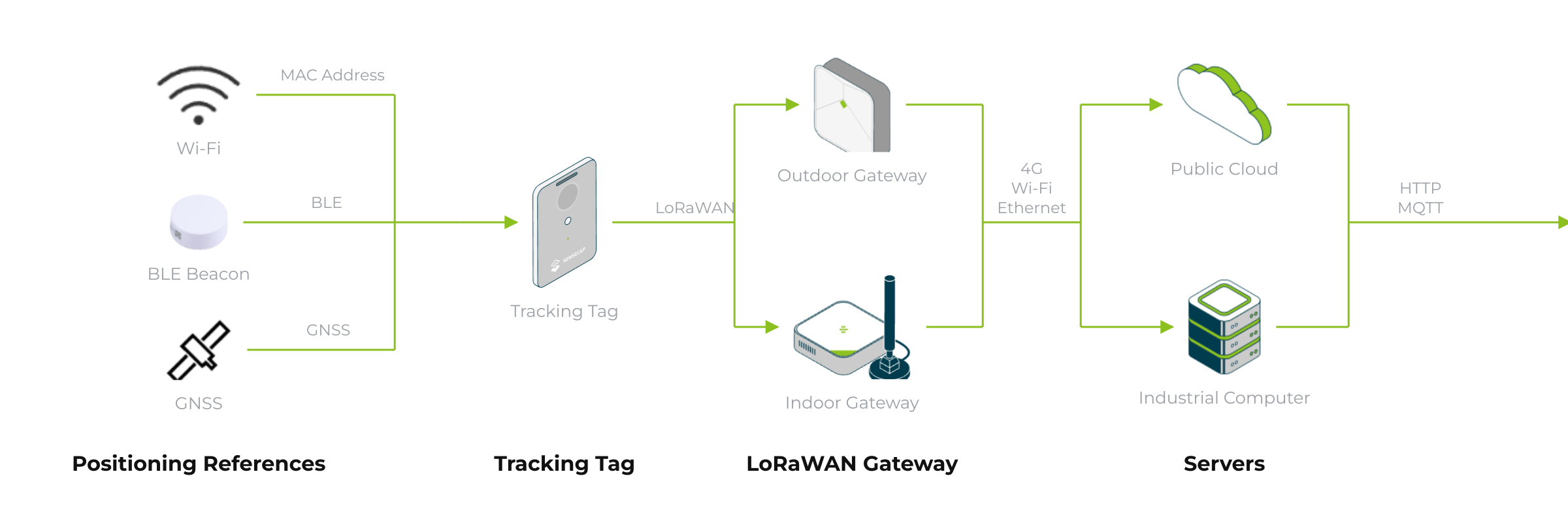

Deploy Architecture
Anchor-tag positioning with gateway backhaul
Four blocks from left to right: positioning references (BLE beacons indoors, GNSS and Wi-Fi outdoors), tracking tags, LoRaWAN gateways (indoor / outdoor) and servers (public cloud or an on-premises industrial computer). T1000 is worn by people and raises SOS; T2000 tracks vehicles and assets. Positions and SOS events reach the server through the LoRaWAN gateway.
Core Advantages
- Hybrid Tracking: Indoor BLE beacons paired with outdoor satellite GNSS
- Dual Terminals: Personnel wear T1000 badges and assets mount T2000
- Gateway Uplink: Coordinates and alarms backhaul through gateways
| Image | Product | Use Case |
|---|---|---|
 | BC03 Indoor Bluetooth Beacon for Tracker | Indoor BLE beacon, battery life over 5 years |
Positioning References
Indoor low-power Bluetooth beacon anchors
This block provides the location reference. Mount BC03 indoors where you need zone or meter-level accuracy: one beacon identifies the room, three give trilateration (about 2–3 m nominal). Battery-powered with over five years of life. For outdoor reference points, use the BC02 Outdoor BLE Beacon (IP68 / IK08).
Core Advantages
- Room Sensing: Single beacon delivers room-level presence awareness
- Trilateration: Three-beacon trilateration reaches 2–3m accuracy
- Long Battery: Ultra-low power battery drives 5+ year nominal life
| Image | Product | Use Case |
|---|---|---|
 | Card Tracker T1000-A | Safety badge, GNSS/WiFi/BLE/Buzzer/SOS, with built-in sensors |
 | Asset Tracker T2000-A | 8000 mAh primary battery, GNSS + BLE, IP67 / tamper alert |
Tracking Tag
Wearable badges and rugged vehicle trackers
This block is what gets located. T1000-A / T1000-B are worn by people and raise SOS on a double press; T2000-A / T2000-B track vehicles and assets on an 8000 mAh primary battery; T2000-C tracks outdoor assets on a solar-charged rechargeable battery.
Core Advantages
- Smart Badge: T1000 badge integrates sensors and SOS alert button
- IP67 Protection: T2000 packs heavy-duty battery with IP67 protection
- Flexible Power: Magnetic charging and solar options fit all workflows
| Image | Product | Use Case |
|---|---|---|
 | Indoor Gateway(SX1302) | LoRaWAN indoor gateway, band by deployment country |
Positioning Gateways
Long-range LoRaWAN covering hundreds of tags
This block returns tracker locations to your platform. One M2 indoor gateway covers a nominal 2 km line-of-sight and 100–200 trackers; data reaches your system via SenseCAP OpenStream or ChirpStack MQTT. The LoRaWAN band depends on the country (EU 868, Americas 915); trackers and gateway must share the band — we confirm it before you order.
Core Advantages
- Kilometre Reach: Line-of-sight transmission reaches several kilometres
- High Capacity: Single gateway reliably handles 100–200 active trackers
- Standard APIs: Standard MQTT and Webhooks connect to custom platforms
FAQ
Battery life depends on the reporting interval: the more often it reports, the shorter it lasts, and the interval is adjustable on the platform. Indoor BC03 beacons have a battery life of over 5 years (Seeed Wiki).
Indoors it follows beacon layout: metre-level positioning uses 3 BC03 beacons per zone (trilateration) for about 2–3 m; if you only need to know which room someone is in, 1 per zone is enough. The accuracy figures are nominal from beacon layout practice and datasheets, not measurements of this solution. Outdoors, satellite positioning (GNSS) with Wi-Fi assistance.
The solution reports only locations and SOS events; it captures no audio or video. Data returns through your own LoRaWAN gateway and can be stored on your own platform. Pair it with internal notice and consent procedures, and follow local regulations.
The recommended mounting height for BC03 BLE beacons is 2.5–3 m, with a typical horizontal spacing of 5–10 m. On a standard 7.5 m grid, this corresponds to approximately one beacon per 56 m². For room-level presence detection, one beacon per room is sufficient; for metre-level trilateration (nominal accuracy of 2–3 m), at least three beacons per zone are required. Outdoor areas are covered by GNSS without beacons. Battery-powered with over 5 years lifespan.
SOS events carry identity and location, return through the LoRaWAN gateway to the platform, and can be pushed to a security-center screen, nurse station or on-duty staff system. The application ingests uplinks from SenseCAP OpenStream or a ChirpStack MQTT topic and connects to your existing security or dispatch system.
Yes; choose the right LoRaWAN band when ordering. Countries use different bands (EU868, US915, AU915, AS923, IN865 and others), each a different SKU of the same device, and trackers and gateways must match. The T2000 series is IP67 rated with tamper alert.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
All three are IP67 rated. T2000-A is the base model with GNSS + BLE and an 8000 mAh disposable battery. T2000-B adds Wi-Fi scanning, with the same 8000 mAh disposable battery. T2000-C has a rechargeable battery continuously charged by its solar panel, for long-term outdoor assets. All three have a tamper alert.
