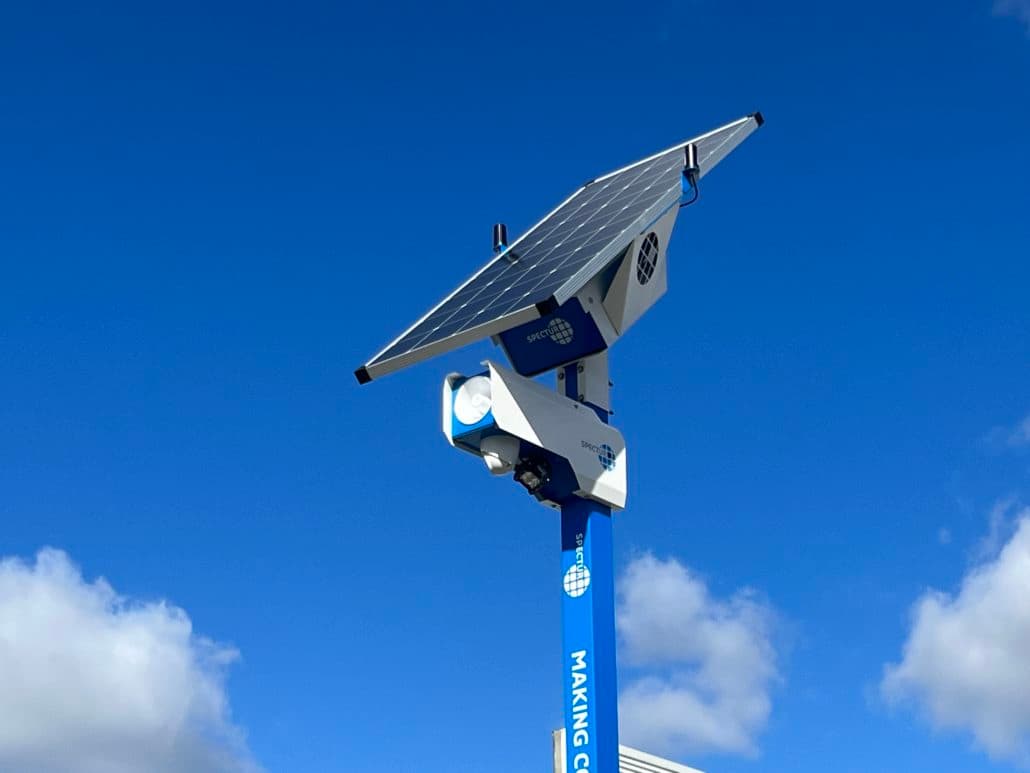

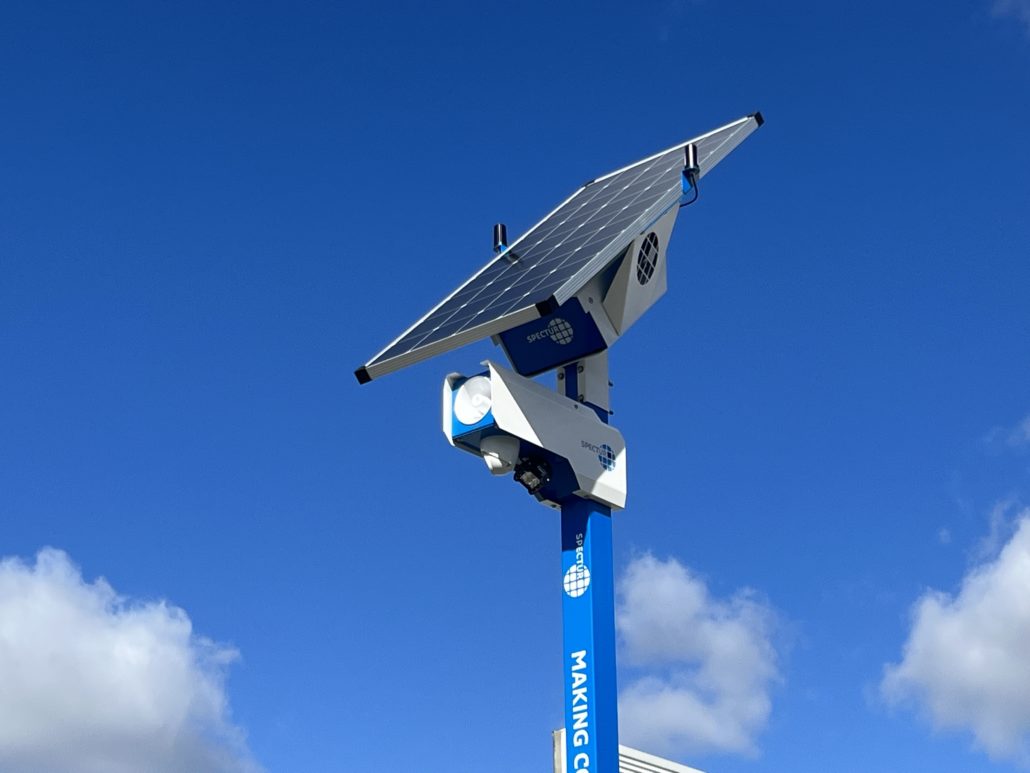

Connecting Cameras to Edge AI for Resident Safety
Stream video from cameras to a local AI box for illegal intrusion and property damage detection.
Campus Safety Management
Silent wearable SOS badge with indoor-outdoor positioning and edge AI surveillance retrofit
An easy-to-deploy campus safety solution: tags handle personnel location and SOS alerts, while edge AI analyzes video anomalies and connects events to existing security platforms.
Indoor/Outdoor Integrated Positioning
BLE beacons indoors, GPS outdoors, all on one map
Privacy-Focused AI Computing
AI runs on campus compute; data never leaves the campus
Easy to Deploy & Maintain
Kilometre-range links mean little indoor wiring
Scenario details
Three core capabilities of campus safety: indoor-outdoor positioning, instant silent SOS alerts, and edge AI video security.
Indoor-Outdoor Tracking
Pain Points & Challenges
Legacy positioning systems suffer from high hardware costs, short battery life requiring frequent recharging, and fragmented indoor/outdoor silos, making seamless cross-domain personnel tracking difficult.
Edge AI Solution
Deploy long-battery-life fusion tracking tags combining GNSS, indoor BLE beacons, and Wi-Fi sniffing, backed by long-range wireless gateways to bridge indoor/outdoor blind spots and reduce operational upkeep.
Core Advantages
- Room-Level Precision: BLE beacon triangulation enables reliable room-level entry detection
- Seamless Roaming: Smoothly transitions to outdoor GNSS on a single unified map
- Ultra-Slim Badge: Card tracker fits lanyards comfortably with magnetic recharge
Room-Level Positioning
Low-power BLE beacons provide room-level positioning within 3 metres in classroom buildings, dormitories, and underground garages.
Outdoor Zone Geofencing
Outdoor tracking switches to GNSS, with geofence alerts for boundary crossings and live personnel distribution.
Slim Wearable Tracking Badge
Staff and at-risk personnel wear a slim badge with long battery life and seamless indoor/outdoor switching.
Campus-level BLE Beacon Positioning System
Ready to deployDouble-Press SOS Reporting
Pain Points & Challenges
During sudden campus emergencies, fragmented reporting channels and lack of real-time coordinate tracking delay security response, missing critical intervention windows.
Edge AI Solution
Personnel carry smart safety badges; double-pressing a physical button transmits an instant, silent alarm with live coordinates over a dedicated long-range network to the central command dashboard.
Core Advantages
- Blind Trigger: Double-click large physical button triggers instant silent distress
- Dedicated Wireless: LoRaWAN private link punches through thick walls and dead zones
- Location Tied: Alarm packet bundles precise coordinates for immediate dispatch
Silent Double-Press SOS
Staff can double-press the physical badge button by touch to silently report their location to the command centre within seconds.
Long-Range Private-Network Alerts
A long-range LoRaWAN network reaches through building blind spots and delivers alerts via local gateways without public internet.
Immediate Location-Linked Response
The alarm immediately shows the person’s live map location and nearby camera view so security staff can respond.
Campus-level BLE Beacon Positioning System
Ready to deployAI Anomaly Detection
Pain Points & Challenges
Traditional manual video surveillance is inefficient, prone to missing events, and has high labor costs. It struggles to provide 24/7 real-time detection and alerts for anomalies like intrusions, falls, or fires, resulting in slow emergency response.
Edge AI Solution
Edge AI models analyze video streams for behavior recognition, detecting intrusions, loitering, falls, or fires in milliseconds and automatically triggering security system integrations.
Core Advantages
- Low Retrofit Cost: Pulls existing RTSP streams directly with zero camera replacement
- Edge Privacy: On-premise inference and recording keeps video strictly within campus
- Direct Alarm Closure: Onboard relays trigger field sirens and strobe lights in milliseconds
Rapid Weapon Detection
Edge AI connects to existing cameras, detects weapon-related activity locally, and triggers access locks to block harm.
Real-Time Perimeter Breach Alerts
Geofenced walls and restricted zones trigger audible and visual deterrence and save snapshots when crossed.
Privacy-Preserving Corridor Fall Detection
Temporal pose analysis detects falls accurately and sends alerts without transmitting raw video, protecting privacy.
Intrusion and Line-Crossing Alerts
Ready to deployDeployment & Hardware Selection
Deploy BLE beacons indoors, LoRaWAN gateways for backhaul, and edge AI compute in the control room.
Not sure which to choose? View Full Selection Guide →
Tracking Target
What do you need to track?
Configure Your Solution
Select tracking target, coverage area, tracker quantity and indoor zones to get a recommended device list; for AI video analytics, see [AI Video Analytics Configurator](/solutions/scenarios/intelligent-video-analytics#bom-configurator).
People Outdoor
T1000 personnel badge + LoRaWAN gateway; suitable for outdoor patrol, campus sports fields, facility inspection, and other outdoor positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - People Indoor
T1000 personnel badge + BLE beacons + LoRaWAN gateway; suitable for hospitals, offices, teaching buildings, and other indoor zone positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - People Indoor+Outdoor
T1000 personnel badge + BLE beacons + LoRaWAN gateway; suitable for continuous positioning across buildings, campus, and outdoor areas
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T1000-A Tracker trackers 114993073 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - Vehicle Outdoor
T2000 asset tracker + LoRaWAN gateway; suitable for fleet vehicles, construction vehicles, and outdoor asset positioning
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T2000-A Asset Tracker trackers 100082900 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 - Vehicle Indoor+Outdoor
T2000 asset tracker + BLE beacons + LoRaWAN gateway; suitable for underground parking, warehouses, campus roads, and other mixed zones
硬件/物料名称 数量 型号/SKU 说明 SenseCAP T2000-A Asset Tracker trackers 100082900 - SenseCAP BC03 BLE Beacon max(3, ceil(indoor_area / 56)) 100085893 - SenseCAP M2 LoRaWAN Gateway (frequency band by deployment country) max(1, ceil(trackers / 100)) 114992981 -

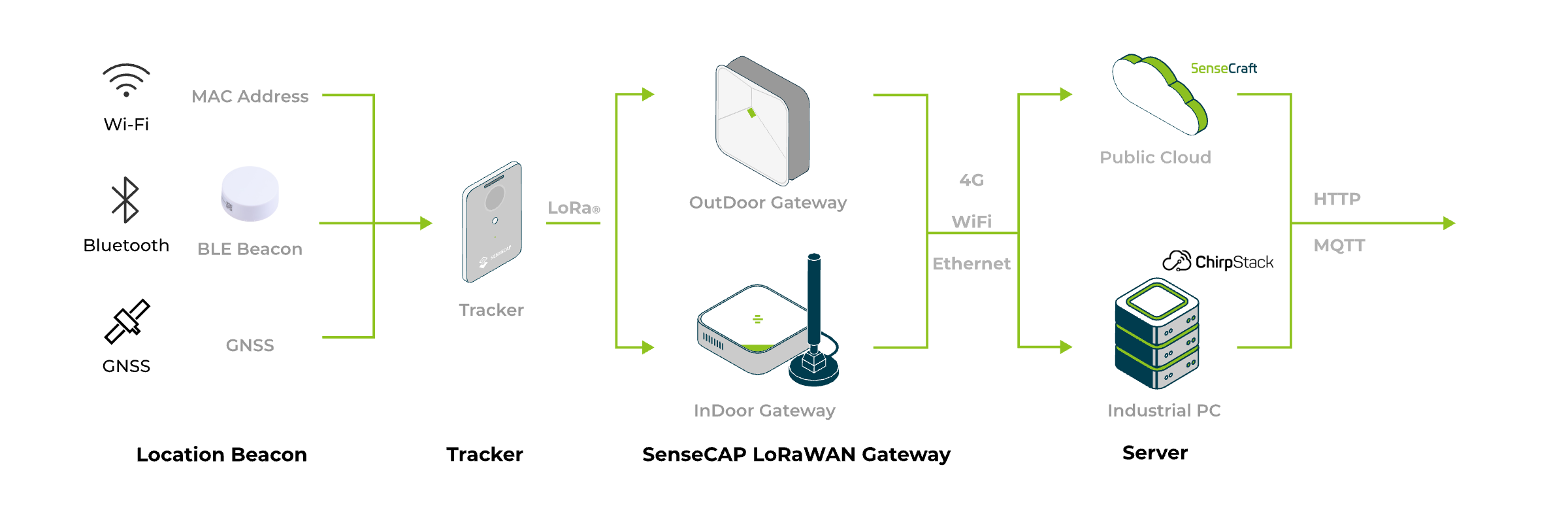

Deployment Architecture
Unified indoor-outdoor positioning with edge security loop
Staff wear T1000 card trackers receiving BLE beacon signals indoors and GNSS outdoors; data streams via LoRaWAN gateways to control rooms while video is analyzed locally.
Core Advantages
- Seamless Roaming: Smooth handoff between indoor BLE and outdoor GNSS on a single map
- Zero Blind Spots: LoRaWAN private network penetrates deep indoor structures
- Local Security: All video streams and trajectories stay on-premise for privacy
| Image | Product | Core Positioning | Deployment & Role |
|---|---|---|---|
 | SenseCAP BC03 BLE Beacon | Bluetooth Location Beacon | Dense grid deployment in hallways, stairs & rooms as indoor location anchors |
 | SenseCAP M2 Indoor Gateway | Indoor LoRaWAN Gateway | Ceiling or equipment-room mount per floor, aggregating badge alerts via Ethernet/Wi-Fi/4G |
Beacons & Gateways
Low-power BLE beacons and gateway selection
BC03 beacons install indoors without wiring; paired with SenseCAP M2 gateways for long-range wireless backhaul.
Core Advantages
- Room-Level: Single beacon enables reliable room presence and entry detection
- Meter-Level: Multi-beacon triangulation achieves typical 2–3 m accuracy
- 5-Year Battery: Ultra-low-power design runs 5+ years maintenance-free
| Image | Product | Core Positioning | Positioning | IP Rating |
|---|---|---|---|---|
 | SenseCAP T1000 Card Tracker | Card Tracker | GPS + Wi-Fi + BLE Indoor/Outdoor | IP67 |
Wearable Tracking Badges
Wearable badge trackers with instant SOS
T1000-A tracker badge for staff with blind-operable SOS button; built-in accelerometer, BLE, and GNSS modules.
Core Advantages
- Badge Form: Ultra-slim card profile fits lanyards comfortably for all-day wear
- Dual Mode: Sniffs indoor BLE beacons and switches to outdoor GNSS automatically
- Instant SOS: Double-click physical button triggers instant panic alarm with location
| Image | Product | Core Positioning | AI Performance (INT8) | Video Channels |
|---|---|---|---|---|
 | reCamera Smart Camera | All-in-One AI Camera | 1 TOPS | 1 ch internal |

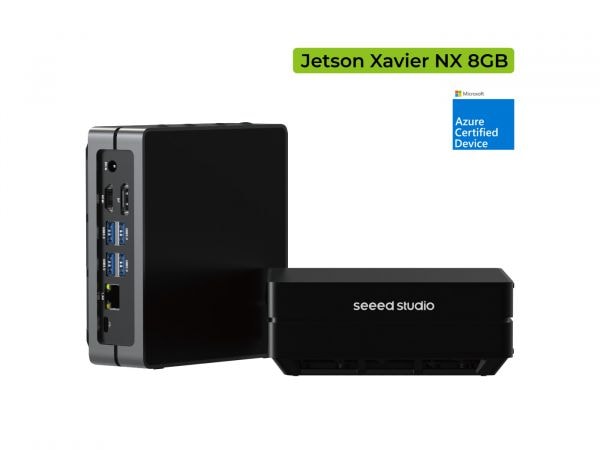

 | reComputer J30 Series Edge Host | Edge Mid-Compute Box | 20–40 TOPS | 4–8 ch |
 | reComputer J40 Series Edge Host | Edge High-Compute Box | 40–100 TOPS | 8–16 ch |
 | reComputer R22 Industrial Edge Host | Industrial Edge AI IPC | 26 TOPS (Hailo-8) | 4–8 ch |
Edge AI Compute
Multi-stream video AI and edge compute selection
Deployed in the control room; analyzes 4–16 RTSP video streams concurrently with direct relay alarms.
Core Advantages
- Retrofit Cost: Pulls existing RTSP streams directly with zero camera replacement
- Local Privacy: On-premise inference and recording eliminates leakage risks
- Direct Alarm: Onboard relays drive sirens instantly for sub-second field closure
Success Cases
FAQ
The solution is restrained on privacy: badges report only zone-level location and double-press SOS events — no audio, no filming. Data stays on the campus's own network, kept entirely on the school's or company's platform with no third-party cloud involved. Pair rollout with a clear informed-notice process: a safety device that acts only in emergencies.
The two event types differ. Double-press SOS alarms are human-triggered, so false alarms are not inherent. AI video detection (e.g. weapon or intrusion recognition) analyzes locally in real time, with false positives controlled via detection zones, confidence thresholds, and review workflows. Models keep tuning on on-site samples, so false alarms decline over time; early on, keep human review and feed false positives back as labeled data.
The solution provides complete API interfaces: positioning, alarms, and AI events can all be pushed via standard interfaces to your existing security platform or dispatch system, linking door control, broadcast, and screens. No rip-and-replace — it adds a personnel-positioning + active-alarm layer on top of your current security stack.
The cost structure is clear and easy to estimate: personnel badges per headcount; indoor Bluetooth beacons per room/zone that needs positioning (battery-powered, wiring-free, low install cost); LoRaWAN gateways with kilometer coverage — one or two per campus; plus platform-integration services. Finer positioning granularity means more beacons, and key areas can be phased in first.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
