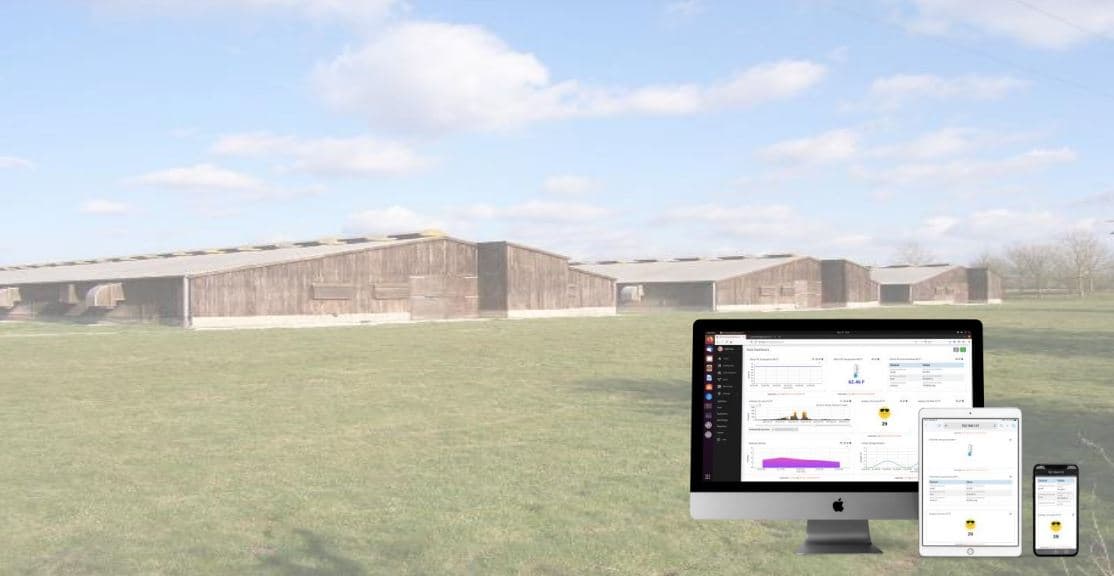

Full-cycle Pig Farming Environment Live Stream
Get Sensecap sensor data via API to display pig farming environment data in real-time during a live stream.
Smart Livestock Climate Control
In-Barn Gas Threshold Automated Ventilation
A livestock environmental control solution prioritizing rugged on-site sensing and local closed-loop actuation over cloud dependency during outages.
Industrial Rugged Sensors
IP66 rated and -40 to 85°C tolerance for high ammonia and moisture environments
Edge AI Video Inference
Edge AI boxes run 20-100 TOPS locally so video streams never leave the farm
Long Battery Lifespan
SenseCAP probes feature built-in 19Ah Li-SOCl2 batteries enabling 3-5 years continuous operation without wiring
Scenario details
Three core capabilities of smart livestock farming: barn noxious gas sensing, automated equipment control, and AI livestock monitoring.

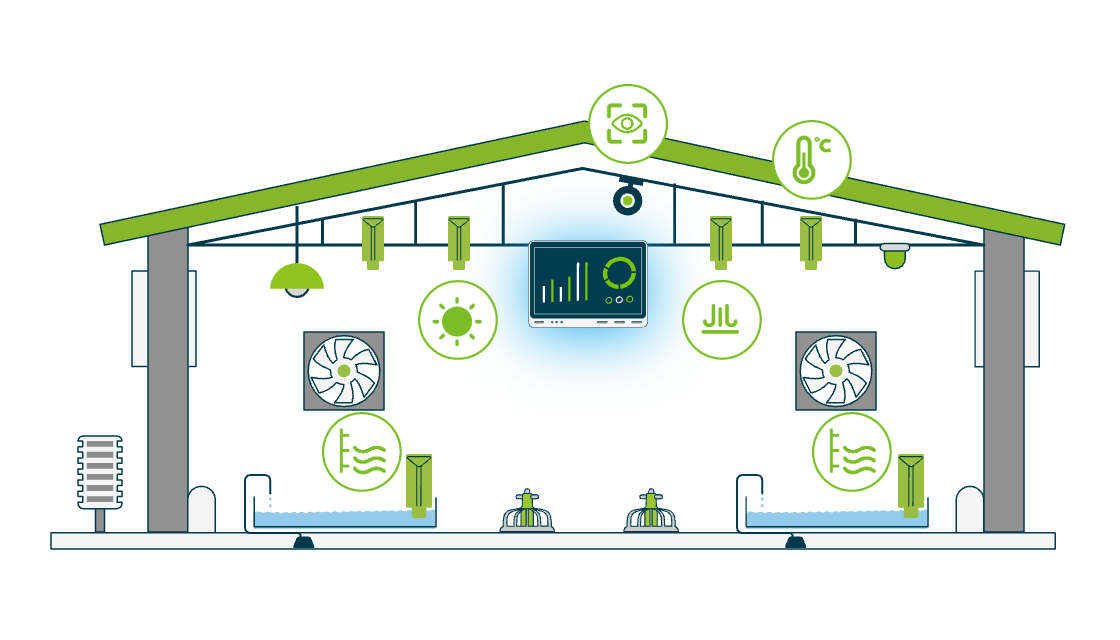

Environment Monitoring
Pain Points & Challenges
Manual barn walkthroughs suffer from low inspection frequency and uneven coverage; rapid temperature swings or ammonia buildup go unnoticed, easily triggering respiratory diseases and flock stress.
Edge AI Solution
Deploy industrial rugged sensors and SenseCAP S2100 loggers to monitor temperature, humidity, NH3 (0-100ppm ±5%), H2S, and CO2, transmitting data 2-5km over LoRaWAN through multiple barn walls for immediate alarm triggers.
Core Advantages
- High Accuracy: Industrial electrochemical probe monitors NH3 0-100ppm ±5% with high corrosion resistance
- Penetration: LoRaWAN 2-5km line-of-sight reliably penetrates multiple barn walls without wiring
- Long Battery: Built-in 19Ah Li-SOCl2 battery delivers 3-5 years runtime, minimizing maintenance
Barn Microclimate & Gas Sensing
SenseCAP industrial electrochemical probe precisely measures NH3 (0-100ppm ±5%) and H2S under high humidity and corrosion.
Multi-level Threshold Alerting
Environmental sensors monitor in-barn temperature, humidity, and CO2, tracking ventilation and heating conditions 24/7.

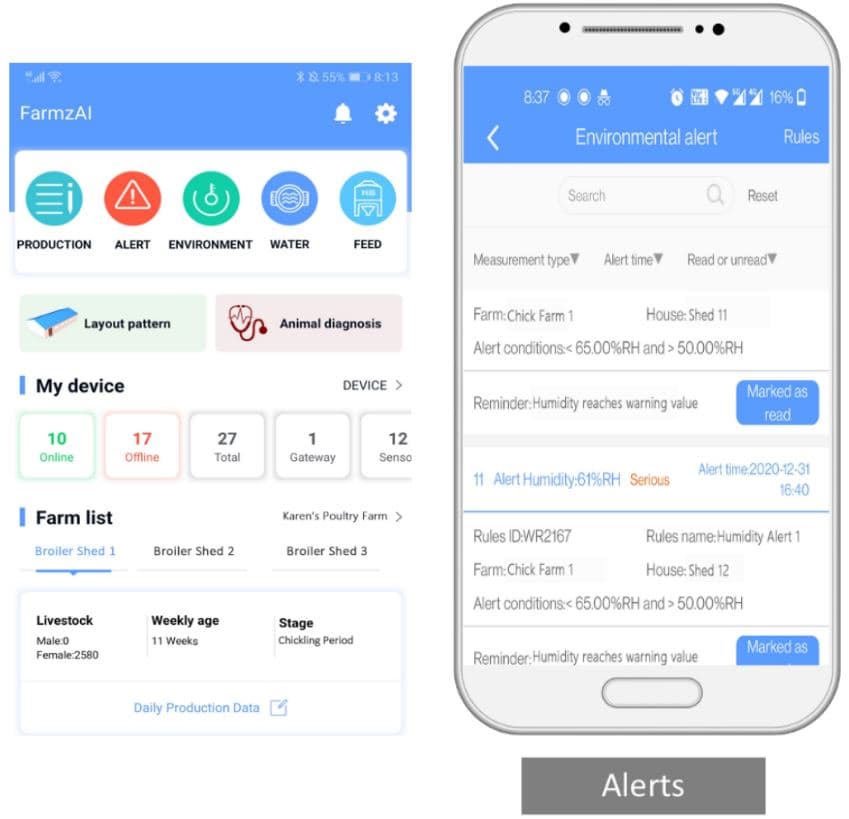

Multi-Barn Central Dashboard
SenseCAP S2100 loggers and gateways provide heartbeat monitoring, triggering multi-channel alarms upon power or link failure.
Agricultural Environment Monitoring
Ready to deployAutomated Control
Pain Points & Challenges
Operators cannot visually detect toxic gas spikes or subtle climate drift, and legacy equipment lacks automated closed-loop logic; delayed ventilation leads to irreversible flock mortality.
Edge AI Solution
Industrial edge gateways interface directly with existing ventilation fans and cooling pads via Modbus RTU or dry-contact relays, executing closed-loop climate strategies on-site even when the internet is down.
Core Advantages
- Direct Relay: Onboard dry contact relays and Modbus RTU directly control fan distribution boxes
- Local Logic: Control rules run on the local edge gateway to prevent barn suffocation during outages
- Graded Actuation: Staged activation of side and roof fans according to climate gradients

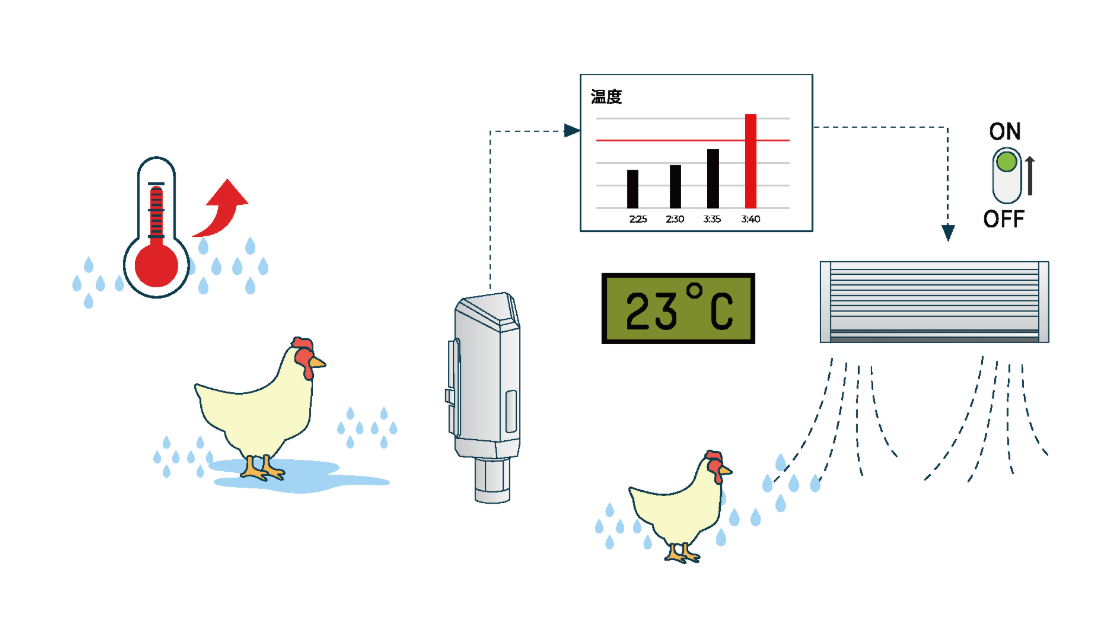

Smart Fan & Wet Curtain Interlock
Edge gateways drive fans and cooling pads via Modbus RTU and relay dry contacts, responding in milliseconds.

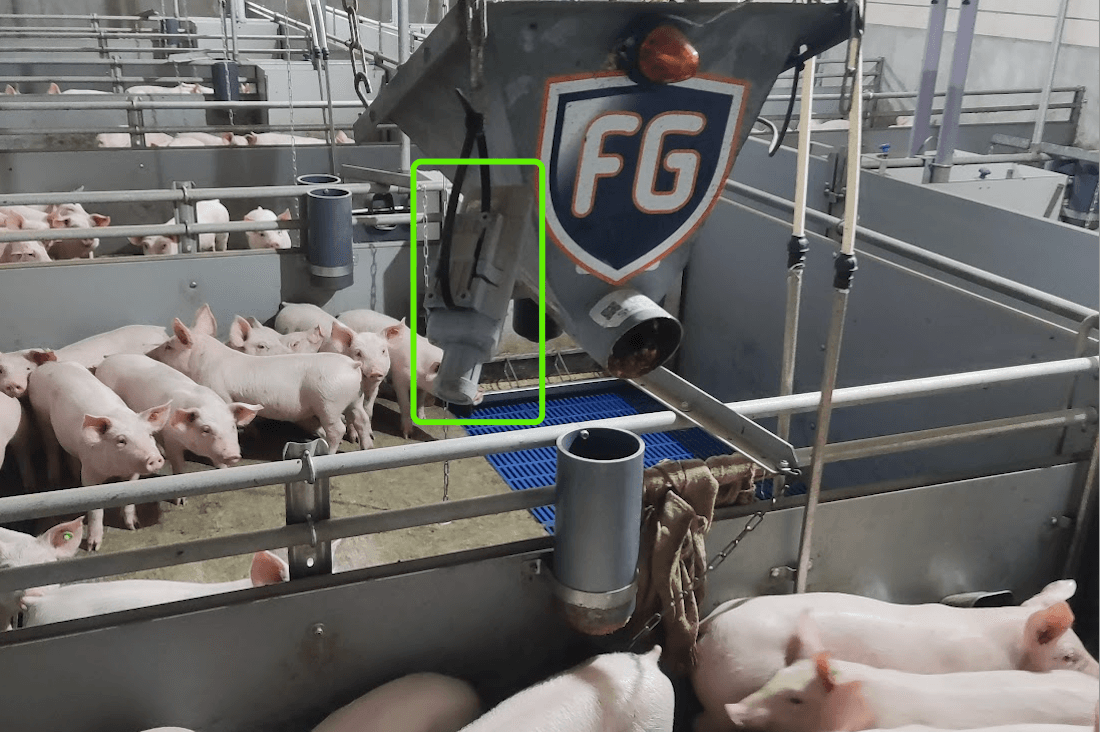

Automated Feeding & Water Metering
Stage fan and cooling pad activation based on temperature and ammonia gradients to prevent livestock thermal stress.
Edge Offline Autonomous Assurance
When internet is disconnected, local gateway logic keeps running, preserving closed-loop ventilation to prevent suffocation.

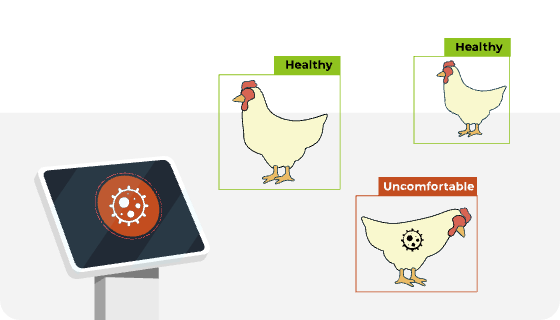

AI Health Monitoring
Pain Points & Challenges
In high-density livestock farming, manual inspection struggles to identify early symptoms in individual animals; delayed isolation during the incubation stage accelerates contagion and increases mortality.
Edge AI Solution
Deploy edge AI vision systems for 24/7 continuous analysis of activity levels, lying postures, gaits, and feeding frequency, flagging abnormal individuals for early diagnosis and timely intervention.
Core Advantages
- Zero Hardware Rework: Hooks into existing RTSP CCTV cameras without re-cabling
- Local Video AI: Detects falls, crowding, and isolation locally without cloud upload
- Quantitative Insights: Measures feeding frequency and vitality to guide early intervention
Behavior Tracking & Posture Analytics
Edge AI tracks individual motion, rest patterns, and gait features in real time for objective welfare scoring.
Feeding Frequency & Activity Metrics
Automatically aggregate feeding times and clustering patterns to detect appetite loss and herd dynamic shifts.
Anomalous Behavior Auto-Alerting
Instantly flag isolation, collapse, or prolonged immobility to minimize response time for veterinary care.
Aquaculture Crayfish Behavior & Fighting Recognition
Ready to deployDeployment & Hardware Selection
Barn sensors require IP66 and ammonia corrosion resistance; relay gateways control fans; edge hosts scale by video channels.
Not sure which to choose? View Full Selection Guide →
Uplink
LoRaWAN private networks are recommended for dense multi-barn farms; 4G cloud uplink suits standalone or remote barns without gateways.
Configure Your Solution
Pick comms & power to generate a BOM; for AI livestock health analytics, see [AI Video Analytics Configurator](/solutions/scenarios/intelligent-video-analytics#bom-configurator).
Livestock Barn Climate & Gas Monitoring
In-barn temperature, humidity, CO₂ and noxious gas monitoring with edge gateway control and 4G connectivity
硬件/物料名称 数量 型号/SKU 说明 SenseCAP S2103 LoRaWAN CO₂ / Temperature & Humidity Sensor 1 114992869 - SenseCAP S2105 LoRaWAN Soil Sensor (moisture, temperature, EC) 1 114992871 - SenseCAP M2 Indoor LoRaWAN Gateway 1 114992982 -

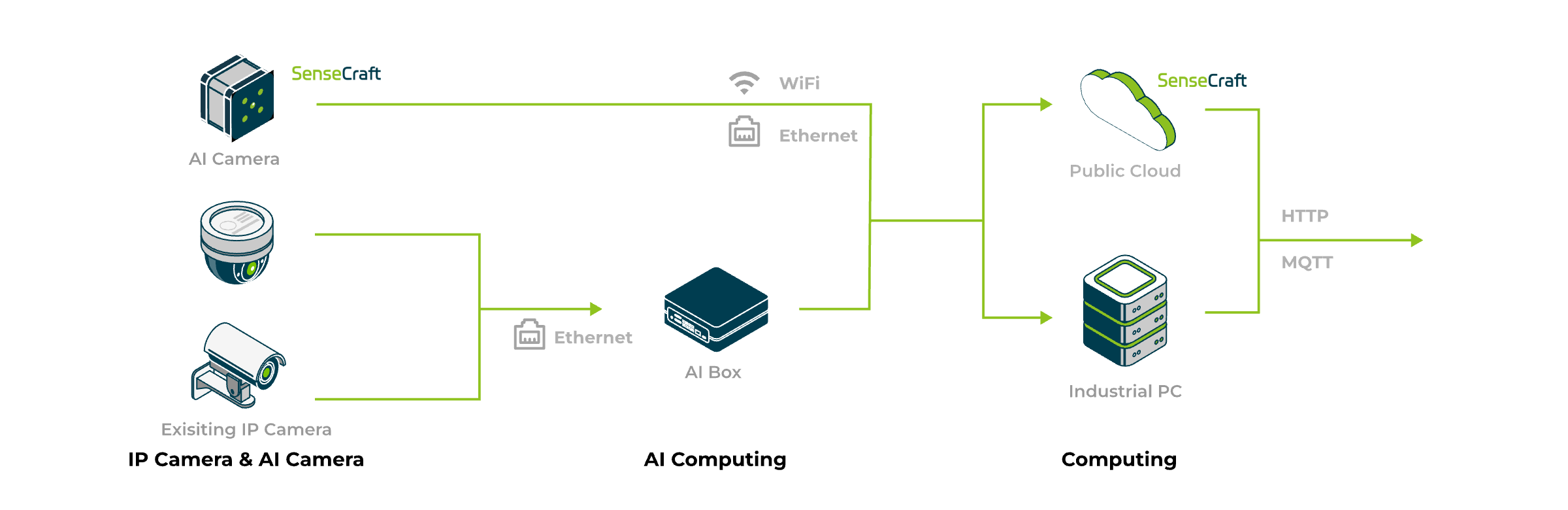

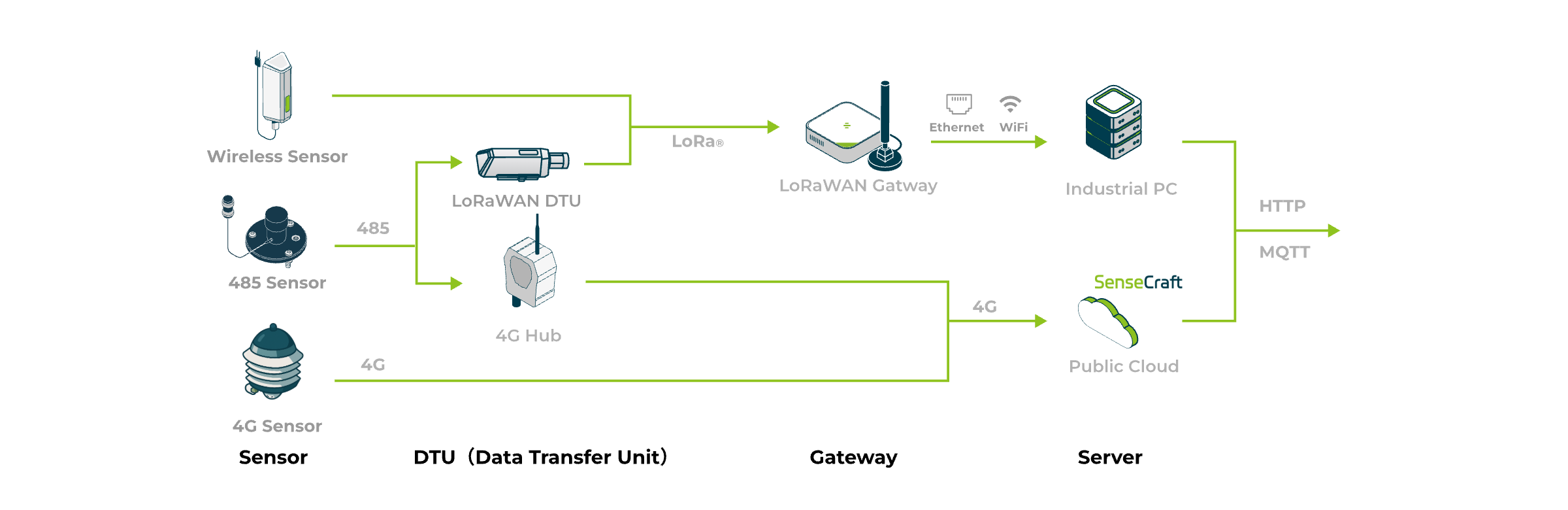

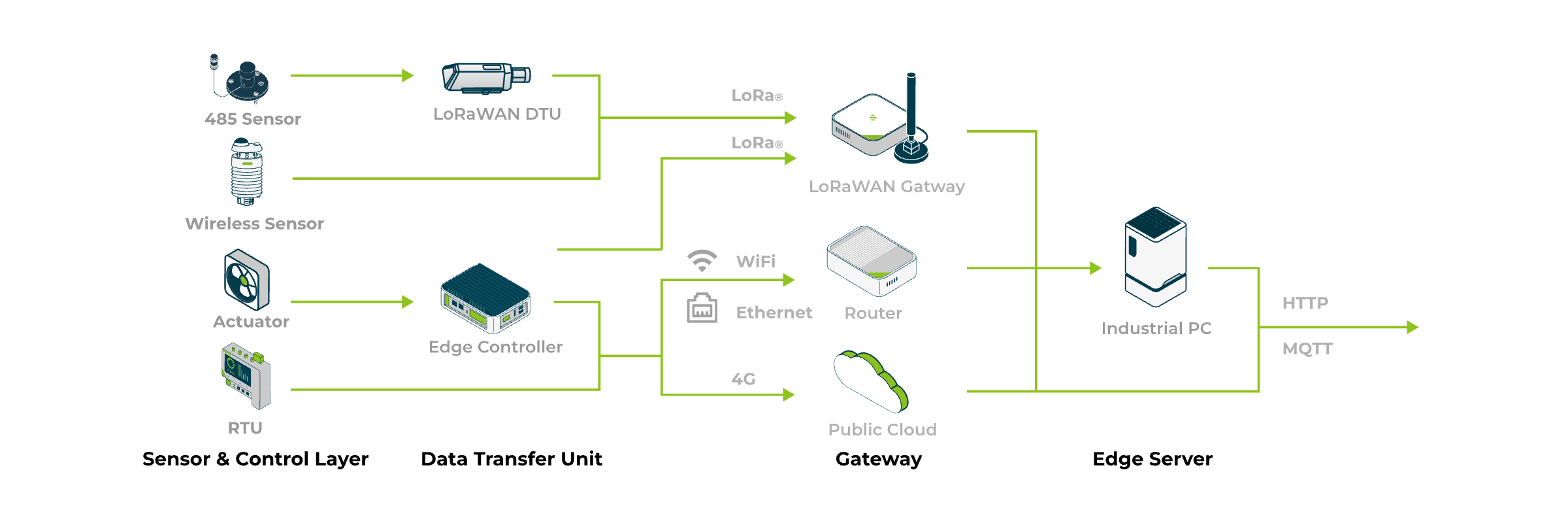

Deployment Architecture

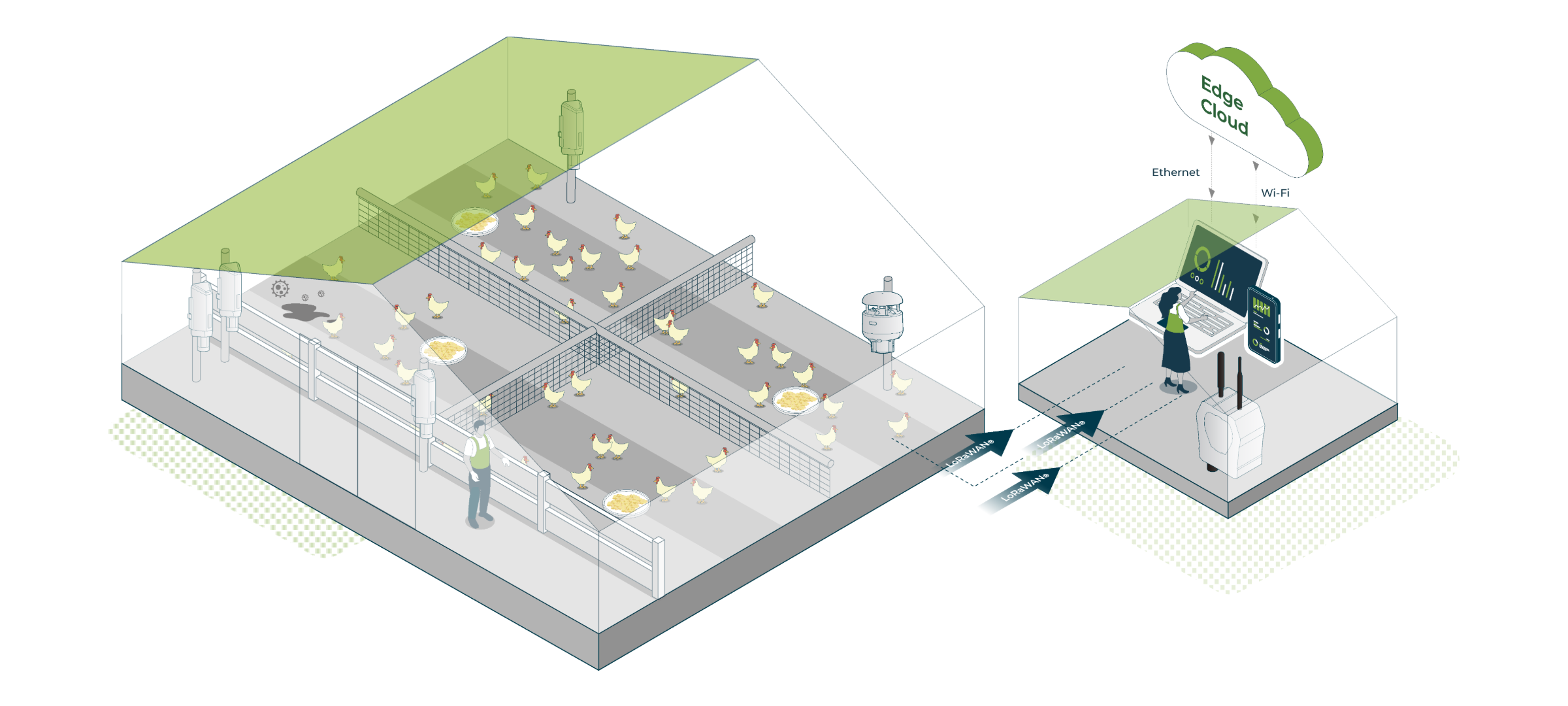

Barn wireless sensing and on-premise edge intelligence
Deploy rugged NH3 (0-100ppm) and climate sensors linked via LoRaWAN to edge gateways actuating fans via Modbus RTU / relays, while reComputer runs local video analytics.
Core Advantages
- Ammonia Proof: Electrochemical probe resists NH3 corrosion with IP66 rugged enclosure
- Outage Safety: Edge gateways run closed-loop logic locally, ensuring fan operation without internet
- Local Vision: reComputer provides 20-100 TOPS for on-premise livestock counting and health checks
| Image | Product | Measurements | Connectivity | IP Rating |
|---|---|---|---|---|
 | S2106 pH Sensor | pH 0~14 pH | LoRaWAN, BLE | IP66 |
 | S2108 Soil Moisture, Temperature and Pore EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C pore_EC 0~20 ms/cm (Bulk), 0~32 ms/cm (Pore) | LoRaWAN, BLE | IP66 |
 | S2101 Air Temperature and Humidity Sensor | temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2102 Light Intensity Sensor | light intensity 0~160000 lux | LoRaWAN, BLE | IP66 |
 | S2103 CO2, Temperature, and Humidity Sensor | CO2 400~10000ppm temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2105 Soil Moisture, Temperature and EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C EC 0~23 dS/m | LoRaWAN, BLE | IP66 |
 | S2107 Temperature Sensor with PT1000 | temperature -50~300°C | LoRaWAN | IP66 |
 | Industrial-grade MODBUS RS485 NH3 Sensor - with Waterproof Aviation Connector | NH3 0~100 ppm temperature -40~50°C humidity 10~95%RH | MODBUS, RS485 | IP65 |
 | Industrial-grade MODBUS RS485 H2S Sensor - with Waterproof Aviation Connector | H2S 0~100 ppm (minimum detection limit: 1 ppm) temperature -40~85°C humidity 10~95%RH (non-condensing) | MODBUS, RS485 | IP65 |
 | CO2, Temperature and Humidity Sensor with RS485&SDI-12, with Waterproof Aviation Connector | CO2 0~10000 ppm temperature -40~85°C humidity 0~100%RH | RS485, SDI-12 | IP65 |
Barn Sensors
Barn toxic gas and climate sensor selection
SenseCAP S2100 and industrial electrochemical probes for NH3 (0-100ppm ±5%), H2S, and temp/humidity/CO2.
Core Advantages
- Gas Sensing: Electrochemical probe measures NH3 0-100ppm ±5% to catch toxic gas buildups
- Corrosion Proof: Breathable filter membrane shields against moisture and manure corrosion
- 3-5 Yr Battery: Built-in 19Ah Li-SOCl2 battery delivers 3-5 years maintenance-free operation
| Image | Product | Core Positioning | Uplink |
|---|---|---|---|
 | S2100 Data Logger | Sensor Data Logger | LoRaWAN |
 | SenseCAP M2 Indoor Gateway | Indoor LoRaWAN Gateway | Ethernet / Wi-Fi / 4G |
 | Sensor Hub 4G Data Logger | 4G Sensor Hub | 4G Cellular |
 | SenseCAP Outdoor Gateway | Outdoor Rugged Gateway | Ethernet / 4G |
 | reComputer R1225 Edge Gateway | Industrial Control Gateway | Dual GbE / 4G |
Control Gateways & Loggers
Climate controller interface and edge autonomous loop
Industrial edge gateways equipped with RS485 and relay dry contacts to run ventilation logic via Modbus RTU.
Core Advantages
- Dry Contacts: Onboard relay dry contacts wire directly into fan cabinets for millisecond actuation
- Offline Autonomy: Control rules run locally on the gateway, preventing barn suffocation if offline
- Bus Compatibility: Standard Modbus RTU interfaces connect seamlessly to legacy control cabinets
| Image | Product | Core Positioning | AI Performance (INT8) | Video Channels |
|---|---|---|---|---|
 | reCamera Smart Camera | All-in-One AI Camera | 1 TOPS | 1 ch internal |
 | reComputer J30 Series Edge Host | Edge Mid-Compute Box | 20–40 TOPS | 2–4 ch |
 | reComputer J40 Series Edge Host | Edge High-Compute Box | 40–100 TOPS | 4–8 ch |

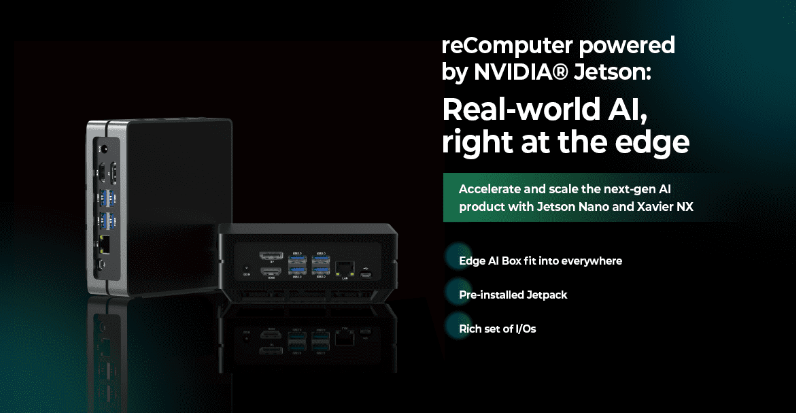

Edge AI Video Compute
CCTV reuse and edge vision livestock counting
Ingest 2-8 RTSP video streams into reComputer edge boxes for on-site livestock counting and activity tracking.
Core Advantages
- Camera Reuse: Connect existing RTSP cameras directly, eliminating duplicate wiring and camera costs
- Data Privacy: Video streams are analyzed and stored entirely on-premise, keeping farm data private
- Fast Alerting: Detect stampedes, crowding, and recumbency in milliseconds for prompt intervention

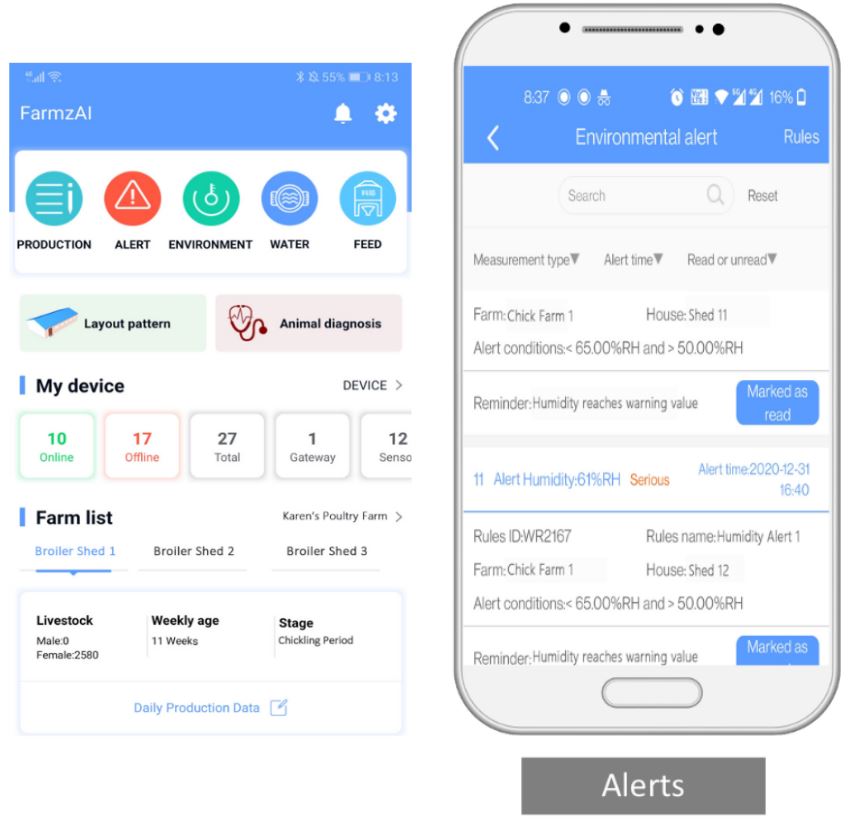

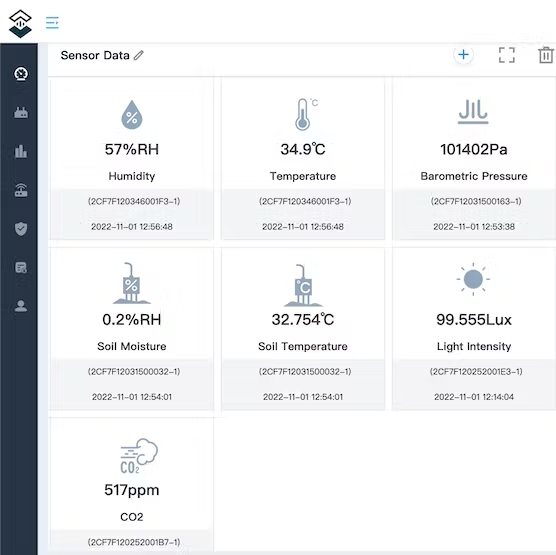

Success Cases
FAQ
The solution uses SenseCAP industrial sensors with IP66 protection, -40 to 85°C operating range, and built-in 19Ah Li-SOCl2 battery for 3-5 years runtime. NH3 (0-100ppm ±5%) and H2S sensors use anti-corrosion electrochemical probes and breathable filters against barn moisture and manure. Includes 1-year warranty and support.
In-barn data collection does not rely on broadband: SenseCAP sensors transmit 2-5km line-of-sight over LoRaWAN, penetrating multiple walls to gateways. Local gateways directly actuate fans and cooling pads via Modbus RTU or relays on-site even during outages. Data export supports 4G cellular or local LAN deployment.
The solution scales per barn: for wireless environmental telemetry only, deploy 1-2 SenseCAP S2100 sensors paired with a SenseCAP M2 gateway. For automated ventilation control, select the all-in-one reComputer R1225 industrial controller—which integrates a LoRaWAN concentrator and 3x RS485 ports into a single unit to execute local Modbus-RTU closed loops. Scale up with AI cameras as needed.
Yes. Sensor data and alert events are exposed via open API / MQTT interfaces and can feed straight into your existing livestock-management system, adding a real-time environmental layer; or run standalone on the SenseCAP data platform first and integrate later.

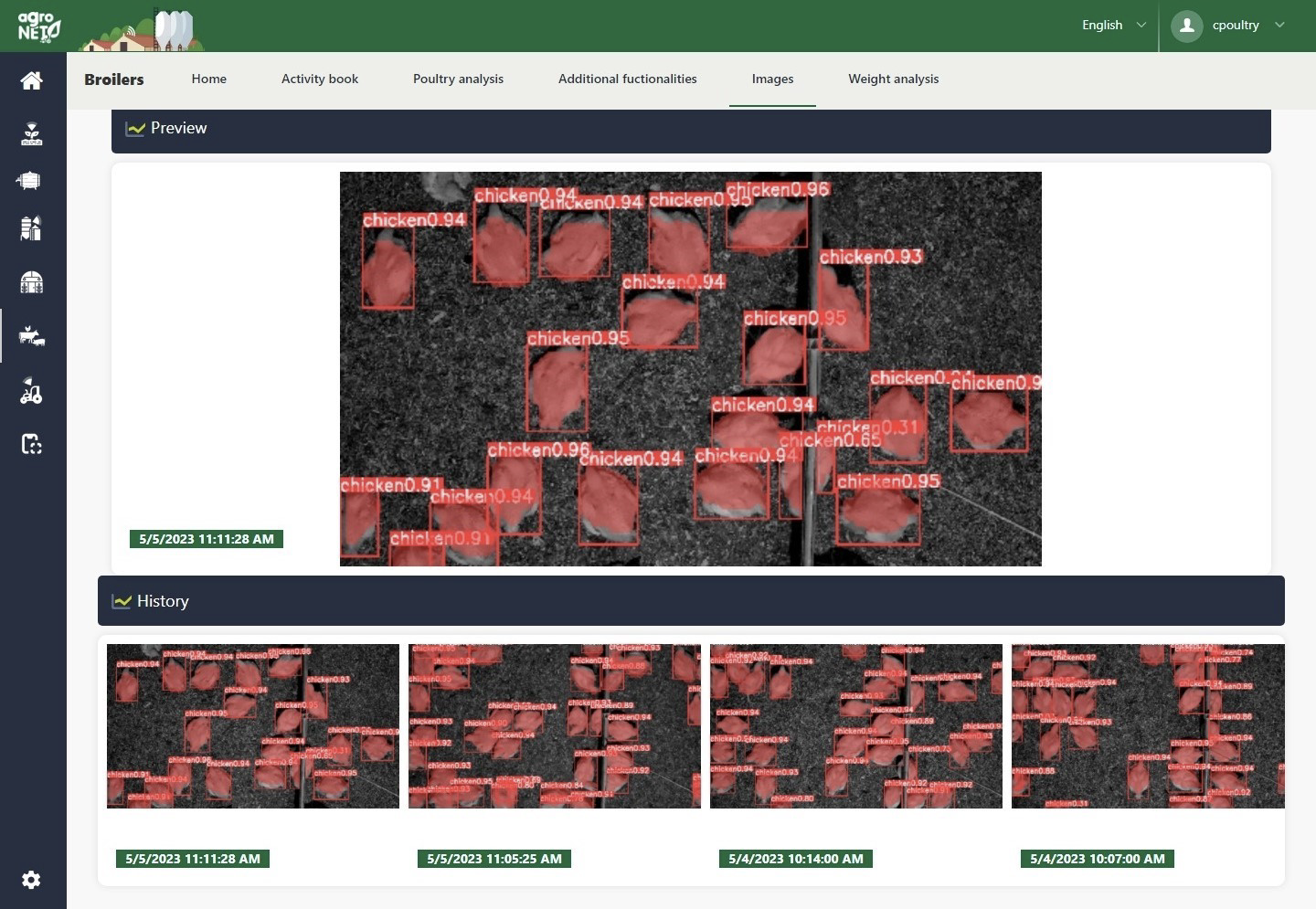

The success cases on this page are real projects: a poultry farm combining sensors with AI video analytics cut mortality by up to 20% and improved feed conversion by about 2%; a pig farm used edge AI boxes for behavior analysis at 98% lower cost than a cloud-GPU setup. The core logic: a stable environment plus early anomaly detection means fewer losses.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
