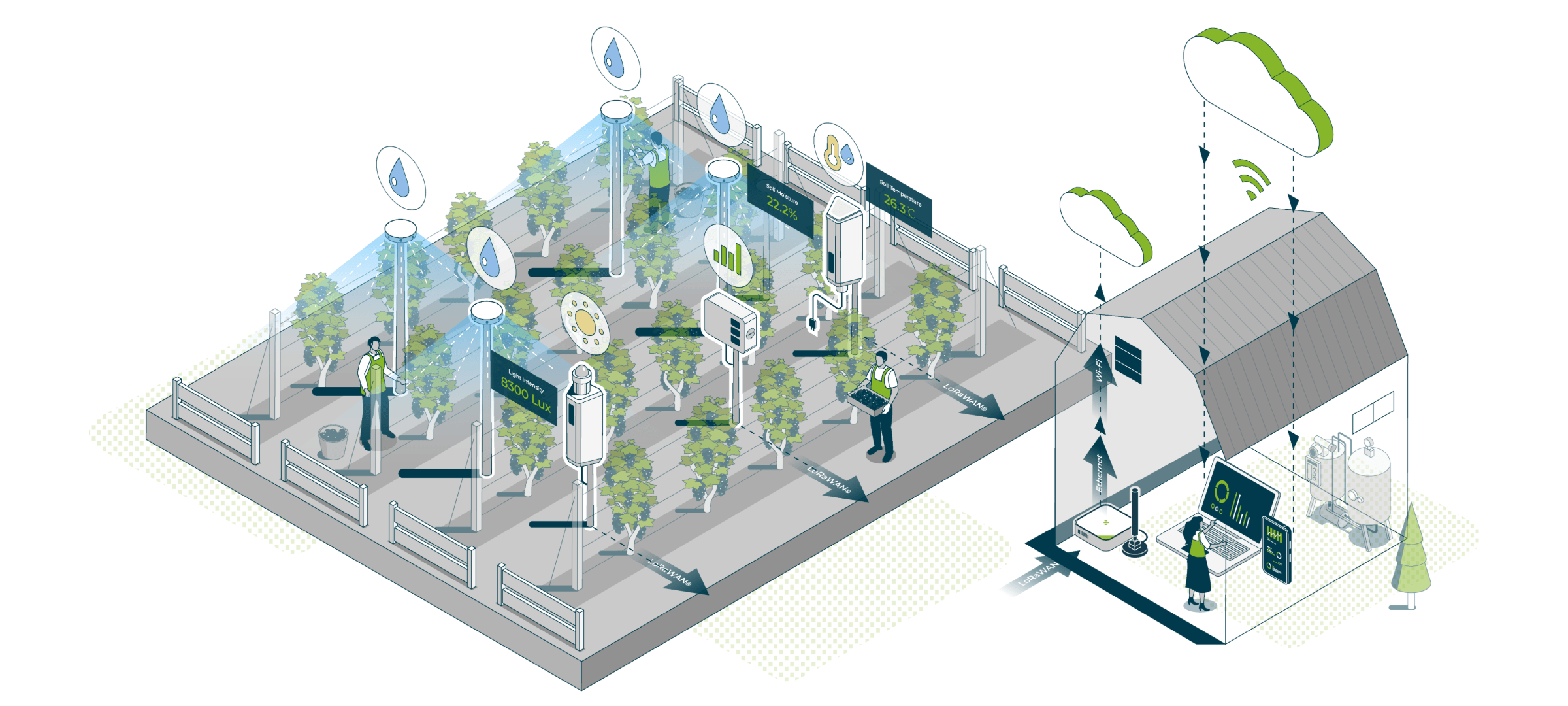

Quickly Deployable Smart Greenhouse Monitoring System with Sensors
Low-power technology lowers the deployment barrier. Simple configuration on the platform enables an easily scalable and deployable greenhouse monitoring system.
Smart Agriculture Environmental Sensing
Long-Range Soil and Weather Telemetry
An agricultural environmental sensing solution prioritizing low-power long-range telemetry and solar autonomy over field cabling infrastructure.
Weather-Resistant Sensors
IP66 rated and -40 to 85°C tolerance for UV, torrential rain, and dust
Long-Range Dual Backhaul
LoRaWAN 10km line-of-sight range paired with 4G cellular direct-to-cloud backhaul
15-Day Solar Autonomy
SenseCAP weather station solar power system sustains 15 consecutive rainy days; multi-year battery life
Scenario details
Three core aspects of smart agriculture sensing: field microclimate, soil moisture & fertility, and greenhouse control.
Field Microclimate
Pain Points & Challenges
Broad regional forecasts fail to reflect localized farmland microclimates. Without real-time field data, irrigation, fertilization, and crop protection rely on subjective estimates, causing input waste and heightened exposure to sudden weather extremes.
Edge AI Solution

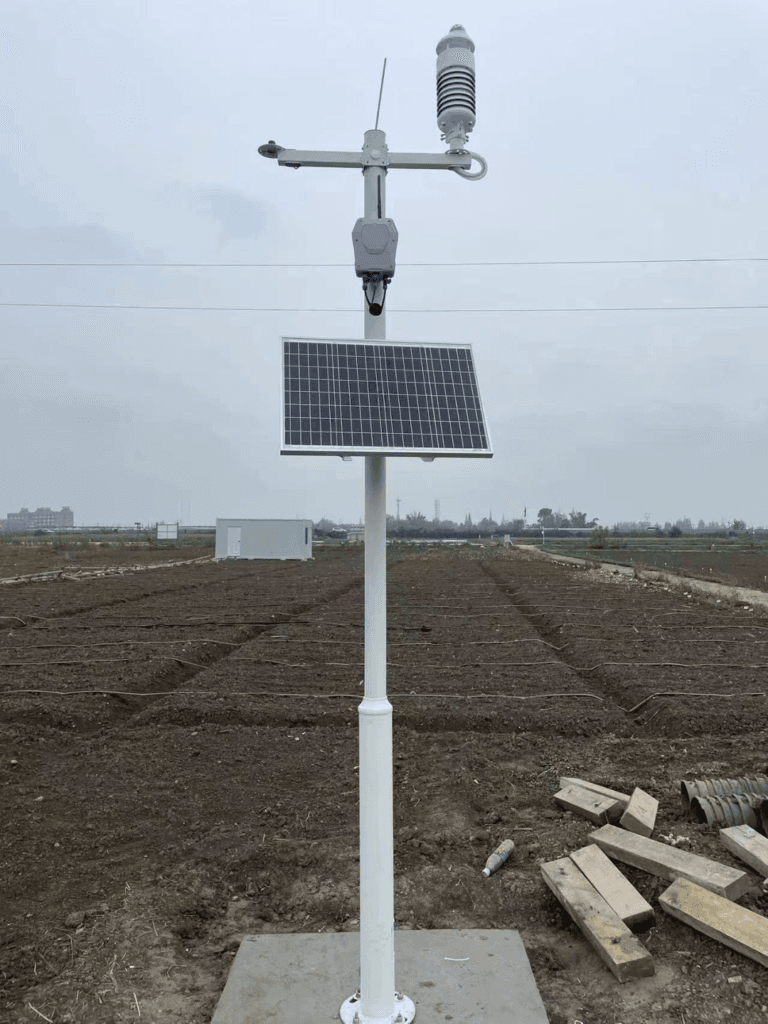

Deploy SenseCAP integrated weather stations to measure temperature, humidity, rainfall, wind speed/direction, and solar radiation over 10km LoRaWAN links for disaster warning and crop decisions.
Core Advantages
- All-in-One: Single mast integrates wind, rainfall, solar radiation, temp, humidity, and barometric pressure
- 10km Range: LoRaWAN provides 10km line-of-sight range paired with 4G cellular dual backhaul
- Ruggedized: IP66 industrial enclosure with lightning protection operates across -40 to 85°C
Continuous Field Microclimate Sensing
SenseCAP weather station continuously captures temperature, humidity, light, rain, and wind for field microclimate baseline.
Weather Anomaly Alerts
Gale wind and heavy rainfall threshold alerts notify operators immediately to prevent damage.
Farming Decision Support
Accumulate thermal time and sunlight history to guide sowing schedules, fertilization, and drone spraying.
Agricultural Environment Monitoring

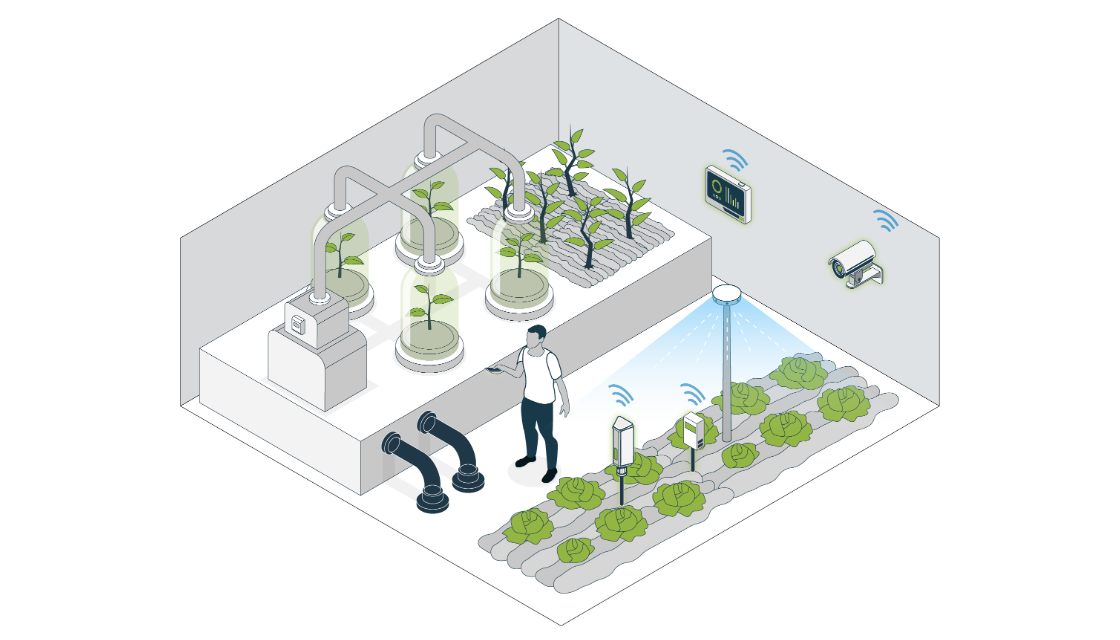

Ready to deploySoil & Fertility Sensing
Pain Points & Challenges
Subsurface soil dynamics are invisible to the eye. Traditional guesswork in watering and feeding causes over- or under-application, accelerating soil compaction and salinization while limiting crop yield and quality.
Edge AI Solution
Deploy SenseCAP industrial soil sensors in the root zone to measure volumetric water content (0-100% ±3%), temperature, and electrical conductivity (0-20000 µS/cm) for precision irrigation.
Core Advantages
- Precision Sensing: Accurately measures soil VWC 0-100% ±3% and EC 0-20000 µS/cm
- Corrosion Resistant: Stainless steel probes resist soil acidity and salinity without drift for years
- Automated Irrigation: Soil data triggers solenoid valves and fertigation units to prevent waste
Profile Moisture & EC Sensing
SenseCAP soil sensors monitor volumetric water content (0-100% ±3%), temperature, and EC (0-20000 µS/cm).
Precision Fertigation Interlock
Soil moisture thresholds trigger solenoid valves and fertigation units locally for variable rate irrigation.
Greenhouse Microclimate Synergy
Soil moisture and air temp/humidity collaborate to actuate fans, cooling pads, and shade curtains.
Agricultural Environment Monitoring
Ready to deployGreenhouse Microclimate
Pain Points & Challenges
Greenhouse microclimates fluctuate rapidly; manual inspections and scheduled venting lag behind climate shifts, while persistent high humidity or CO₂ deficiency triggers powdery mildew and gray mold, causing catastrophic yield loss.
Edge AI Solution
Deploy greenhouse sensors for temp, humidity, light, and CO2, driving edge controllers to actuate fans, cooling pads, and shade curtains on site.
Core Advantages
- Multi-Parameter: Real-time monitoring of temp, humidity, light, and CO2 for greenhouse control
- Offline Control: Edge controllers execute logic locally, operating fans and shades without internet
- Instant Alerts: Sends alerts instantly when climate metrics breach limits to prevent mold and rot
Greenhouse Climate & CO₂ Telemetry
Industrial sensors accurately track temperature, humidity, illuminance, and CO₂ concentrations to optimize crop photosynthesis.
Closed-Loop Fan & Shade Control
Automatically trigger exhaust fans and cooling pads during heat spikes and deploy shading screens under excessive irradiance.

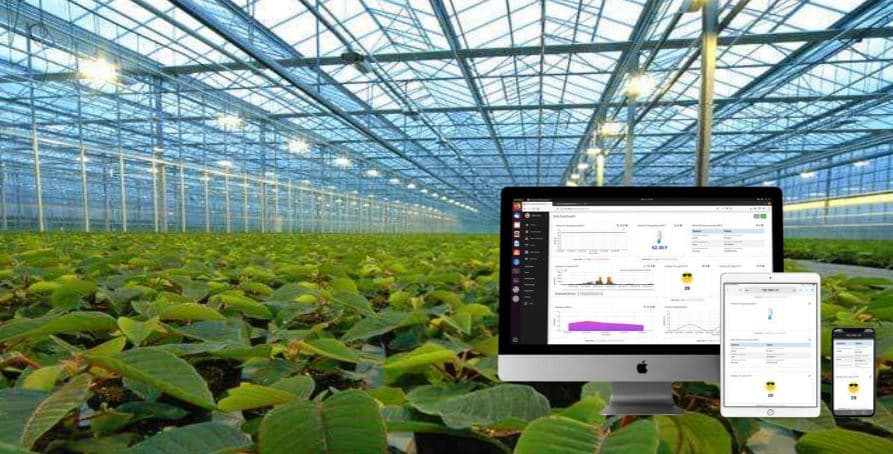

Multi-Greenhouse Central Dashboard
Centrally visualize climate curves and equipment operating statuses across multiple greenhouses to guide precision agronomy.
Agricultural Environment Monitoring
Ready to deployDeployment & Hardware Selection
Select agricultural devices based on environmental conditions and network availability.
Not sure which to choose? View Full Selection Guide →
Scenario
Configure Your Solution
Pick scenario, comms & power to generate a BOM
Urban Microclimate
Outdoor weather for aviation, grid O&M & light poles
硬件/物料名称 数量 型号/SKU 说明 SenseCAP S500 5-in-1 Weather Station (temp/humidity, pressure, wind speed & direction; RS485/SDI-12) 1 101991021 - Building & Livestock
Environmental monitoring for livestock, HVAC & greenhouses
硬件/物料名称 数量 型号/SKU 说明 SenseCAP S2103 LoRaWAN CO₂ / Temperature & Humidity Sensor 1 114992869 - SenseCAP S2105 LoRaWAN Soil Sensor (moisture, temperature, EC) 1 114992871 - SenseCAP M2 Indoor LoRaWAN Gateway 1 114992982 - Aquaculture & Water
Water quality for fish/shrimp ponds & wastewater
硬件/物料名称 数量 型号/SKU 说明 Industrial Turbidity Sensor (RS485) 1 101990793 - Industrial Dissolved Oxygen Sensor (RS485) 1 314990633 - SenseCAP S2100 Data Logger 1 114992872 - SenseCAP M2 Indoor LoRaWAN Gateway 1 114992982 -
Deployment Architecture
Integrated Sensing & Dual Backhaul
Deploy rugged weather stations and soil sensors connected via 10km LoRaWAN or 4G data loggers, powered by solar systems sustaining 15 cloudy days.
Core Advantages
- 15-Day Solar: Solar power system sustains 15 consecutive rainy days without grid power
- 10km LoRaWAN: 10km line-of-sight range covers expansive farmlands and distributed greenhouses
- Standard Buses: Modbus-RTU and open API/MQTT interface directly to irrigation valves and platforms
| Image | Product | Measurements | IP Rating |
|---|---|---|---|
 | S200 Wind Speed and Direction Sensor | wind speed 0~60 m/s (standard), 0~75 m/s (extended) wind direction 0~360° | IP66 |
 | S500 5-in-1 Compact Weather Station | temperature / humidity / barometric_pressure / wind_speed / wind_direction | IP66 |
 | S800 8-in-1 Compact Weather Station | air temperature / relative humidity / barometric pressure / wind speed / wind direction / PM2.5 / PM10 / noise | IP65 |
 | S1000 V2 10-in-1 Compact Weather Sensor | temperature / humidity / barometric pressure / light intensity / rainfall / wind speed / wind direction / PM2.5 / PM10 / CO2 | IP66 |
 | S700 V2 7-in-1 Compact Weather Station | air temperature / relative humidity / barometric pressure / light intensity / rainfall / wind speed / wind direction | IP66 |
 | S700-A 7-in-1 Compact Weather Station-Radar Rain | air temperature / relative humidity / barometric pressure / wind speed / wind direction / rainfall intensity (radar) / light intensity | IP66 |
 | S700-B 7-in-1 Compact Weather Station with Station-Solar Radiation | air temperature / relative humidity / barometric pressure / precipitation intensity (optical) / wind speed / wind direction / global solar radiation / sunshine duration | IP66 |
 | S700-C 7-in-1 Compact Weather Station (Solar Radiation & Radar Rain) | air temperature / relative humidity / barometric pressure / rain intensity (radar) / wind speed / wind direction / global solar radiation / sunshine duration | IP66 |
 | S2120 8-in-1 Weather Sensor | air temperature / humidity / wind speed / wind direction / rainfall / light intensity / UV index / barometric pressure |
Weather Stations
Pick Wire-free Stations by Parameters
Single mast integrates wind, temp, humidity, pressure, light, and rain up to 10 parameters with IP66 all-weather protection.
Core Advantages
- Integrated Mast: Integrates wind speed/dir, barometric pressure, solar, and rainfall parameters
- No Wire Setup: Wireless LoRaWAN transmits 10km line-of-sight, reducing mast cabling costs
- IP66 Rating: All-weather IP66 enclosure with lightning and salt-spray protection runs at -40 to 85°C
| Image | Product | Measurements | Connectivity | IP Rating |
|---|---|---|---|---|
 | Industrial Soil Moisture & Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02A) | soil_moisture 0~100% saturation temperature -40~80C EC 0~10000 μs/cm | RS485, MODBUS-RTU | IP68 |
 | S2106 pH Sensor | pH 0~14 pH | LoRaWAN, BLE | IP66 |
 | S2108 Soil Moisture, Temperature and Pore EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C pore_EC 0~20 ms/cm (Bulk), 0~32 ms/cm (Pore) | LoRaWAN, BLE | IP66 |
 | S2101 Air Temperature and Humidity Sensor | temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2102 Light Intensity Sensor | light intensity 0~160000 lux | LoRaWAN, BLE | IP66 |
 | S2103 CO2, Temperature, and Humidity Sensor | CO2 400~10000ppm temperature -40~85C humidity 0~100%RH | LoRaWAN, BLE | IP66 |
 | S2105 Soil Moisture, Temperature and EC Sensor | soil_moisture 0~100% (m³/m³) temperature -40~80C EC 0~23 dS/m | LoRaWAN, BLE | IP66 |
 | S2107 Temperature Sensor with PT1000 | temperature -50~300°C | LoRaWAN | IP66 |
Field Sensors
Rugged Soil Probes Selection
SenseCAP soil sensors buried in root zones monitor volumetric water content (0-100% ±3%) and EC (0-20000 µS/cm).
Core Advantages
- Anti-Corrosion: Stainless steel pins resist soil acid/alkali corrosion for years underground
- High Accuracy: Volumetric water content 0-100% ±3% and EC 0-20000 µS/cm precision measurement
- 3-5 Yr Lifespan: Built-in Li-SOCl2 battery with low-power LoRaWAN enables 3-5 years operation
| Image | Product | Core Positioning | Uplink |
|---|---|---|---|
 | S2100 Data Logger | Sensor Data Logger | LoRaWAN |
 | Sensor Hub 4G Data Logger | 4G Sensor Hub | 4G Cellular |
 | SenseCAP M2 Indoor Gateway | Indoor LoRaWAN Gateway | Ethernet / Wi-Fi / 4G |
 | SenseCAP Outdoor Gateway | Outdoor Rugged Gateway | Ethernet / 4G |
 | reComputer R1225 Edge Gateway | Industrial Edge Gateway | Dual GbE / 4G |
Loggers & Gateways
Wide Area Aggregation & Backhaul
Distributed nodes connect via 10km line-of-sight LoRaWAN to gateways, or directly via 4G data loggers.
Core Advantages
- 10km Coverage: 10km line-of-sight range covers expansive fields with hundreds of nodes per gateway
- Dual Modality: S2100 converts legacy Modbus sensors to wireless; 4G hubs connect directly
- Local Linking: Edge gateways support local MQTT and logic loops, actuating valves without internet

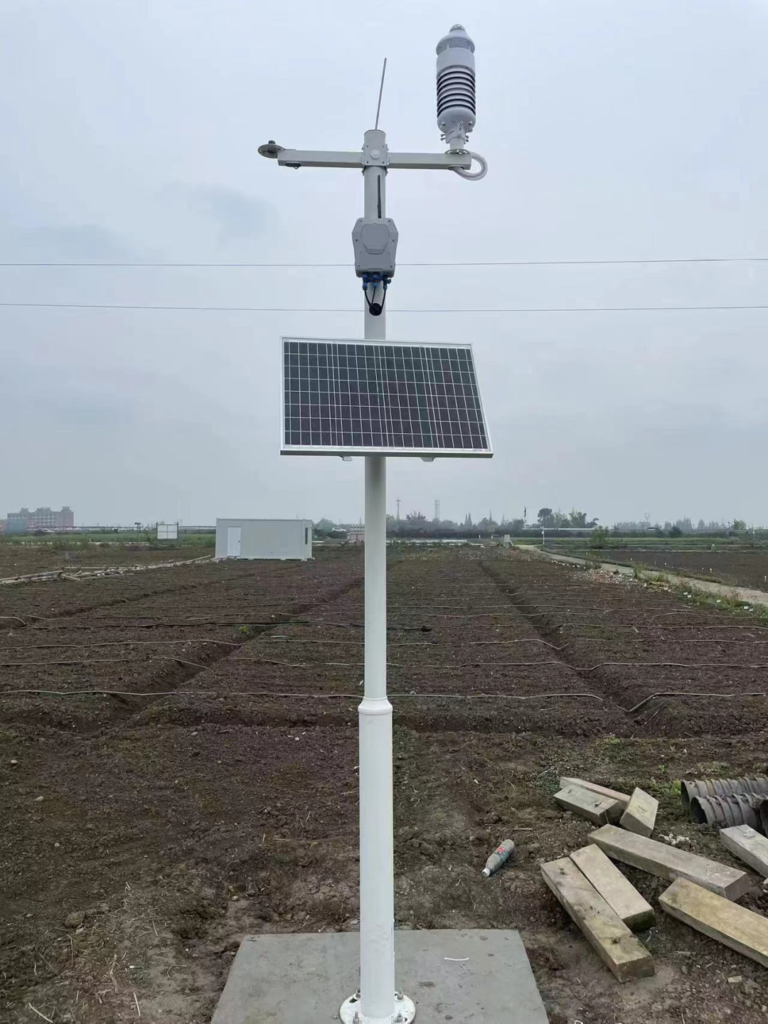

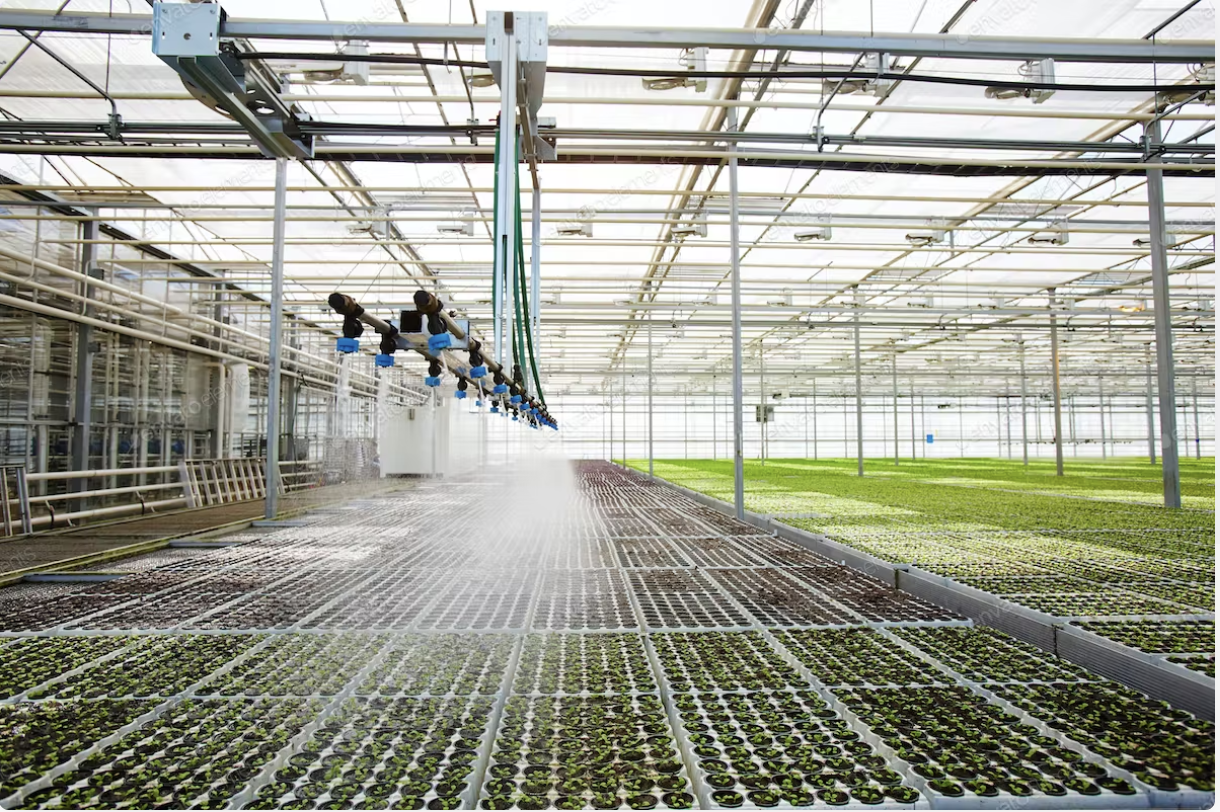

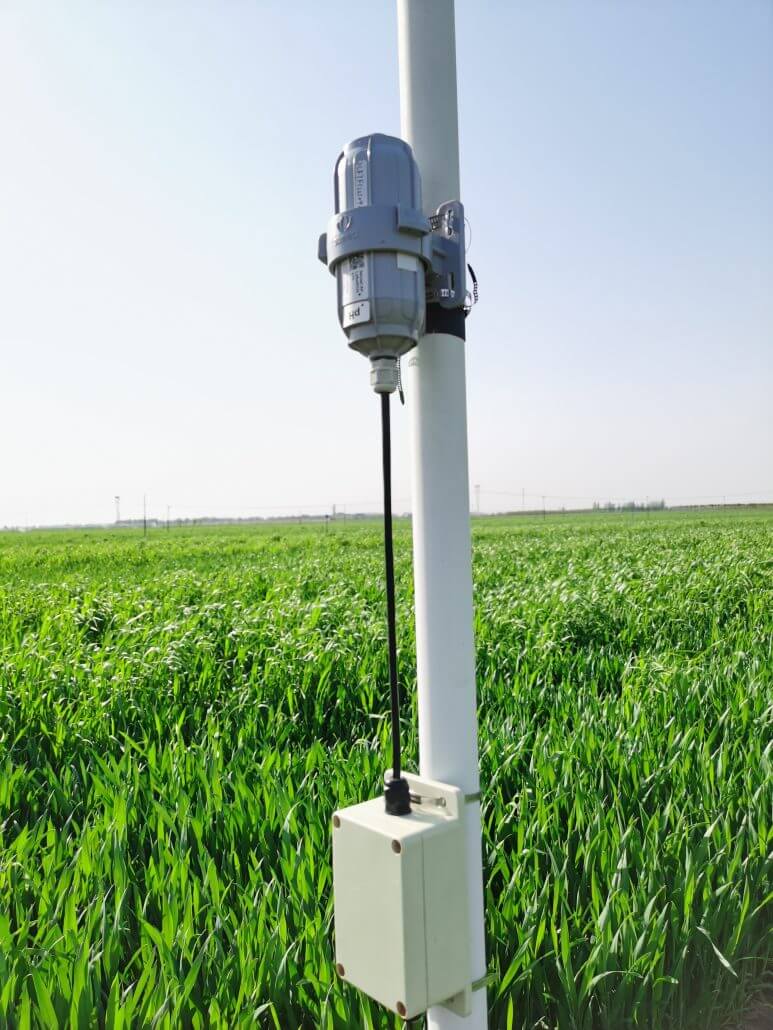

Success Cases
FAQ
No field power or network cabling required: SenseCAP sensors feature built-in Li-SOCl2 batteries lasting 3-5 years, while weather stations are backed by solar power supporting 15 consecutive rainy days. LoRaWAN transmits up to 10km line-of-sight to cellular 4G outdoor gateways.
They can. Devices are IP66-rated with a -40°C to 85°C operating range, engineered for high-UV, heavy-rain, dusty outdoor conditions — industrial-grade, not consumer products. Includes a 1-year hardware warranty and 1 year of technical support.
Yes. Sensors are wiring-free — stake them in, then finish setup in a few steps via the phone app over Bluetooth. Daily temperature, humidity, soil moisture, and alerts show right on the phone or data platform — no IT background needed. Many cooperatives and farms run it themselves, including one that helped northern greenhouses grow tropical fruit.
Both work. Data lands in the SenseCAP data platform by default, with dashboards and alerts out of the box; API / MQTT interfaces also let you feed weather and soil data into your own farm-management platform or regional digital-agriculture systems — data ownership and usage stay with you.
Probes should be installed vertically at crop root depth (e.g. 20cm or 40cm), with cables routed through PVC protective conduit to surface nodes along field ridges, well clear of tractor tilling and subsoiling paths.
Yes. Irrigation thresholds and scheduled cycles are stored in the local rule engine of the edge gateway. Even during network outages, the gateway continues autonomous closed-loop valve and curtain actuation based on local telemetry.
Yes. The Seeed devices used in this solution can be customized with your own logo, enclosure, packaging and pre-loaded firmware, and existing models can be adapted to add or drop interfaces and features. See Customization Service for scope and process, or .
